House Plan 337 Windstone Place, Village at Windstone II House Plan

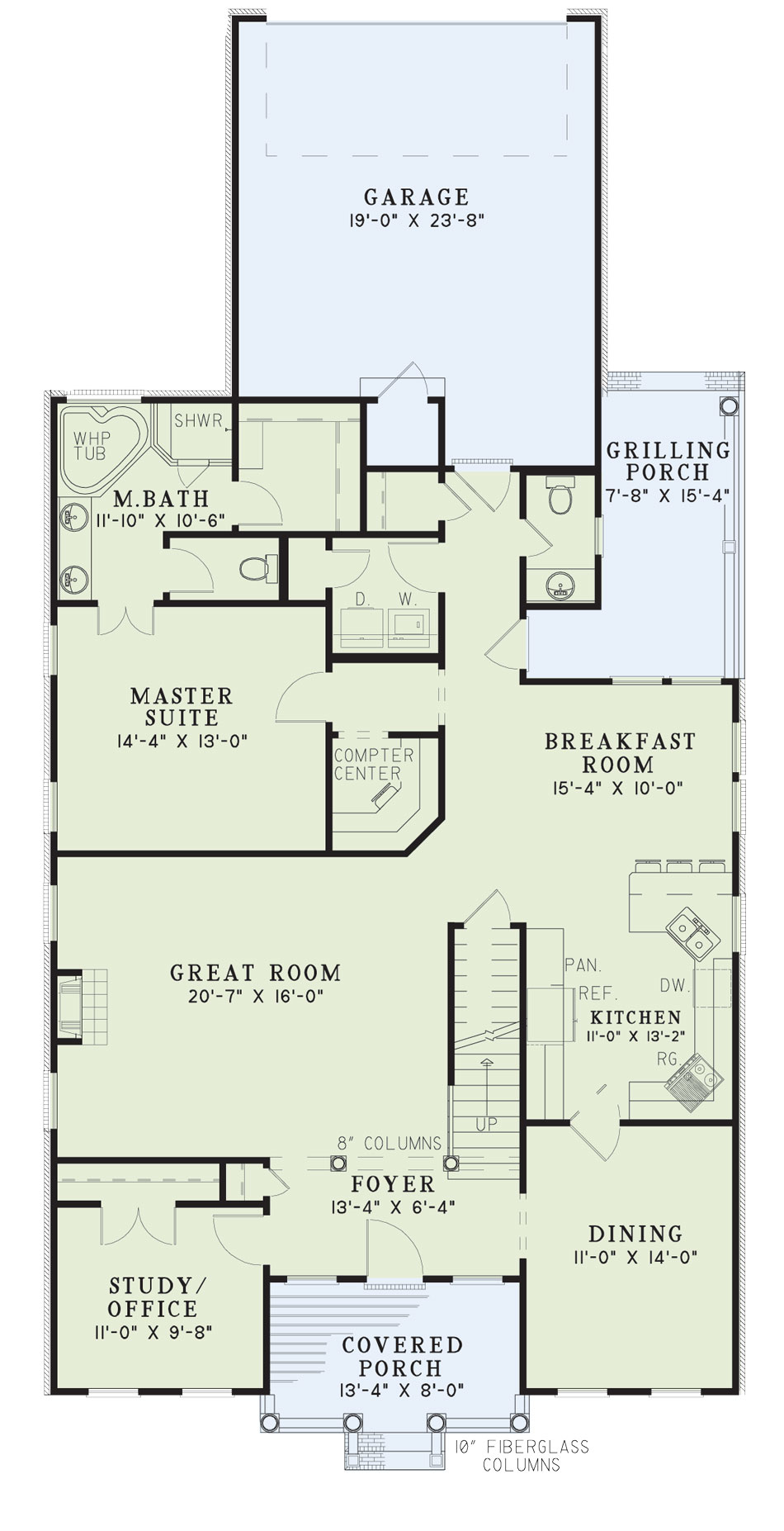

House Plan NDG 337 Main Floor

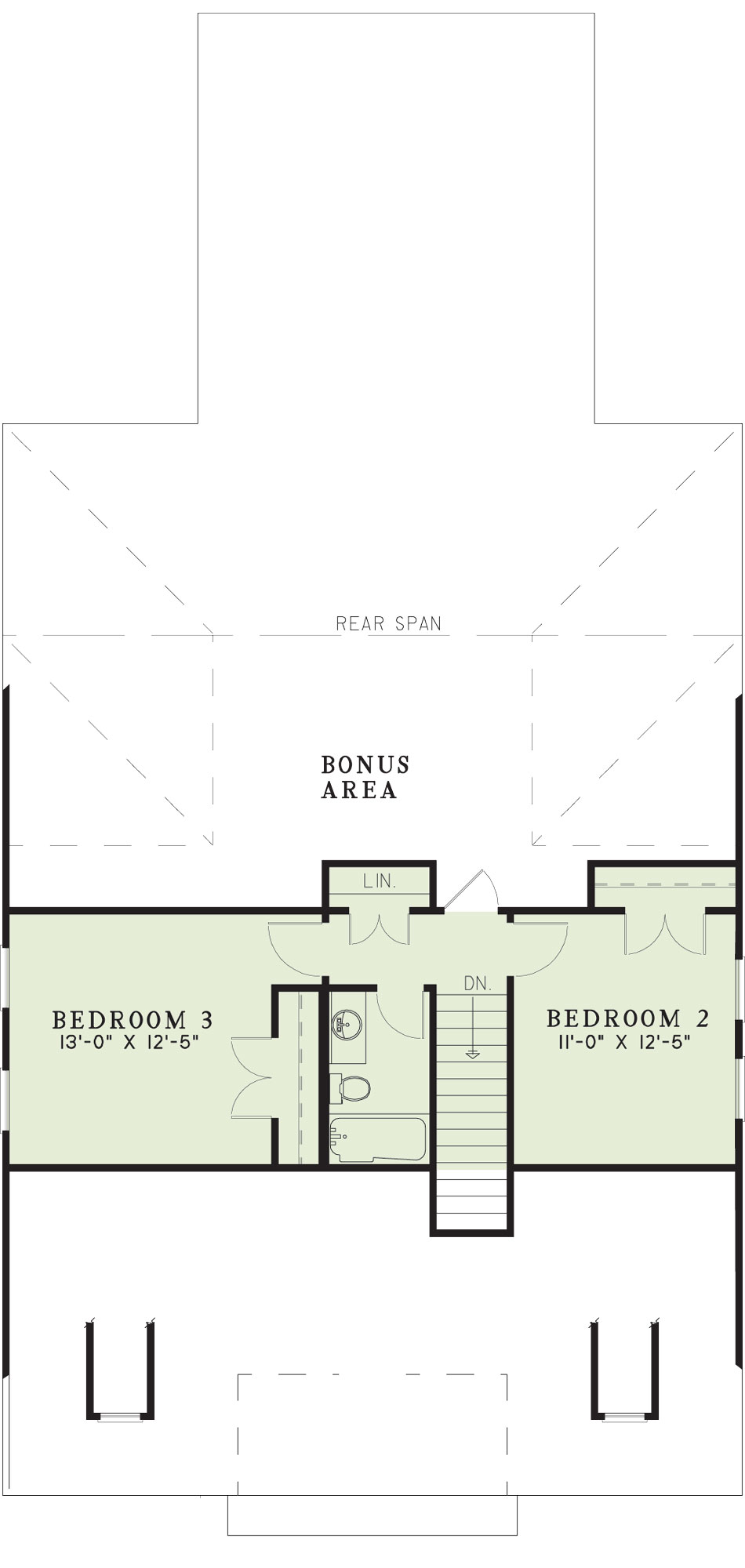

House Plan NDG 337 Upper Floor

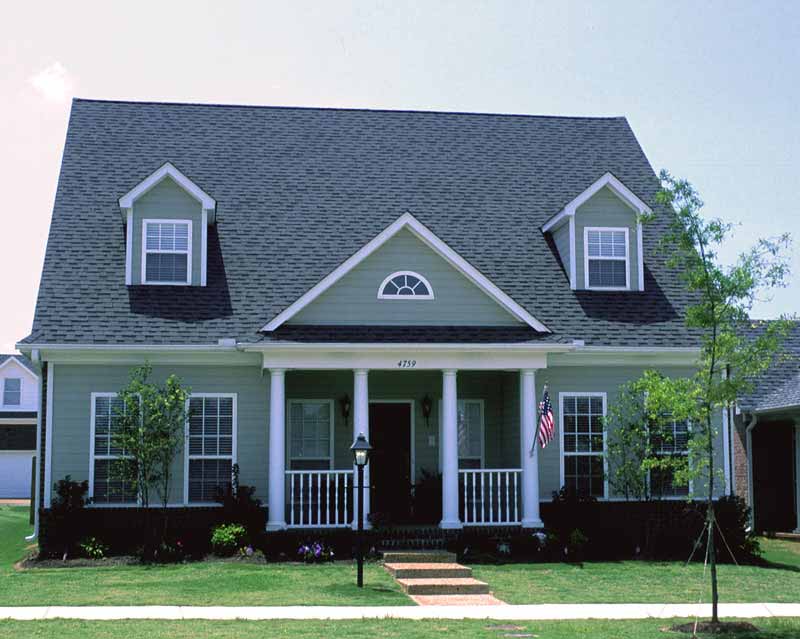

House Plan - NDG337 Front Front View>
House Plan NDG 337 Main Floor
House Plan NDG 337 Upper Floor
House Plan - NDG337 Front Front View

Floor plans

NDG 337

House Plan 337 Windstone Place, Village at Windstone II House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 337
  • Total Living Space:2140Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 36
  • Width In.: 8
  • Depth Ft.: 75
  • Depth In.: 6

Description

Stepping onto the covered entry porch and through the main floor of this home, you’ll instantly feel the grandeur of traditional southern style. Enjoy hours of family entertainment in your huge great room adjacent to a formal dining room- perfect for elegant parties or casual gatherings. A convenient swinging door allows access from the dining room to a wonderful kitchen area, providing ultimate ease in the preparation and presentation of your favorite meals. After a long day, retreat to a secluded master suite, while the kids enjoy two spacious bedrooms on the upper floor. An upstairs bonus area can be easily converted to an extraordinary game room or quiet study space.

Specifications

  • Total Living Space:2140Sq.Ft.
  • Main Floor: 1690 Sq.Ft
  • Upper Floor (Sq.Ft.): 450 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 235 Sq.Ft.
  • Garage (Sq.Ft.): 450 Sq.Ft.
  • Total Square Feet: 2825 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
