House Plan 318 Windstone Place, Village at Windstone I House Plan

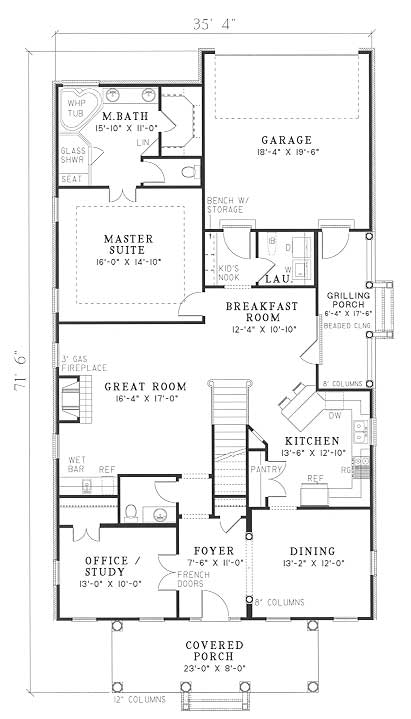

House Plan NDG 318 Main Floor

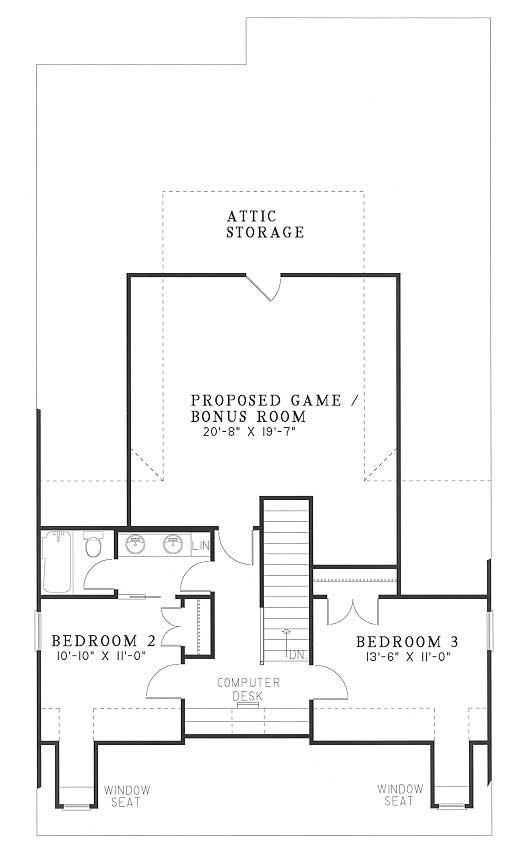

House Plan NDG 318 Upper Floor

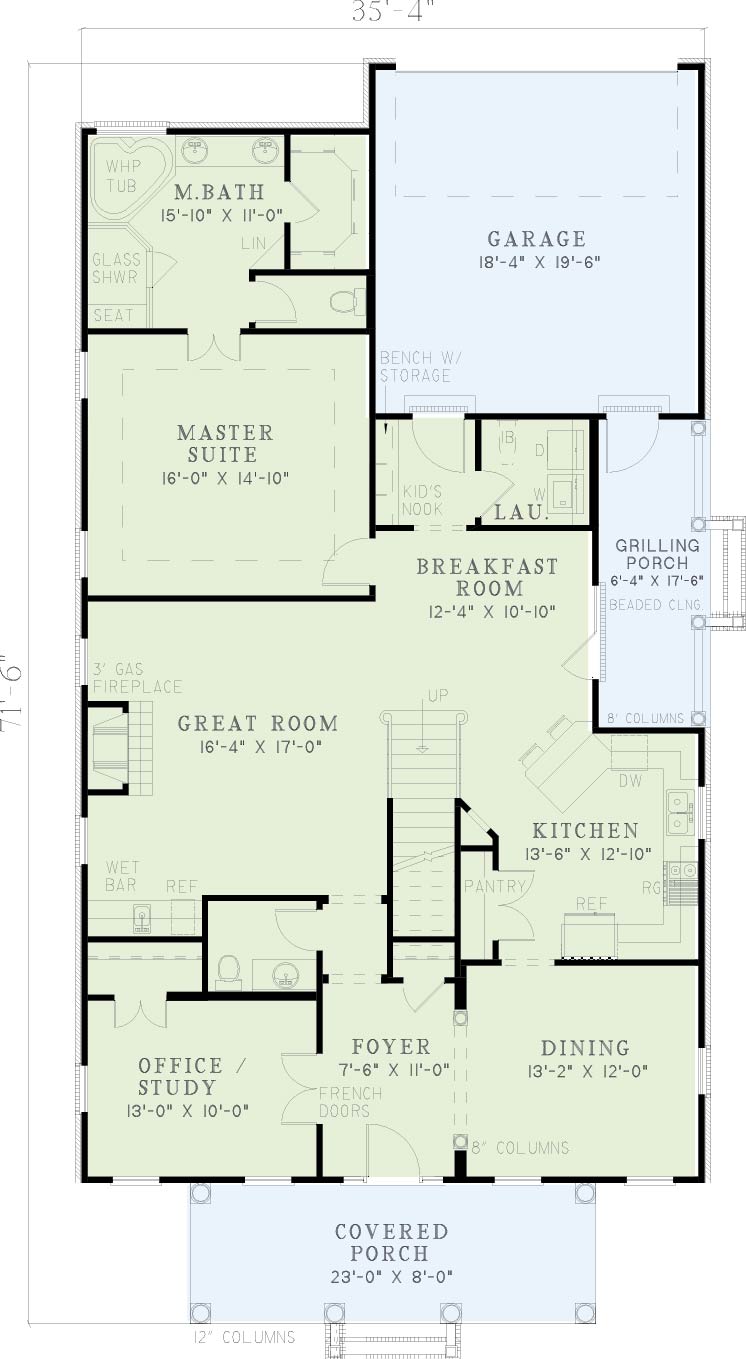

House Plan NDG 318 Main Floor

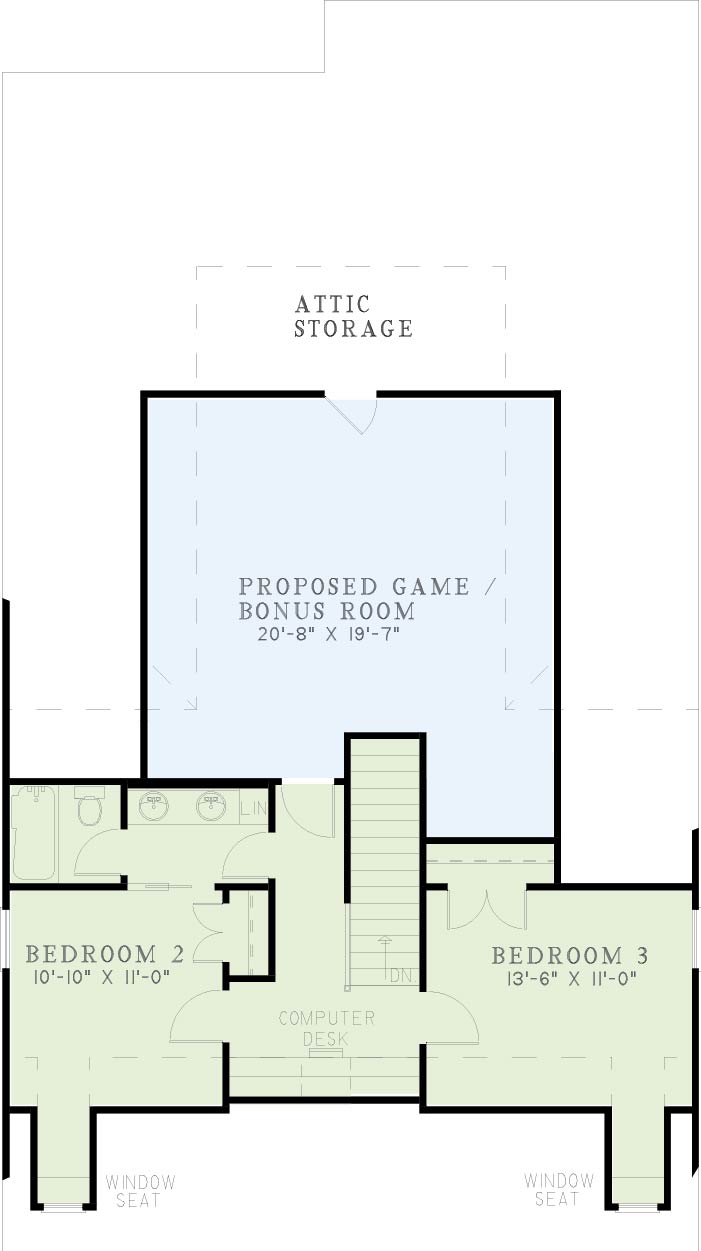

House Plan NDG 318 Upper Floor

Floor plans

NDG 318

House Plan 318 Windstone Place, Village at Windstone I House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 318
  • Total Living Space:2231Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 35
  • Width In.: 4
  • Depth Ft.: 71
  • Depth In.: 6

Description

Pamper yourself with Southern charm when you select this home. Become instantly immersed in tradition as you step into an elegant foyer designed with an open entrance to the formal dining room. Brilliant French doors open to a private study for late night work or quiet time with your favorite book. Enjoy romantic nights in front of a roaring fire while you sip drinks from the built-in wet bar in the great room. Plan a fun cookout and show off your famous barbecue skills while utilizing the side grilling porch. A spacious upper level with a bonus room- perfect for a game or study area- allows plenty of space for the kids to be kids.

Specifications

  • Total Living Space:2231Sq.Ft.
  • Main Floor: 1698 Sq.Ft
  • Upper Floor (Sq.Ft.): 533 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 394 Sq.Ft.
  • Porch (Sq.Ft.): 289 Sq.Ft.
  • Garage (Sq.Ft.): 373 Sq.Ft.
  • Total Square Feet: 3287 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
