House Plan 309 Windstone Place, Village at Windstone I House Plan

House Plan 309 Windstone Place, Village at Windstone I House Plan

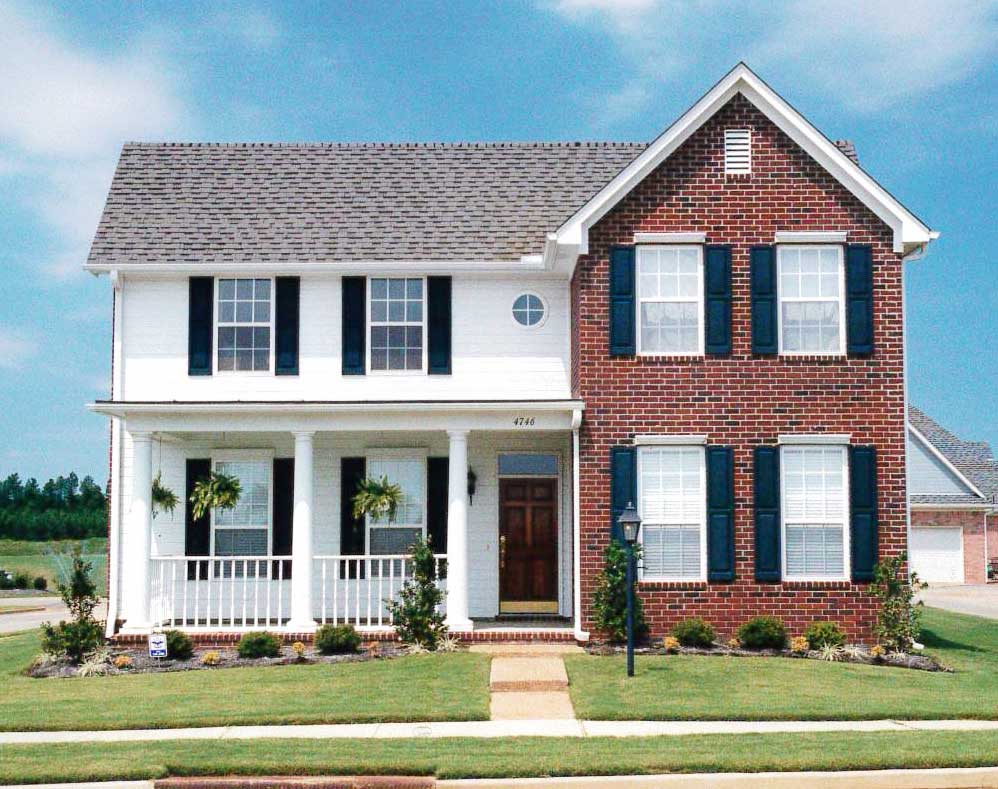

House Plan - 309 Front Exterior

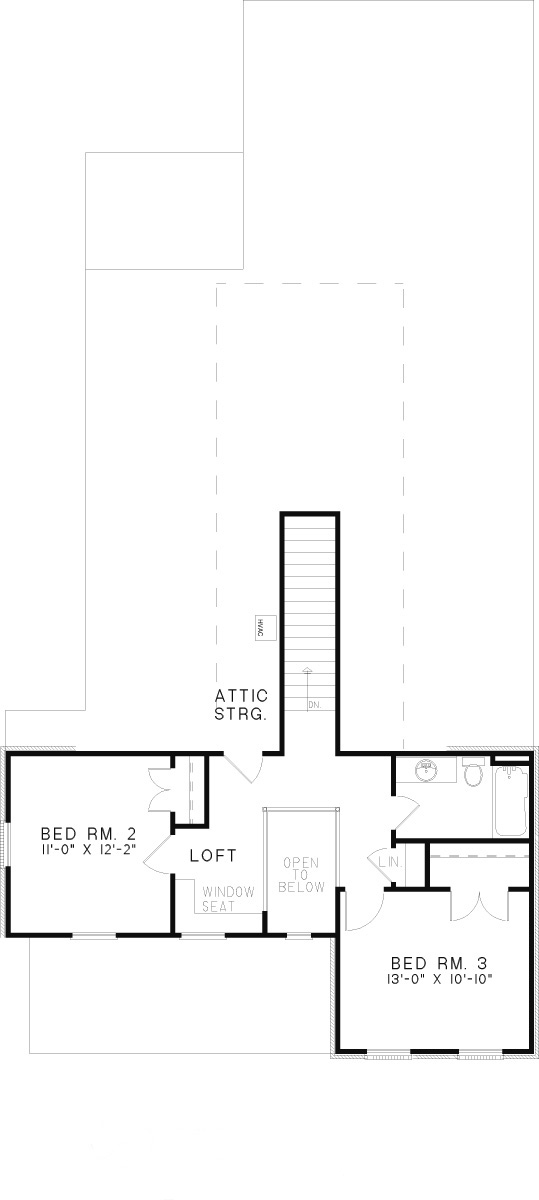

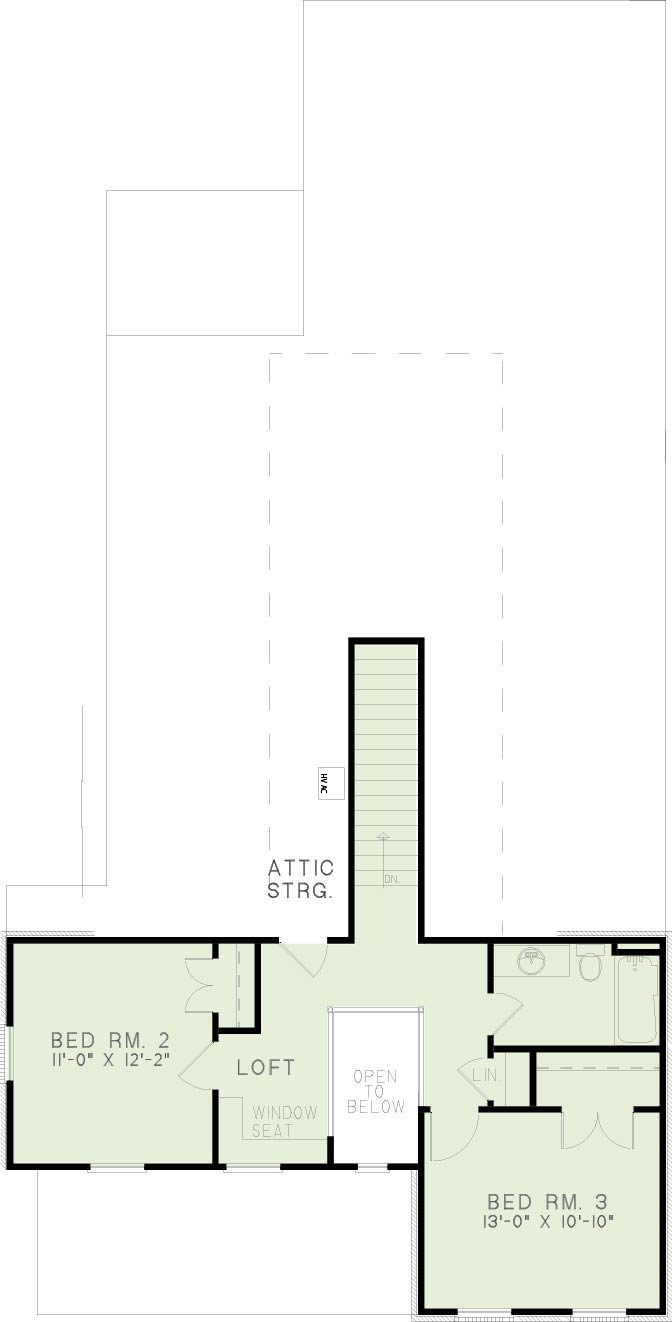

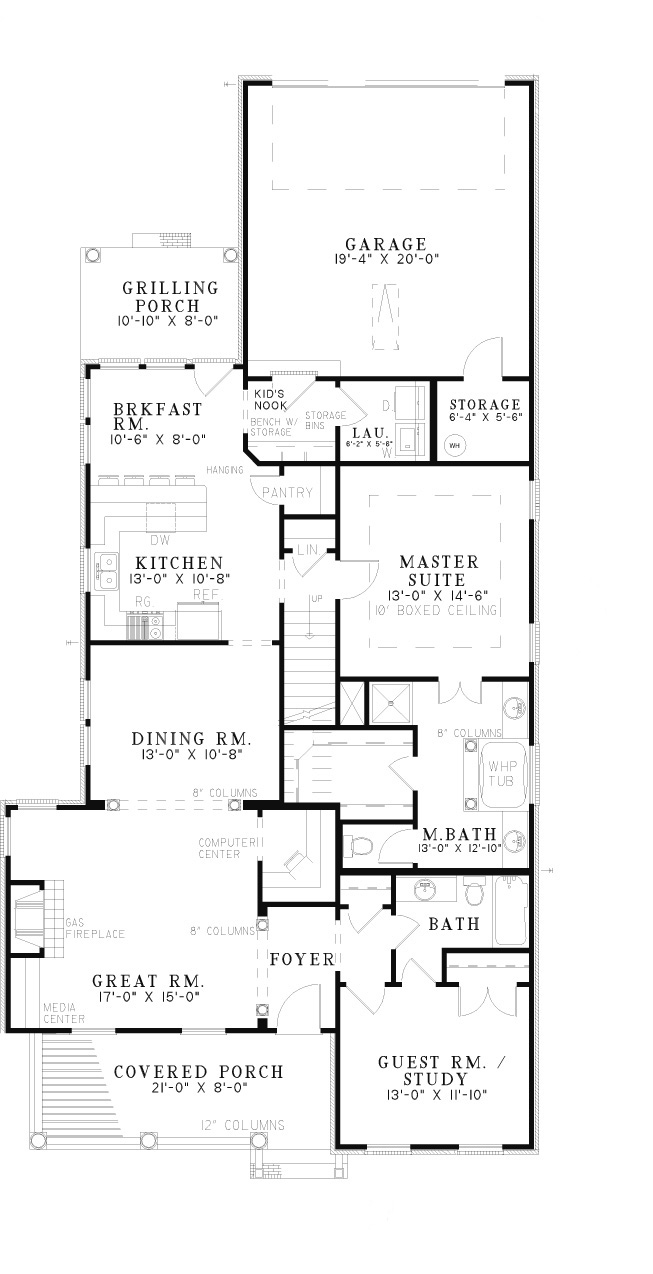

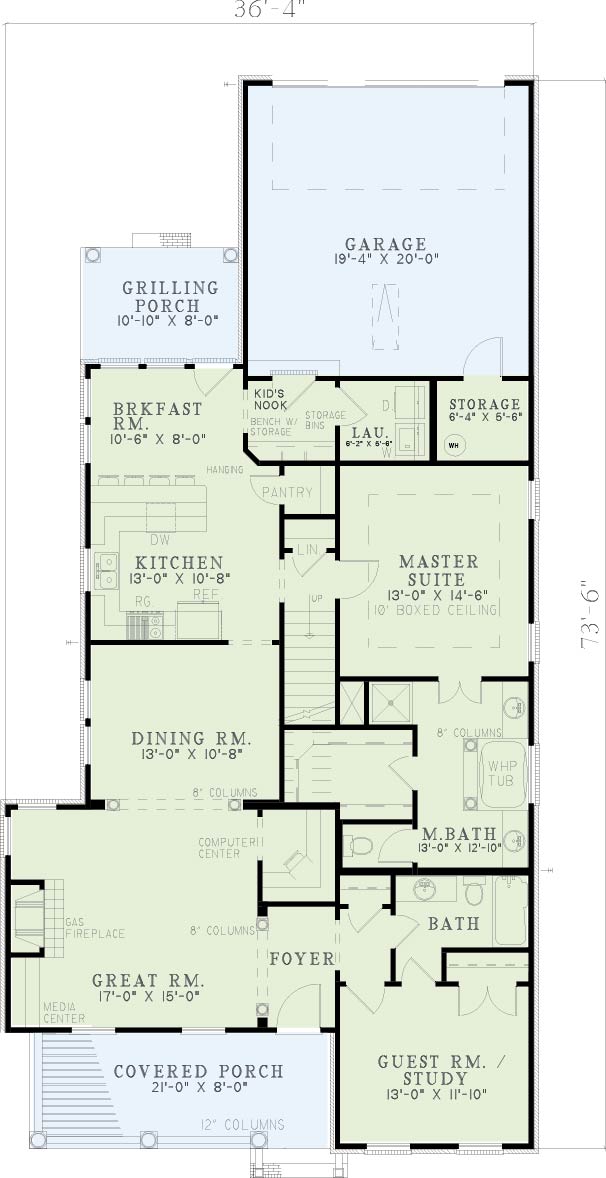

Floor plans

NDG 309

House Plan 309 Windstone Place, Village at Windstone I House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 309
  • Total Living Space:1987Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 36
  • Width In.: 4
  • Depth Ft.: 73
  • Depth In.: 6

Description

This traditional home is enhanced with historical southern style. After enjoying hours of relaxation on your covered front porch, retreat to the great room with gas fireplace and built-in media center. The formal dining area with elegant eight-inch wood columns is perfect for lovely dinner parties and quiet romantic evenings. A spacious kitchen and breakfast area open to a rear- covered grilling porch and kid’s nook. Travel upstairs and find two spacious bedrooms and loft with a balcony view.

Specifications

  • Total Living Space:1987Sq.Ft.
  • Main Floor: 1558 Sq.Ft
  • Upper Floor (Sq.Ft.): 429 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 253 Sq.Ft.
  • Garage (Sq.Ft.): 445 Sq.Ft.
  • Total Square Feet: 2685 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 11:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($800.00)
    • CAD ($1,600.00)
    • Five Set ($900.00)
    • PDF ($800.00)
    • PDF + Unlimited Build ($1,500.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Optional Basement ($299.00)
    • Optional Daylight Basement ($299.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
