House Plan 308 Windstone Place, Village at Windstone I House Plan

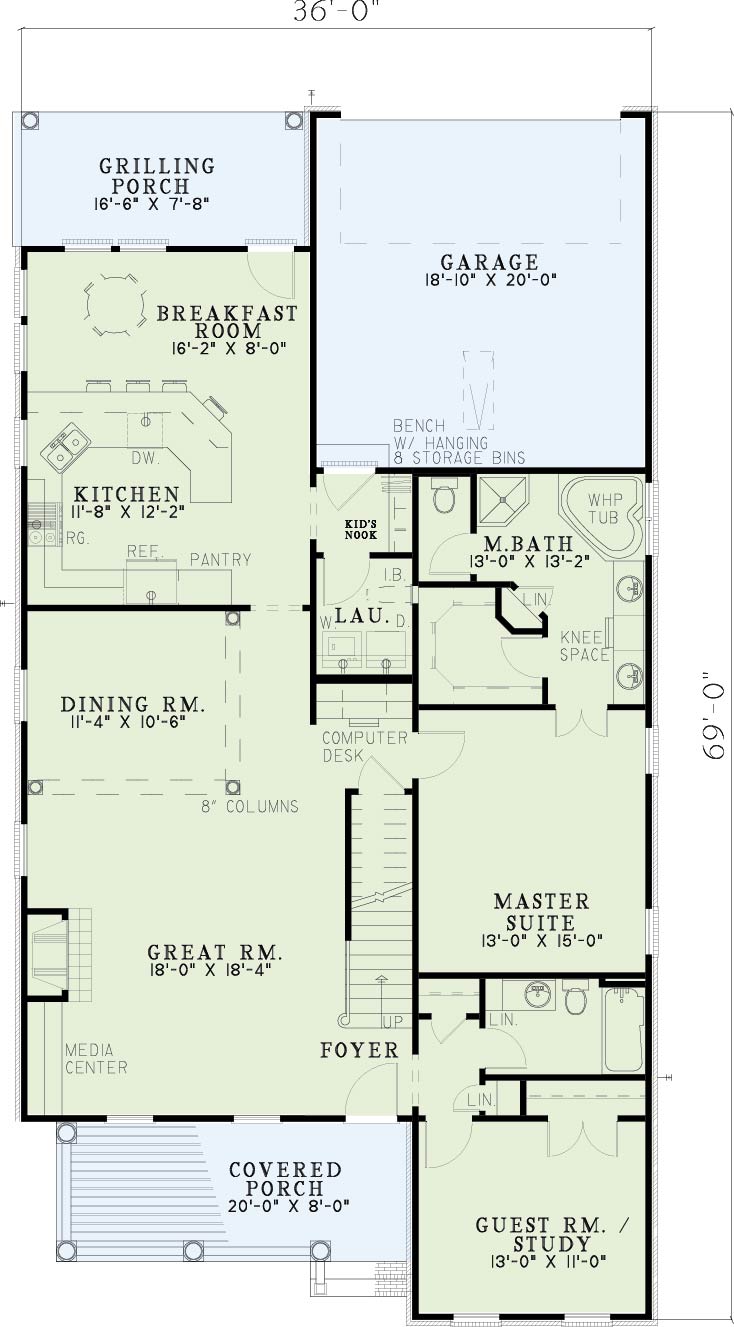

House Plan NDG 308 Main Floor

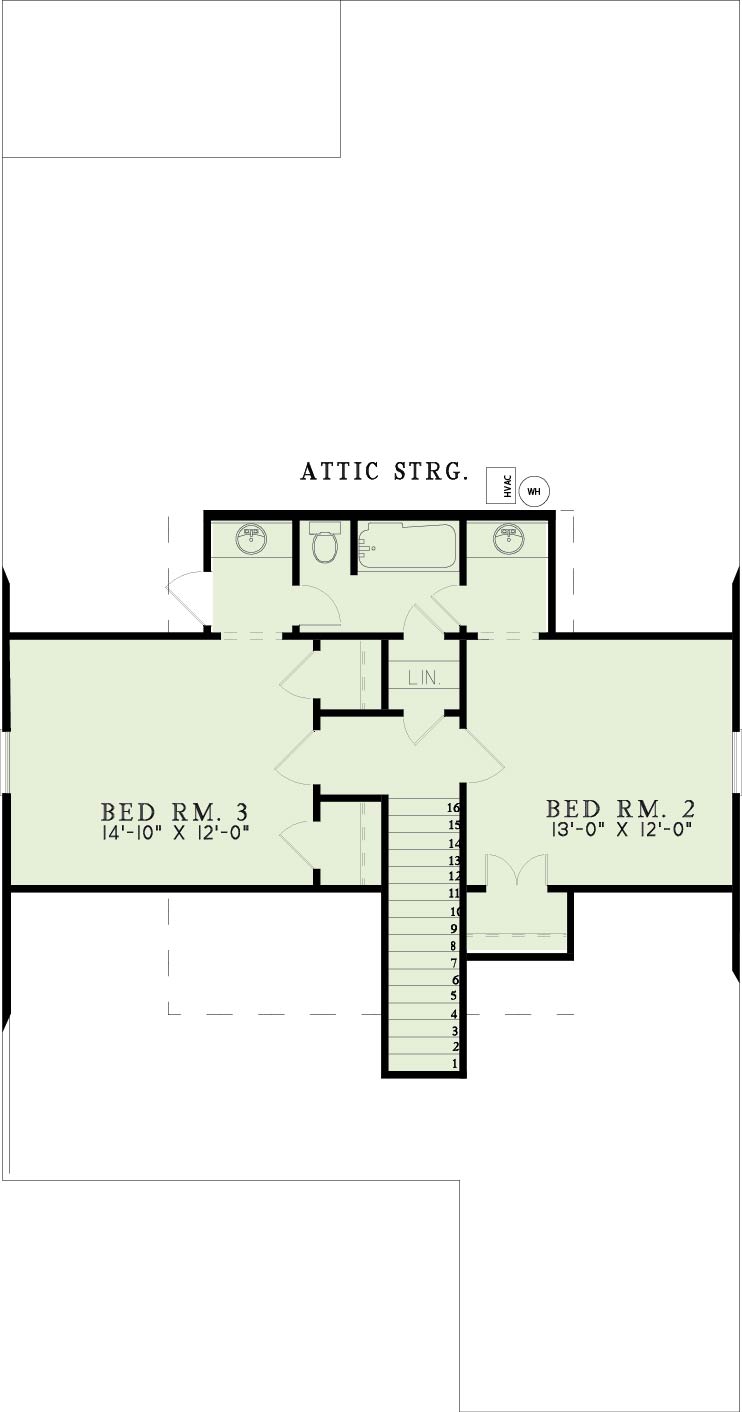

House Plan NDG 308 Upper Floor

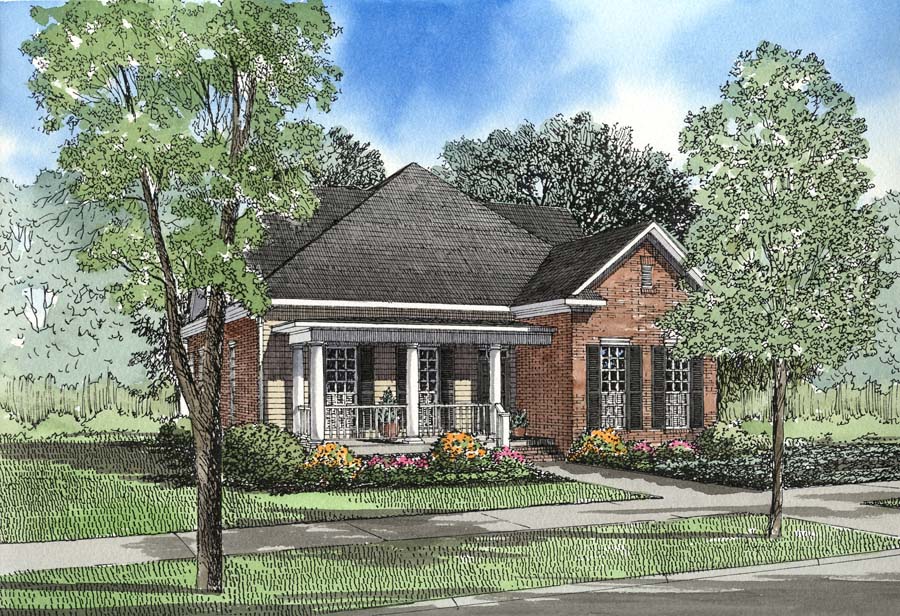

House Plan - NDG308 1 Front View>

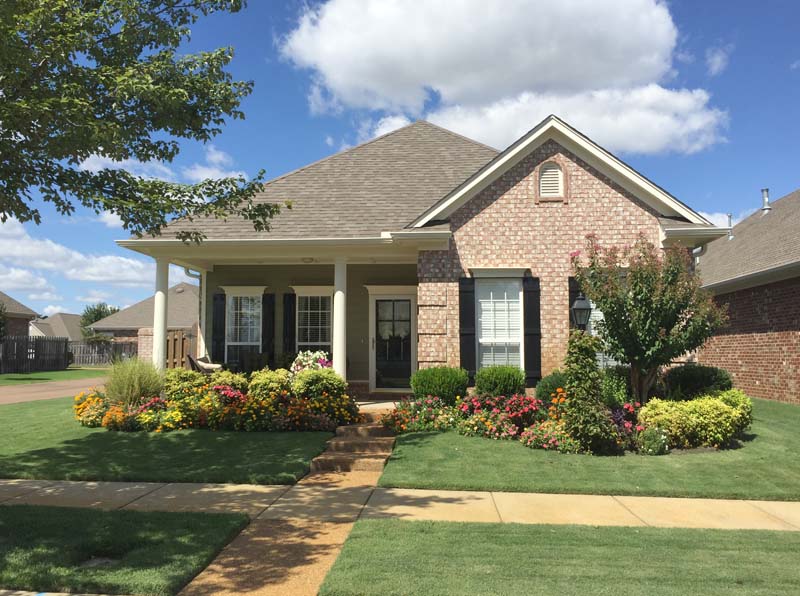

House Plan - NDG308 Front Front View>
House Plan NDG 308 Main Floor
House Plan NDG 308 Upper Floor
House Plan - NDG308 1 Front View
House Plan - NDG308 Front Front View

Floor plans

NDG 308

House Plan 308 Windstone Place, Village at Windstone I House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 308
  • Total Living Space:2252Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 36
  • Width In.: N/A
  • Depth Ft.: 69
  • Depth In.: N/A

Description

This is a perfect southern traditional home with an eight-foot covered entry porch for relaxing. Entertain friends with lemonade and conversation or move to the rear- grilling porch for an afternoon cookout, enhanced by convenient entry to the breakfast room and kitchen. A great room offers plenty of rainy day entertainment with gas fireplace and built-in media center. Attached is a formal dining area enhanced by eight inch wood columns. Open stairs from the foyer lead you up to the second floor. Eight foot ceilings create a pleasant openness in the upper two bedrooms, complete with walk-through bath.

Specifications

  • Total Living Space:2252Sq.Ft.
  • Main Floor: 1694 Sq.Ft
  • Upper Floor (Sq.Ft.): 558 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 289 Sq.Ft.
  • Garage (Sq.Ft.): 413 Sq.Ft.
  • Total Square Feet: 2954 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
