House Plan 293 Wellington Lane, Village at Wellington House Plan

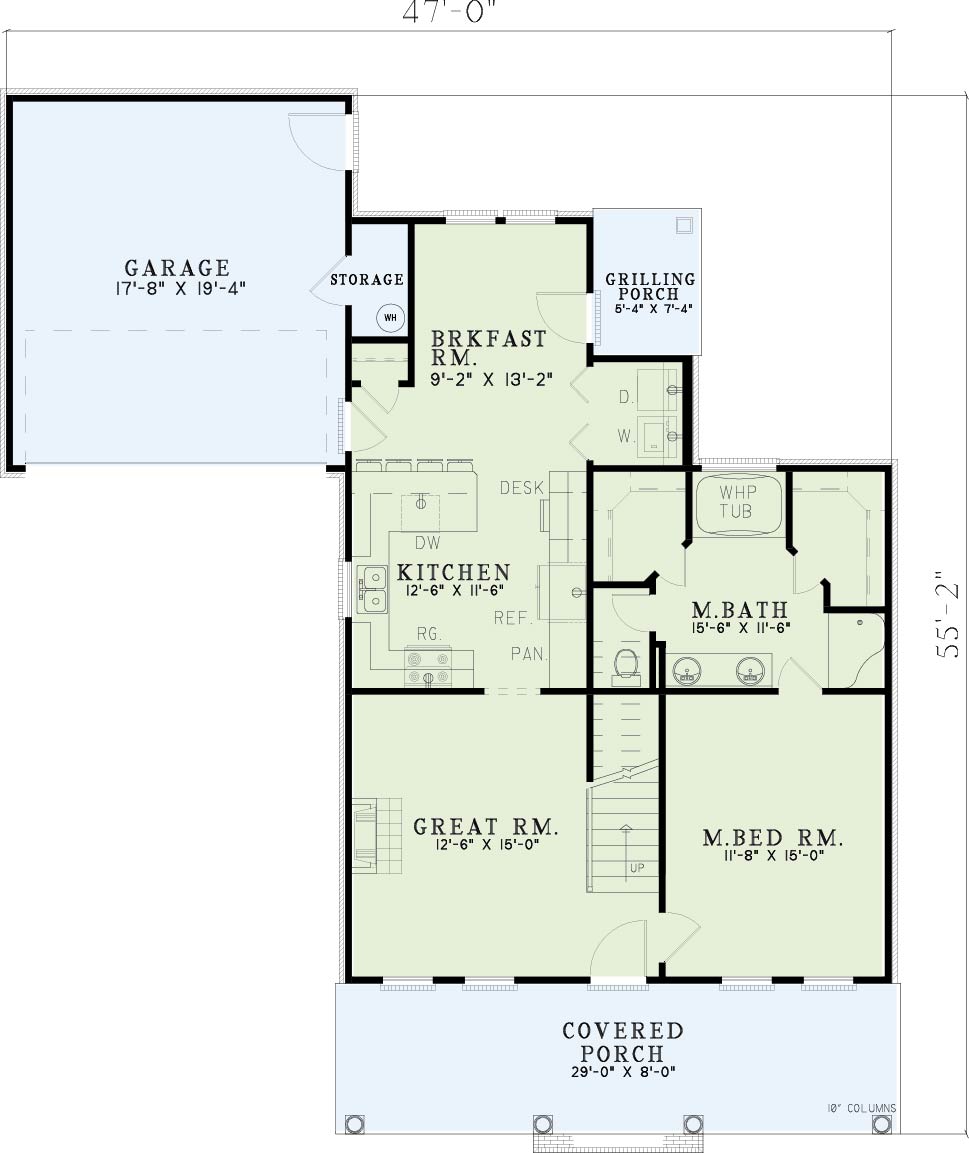

House Plan NDG 293 Main Floor

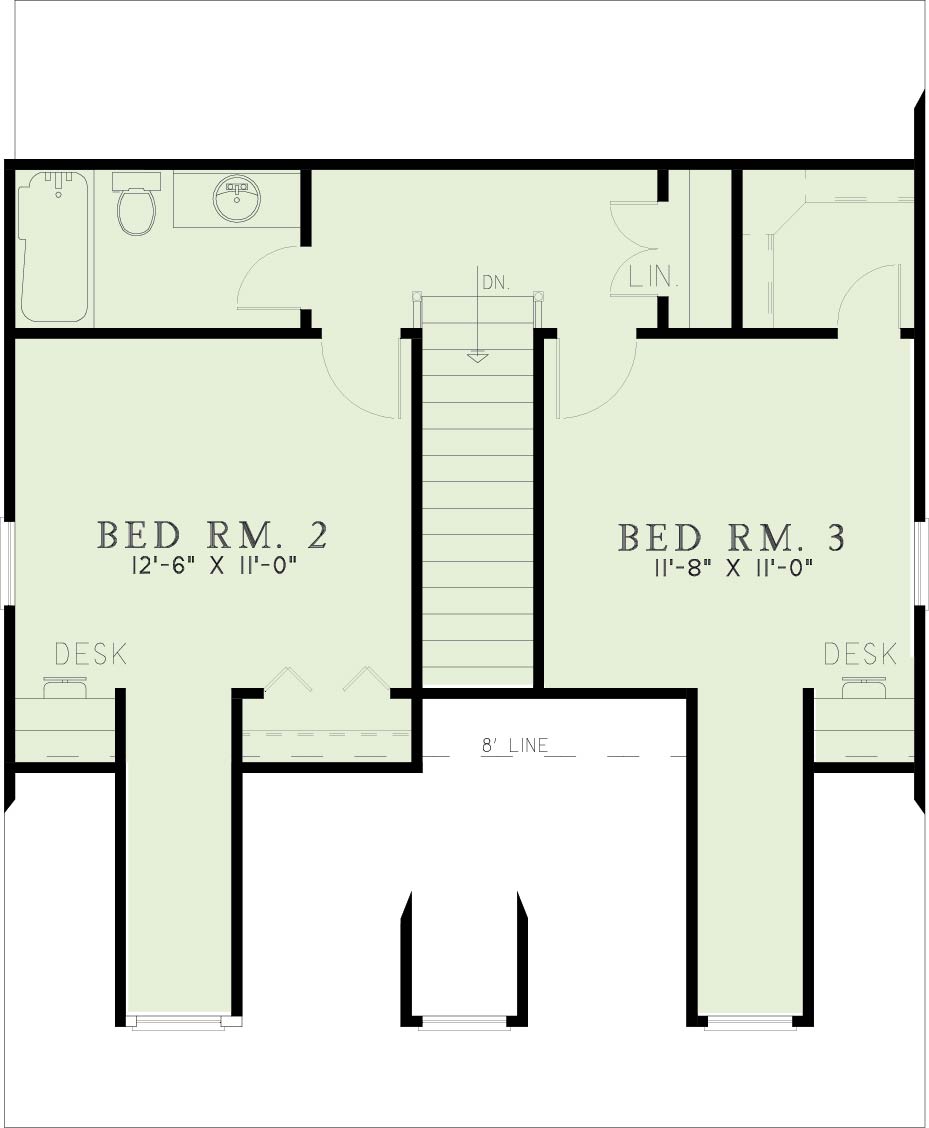

House Plan NDG 293 Upper Floor
House Plan NDG 293 Main Floor
House Plan NDG 293 Upper Floor

Floor plans

NDG 293

House Plan 293 Wellington Lane, Village at Wellington House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 293
  • Total Living Space:1541Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 47
  • Width In.: N/A
  • Depth Ft.: 55
  • Depth In.: 2

Description

A charming front porch attracts everyone in this traditional home. Entertaining will be easy on your convenient grilling porch which allows you to prepare dinner with ease. After dinner, your guest can gather in the spacious great room for games and laughter. After your guests leave, you can retire to your private master suite and bath which features an enticing whirlpool bath as well as ‘his and her’ walk-in closets. Upstairs, the children will be tucked away in their bedrooms.

Specifications

  • Total Living Space:1541Sq.Ft.
  • Main Floor: 980 Sq.Ft
  • Upper Floor (Sq.Ft.): 561 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 313 Sq.Ft.
  • Garage (Sq.Ft.): 342 Sq.Ft.
  • Total Square Feet: 2196 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x6
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 11
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
