House Plan 262 Olive Street, Country Home House Plan

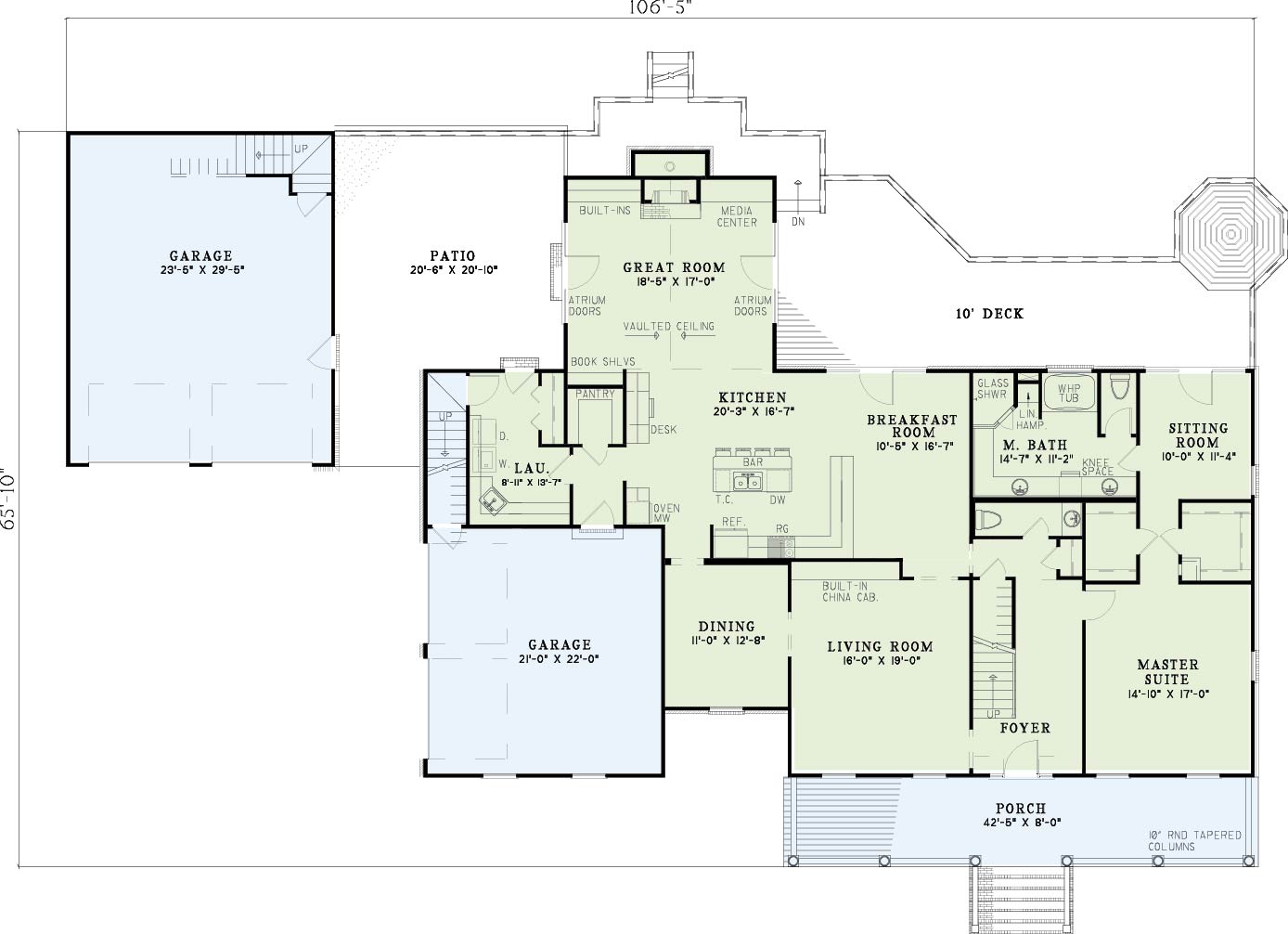

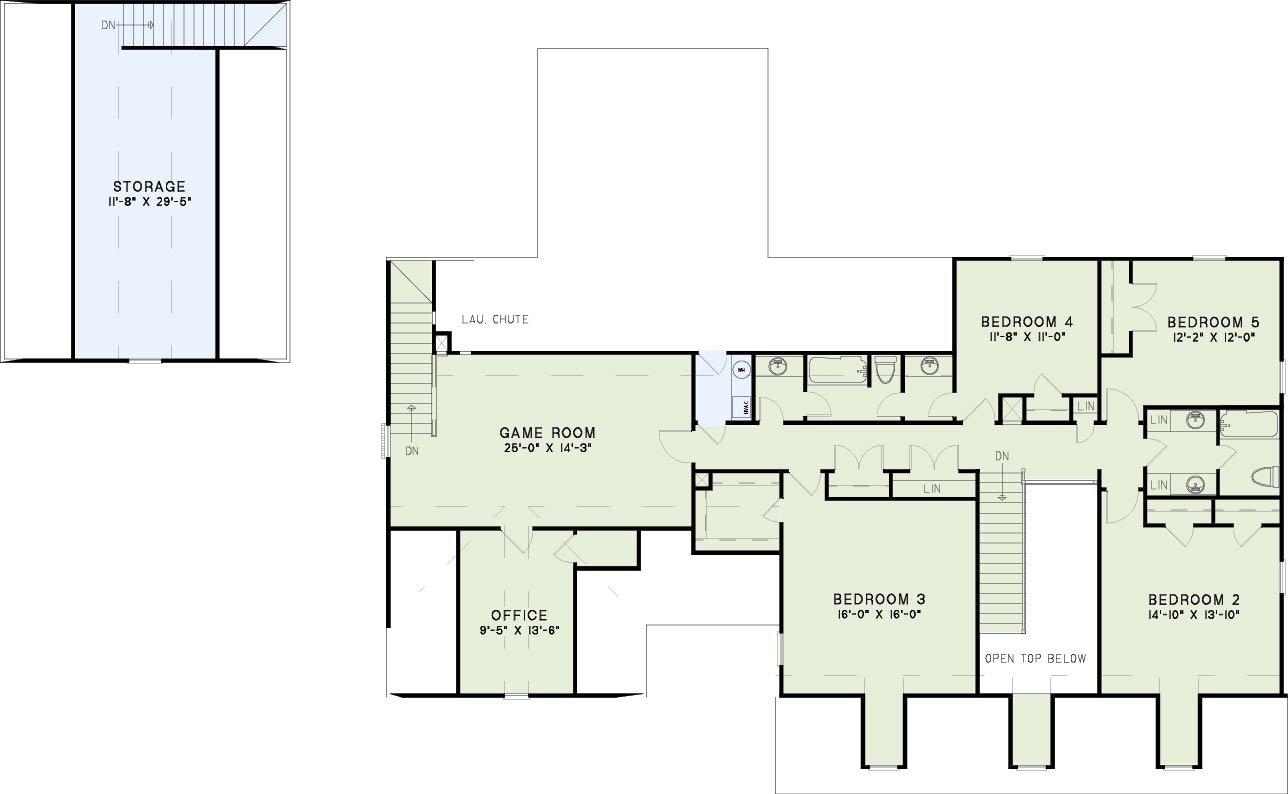

Floor plans

NDG 262

House Plan 262 Olive Street, Country Home House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 262
  • Total Living Space:4382Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 4 Bay Yes
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 106
  • Width In.: 5
  • Depth Ft.: 65
  • Depth In.: 10

Description

Dreams come true with this southern traditional home. Spend lazy afternoons on the front porch drinking iced tea with the neighbors. After a hard day at work, retreat to your master suite with a private sitting area that exits to the rear deck. As you prepare dinner, you can assist with homework assignments while the children make use of the advantageous built-in desk. After dinner relax in the great room before sending the kids upstairs for bed. A large recreational game room and convenient office complete the upstairs.

Specifications

  • Total Living Space:4382Sq.Ft.
  • Main Floor: 2500 Sq.Ft
  • Upper Floor (Sq.Ft.): 1882 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 339 Sq.Ft.
  • Garage (Sq.Ft.): 1151 Sq.Ft.
  • Total Square Feet: 5872 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
