House Plan 237 Dogwood Avenue, French Traditional House Plan

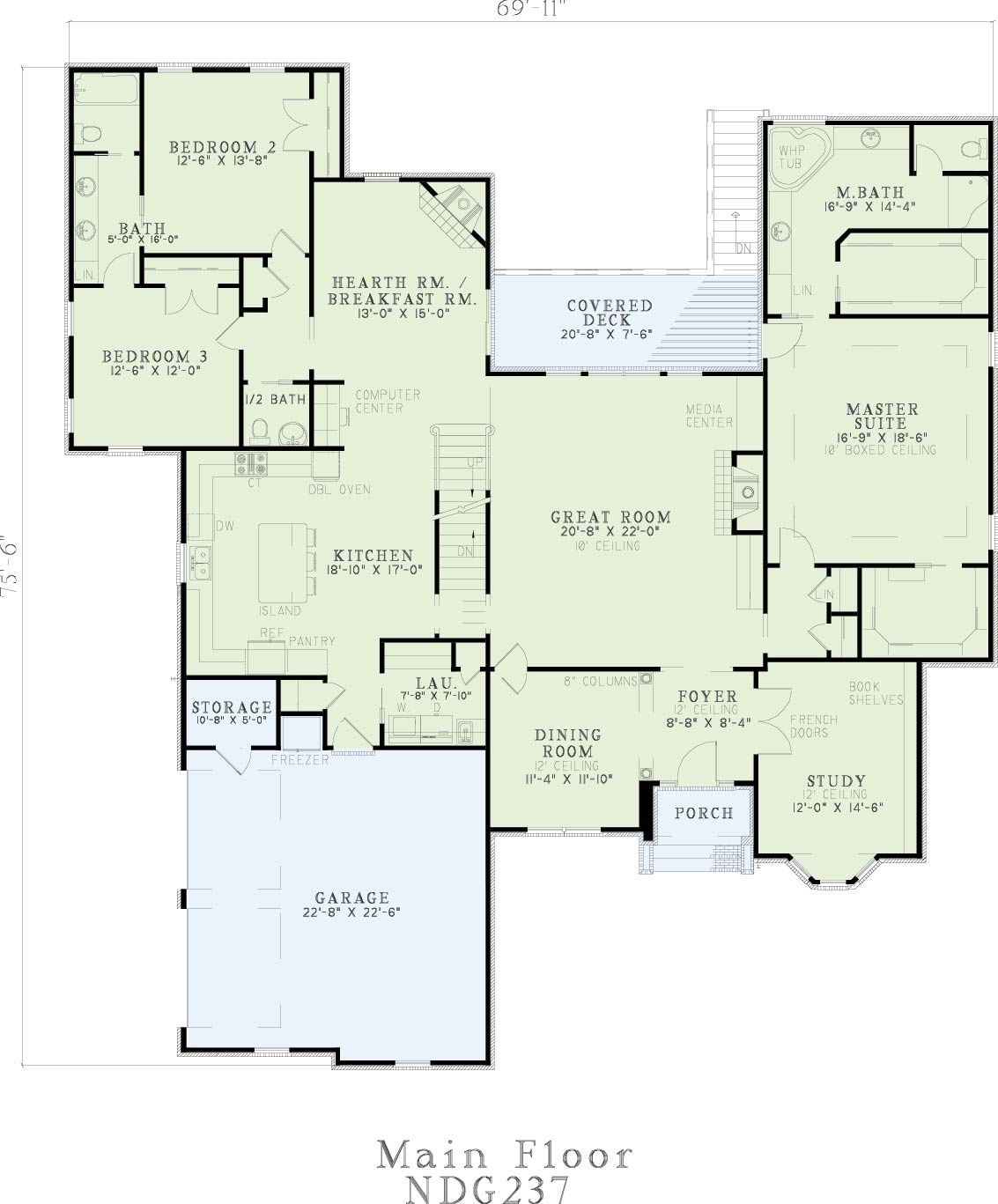

House Plan NDG 237 Main Floor

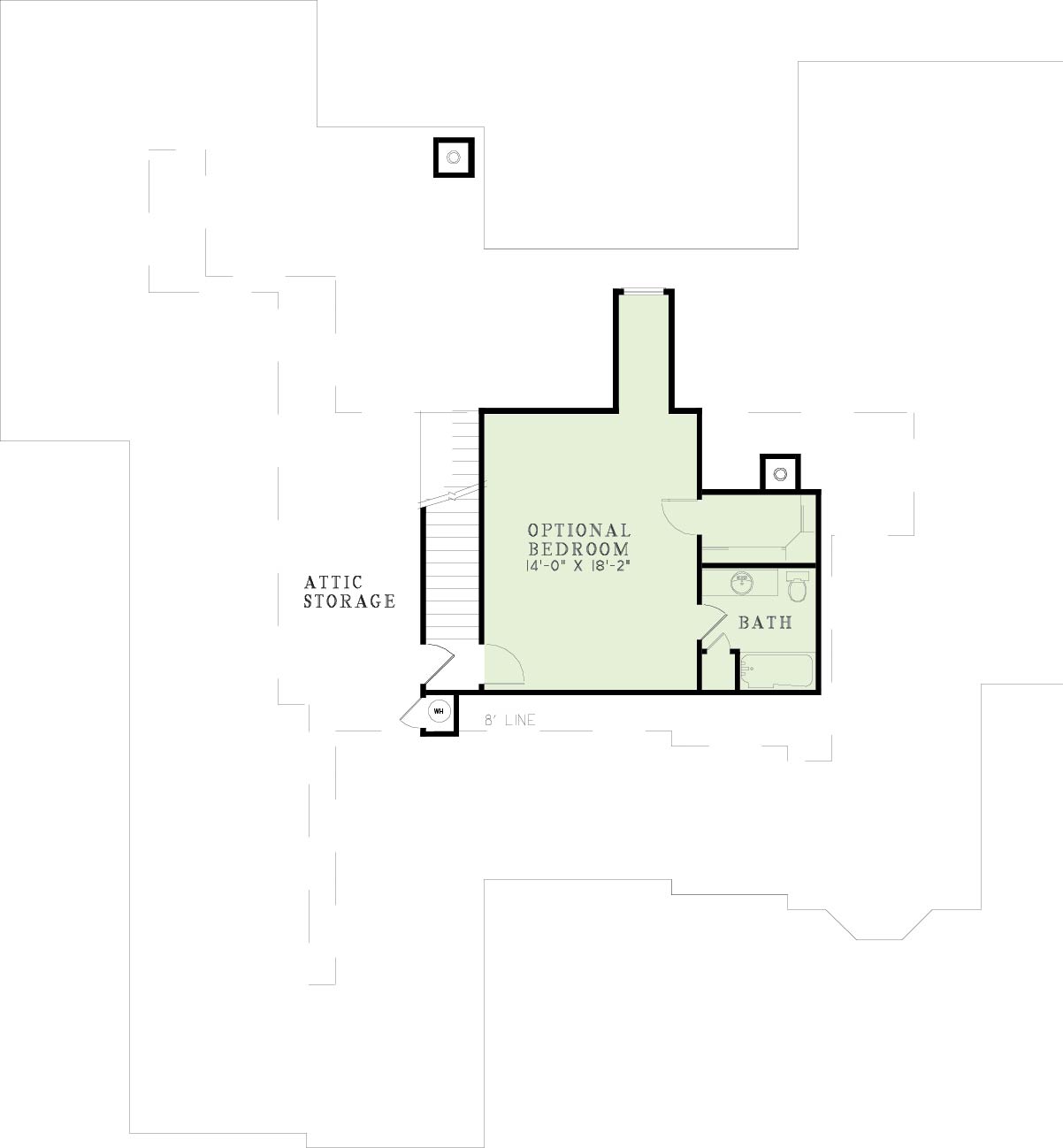

House Plan NDG 237 Upper Floor

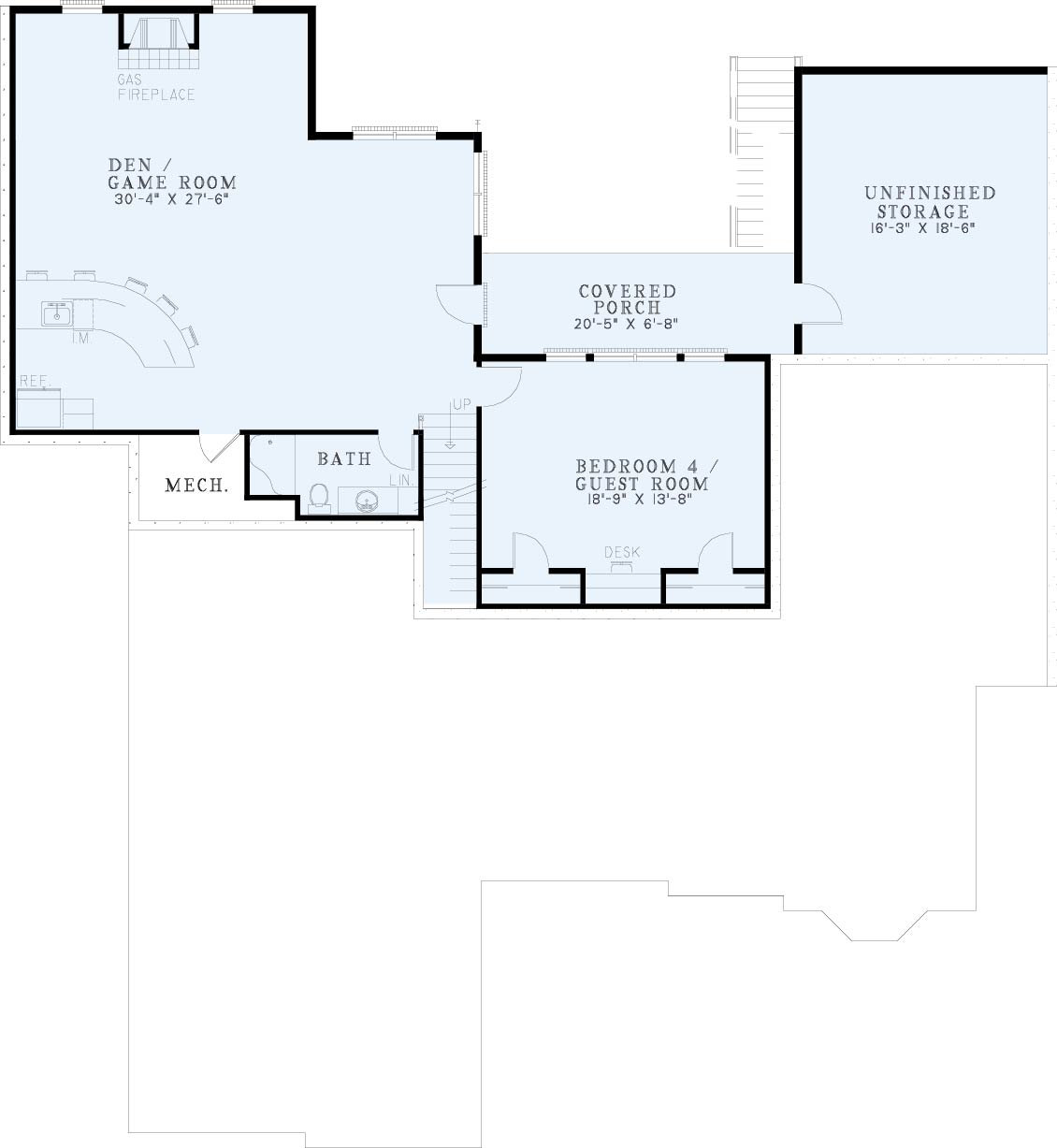

House Plan NDG 237 Basement
House Plan NDG 237 Main Floor
House Plan NDG 237 Upper Floor
House Plan NDG 237 Basement

Floor plans

NDG 237

House Plan 237 Dogwood Avenue, French Traditional House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 237
  • Total Living Space:4631Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 4
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 69
  • Width In.: 11
  • Depth Ft.: 75
  • Depth In.: 6

Description

Entering through the brick arched entry of this home, discover the split bedroom design that provides mom and dad their own privacy. Magnificent columns define the entrance to the spacious dining room. A convenient built-in media center beside the fireplace will satisfy your guests needs. The computer center of this home is tucked away perfectly between the kitchen and hearth rooms. Striking ‘his and her’ walk-in closets in your expansive master suite provide ample storage and the wonderful corner whirlpool bath allows you to soak to your troubles away.

Specifications

  • Total Living Space:4631Sq.Ft.
  • Main Floor: 2913 Sq.Ft
  • Upper Floor (Sq.Ft.): 434 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 343 Sq.Ft.
  • Porch (Sq.Ft.): 331 Sq.Ft.
  • Garage (Sq.Ft.): 589 Sq.Ft.
  • Total Square Feet: 5894 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: 8
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
