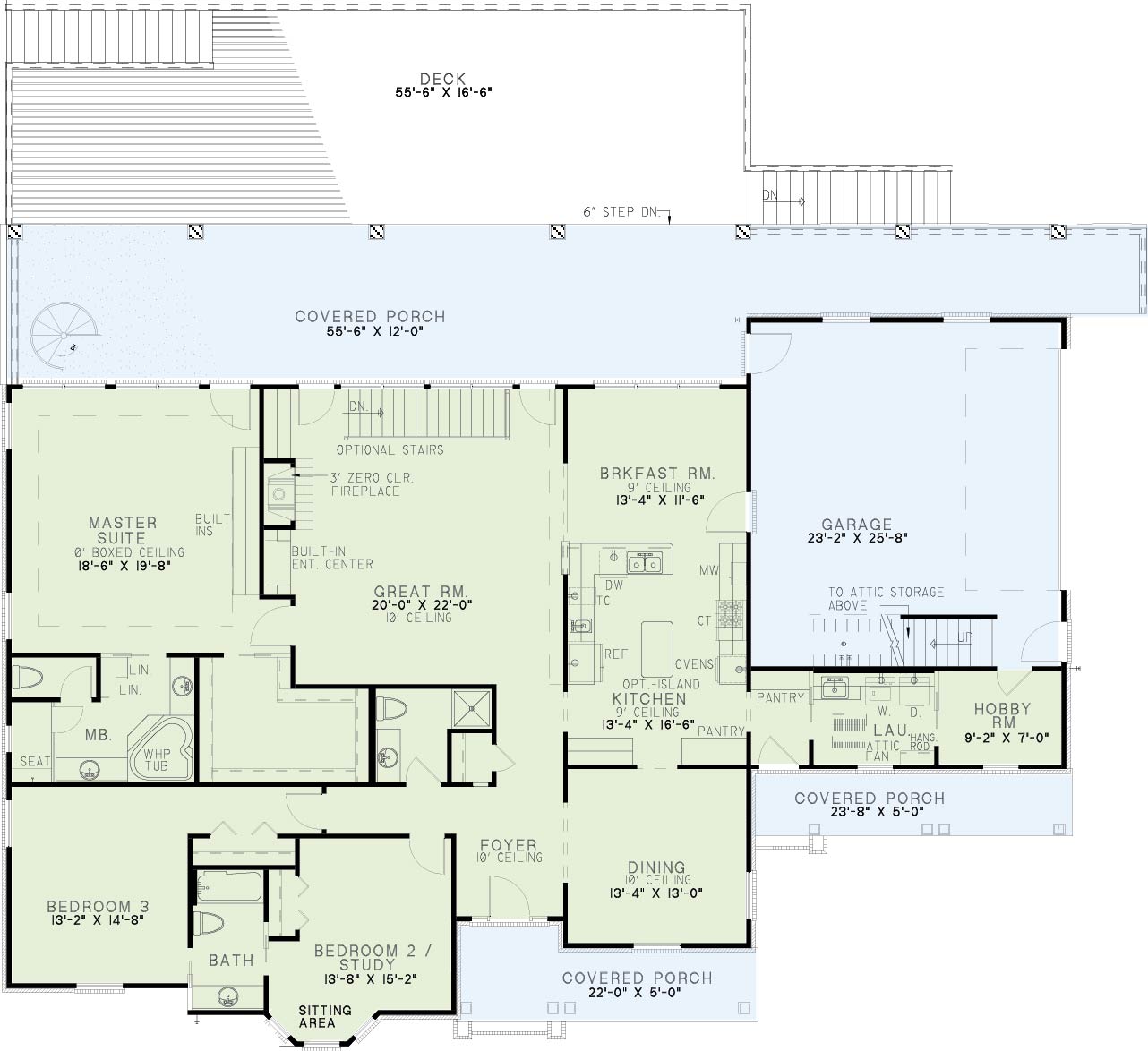

House Plan NDG 224 Main Floor
House Plan NDG 224 Upper Floor

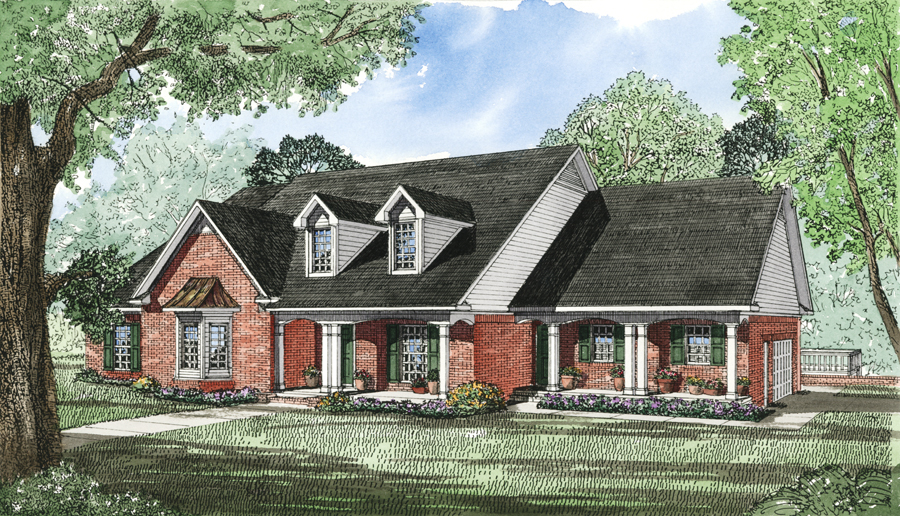

House Plan - 631 Cherry Street ndg224 Front Front View>

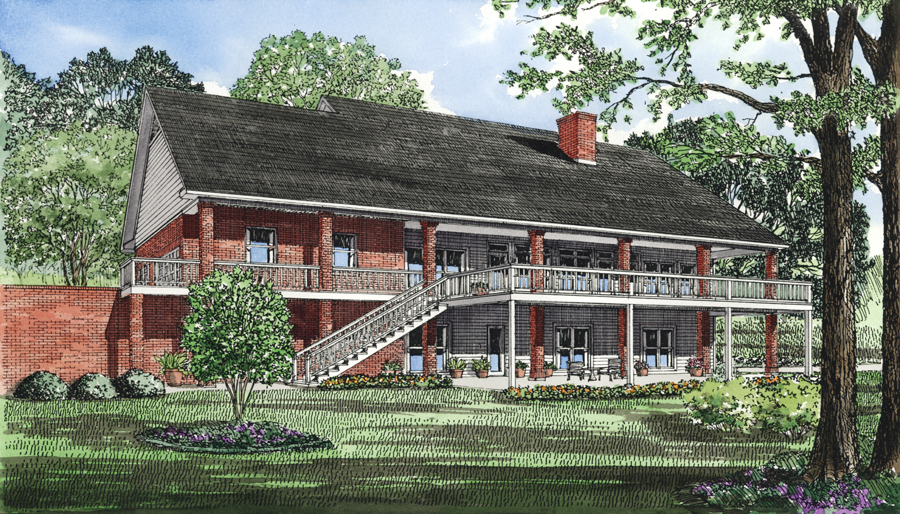

House Plan - 774 Cherry Street ndg224rear Rear View>
House Plan NDG 224 Main Floor
House Plan NDG 224 Upper Floor
House Plan - 631 Cherry Street ndg224 Front Front View
House Plan - 774 Cherry Street ndg224rear Rear View

Floor plans

NDG 224

House Plan 224 Waterfront Cove, Waterfront House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 224
  • Total Living Space:3059Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: N/A
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 79
  • Width In.: N/A
  • Depth Ft.: 77
  • Depth In.: 8

Description

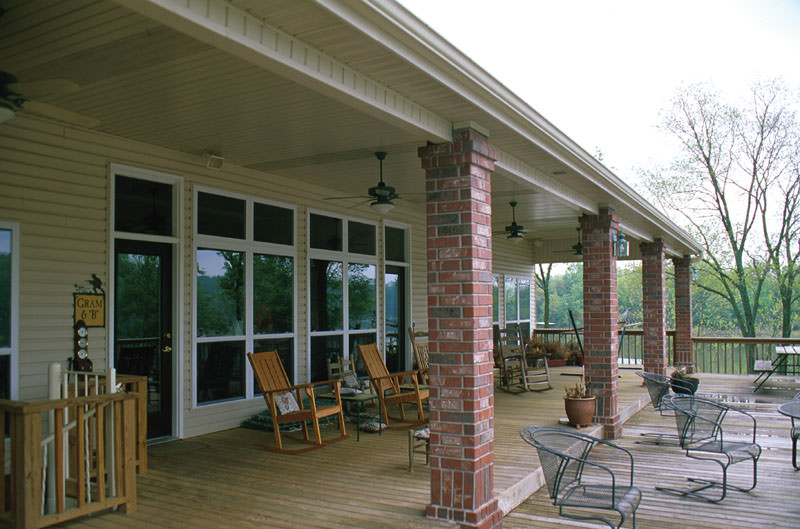

A traditional home with two front porches and boxed columns-perfect for lazy afternoons. This split bedroom plan offers mom and dad just enough privacy. The master suite is complete with built-ins, boxed ceilings and access to the rear covered porch for romantic evenings. Entertaining is easy in your spacious great room with soothing fireplace. A hobby room off the garage is useful for the kids and adults. Downstairs, you’ll find an optional bedroom with a great view of the lake The massive deck and covered porch give this plan a five star rating.

Specifications

  • Total Living Space:3059Sq.Ft.
  • Main Floor: 2650 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A

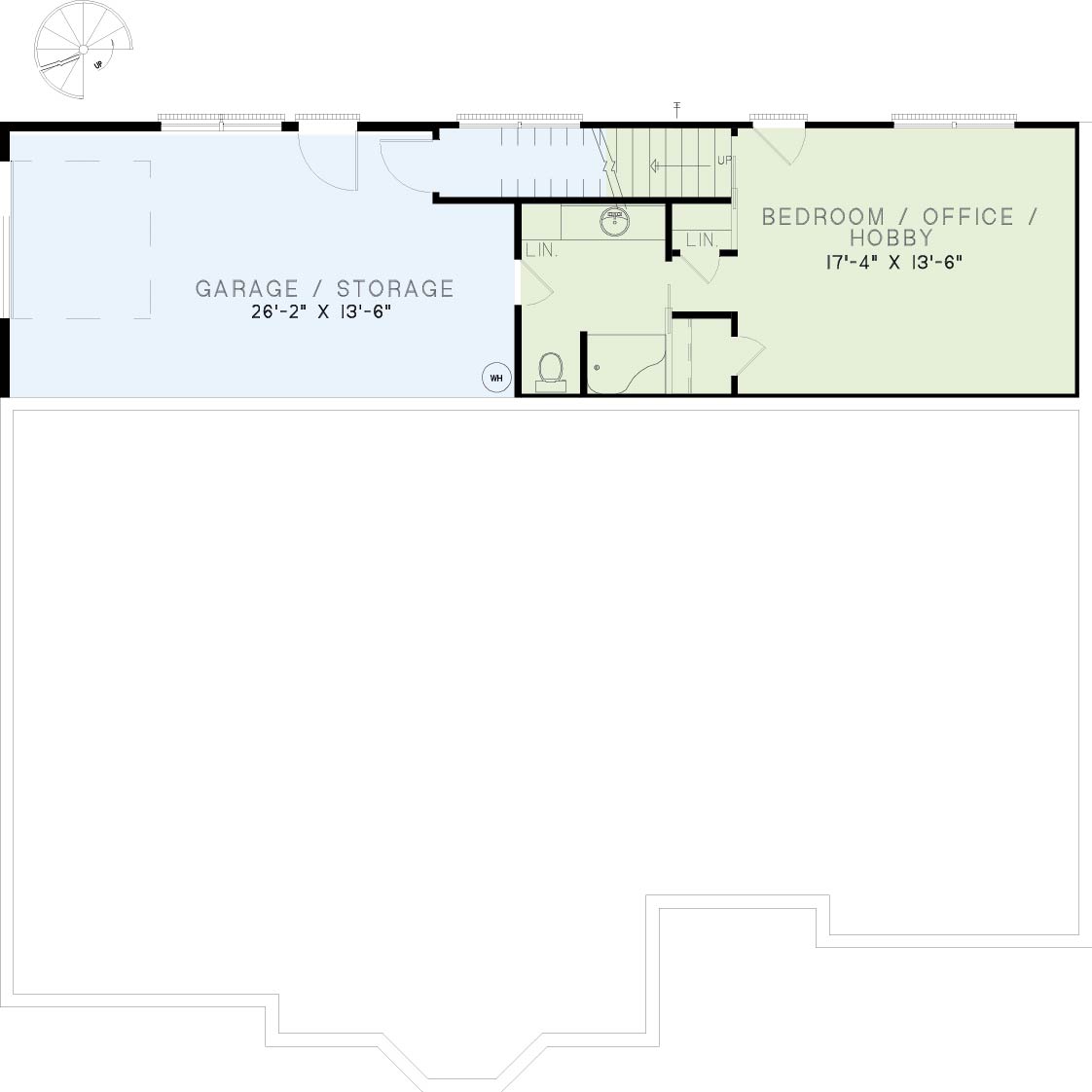

  • Lower Floor (Sq.Ft.): 409 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1337 Sq.Ft.
  • Garage (Sq.Ft.): 353 Sq.Ft.
  • Total Square Feet: 5107 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 8
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): 358 Sq.Ft.
