House Plan 1637 Cozy Retreat II, Tiny House Plan

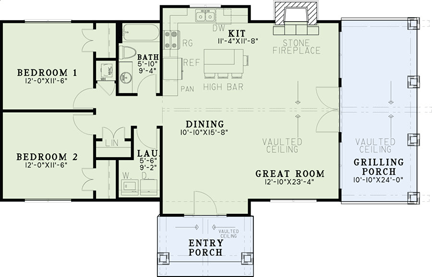

House Plan NDG 1637 Main Floor
House Plan NDG 1637 Main Floor

Floor plans

NDG 1637

House Plan 1637 Cozy Retreat II, Tiny House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 1637
  • Total Living Space:1128Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 1
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 55
  • Width In.: 5
  • Depth Ft.: 34
  • Depth In.: 3

Description

This new addition to our Little House Collection features a vaulted ceiling front covered porch and vaulted ceilings throughout with an open floor plan. The kitchen offers an eat at island bar with a nearby stone fireplace to provide warmth to the Great Room and Dining Room. 2 bedrooms are located on the left side of the house with a full bath and a laundry room and the spacious grilling porch off of the Great Room also features a vaulted ceiling.

Specifications

  • Total Living Space:1128Sq.Ft.
  • Main Floor: 1128 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 311 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1439 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 16
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
