House Plan 1636 Cozy Retreat I, Tiny House Plan

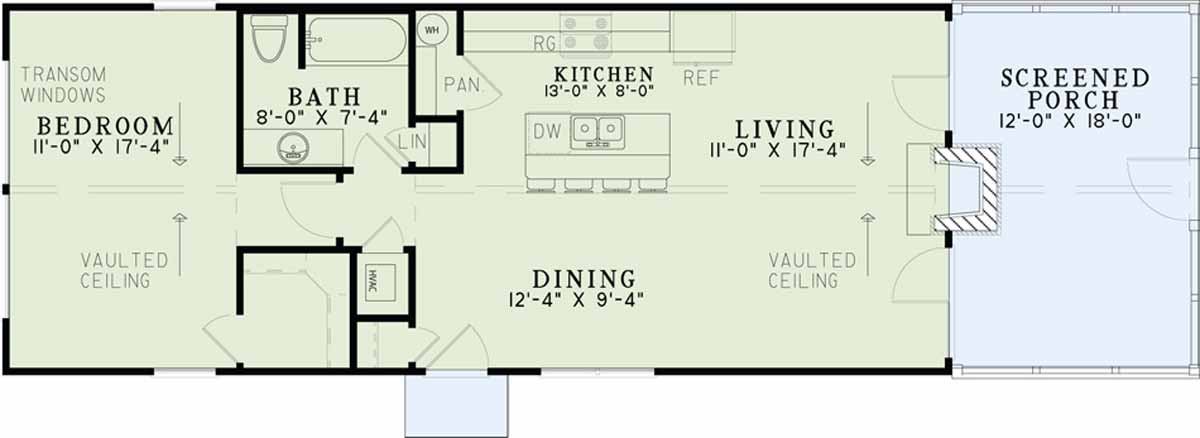

House Plan NDG1636-Main Floor
House Plan NDG1636-Main Floor

Floor plans

NDG 1636

House Plan 1636 Cozy Retreat I, Tiny House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 1636
  • Total Living Space:828Sq.Ft.
  • Bedrooms: 1
  • Full Baths: 1
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 58
  • Width In.: N/A
  • Depth Ft.: 18
  • Depth In.: N/A

Description

This shake shingle home has a small square footage but the vaulted ceiling and open living area, as well as the screened porch help to create a larger feel. The kitchen features an eat-at island bar and the living room has a fireplace.

Specifications

  • Total Living Space:828Sq.Ft.
  • Main Floor: 828 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 219 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1047 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 15
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
