House Plan 1633 Weekend Retreat, Riverbend House Plan

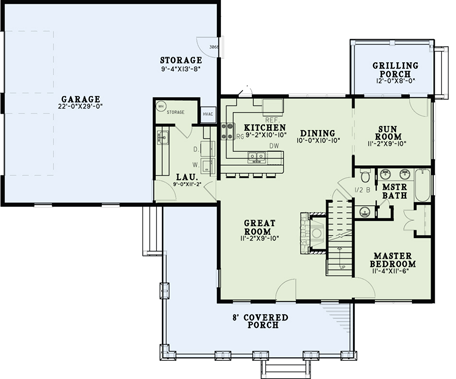

House Plan NDG 1633 Main Floor

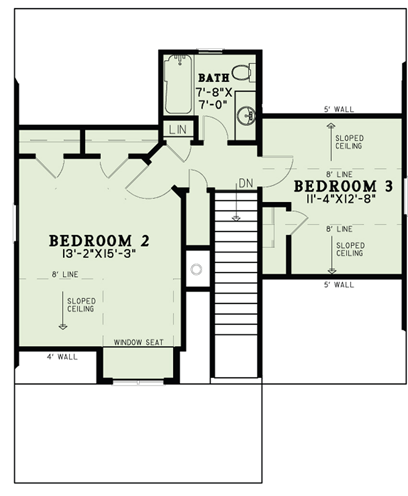

House Plan NDG 1633 Upper Floor
>
House Plan NDG 1633 Main Floor
House Plan NDG 1633 Upper Floor

Floor plans

NDG 1633

House Plan 1633 Weekend Retreat, Riverbend House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 1633
  • Total Living Space:1621Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 63
  • Width In.: 2
  • Depth Ft.: 52
  • Depth In.: 4

Description

This charming Riverbend home features a wrap-around porch with timber columns on stone bases. The great room offers a cozy fireplace and is open to the kitchen and dining area. The kitchen features an eat-at peninsula bar and there’s a sun room off of the dining room. The master bedroom is located on the front right corner of the home with 2 more bedrooms and a full bath located upstairs.

Specifications

  • Total Living Space:1621Sq.Ft.
  • Main Floor: 1099 Sq.Ft
  • Upper Floor (Sq.Ft.): 522 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 407 Sq.Ft.
  • Garage (Sq.Ft.): 813 Sq.Ft.
  • Total Square Feet: 2844 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x6
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: 5:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 0
  • Insulation Exterior: R19
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
