House Plan 1628 Lindenwood Cove, European House Plan

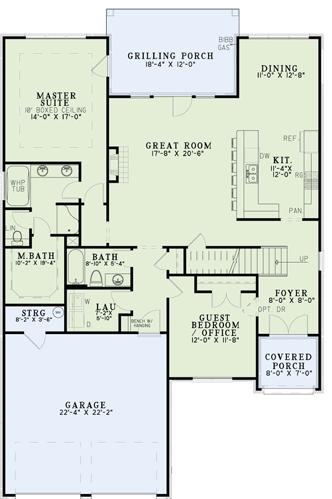

House Plan NDG 1628 Main Floor

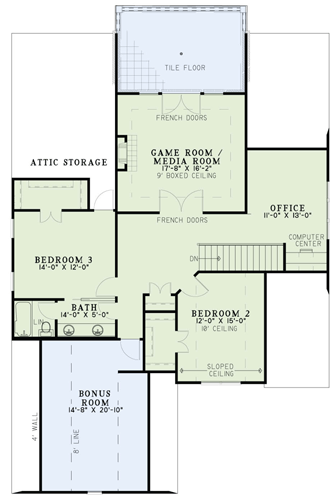

House Plan NDG 1628 Upper Floor
House Plan NDG 1628 Main Floor
House Plan NDG 1628 Upper Floor

Floor plans

NDG 1628

House Plan 1628 Lindenwood Cove, European House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: NDG 1628
  • Total Living Space:2931Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 44
  • Width In.: N/A
  • Depth Ft.: 67
  • Depth In.: 6

Description

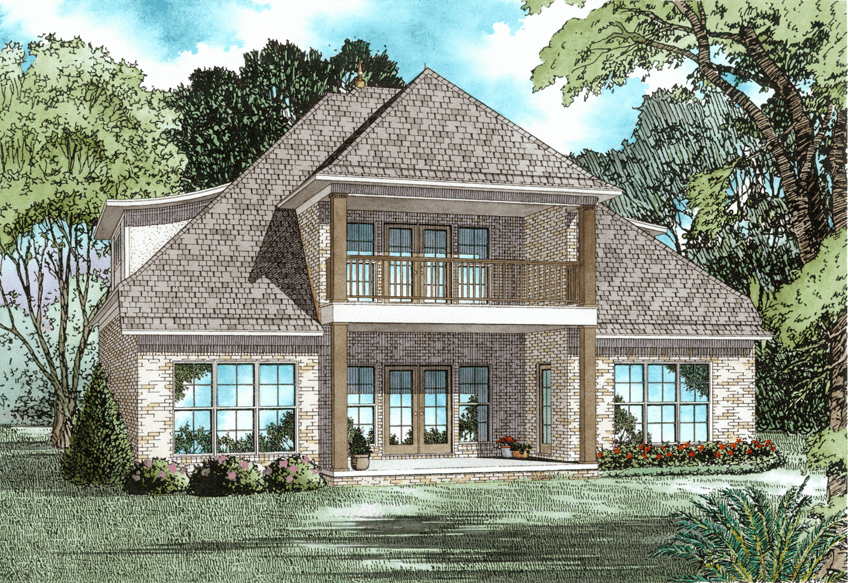

This European Style House plan with open floor plan, spacious outdoor living and fabulous master suite. The Great Room features a fireplace and is open to the kitchen and dining room, perfect for entertaining guests. A bedroom located at the front could be for the guests or could be made into a convenient office. The master suite has a 10′ boxed ceiling and access to the Grilling Porch. The upstairs are 2 more bedrooms, a full bath and a large bonus room over the garage with tons of possibilities. At the top of the stairs is a convenient office with a computer center. Through French doors is the game/media room with a fireplace and access to a rear covered porch.

Specifications

  • Total Living Space:2931Sq.Ft.
  • Main Floor: 1718 Sq.Ft
  • Upper Floor (Sq.Ft.): 1213 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 318 Sq.Ft.
  • Porch (Sq.Ft.): 280 Sq.Ft.
  • Garage (Sq.Ft.): 548 Sq.Ft.
  • Total Square Feet: 4077 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
