House Plan 1463 Alpine Ridge, Riverbend House Plan

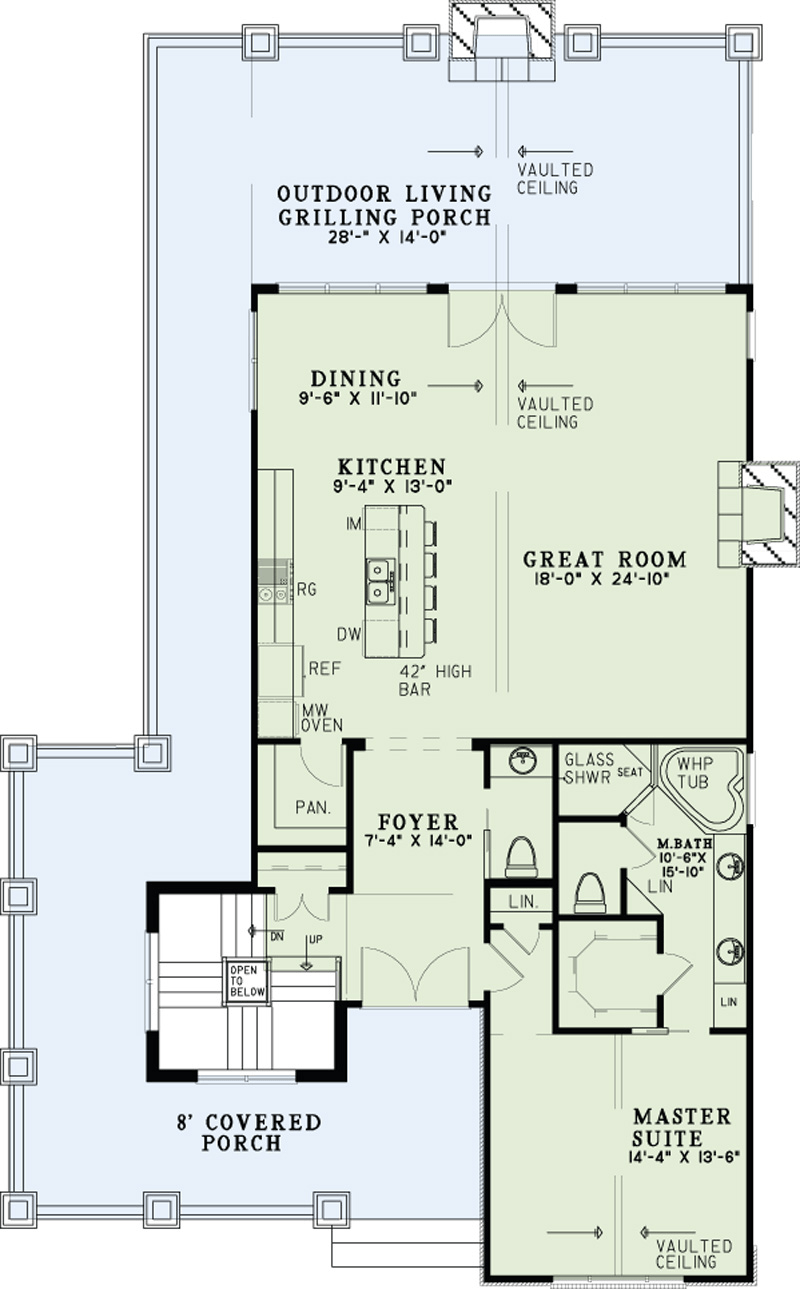

House Plan NDG 1463 Main Floor

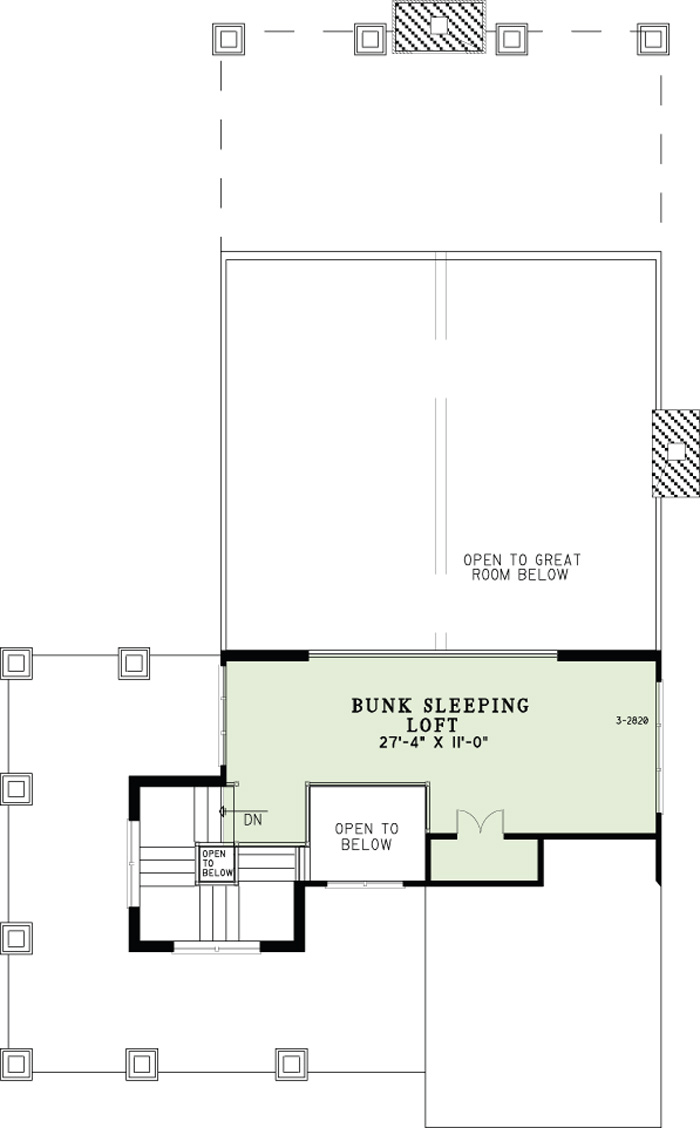

House Plan NDG 1463 Upper Floor

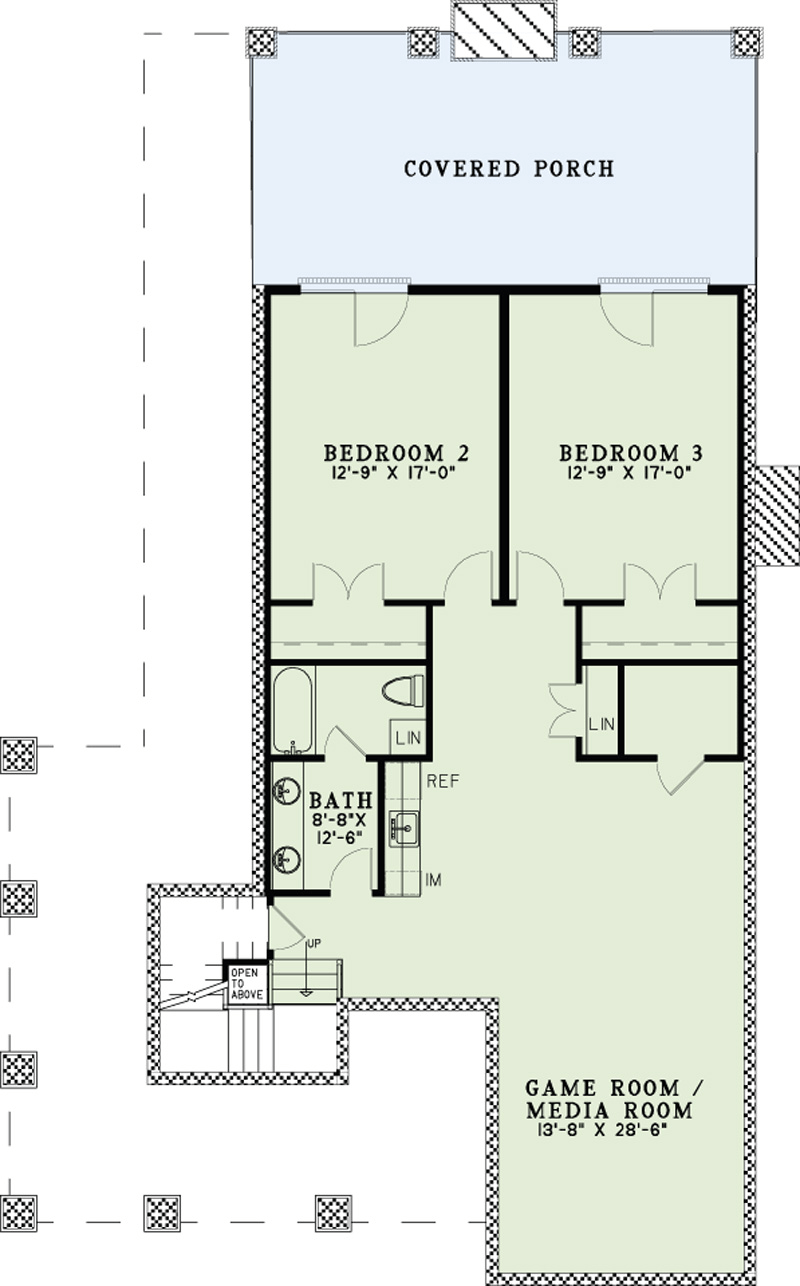

House Plan NDG 1463 Basement
House Plan NDG 1463 Main Floor
House Plan NDG 1463 Upper Floor
House Plan NDG 1463 Basement

Floor plans

House Plan NDG 1463 Main Floor

House Plan NDG 1463 Upper Floor

House Plan NDG 1463 Basement
NDG 1463

House Plan 1463 Alpine Ridge, Riverbend House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 1463
  • Total Living Space:3041 Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 41
  • Width In.: 6
  • Depth Ft.: 69
  • Depth In.: 8

Description

The inviting wrap-around porch is complimented by the tapered stone based columns of this rustic style home. The foyer leads you to the open kitchen and Great Room, featuring a vaulted ceiling fireplace, a walk-in pantry and a dining area. Double doors lead to the Outdoor Living/Grilling Porch which also offers a fireplace and a vaulted ceiling. The Master Suite will spoil you with a corner whirlpool tub, corner glass shower, and a walk-in closet and is open to the Great Room and the foyer below. A massive Game Room/Media Room is downstairs with spacious bedrooms 2 and 3 and access to the covered porch. The square staircase is open in the center, adding to a sense of space with windows for additional light.

Specifications

  • Total Living Space:3041 Sq.Ft.
  • Main Floor: 1449 Sq.Ft
  • Upper Floor (Sq.Ft.): 338 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): 1254 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1207 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 4248 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 5:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): N/A
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
