House Plan 1458 Indian Lake Retreat, Riverbend House Plan

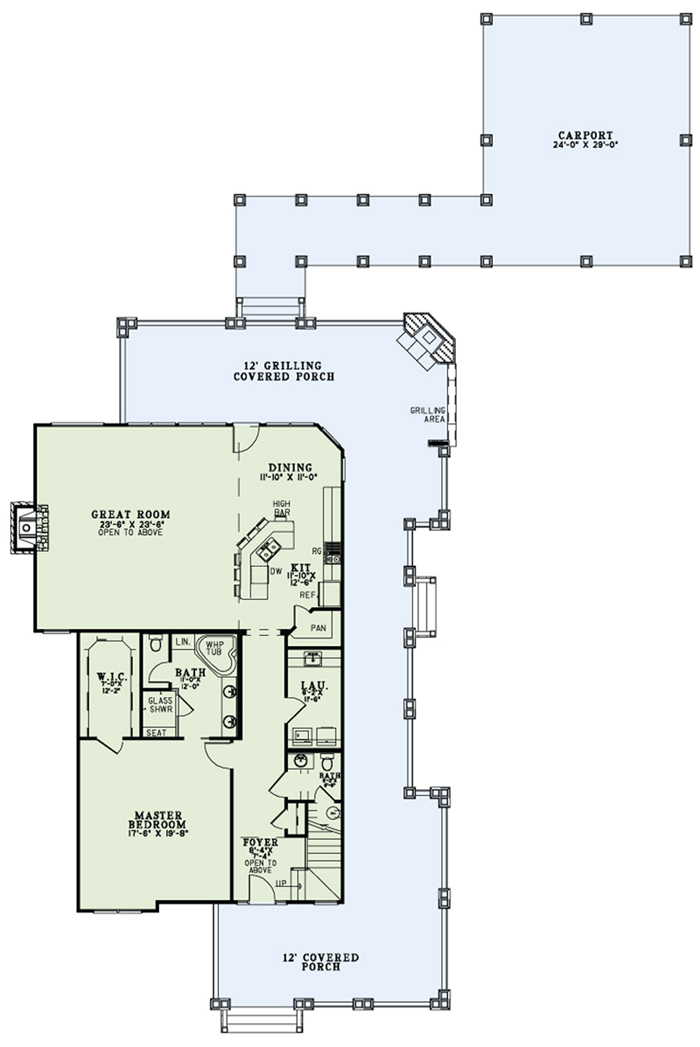

House Plan NDG 1458 Main Floor

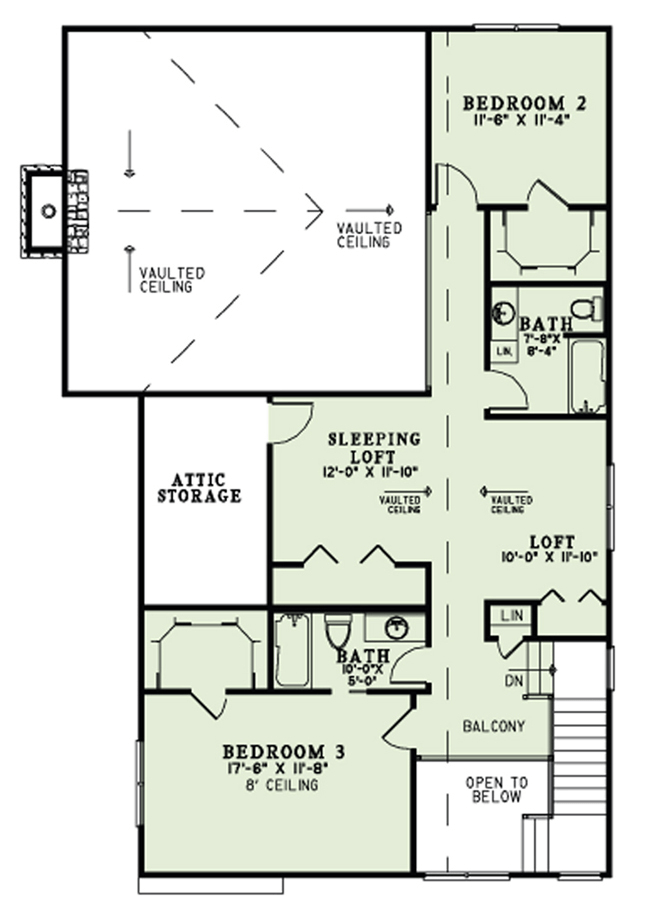

House Plan NDG 1458 Upper Floor
House Plan NDG 1458 Main Floor
House Plan NDG 1458 Upper Floor

Floor plans

NDG 1458

House Plan 1458 Indian Lake Retreat, Riverbend House Plan

PDF: $2,050.00

Plan Details

  • Plan Number: NDG 1458
  • Total Living Space:2877Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: Yes
  • Carport Type: Side Load
  • Stories: 1.5
  • Width Ft.: 76
  • Width In.: 2
  • Depth Ft.: 115
  • Depth In.: N/A

Description

This rustic home has some Craftsman style elements and features a massive wrap-around porch. The foyer is open to a balcony above with the huge Master Bedroom on the left. It features plenty of space and a great walk-in closet. The master bath offers a corner glass shower with a seat, a double vanity, and a corner whirlpool tub. The Great Room is spacious with a fireplace and is open to the Dining Room and kitchen. The kitchen features a wrap-around, eat-at island bar and a corner walk-in pantry. Upstairs bedrooms 2 and 3 each have a full bath and a walk-in closet. The large loft has a vaulted ceiling and 2 closets. The wrap-around porch has a grilling area in the back with a corner fireplace, perfect for entertaining.

Specifications

  • Total Living Space:2877Sq.Ft.
  • Main Floor: 1852 Sq.Ft
  • Upper Floor (Sq.Ft.): 1025 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1333 Sq.Ft.
  • Garage (Sq.Ft.): 976 Sq.Ft.
  • Total Square Feet: 5186 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
