House Plan 1449 Nettleton Cove, Traditional House Plan

House Plan NDG 1449 Main Floor
House Plan NDG 1449 Main Floor

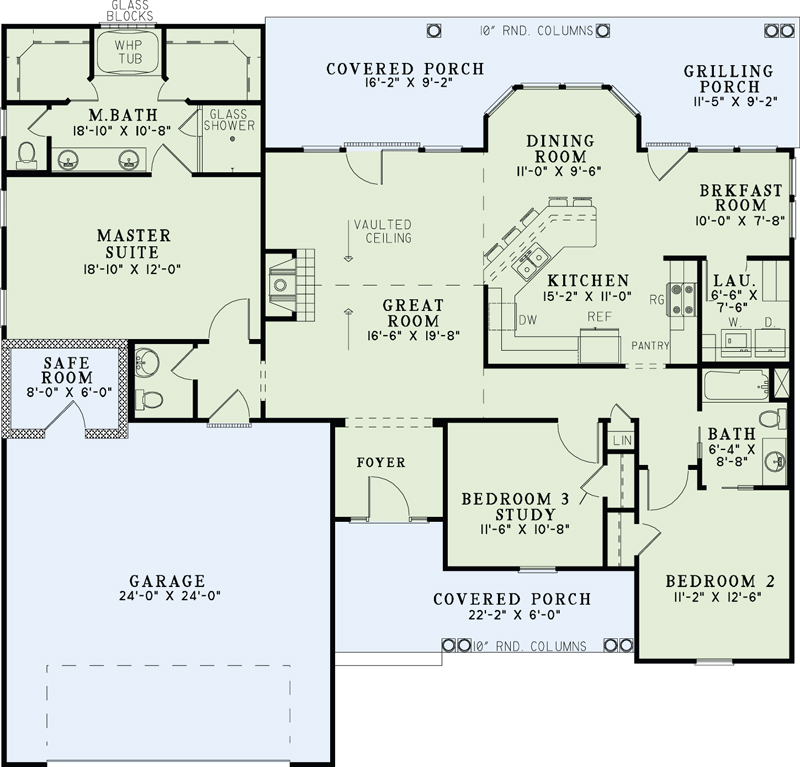

Floor plans

NDG 1449

House Plan 1449 Nettleton Cove, Traditional House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 1449
  • Total Living Space:1791Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 58
  • Width In.: 8
  • Depth Ft.: 55
  • Depth In.: N/A

Description

A wonderful design of space in a Country style, 3 bedroom home. The vaulted ceiling of the Great Room invites you to stay warm by the fireplace. Open to the dining room and kitchen, entertaining will be a joy while guests can enjoy food and conversation at the eat-at bar of the kitchen and the adjacent breakfast room. A large covered grilling porch is accessible from the great room and breakfast room. The master suite features a glass shower, whirlpool tub, and 2 walk-in closets. A safe room is also located in the corner of the garage.

Specifications

  • Total Living Space:1791Sq.Ft.
  • Main Floor: 1791 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 495 Sq.Ft.
  • Garage (Sq.Ft.): 684 Sq.Ft.
  • Total Square Feet: 2970 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
