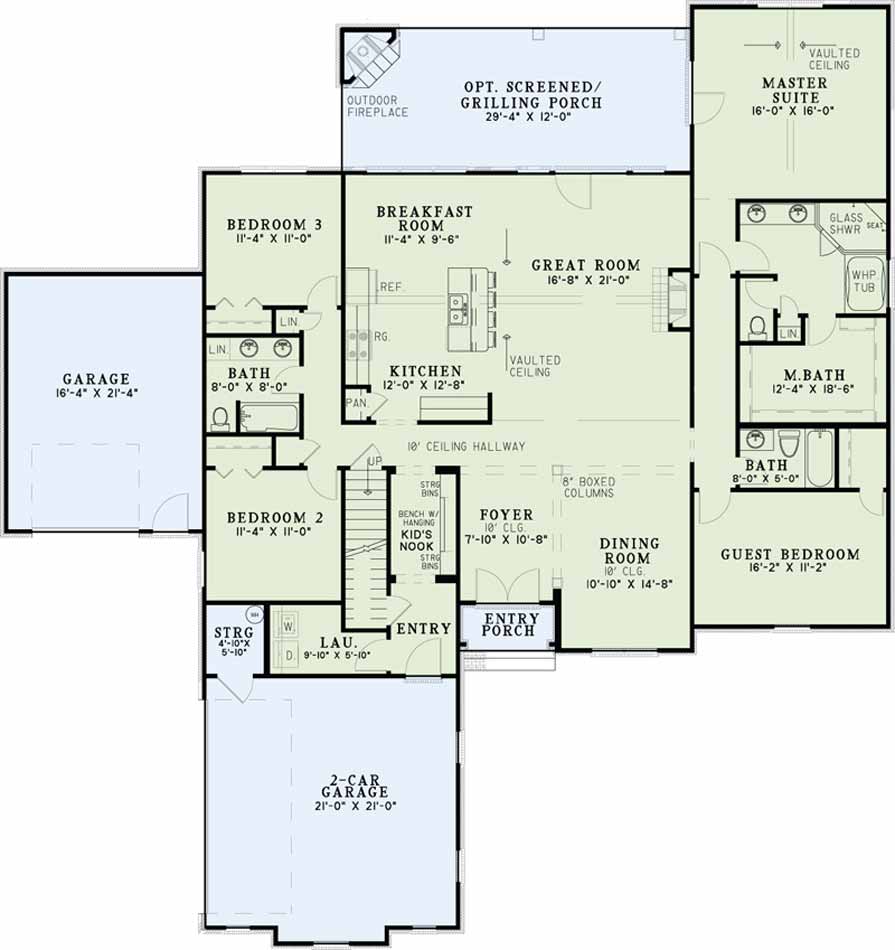

House Plan NDG 1448 Main Floor

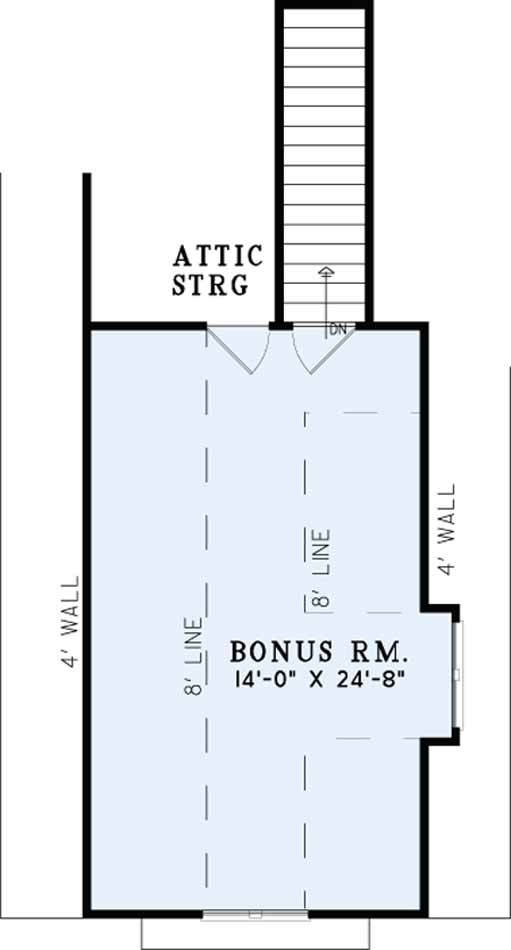

House Plan NDG 1448 Bonus Room
NDG 1448

House Plan 1448 Auburn Cove, European House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 1448
  • Total Living Space:2545 Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 74
  • Width In.: 6
  • Depth Ft.: 79
  • Depth In.: 2

Description

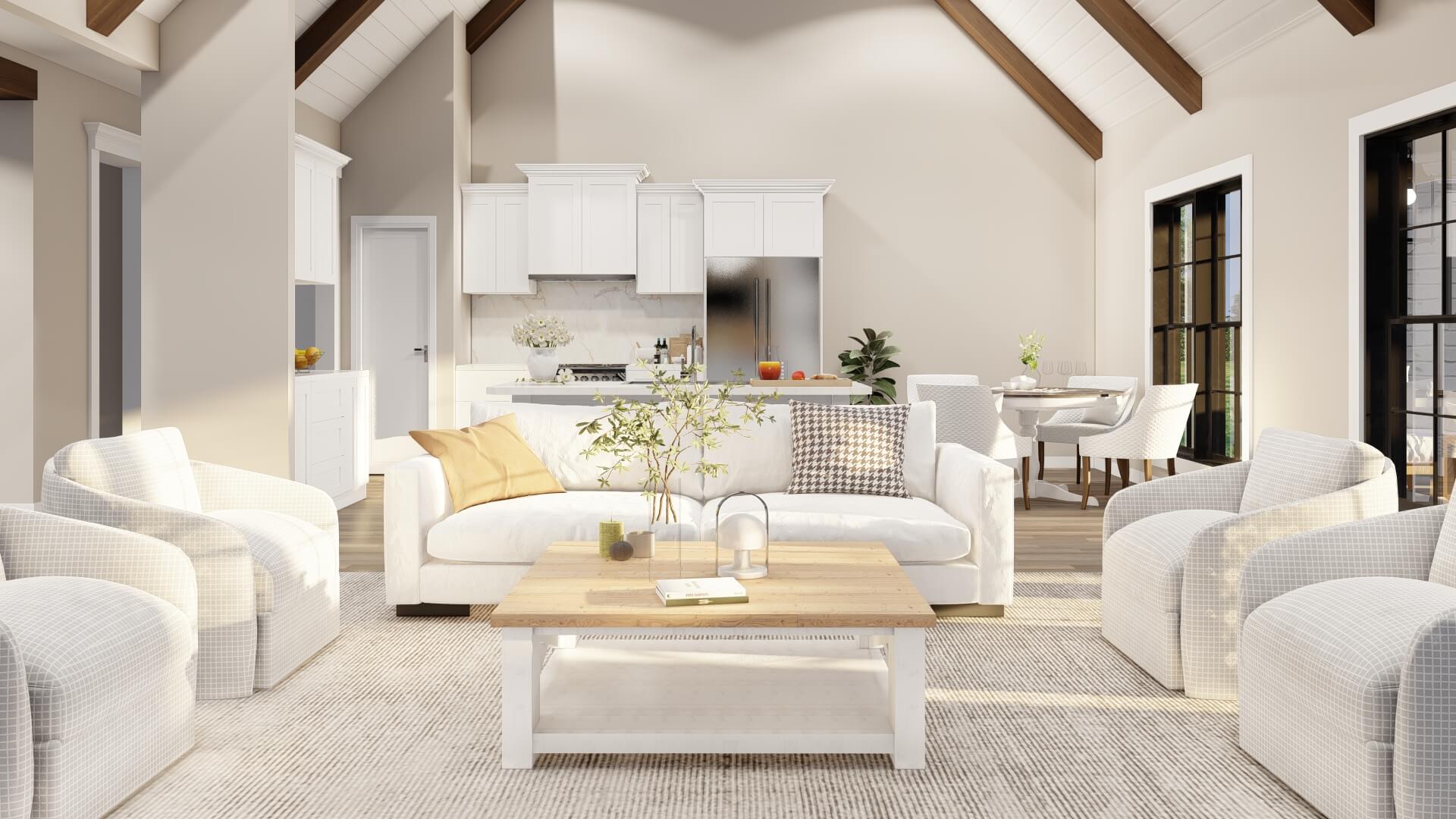

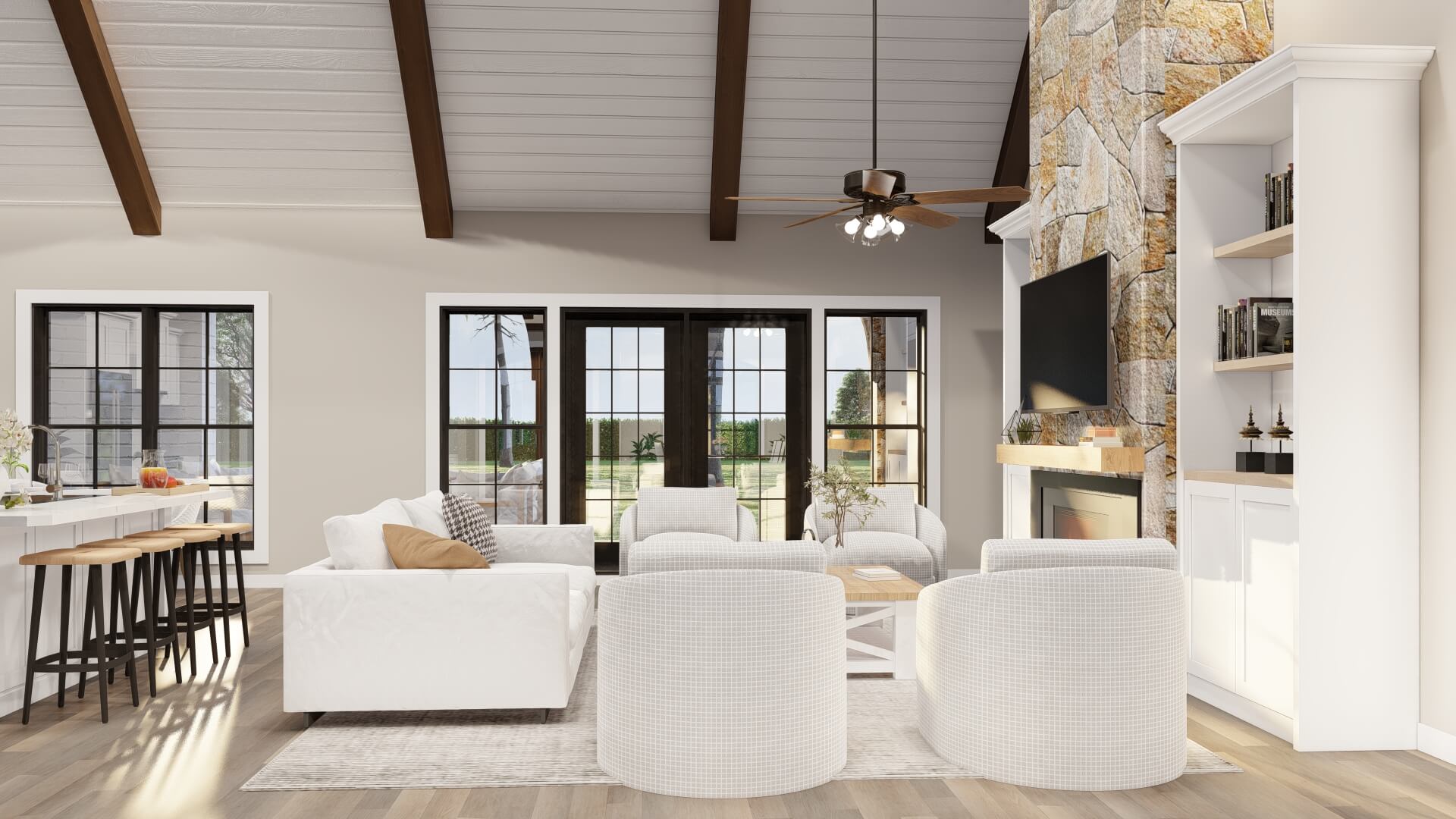

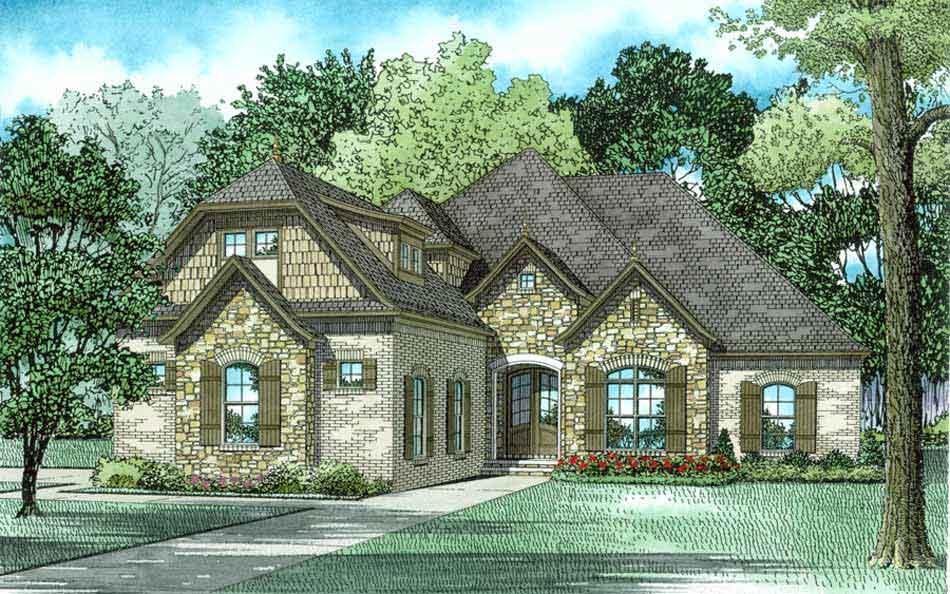

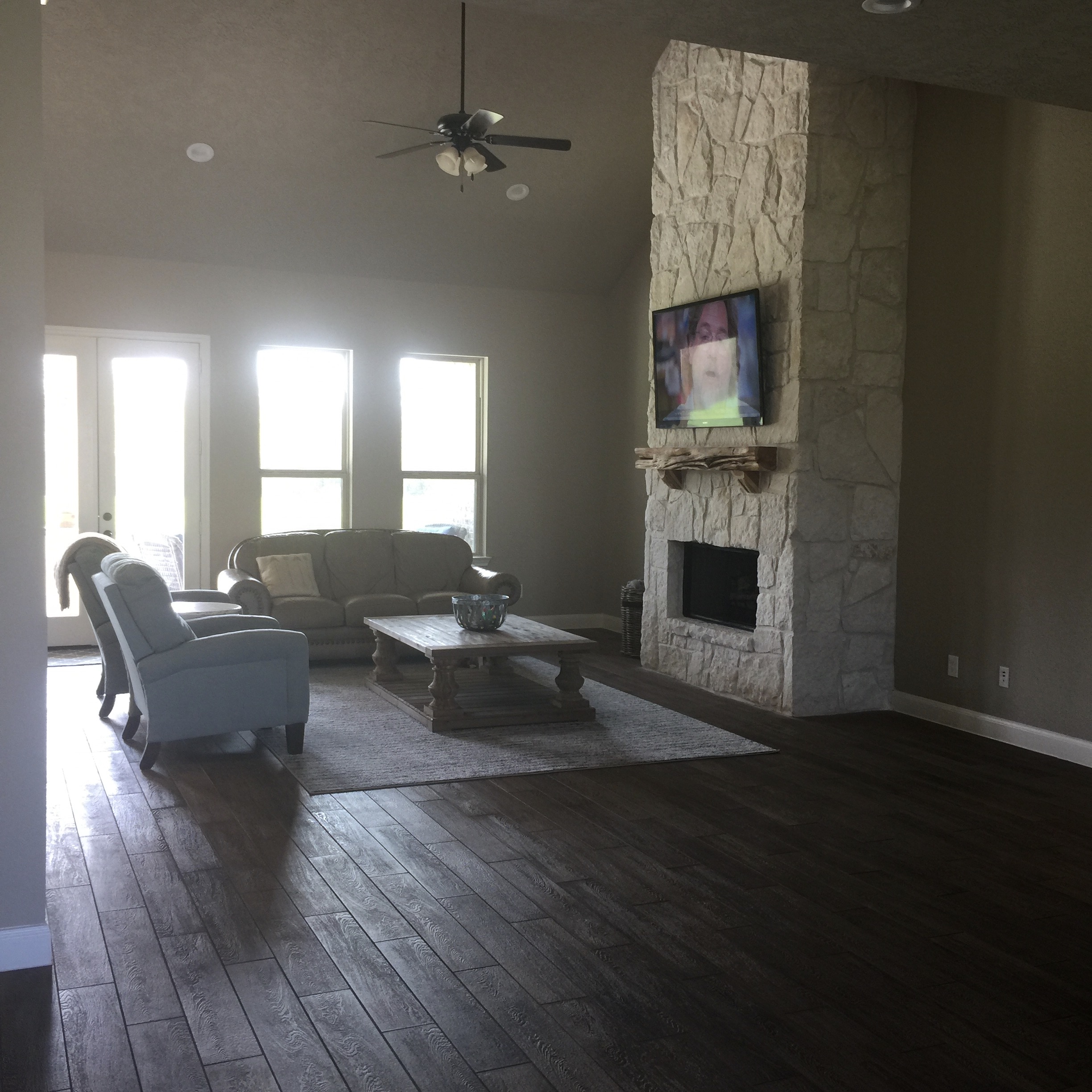

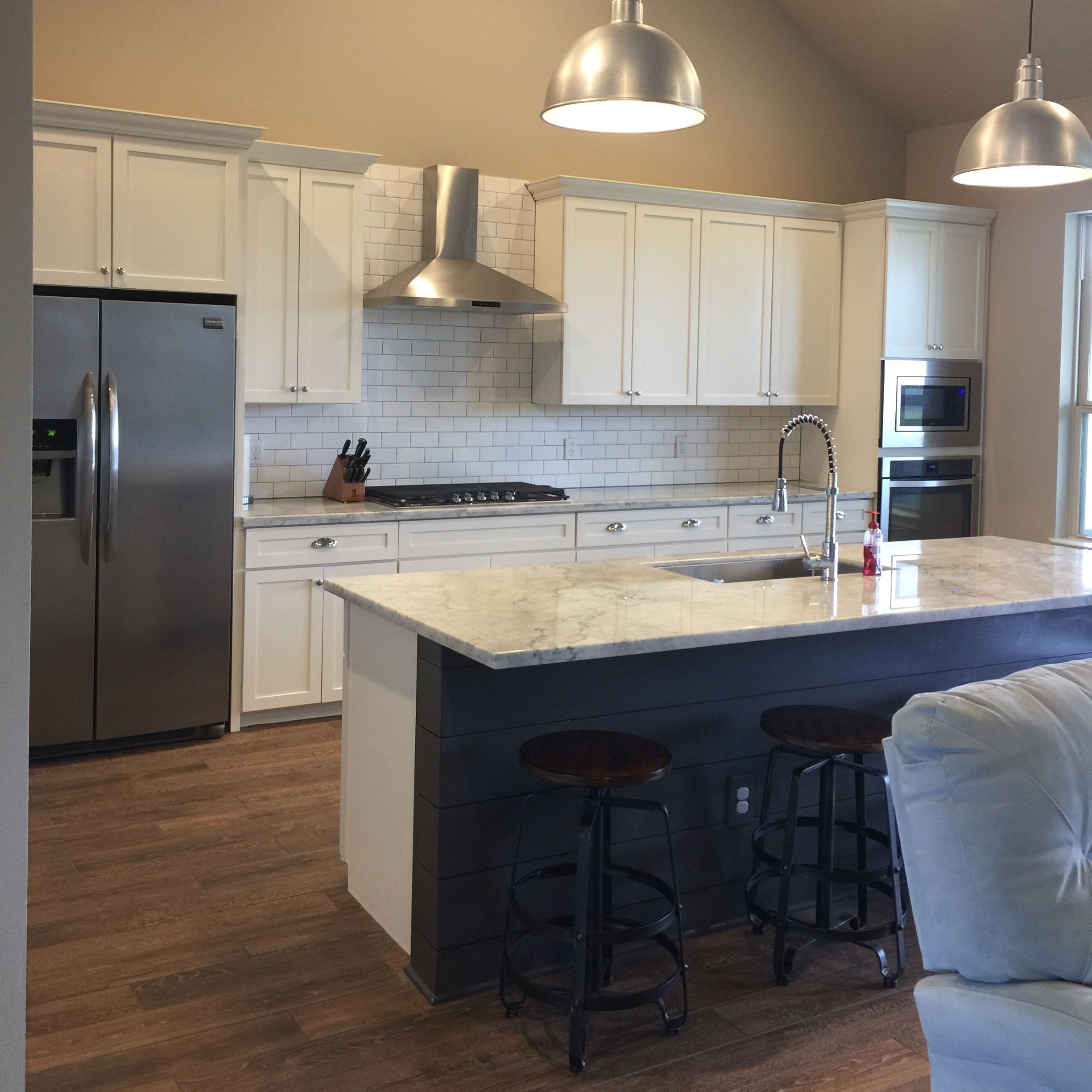

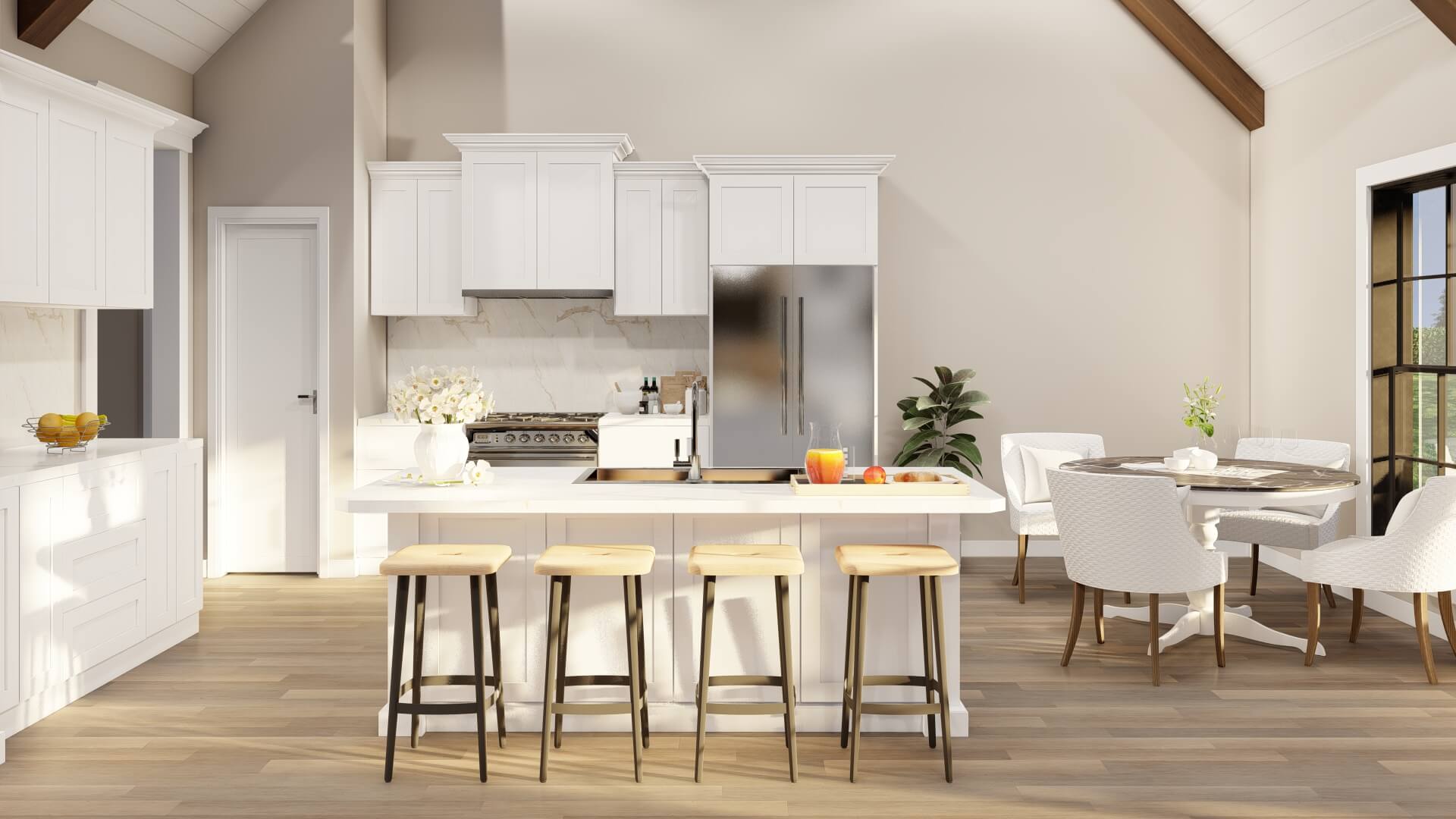

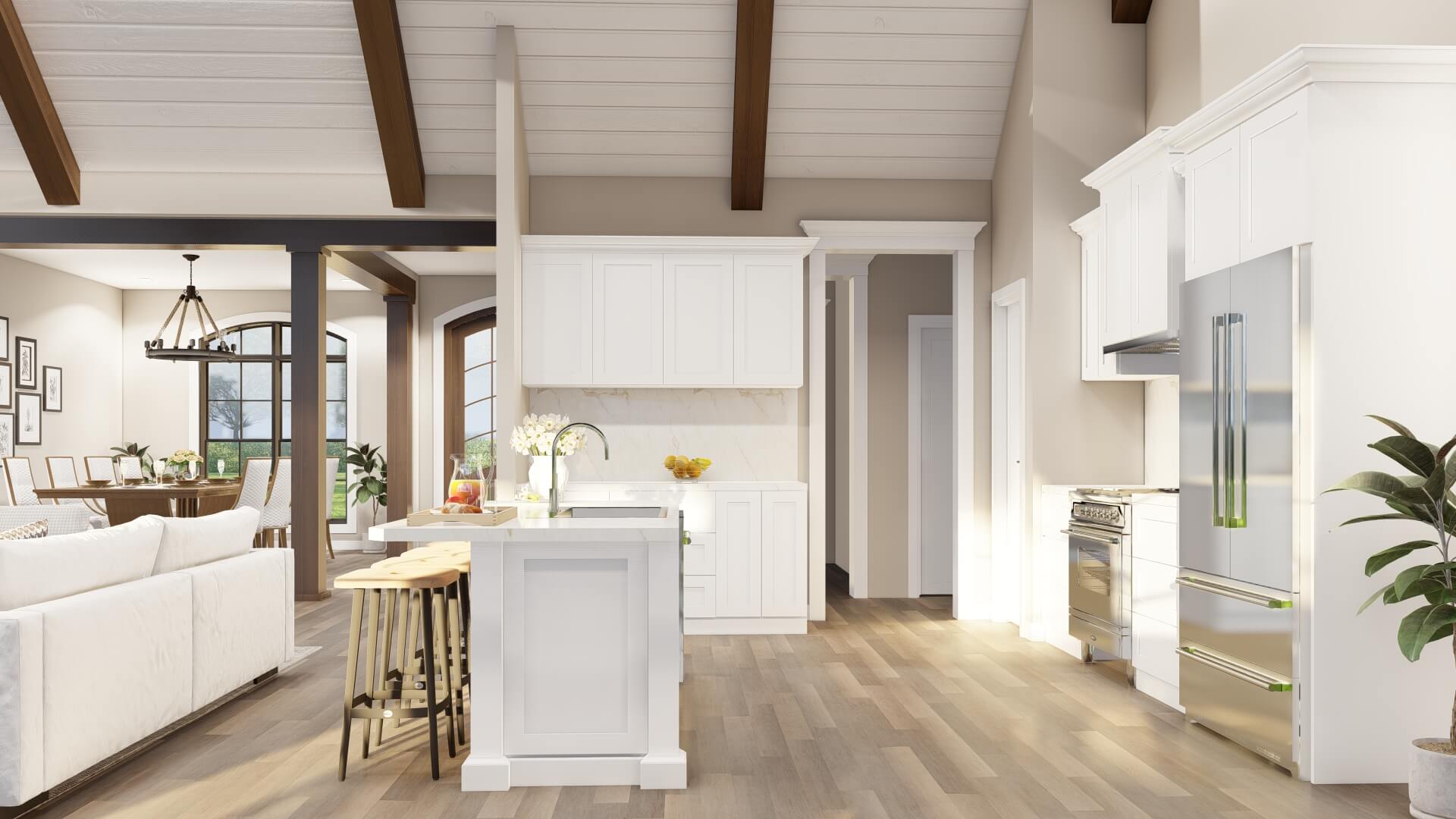

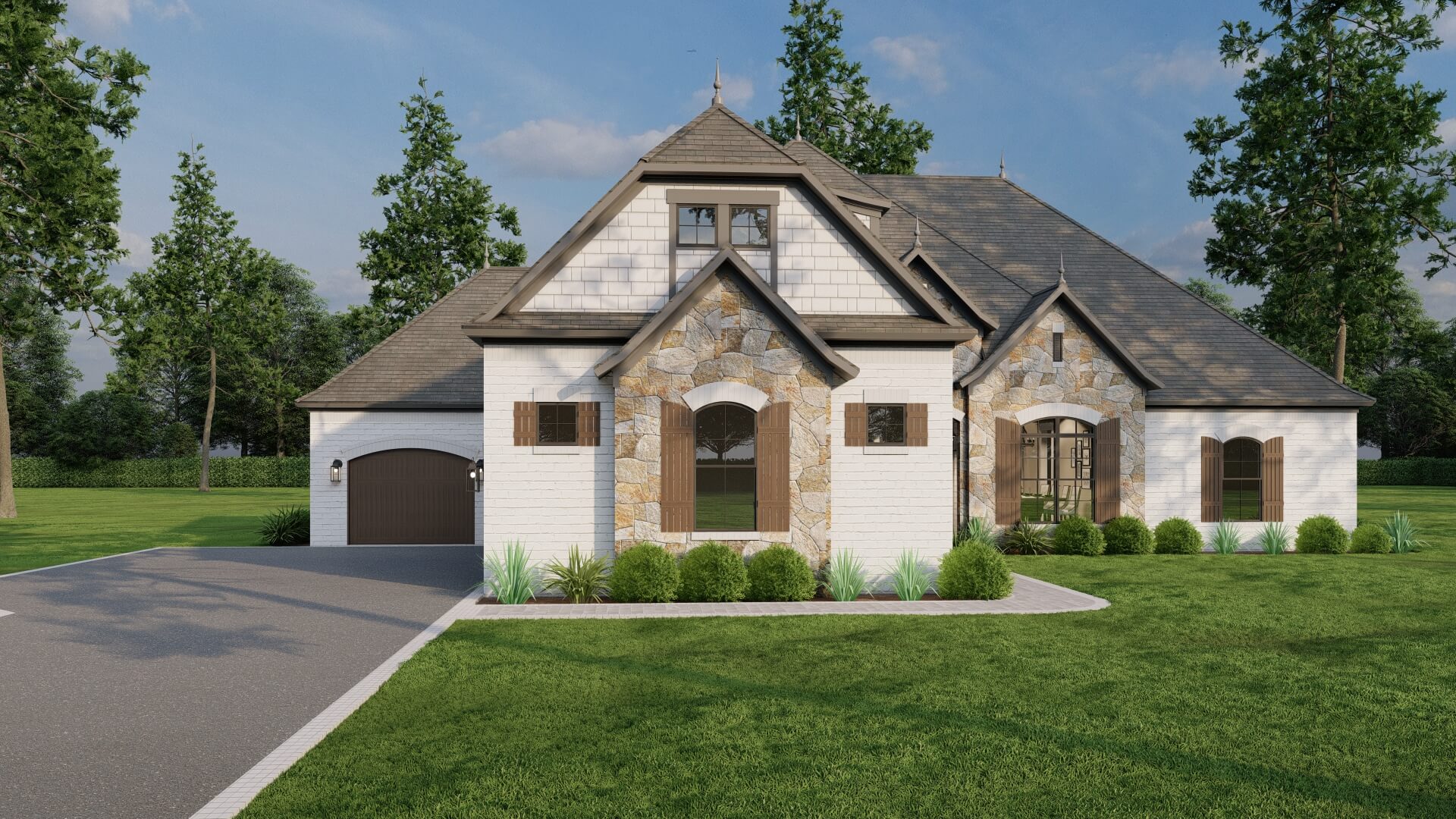

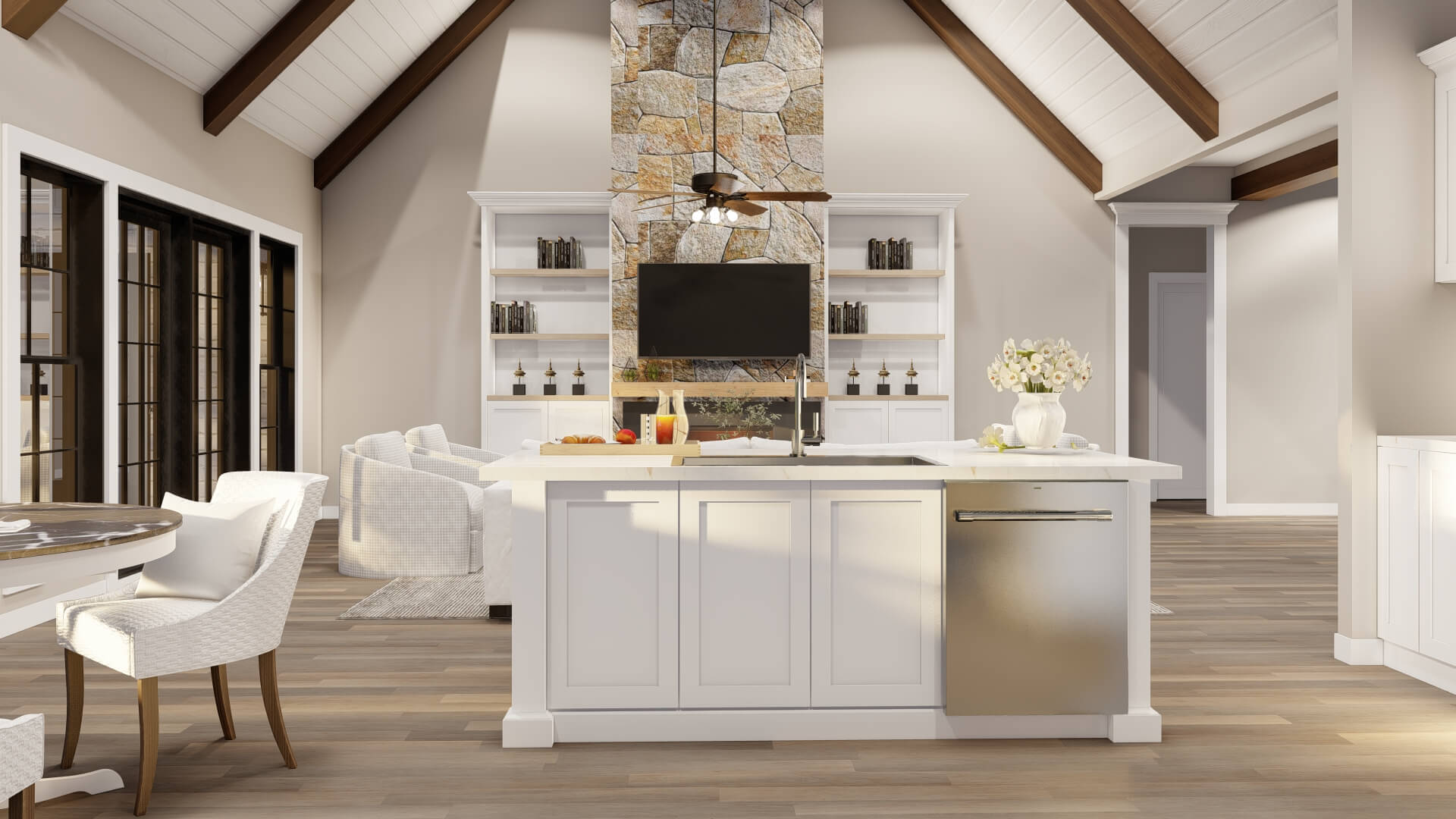

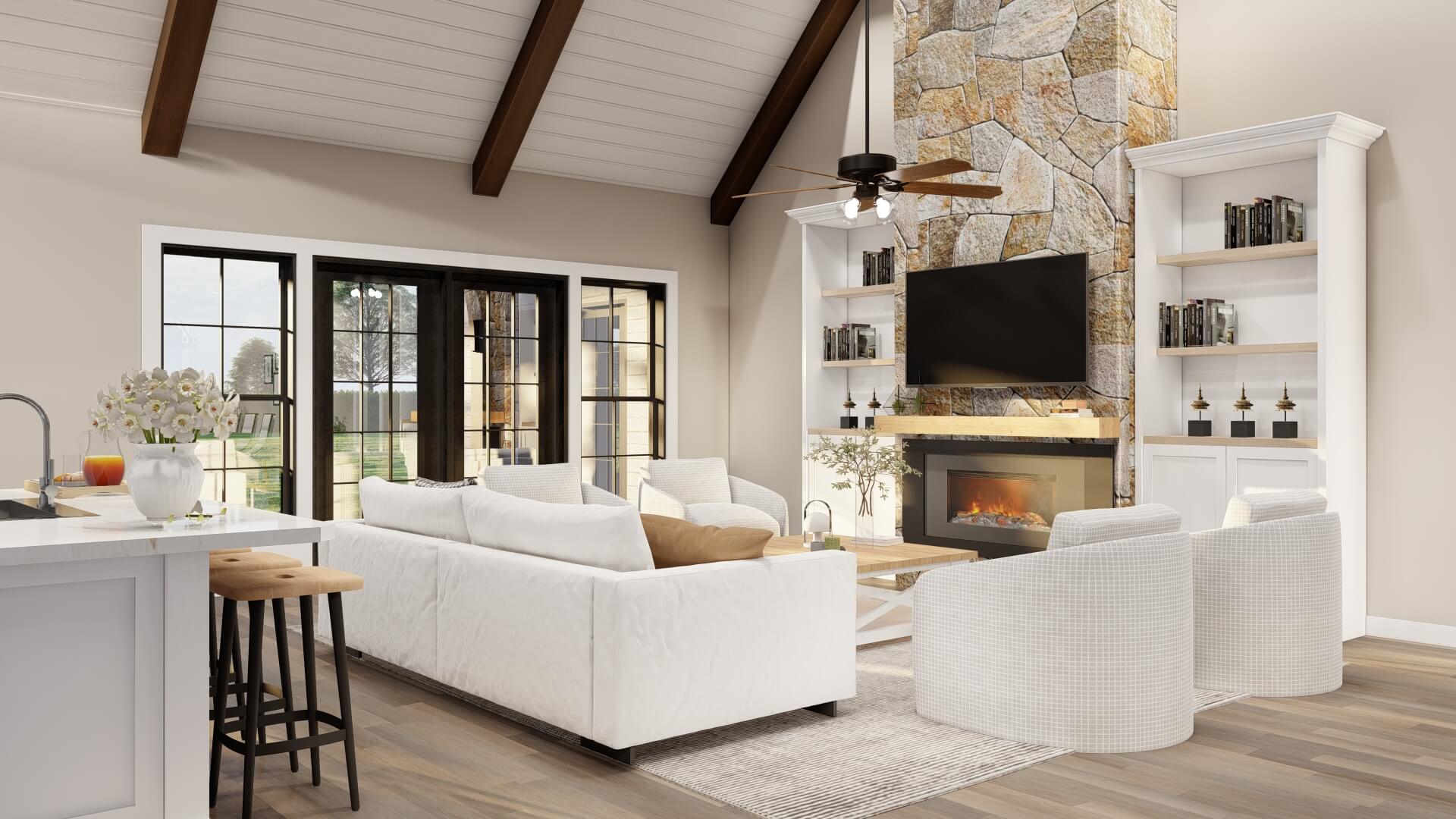

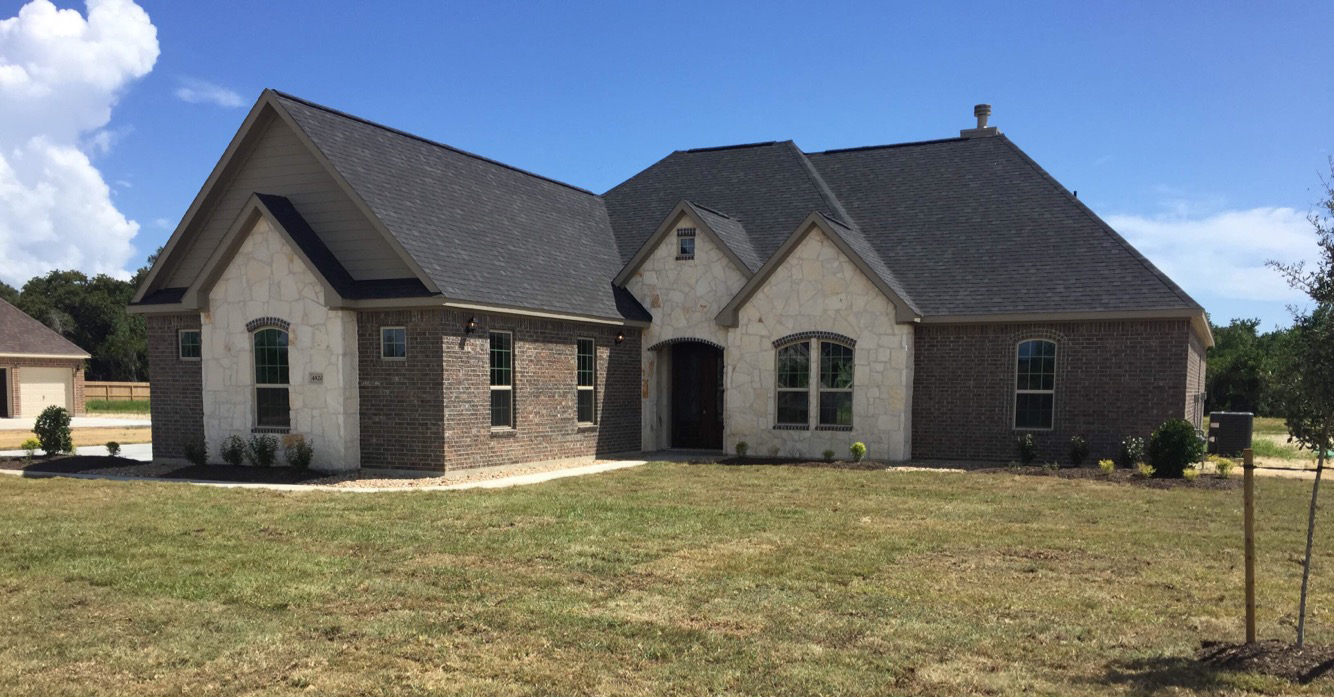

An arched entry and arched windows are showcased on this European style home featuring a brick, stone, and shake siding exterior. The open floor plan plays into the family friendly Great Room with its vaulted ceiling, fireplace and access to an optional screened/grilling porch. It is also open to the breakfast room and kitchen that features an eat-at island bar and plenty of counter space. The Master Suite features a vaulted ceiling with a master bath offering a corner glass shower, a whirlpool tub, separate vanities and a large walk-in closet. Two bedrooms are located on the other side of the home as well as a share a bath. Guests will enjoy the privacy of their own bedroom with a walk-in closet and adjacent full bath. A large bonus room is also located over the garage.

Specifications

  • Total Living Space:2545 Sq.Ft.
  • Main Floor: 2545 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 379 Sq.Ft.
  • Porch (Sq.Ft.): 371 Sq.Ft.
  • Garage (Sq.Ft.): 870 Sq.Ft.
  • Total Square Feet: 4165 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
