House Plan 1435 Newcastle Village, Multi-Family House Plan

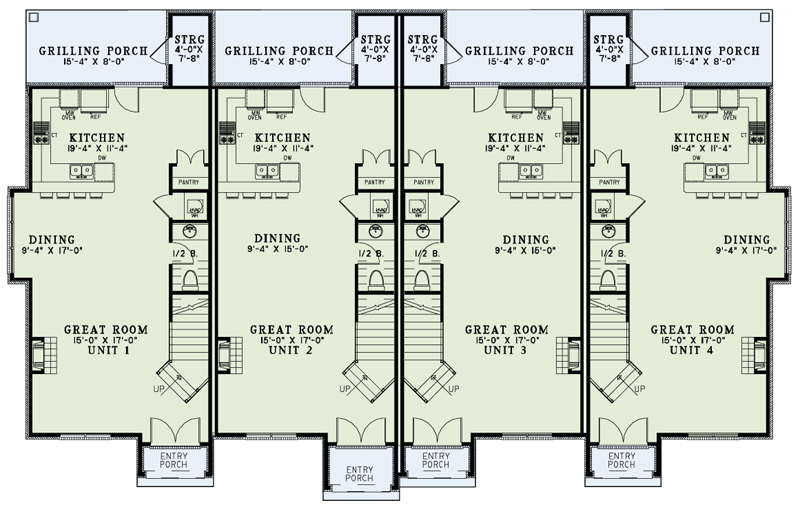

House Plan NDG 1435 Main Floor

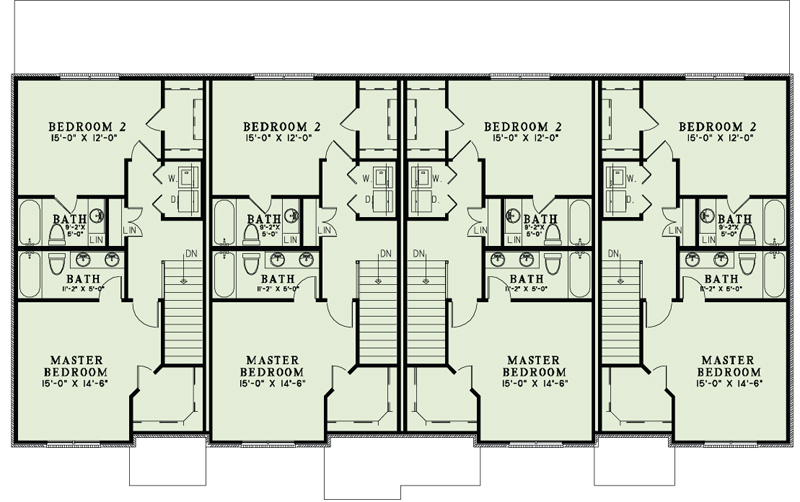

House Plan NDG 1435 Upper Floor
House Plan NDG 1435 Main Floor
House Plan NDG 1435 Upper Floor

Floor plans

NDG 1435

House Plan 1435 Newcastle Village, Multi-Family House Plan

PDF: $2,050.00

Plan Details

  • Plan Number: NDG 1435
  • Total Living Space:1510Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 85
  • Width In.: N/A
  • Depth Ft.: 52
  • Depth In.: 2

Description

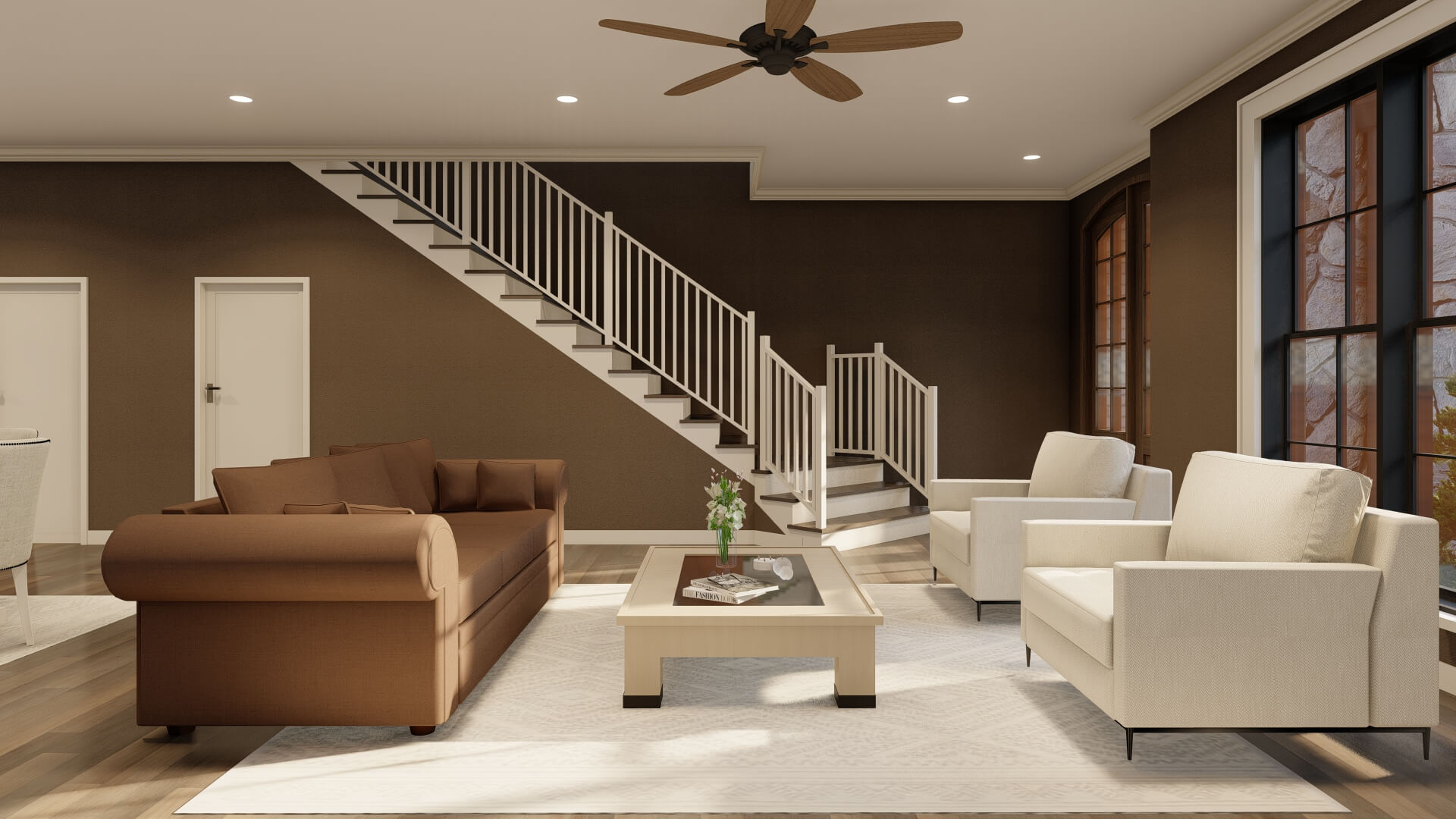

This 4-plex offers an open floor plan with a Great Room that flows to the dining room and kitchen. A grilling porch is off of the kitchen while the upper floor features 2 bedrooms with walk-in closets and 2 full bathrooms.

Specifications

  • Total Living Space:1510Sq.Ft.
  • Main Floor: 794 Sq.Ft
  • Upper Floor (Sq.Ft.): 716 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): 188 Sq.Ft.
  • Total Square Feet: 1698 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 16:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 37
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
