House Plan 1427 Whispering Winds, Riverbend House Plan

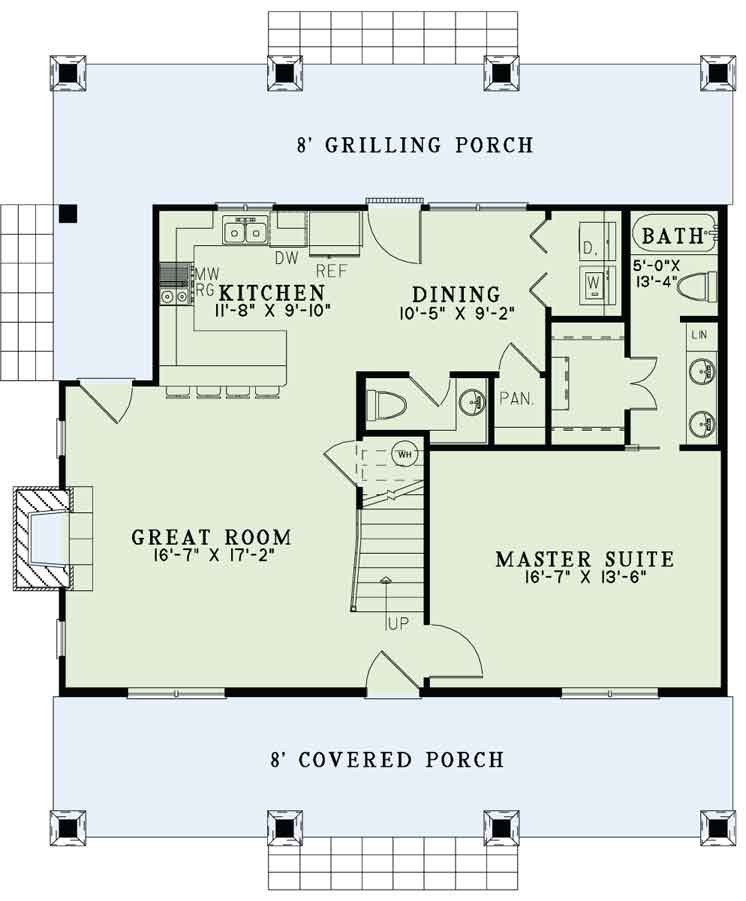

House Plan NDG 1427 Main Floor

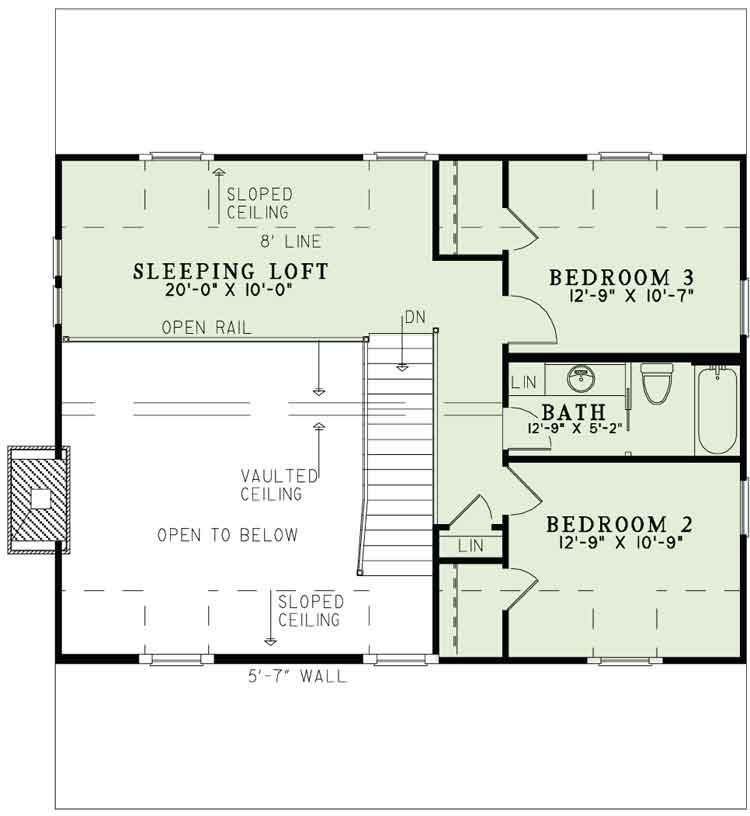

House Plan NDG 1427 Upper Floor
House Plan NDG 1427 Main Floor
House Plan NDG 1427 Upper Floor

Floor plans

NDG 1427

House Plan 1427 Whispering Winds, Riverbend House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1427
  • Total Living Space:1712Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 38
  • Width In.: N/A
  • Depth Ft.: 44
  • Depth In.: N/A

Description

This charming home greets you with its massive front covered porch that’s perfect for a porch swing. Inside, the Great Room has a fireplace and access to the large rear grilling porch. It also joins the Kitchen at the eat-at bar. Off of the Kitchen is the Dining Room with access to the grilling porch. And a convenient half bath is located off the Dining Room. Also on the first floor is the large Master Suite complete with a walk-in closet. Upstairs you’ll find a sleeping loft, 2 more bedrooms and a full bathroom.

Specifications

  • Total Living Space:1712Sq.Ft.
  • Main Floor: 1012 Sq.Ft
  • Upper Floor (Sq.Ft.): 700 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 608 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2320 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
