House Plan 1415 Addison Place, European House Plan

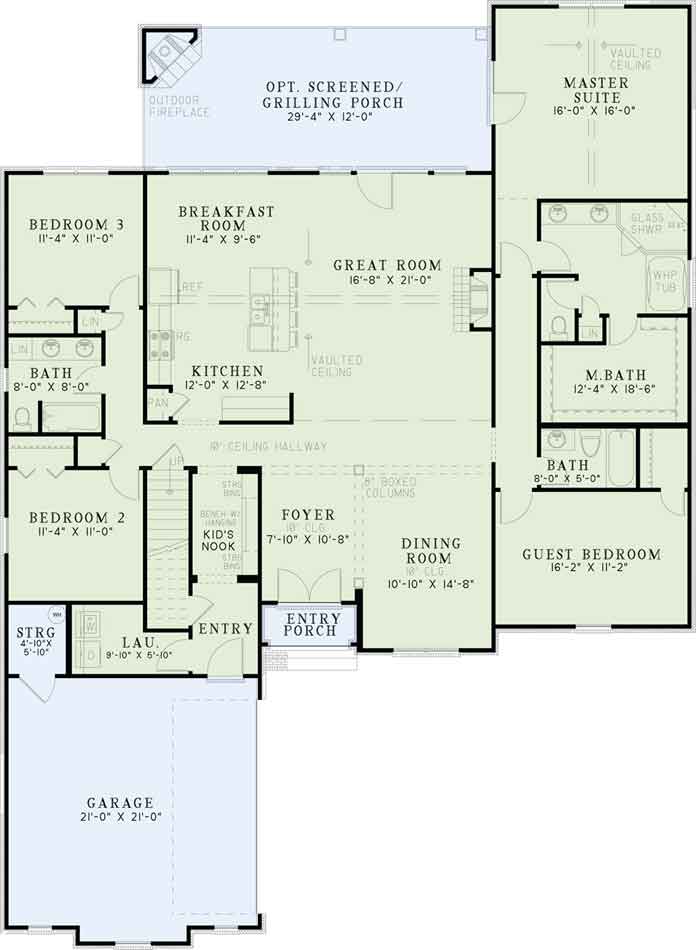

House Plan NDG 1415 Main Floor

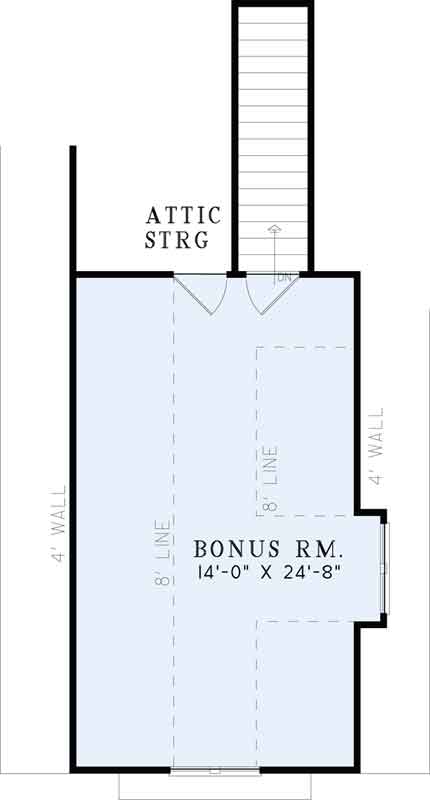

House Plan NDG 1415 Bonus Room

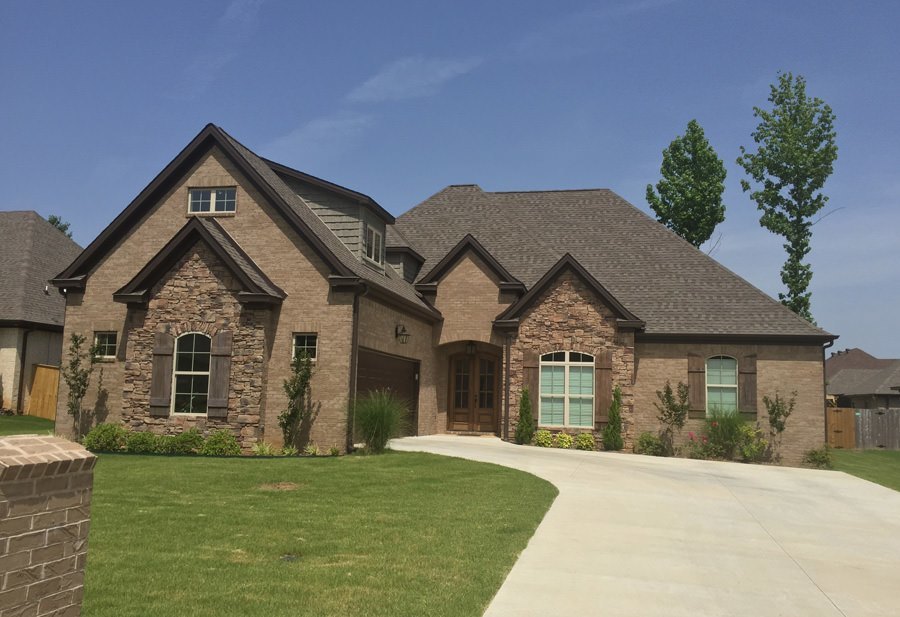

House Plan - NDG1415 Front Exterior>
House Plan NDG 1415 Main Floor
House Plan NDG 1415 Bonus Room
House Plan - NDG1415 Front Exterior

Floor plans

NDG 1415

House Plan 1415 Addison Place, European House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 1415
  • Total Living Space:2530Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 57
  • Width In.: 10
  • Depth Ft.: 79
  • Depth In.: 2


The spacious Foyer of this elegant, European style, home opens to the Dining Room that features a 10′ ceiling and an 8 inch boxed column at the corner. Beyond the column lies the large Great Room with its 10′ boxed ceiling and cozy fireplace. The Great Room has access to a rear Grilling Porch and is open to the Kitchen and Breakfast Room. Bedrooms 2 and 3 are located on the left side of the house with a bathroom between them. You'll appreciate the Kid’s Nook located just past the entrance from the garage that features a bench with hanging space and storage bins to keep the entrance free of clutter. On the opposite side of the house is the Master Suite with a vaulted ceiling as well as a Master Bath complete with whirlpool tub, corner glass shower and large walk-in closet. The front Guest Bedroom has a walk-in closet and an adjacent bathroom for hosting friends and family. And last but certainly not least, family is sure to enjoy the Bonus Room located over the garage.


  • Total Living Space:2530Sq.Ft.
  • Main Floor: 2530 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 380 Sq.Ft.
  • Porch (Sq.Ft.): 371 Sq.Ft.
  • Garage (Sq.Ft.): 502 Sq.Ft.
  • Total Square Feet: 3783 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
