House Plan 1403 Ashton Cove, Traditional House Plan

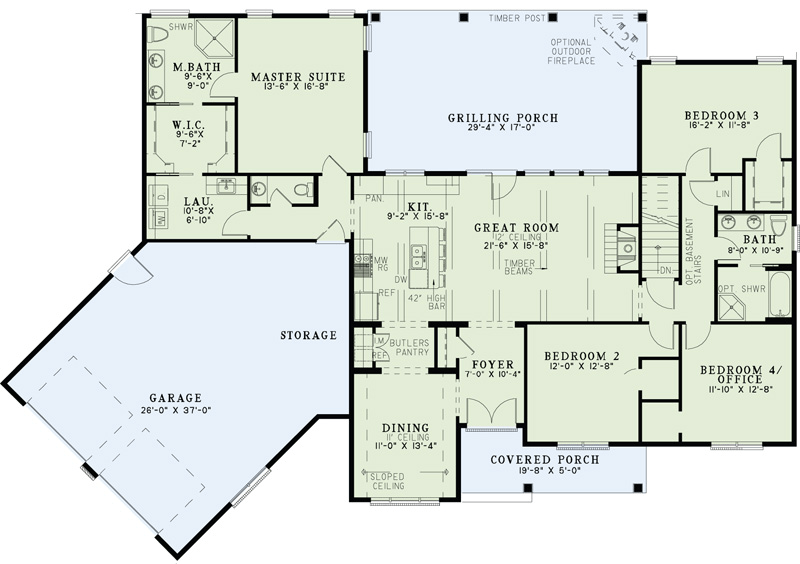

House Plan NDG 1403 Main Floor
House Plan NDG 1403 Main Floor

Floor plans

NDG 1403

House Plan 1403 Ashton Cove, Traditional House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 1403
  • Total Living Space:2279Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Angled Garage
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 85
  • Width In.: 9
  • Depth Ft.: 59
  • Depth In.: N/A

Description

Once you walk through the foyer of this split plan home, you’ll be welcomed by the Great Room and its massive 12’ ceiling. It’s open to the kitchen that features an eat-at island bar. The Master Suite boasts plenty of room and a large walk-in closet with a very convenient sliding door to the laundry room. On the other side of the house are bedrooms 2 and 3 and a full bath and an office that could double as a 4th bedroom. There is also a Grilling Porch in the back with access from the great room. The double car garage is at a 45 degree angle and allows for more storage space.

Specifications

  • Total Living Space:2279Sq.Ft.
  • Main Floor: 2279 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 621 Sq.Ft.
  • Garage (Sq.Ft.): 825 Sq.Ft.
  • Total Square Feet: 3725 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x6
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
