House Plan 1401 Eudocia, Stone-And-Brick House Plan

House Plan NDG 1401 Main Floor

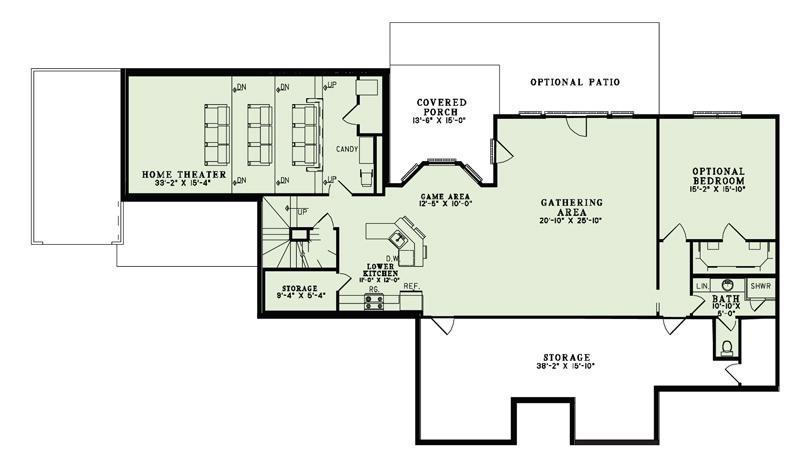

House Plan NDG 1401 Basement

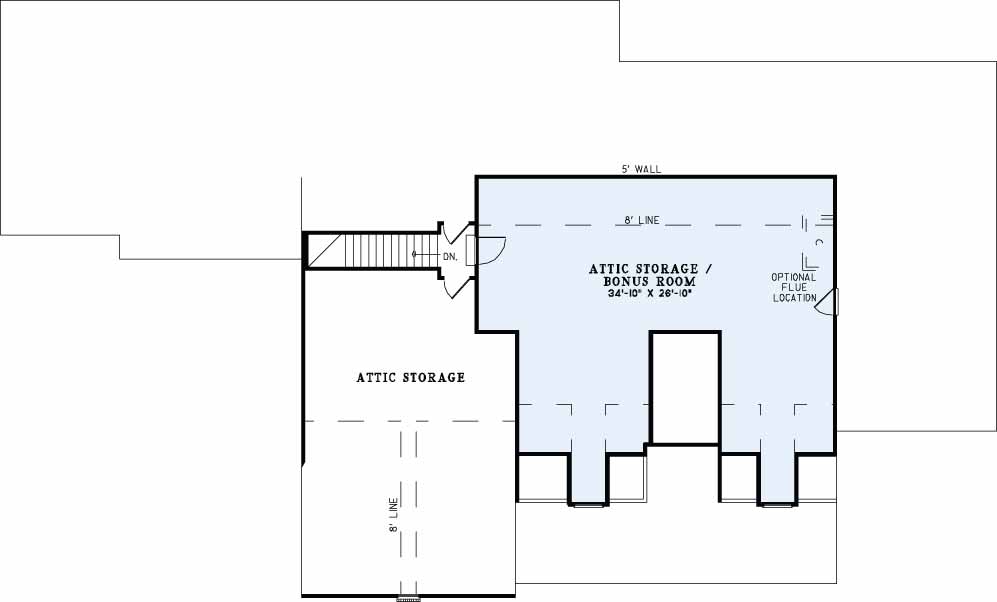

House Plan NDG 1401 Bonus
House Plan- 1148 Front View
House Plan NDG 1401 Main Floor
House Plan NDG 1401 Basement
House Plan NDG 1401 Bonus
House Plan- 1148 Front View

Floor plans

House Plan NDG 1401 Main Floor

House Plan NDG 1401 Basement

House Plan NDG 1401 Bonus
NDG 1401

House Plan 1401 Eudocia, Stone-And-Brick House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 1401
  • Total Living Space:4827Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 97
  • Width In.: 8
  • Depth Ft.: 64
  • Depth In.: 6

Description

This striking Nelson Design Group home design has a combination of stone and painted brick with copper architectural features making this home the talk of the town. An arched entrance with a deep front porch with pairs of columns provides an elegant front entry while carriage-style garage doors and shutters add a bit of ‘old world’ warmth. The foyer has a twelve-foot ceiling providing a grand entry into the great room while sophisticated crown moldings are highlighted with ten-foot ceilings in the main living areas. Quiet time can be spent in the sun room or screened porch both viewing a large sun deck, while the lively bunch spends time in the available upper bonus room… Sunroom is a 192 SQ. FT and included in the Heat/Cooled Total

Specifications

  • Total Living Space:4827Sq.Ft.
  • Main Floor: 2768 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): 2059 Sq.Ft.
  • Bonus Room (Sq.Ft.): 913 Sq.Ft.
  • Porch (Sq.Ft.): 838 Sq.Ft.
  • Garage (Sq.Ft.): 807 Sq.Ft.
  • Total Square Feet: 8021 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 5:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): 636 Sq.Ft.
