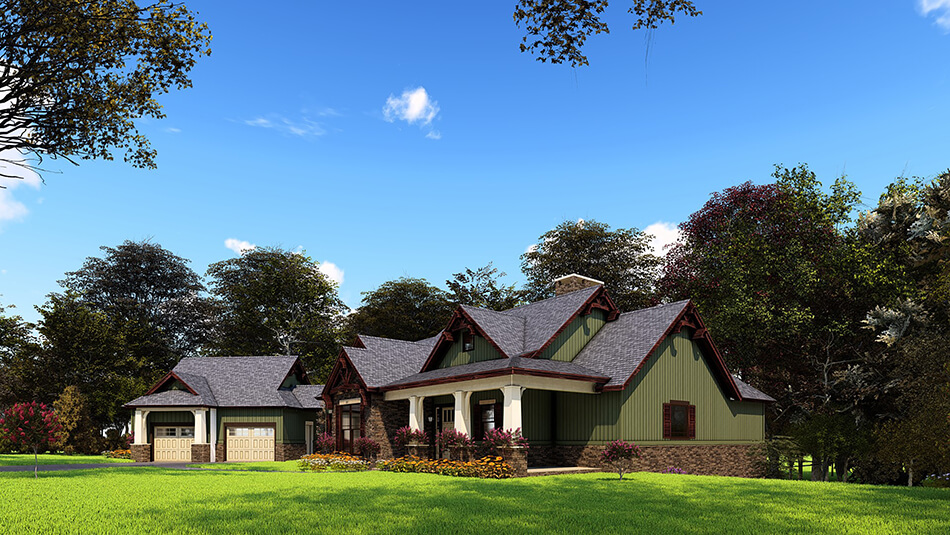

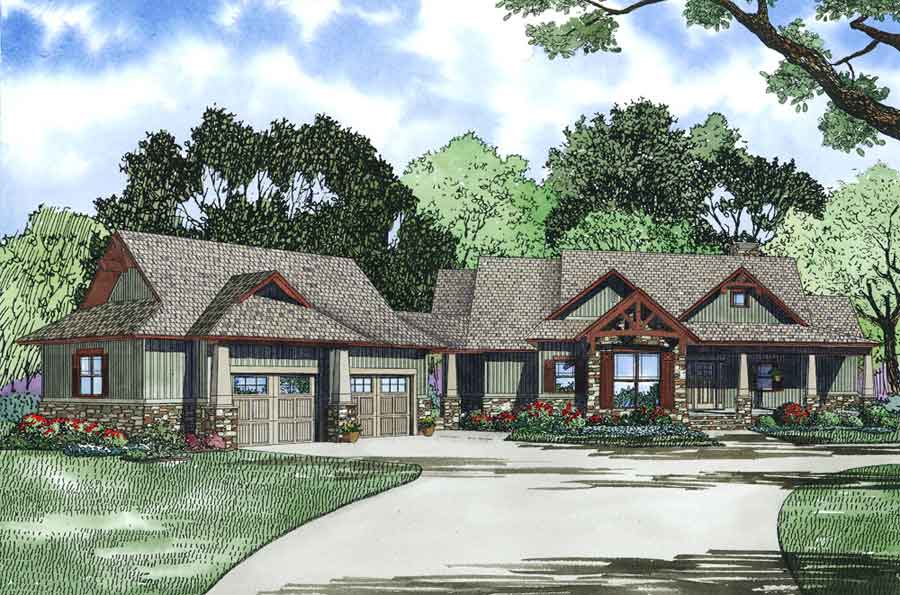

House Plan NDG 1380 Front Exterior

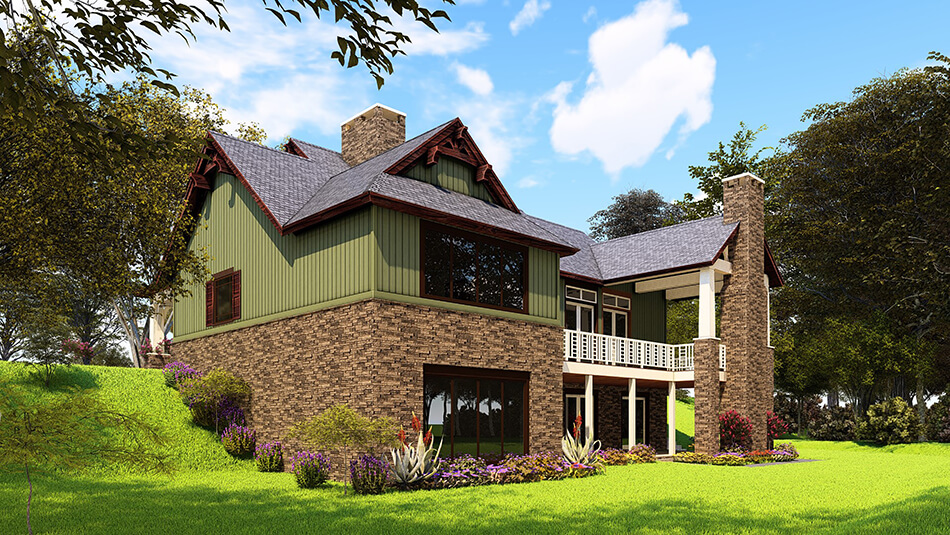

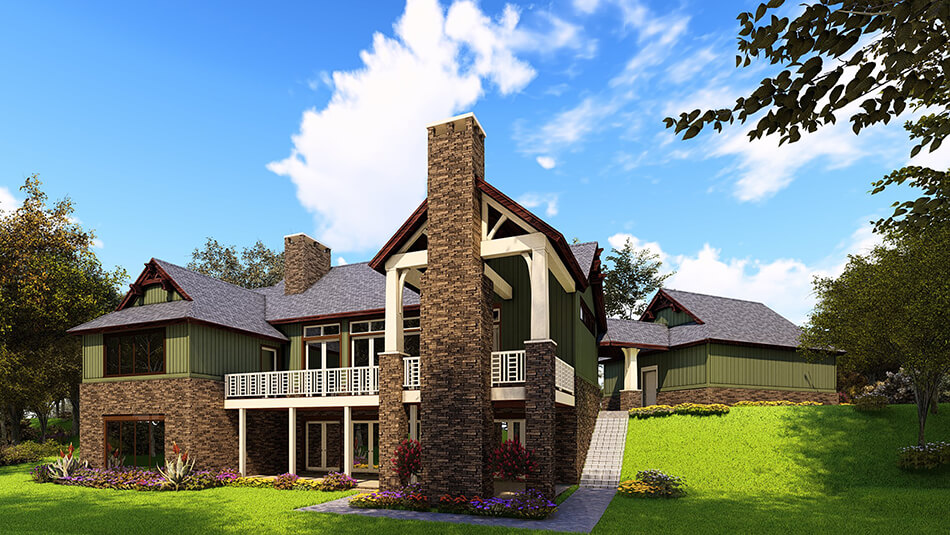

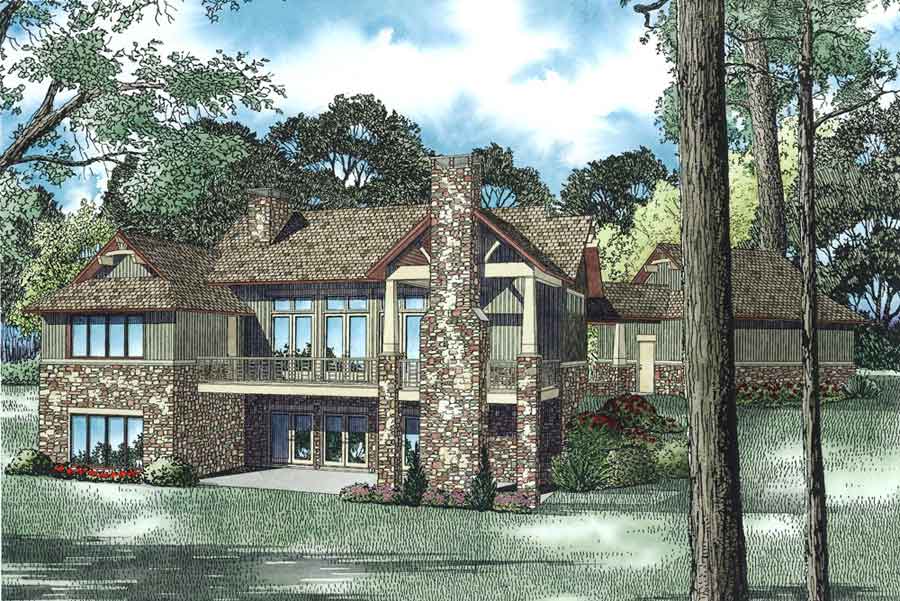

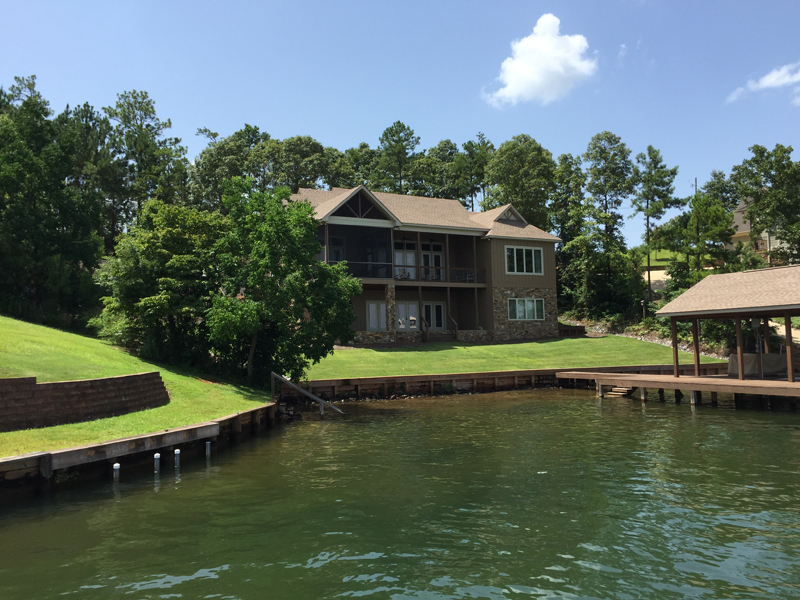

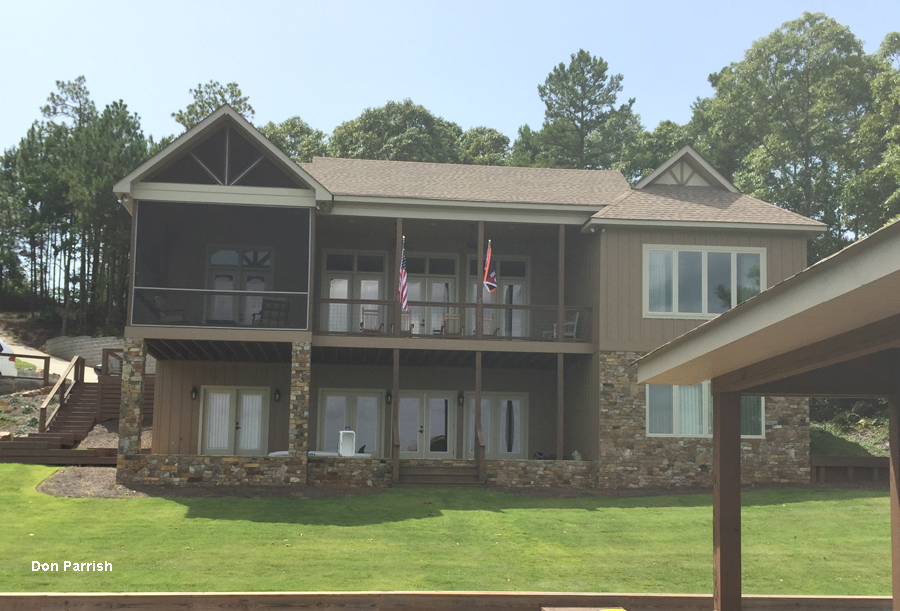

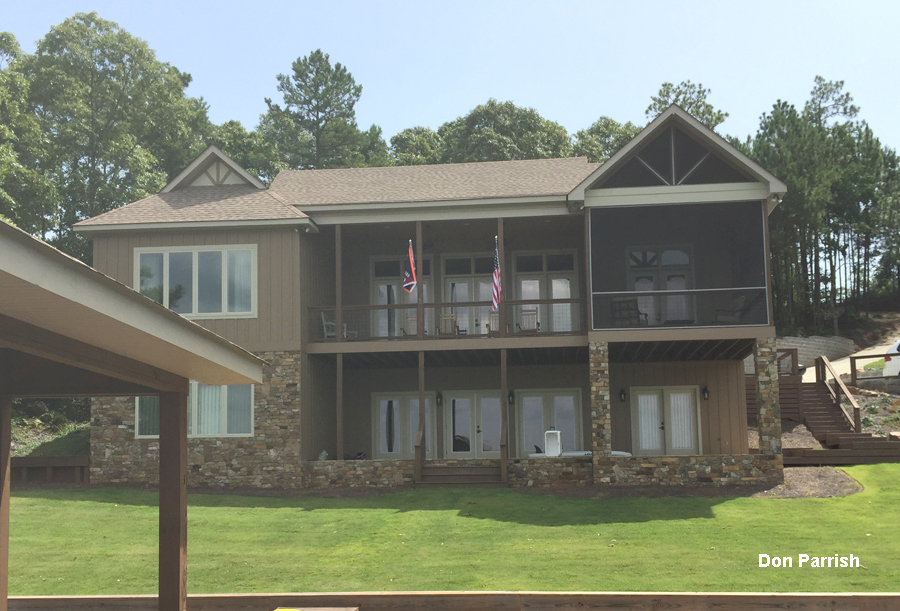

House Plan NDG 1380 Rear Exterior
House Plan NDG 1380 Rear Exterior
House Plan NDG 1380 Front Exterior
House Plan NDG 1380 Rear Exterior
House Plan NDG 1380 Great Room
House Plan NDG 1380 Kitchen
House Plan NDG 1380 Master Suite
House Plan NDG 1380 Additional Bedroom
House Plan NDG 1380 Media/Game Room
House Plan NDG 1380 Media/Game Room
House Plan NDG 1380 Main Floor
House Plan NDG 1380 Basement
House Plan NDG 1380 Front Exterior
House Plan NDG 1380 Rear Exterior
House Plan NDG 1380 Rear Exterior
House Plan NDG 1380 Front Exterior
House Plan NDG 1380 Rear Exterior
House Plan NDG 1380 Great Room
House Plan NDG 1380 Kitchen
House Plan NDG 1380 Master Suite
House Plan NDG 1380 Additional Bedroom
House Plan NDG 1380 Media/Game Room
House Plan NDG 1380 Media/Game Room

Floor plans

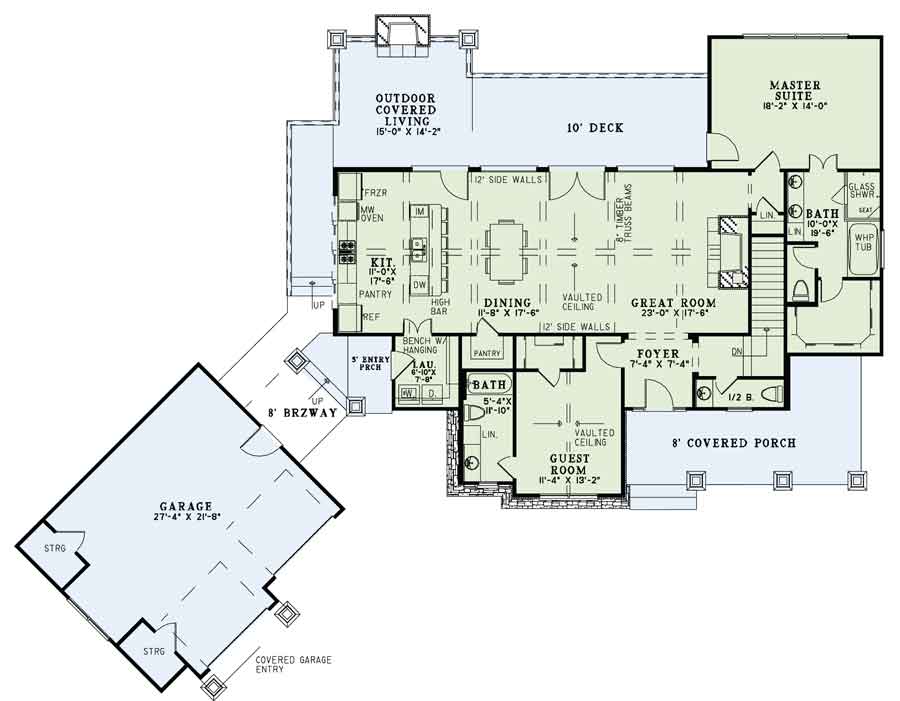

House Plan NDG 1380 Main Floor

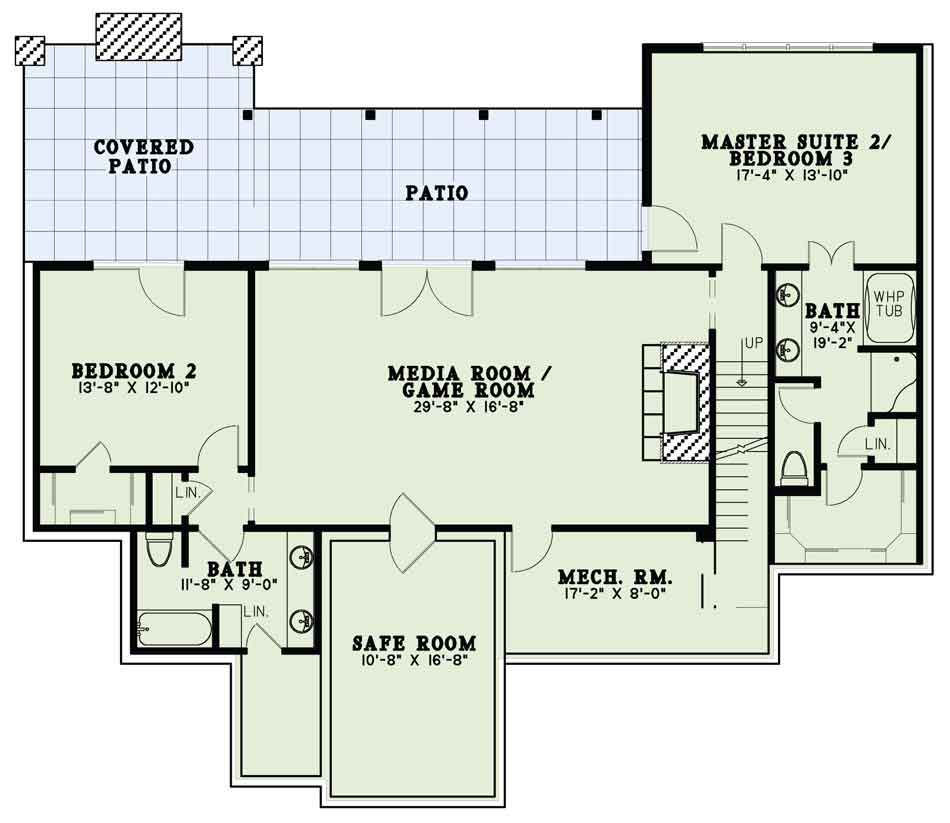

House Plan NDG 1380 Basement
NDG 1380

House Plan 1380 Cliffs, Angler Mountain House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: NDG 1380
  • Total Living Space:3579 Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Angled Garage
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 93
  • Width In.: 6
  • Depth Ft.: 70
  • Depth In.: 9

Description

Packed with character, this rustic, yet elegant home features timber beams inside and out, and wooden columns on stone bases. With an inviting covered front porch, inside you’ll find a large Great Room with a vaulted ceiling of timer truss beams, with a large fireplace. The Great Room is open to the Dining Room and Kitchen. The kitchen features a large island bar and a walk-in pantry. With access from the Great Room and Kitchen, the outdoor living area with a fireplace is perfect for visiting or meals. The large master suite has a whirlpool tub, shower, walk-in closet, and private access to the deck. Off of the foyer is a Guest Room with a walk-in closet and a private bathroom. Downstairs is another Master Suite with the same amenities. And there’s a huge Media/Game Room with a fireplace, another bedroom, and a large Safe Room. A covered patio is off of the Media Room and is accessible from bedroom 2 and the 2nd Master Suite.

Specifications

  • Total Living Space:3579 Sq.Ft.
  • Main Floor: 1807 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): 1772 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 804 Sq.Ft.
  • Garage (Sq.Ft.): 649 Sq.Ft.
  • Total Square Feet: 5032 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
