House Plan 1350 Buckingham Court, Multi-Family House Plan

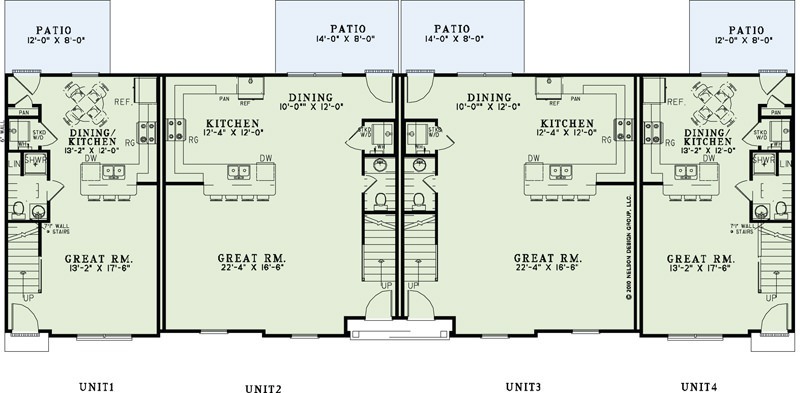

House Plan NDG 1350 Main Floor

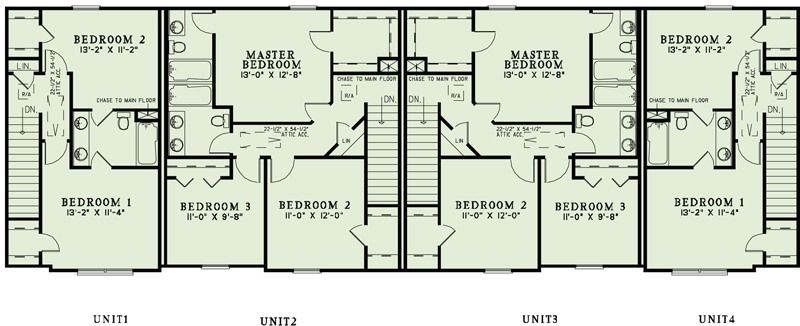

House Plan NDG 1350 Upper Floor
House Plan NDG 1350 Main Floor
House Plan NDG 1350 Upper Floor

Floor plans

NDG 1350

House Plan 1350 Buckingham Court, Multi-Family House Plan

PDF: $2,250.00

Plan Details

  • Plan Number: NDG 1350
  • Total Living Space:1541Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 90
  • Width In.: N/A
  • Depth Ft.: 30
  • Depth In.: N/A

Description

This multi-family 4-plex offers a great room, kitchen and dining area and 2 bedrooms and a full bathroom on the upstairs outside units and 3 bedrooms and 2 full bathrooms on the upstairs of the 2 inner units. Floor Plan Specifications: Heat/Cooled Main Floor Units 1 & 4: 529 SQ. FT Heat/Cooled Main Floor Units 2 & 3: 787 SQ. FT Heat/Cooled Upper Floor Units 1 & 4: 483 SQ. FT Heat/Cooled Upper Floor Units 2 & 3: 754 SQ. FT Heat/Cooled Total Units 1 & 4: 1012 SQ. FT Heat/Cooled Total Units 2 & 3: 1541 SQ. FT

Specifications

  • Total Living Space:1541Sq.Ft.
  • Main Floor: 787 Sq.Ft
  • Upper Floor (Sq.Ft.): 754 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1541 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
