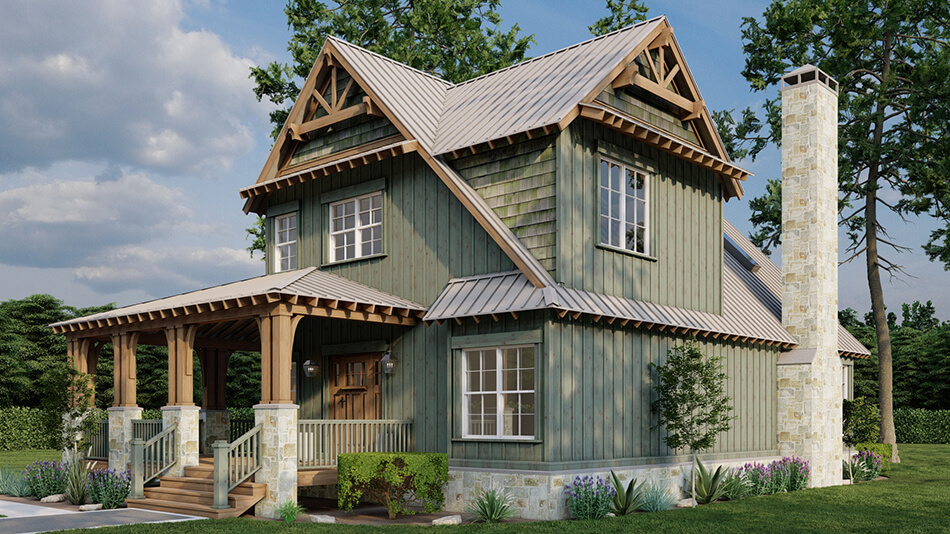

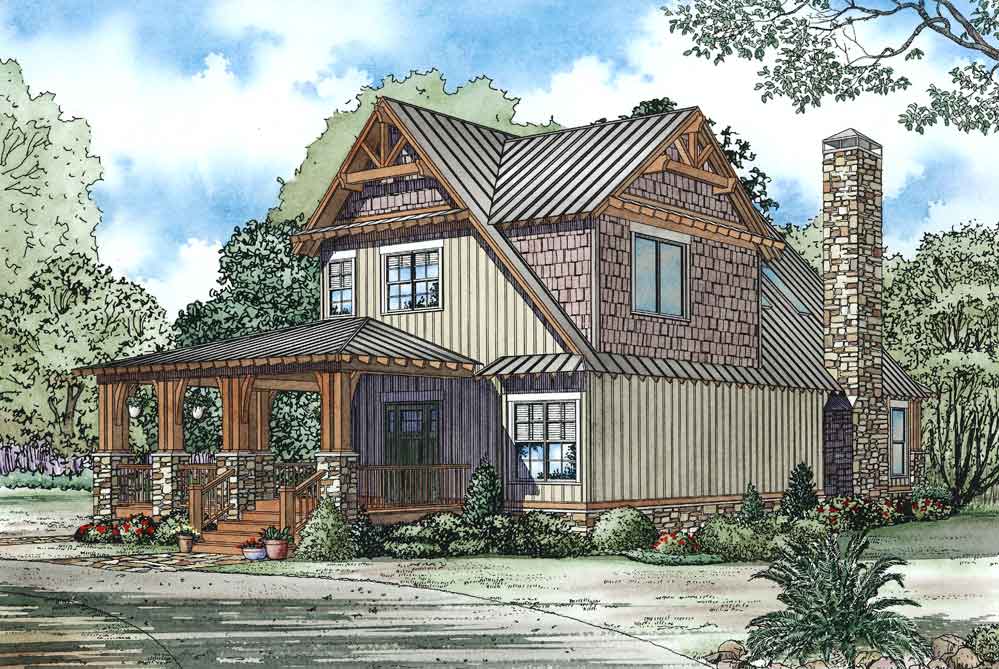

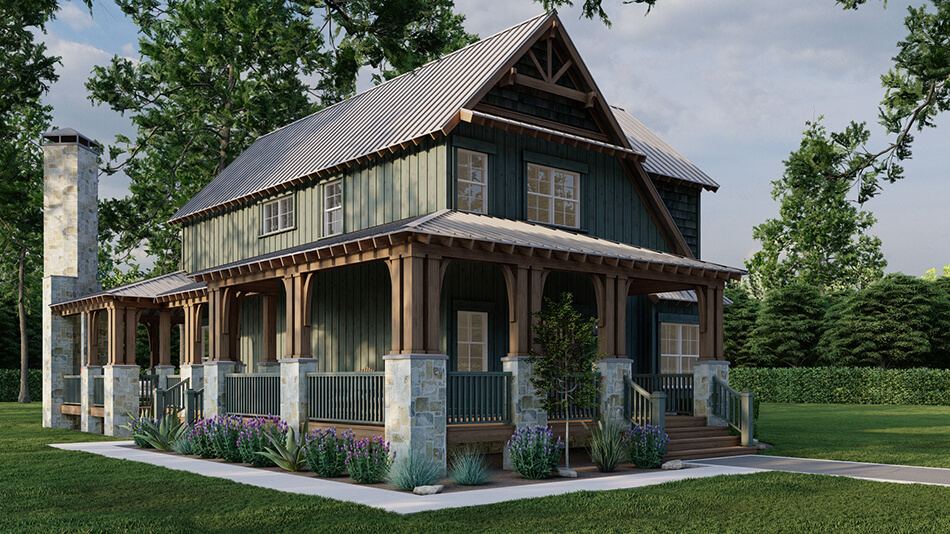

House Plan 1337 Angler Retreat, Riverbend House Plan

House Plan NDG 1337 Main Floor

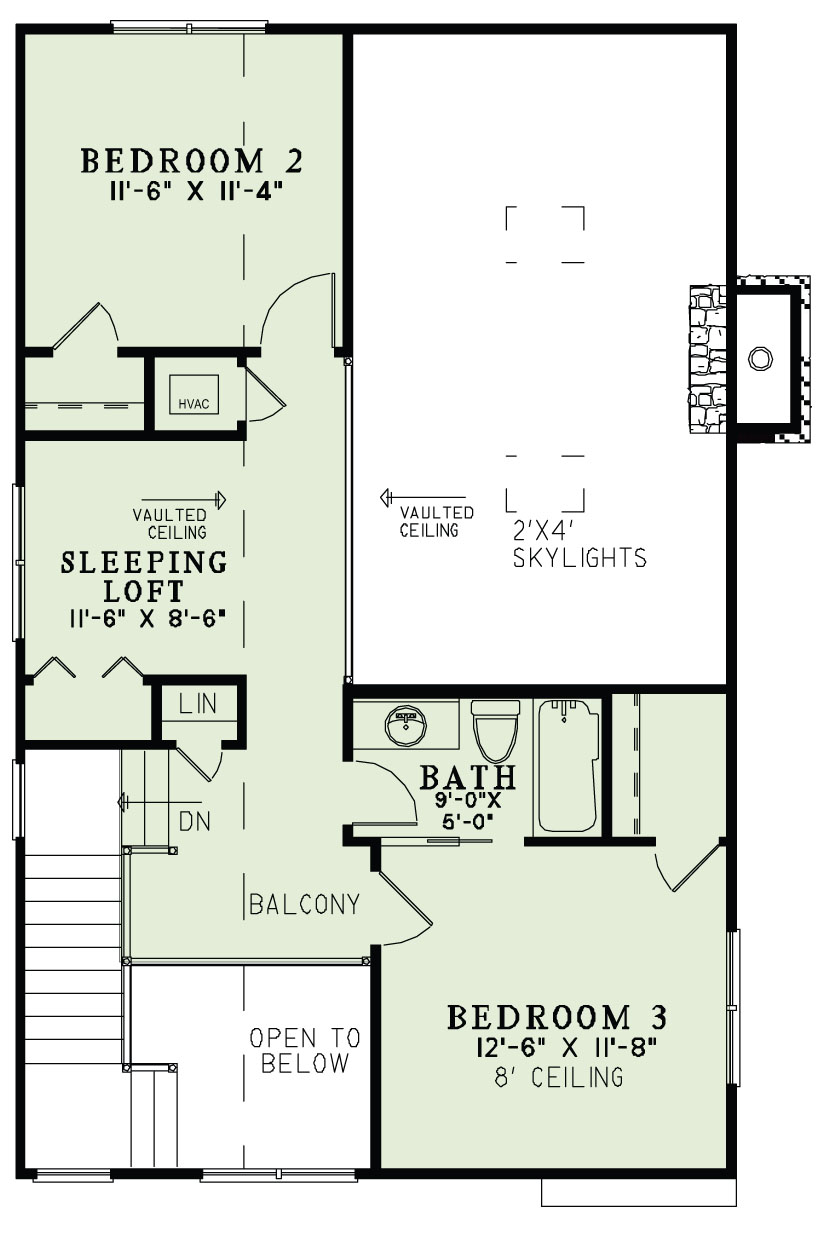

House Plan NDG 1337 Upper Floor
House Plan NDG 1337 Main Floor
House Plan NDG 1337 Upper Floor

Floor plans

NDG 1337

House Plan 1337 Angler Retreat, Riverbend House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 1337
  • Total Living Space:1705Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 36
  • Width In.: 8
  • Depth Ft.: 61
  • Depth In.: 8

Description

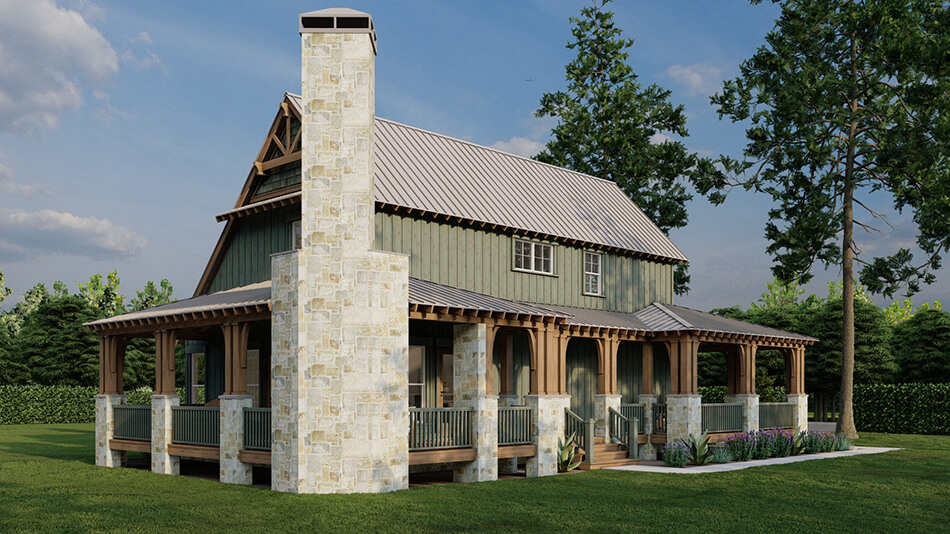

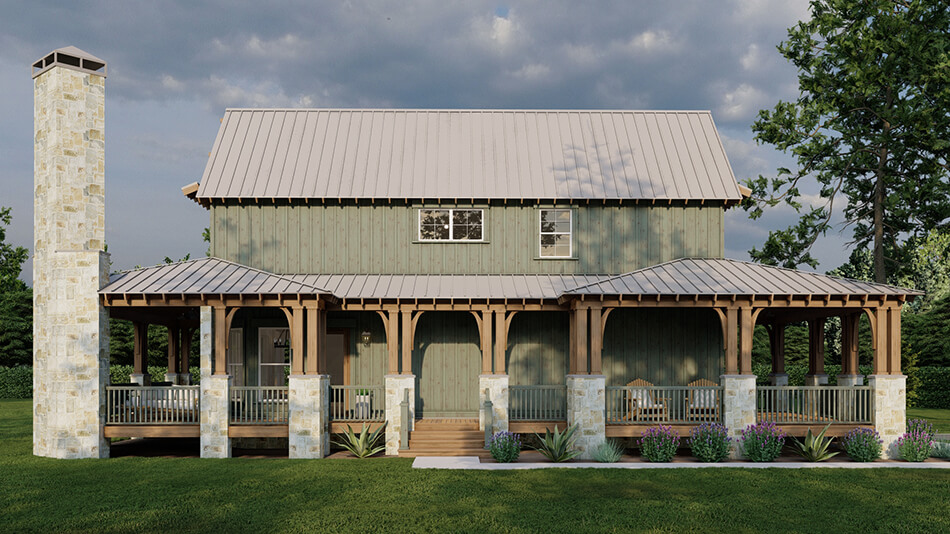

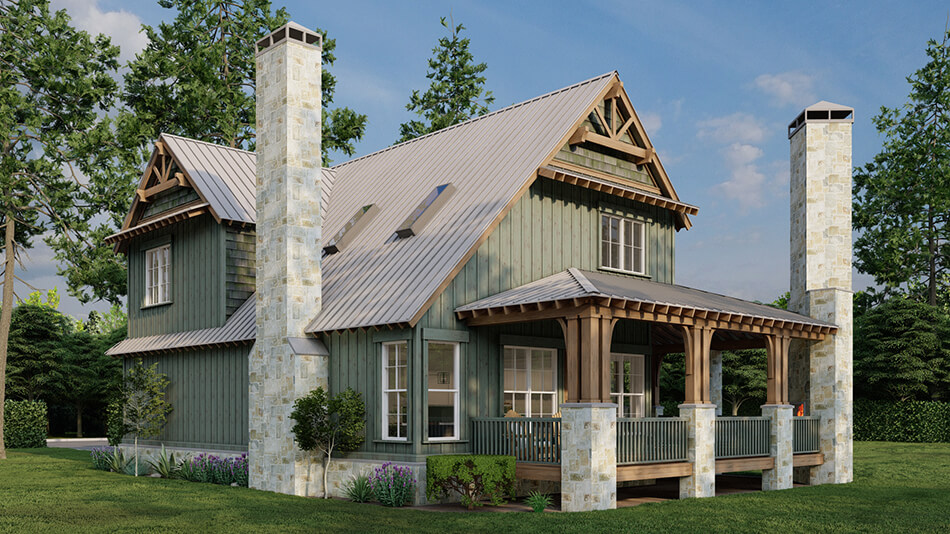

Family and friends will create many wonderful memories in this Riverbend retreat. The huge wrap around porch is sure to entertain and features a corner fireplace and a grilling are. The great room is open to the kitchen and dining area has a stone fireplace. The kitchen has a wrap around island bar and a walk-in pantry. Upstairs is bedroom 2 and 3 with walk-in closets, a sleeping loft, and a full bathroom. 1 balcony is open to the foyer below and another to the great room below.

Specifications

  • Total Living Space:1705Sq.Ft.
  • Main Floor: 1085 Sq.Ft
  • Upper Floor (Sq.Ft.): 620 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 919 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2624 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
