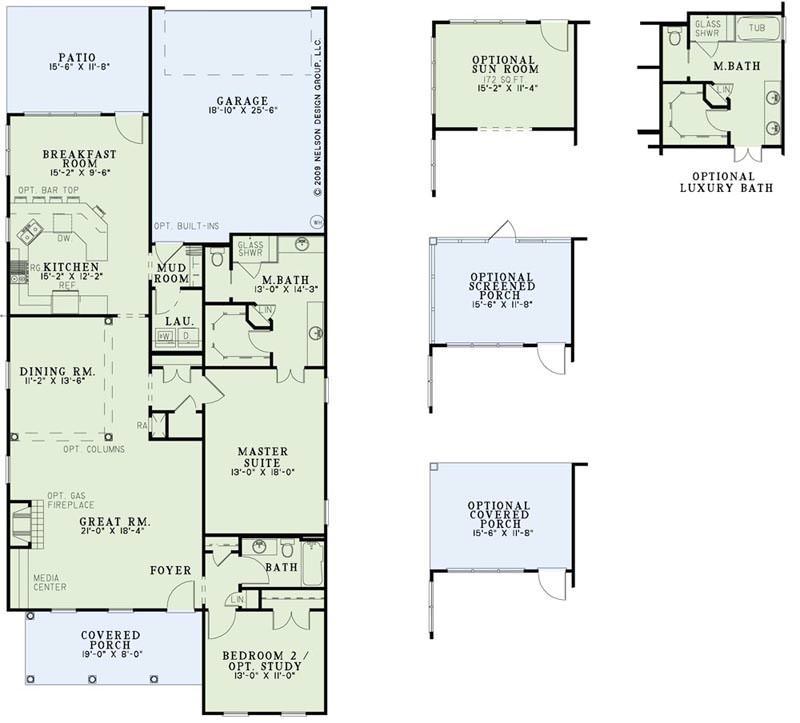

Floor plans

NDG 1315

House Plan 1315 Lawrence, Affordable House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1315
  • Total Living Space:1802Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 35
  • Width In.: N/A
  • Depth Ft.: 77
  • Depth In.: 6

Description

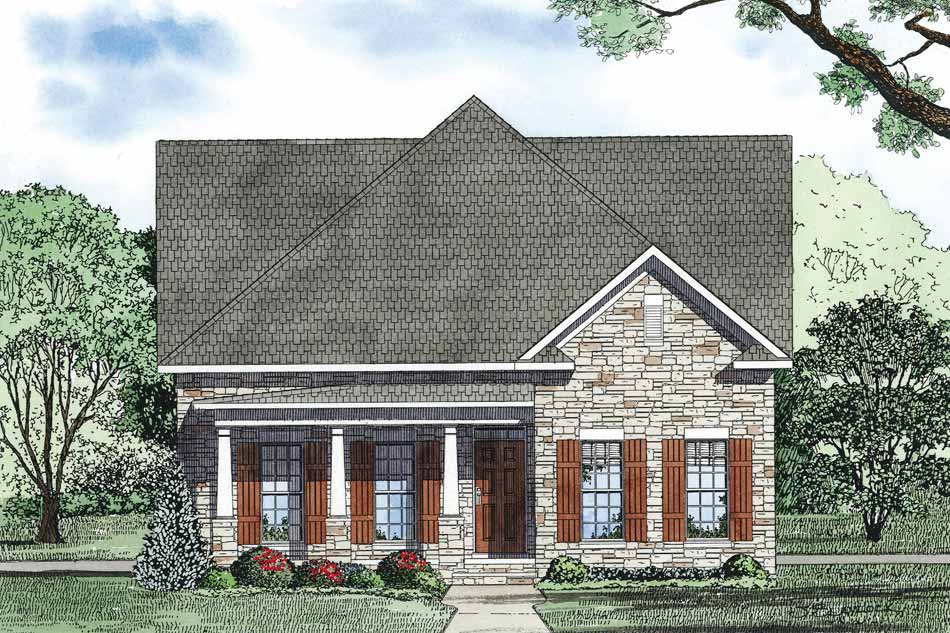

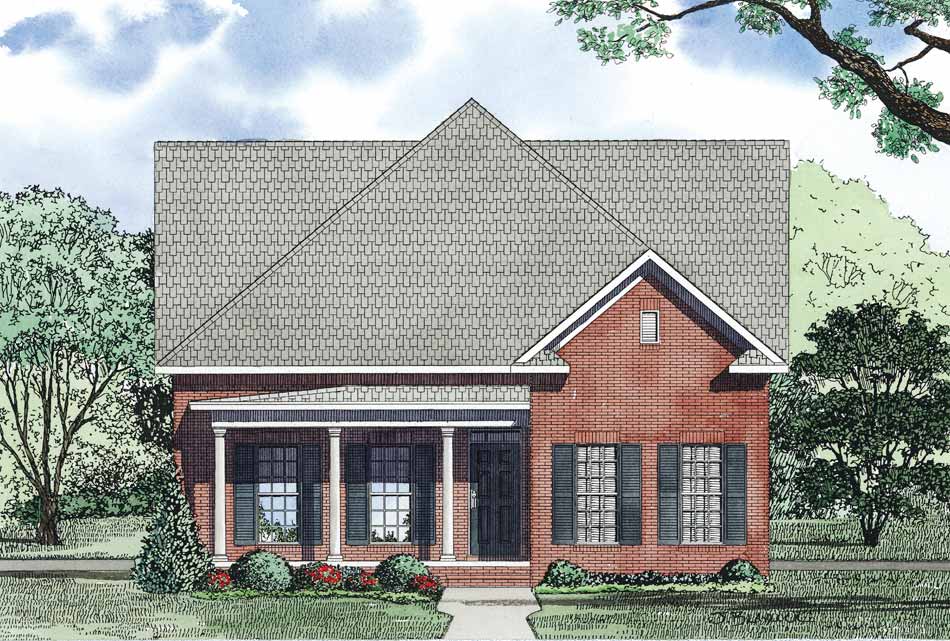

This smart plan allows you three options for the front; your choice of siding, brick or stone…with siding on the other three sides. You also have a “luxury” master bathroom option depending on your budget. The patio space can be transformed into a sunroom, screened or basic covered porch. Your choice – for your investment!

Specifications

  • Total Living Space:1802Sq.Ft.
  • Main Floor: 1802 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 336 Sq.Ft.
  • Garage (Sq.Ft.): 487 Sq.Ft.
  • Total Square Feet: 2625 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 1:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
