House Plan 1303 Breckenridge, Multi-Family House Plan

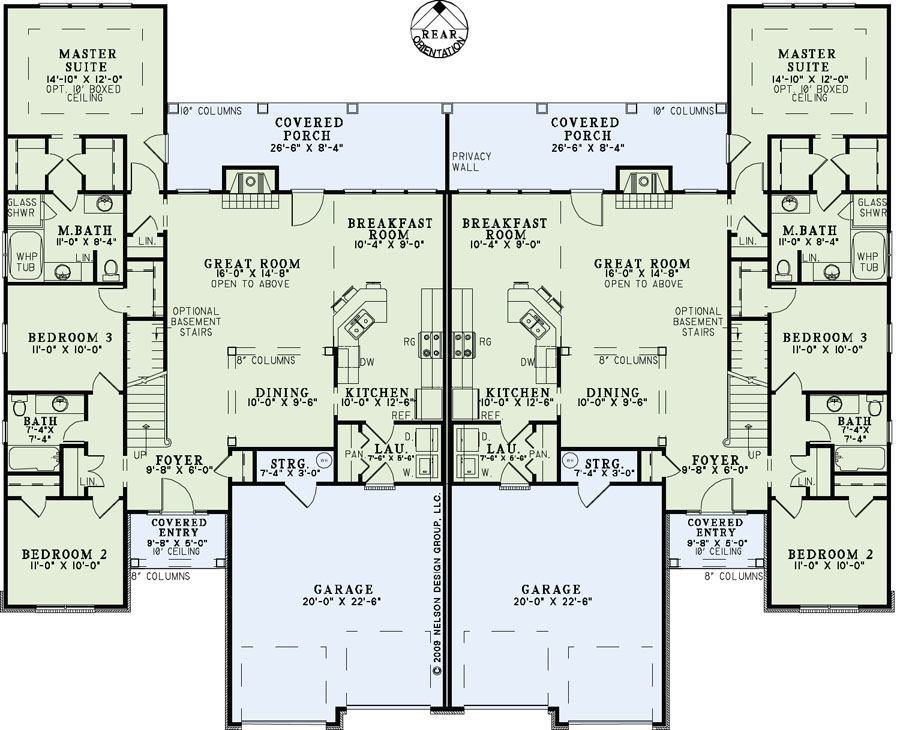

House Plan NDG 1303 Main Floor
House Plan NDG 1303 Main Floor

Floor plans

NDG 1303

House Plan 1303 Breckenridge, Multi-Family House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 1303
  • Total Living Space:1875Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 84
  • Width In.: 2
  • Depth Ft.: 68
  • Depth In.: 6

Description

Multi-family home

Floor Plan Specifications:
Heat/Cooled Main Floor Unit 1: 1588 SQ. FT
Heat/Cooled Upper Floor Unit 1: 287 SQ. FT
Heat/Cooled Total Unit 1: 1875 SQ. FT
Garage, Storage Unit 1: 480 SQ. FT
Porches Unit 1: 280 SQ. FT
Total Unit 1: 2635 SQ. FT
Bonus Room & Bridge Unit 1: 233 SQ. FT

Heat/Cooled Main Floor Unit 2: 1588 SQ. FT
Heat/Cooled Upper Floor Unit 2: 287 SQ. FT
Heat/Cooled Total Unit 2: 1875 SQ. FT
Garage, Storage Unit 2: 480 SQ. FT
Porches Unit 2: 280 SQ. FT
Total Unit 2: 2635 SQ. FT
Bonus Room & Bridge Unit 2: 233 SQ. FT

Specifications

  • Total Living Space:1875Sq.Ft.
  • Main Floor: 1588 Sq.Ft
  • Upper Floor (Sq.Ft.): 287 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 233 Sq.Ft.
  • Porch (Sq.Ft.): 280 Sq.Ft.
  • Garage (Sq.Ft.): 480 Sq.Ft.
  • Total Square Feet: 2635 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
