House Plan 1292 Stone Mountain, Rustic House Plan

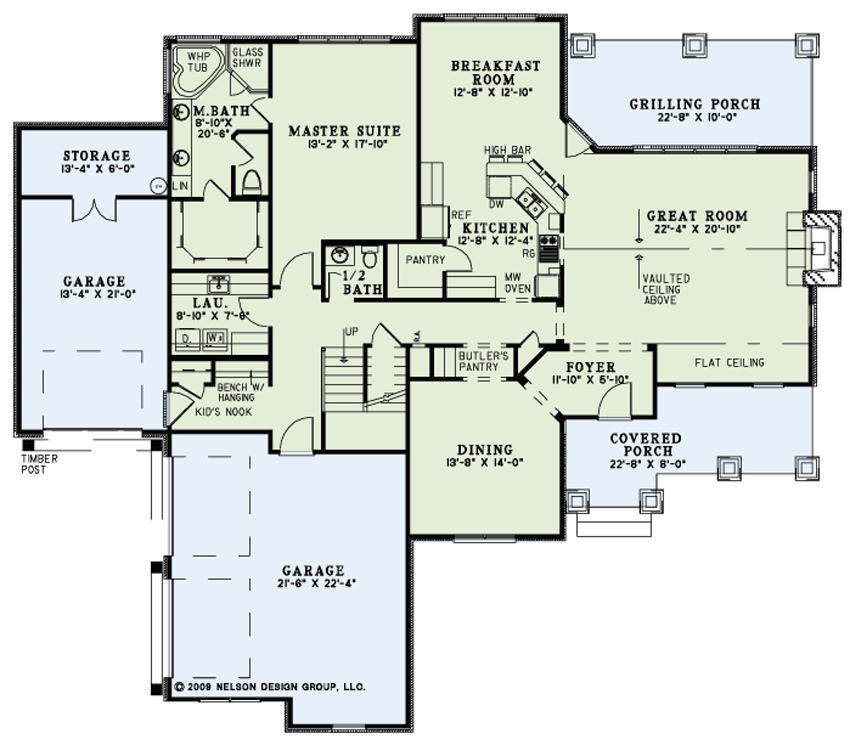

House Plan NDG 1292 Main Floor

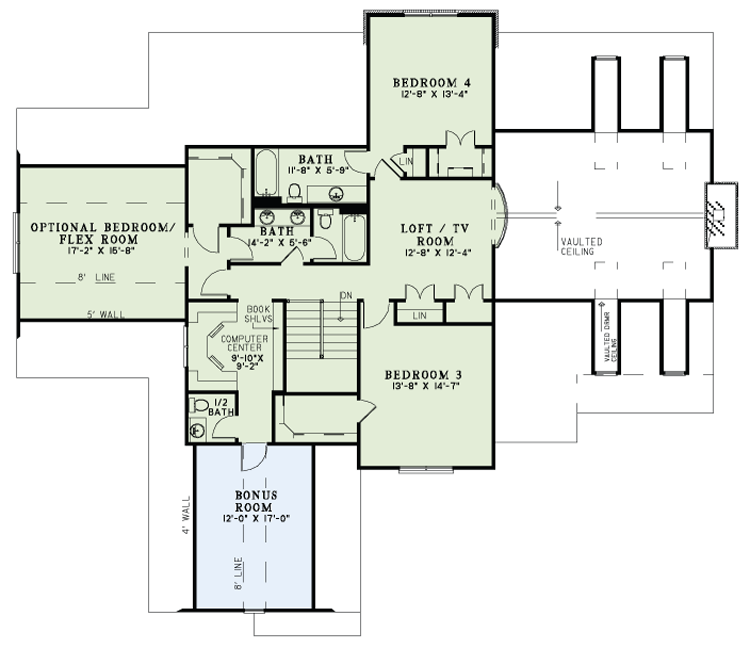

House Plan NDG 1292 Upper Floor
House Plan NDG 1292 Main Floor
House Plan NDG 1292 Upper Floor

Floor plans

NDG 1292

House Plan 1292 Stone Mountain, Rustic House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 1292
  • Total Living Space:3430Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 2
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 74
  • Width In.: 8
  • Depth Ft.: 64
  • Depth In.: 8

Description

This incredible rustic plan mixes stone, brick, siding, and timber to create a very striking exterior with a very inviting front covered porch with stone based timber columns. This home offers a large open great room with a fireplace, open kitchen with a walk-in pantry and adjacent breakfast room and access to the grilling porch. Between the kitchen and dining room is a butler’s pantry. The master suite is also on the 1st floor and has a large walk-in closet. 2 more bedrooms are upstairs along with an optional bedroom/flex room and each have walk-in closets. A loft/TV room with a balcony overlooking the great room separates the 2 bedrooms. There’s also 2 bathrooms, a well-designed computer center and built-in book shelves, and a bonus room over the garage.

Specifications

  • Total Living Space:3430Sq.Ft.
  • Main Floor: 1993 Sq.Ft
  • Upper Floor (Sq.Ft.): 1437 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 219 Sq.Ft.
  • Porch (Sq.Ft.): 403 Sq.Ft.
  • Garage (Sq.Ft.): 919 Sq.Ft.
  • Total Square Feet: 4971 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 33
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
