House Plan 1284 Natalie, Traditional House Plan

House Plan NDG 1284 Main Floor
House Plan NDG 1284 Upper Floor/Bonus Room
House Plan NDG 1284 Main Floor
House Plan NDG 1284 Upper Floor/Bonus Room

Floor plans

NDG 1284

House Plan 1284 Natalie, Traditional House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1284
  • Total Living Space:1848Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 55
  • Width In.: 10
  • Depth Ft.: 63
  • Depth In.: 10

Description

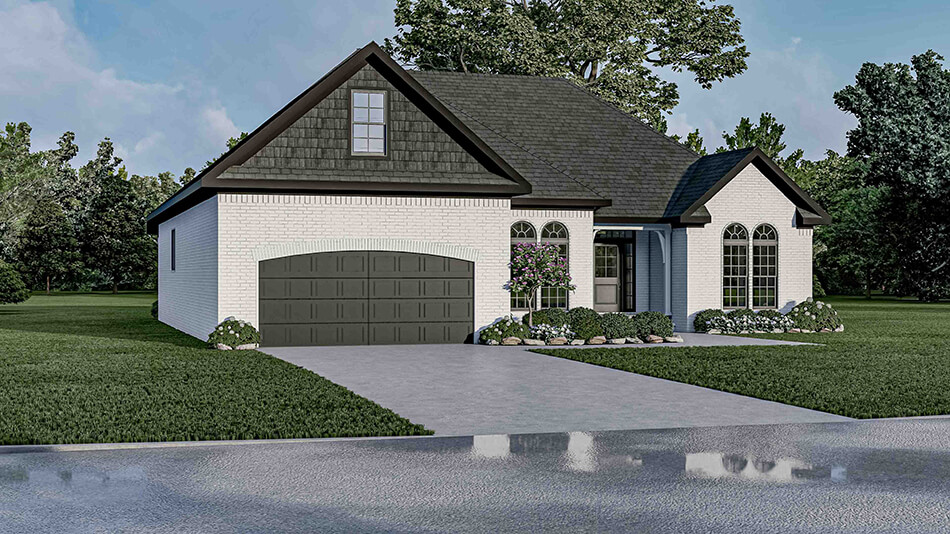

This lovely split bedroom design has elegant round top windows which create spectacular street appeal. Columns are placed in the foyer and gently wrap around the dining room which features a 10 foot high ceiling. The great room and master bedroom each have a 9 foot boxed ceiling while the front bedroom enjoys more natural light due to a vaulted ceiling and tall round top window.
An abundance of storage is found in the kitchen as well as a breakfast bar and built-in computer desk. An optional bonus room above the garage allows for present or future living space.

Specifications

  • Total Living Space:1848Sq.Ft.
  • Main Floor: 1848 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 331 Sq.Ft.
  • Porch (Sq.Ft.): 162 Sq.Ft.
  • Garage (Sq.Ft.): 595 Sq.Ft.
  • Total Square Feet: 2936 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
