House Plan 1283 Phillip, Affordable House Plan

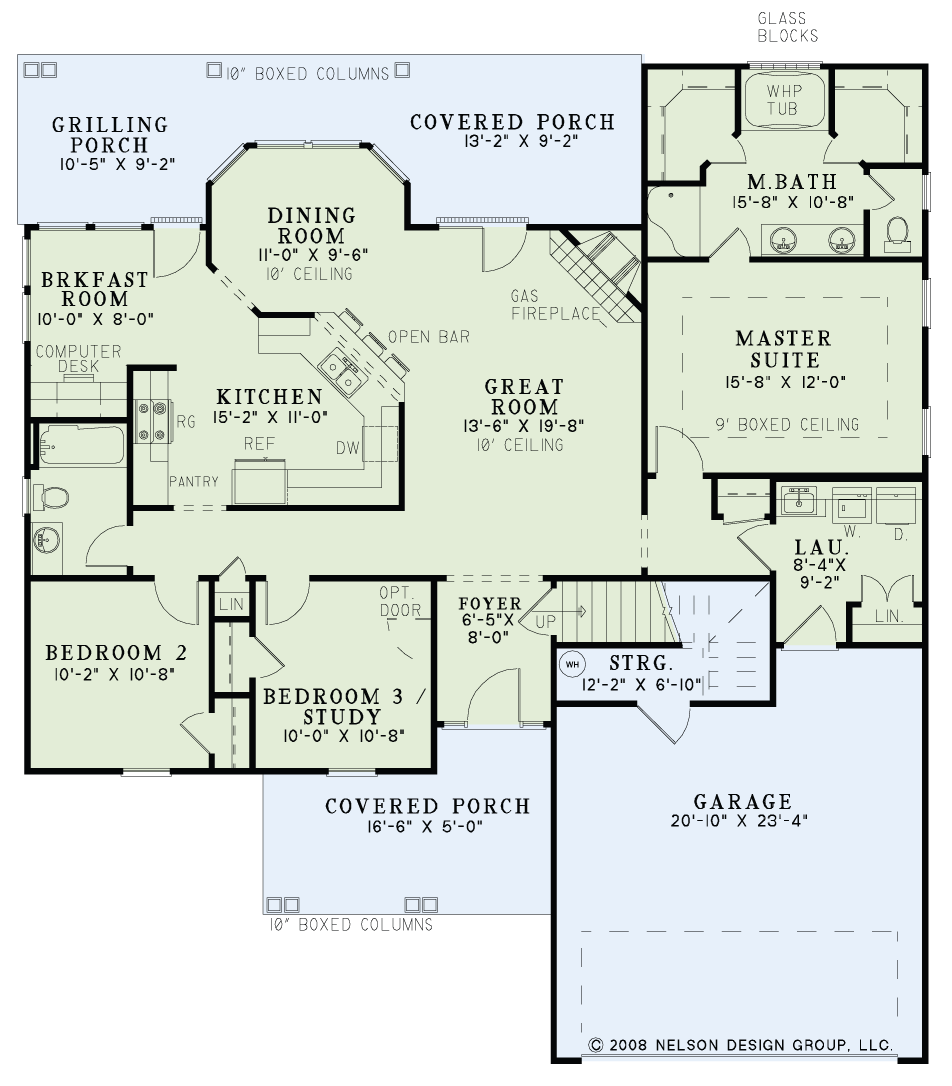

House Plan NDG 1283 Main Floor

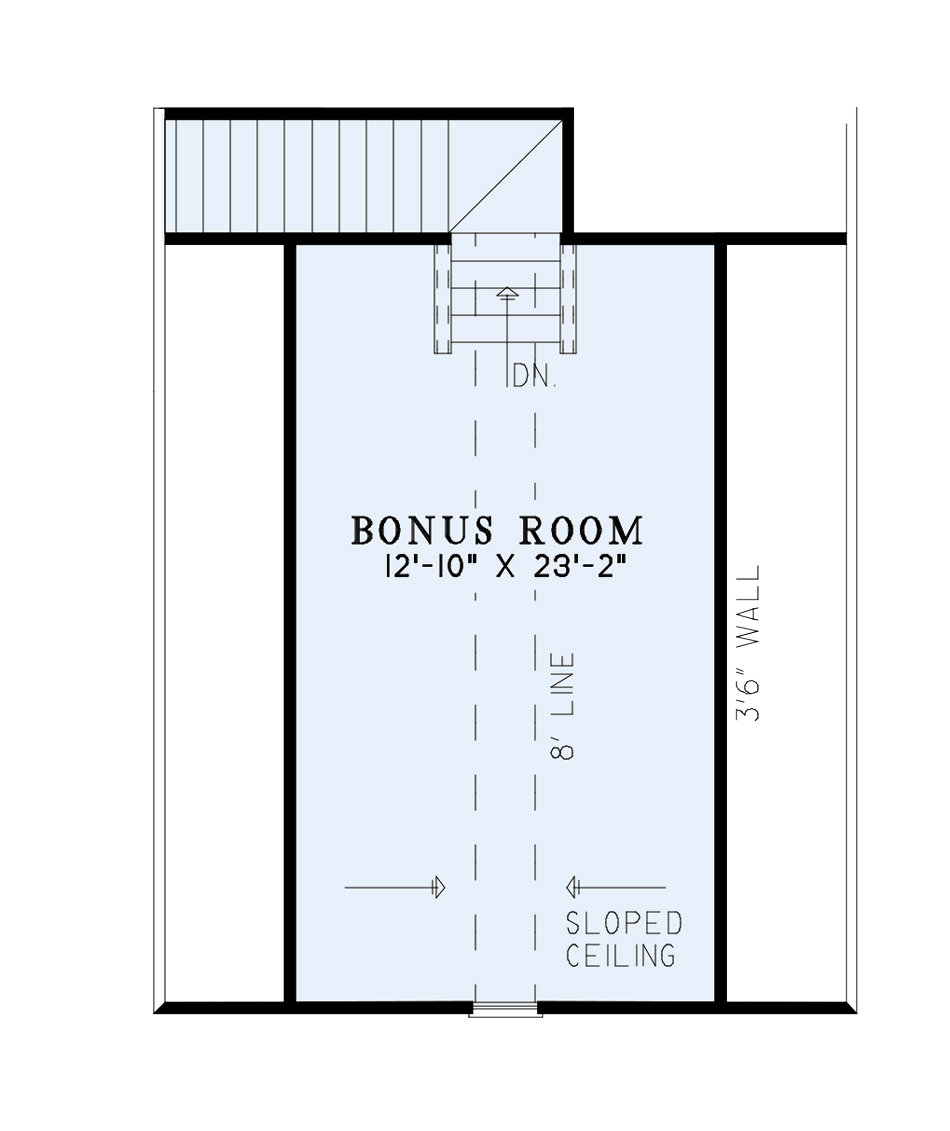

House Plan NDG 1283 Bonus Room
House Plan NDG 1283 Main Floor
House Plan NDG 1283 Bonus Room

Floor plans

NDG 1283

House Plan 1283 Phillip, Affordable House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 1283
  • Total Living Space:1621Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 51
  • Width In.: 6
  • Depth Ft.: 57
  • Depth In.: N/A


This is a great home that features an excellently designed family area at it’s heart. The great room has a fireplace in the corner and is open to the kitchen through the opening over the eat-at bar, as well as to the dining room that features bay windows. Around from the kitchen is the breakfast room and a computer desk, perfect for family interaction while working. And the breakfast room and great room both have access to the rear covered grilling porch. Bedrooms 2 and 3 are near the kitchen and have a nearby bathroom. The master suite offers a 9′ boxed ceiling and the master bathroom is really something, with a centered whirlpool tub, flanked by his and hers walk-in closets that have doors at a 45 degree angle, as well as a separate shower and dual vanities. A bonus room is located over the garage with a sloped ceiling, offering lots of possibilities for the family.


  • Total Living Space:1621Sq.Ft.
  • Main Floor: 1621 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 322 Sq.Ft.
  • Porch (Sq.Ft.): 445 Sq.Ft.
  • Garage (Sq.Ft.): 527 Sq.Ft.
  • Total Square Feet: 2593 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
