House Plan 1224 Stone Brook II, Riverbend House Plan

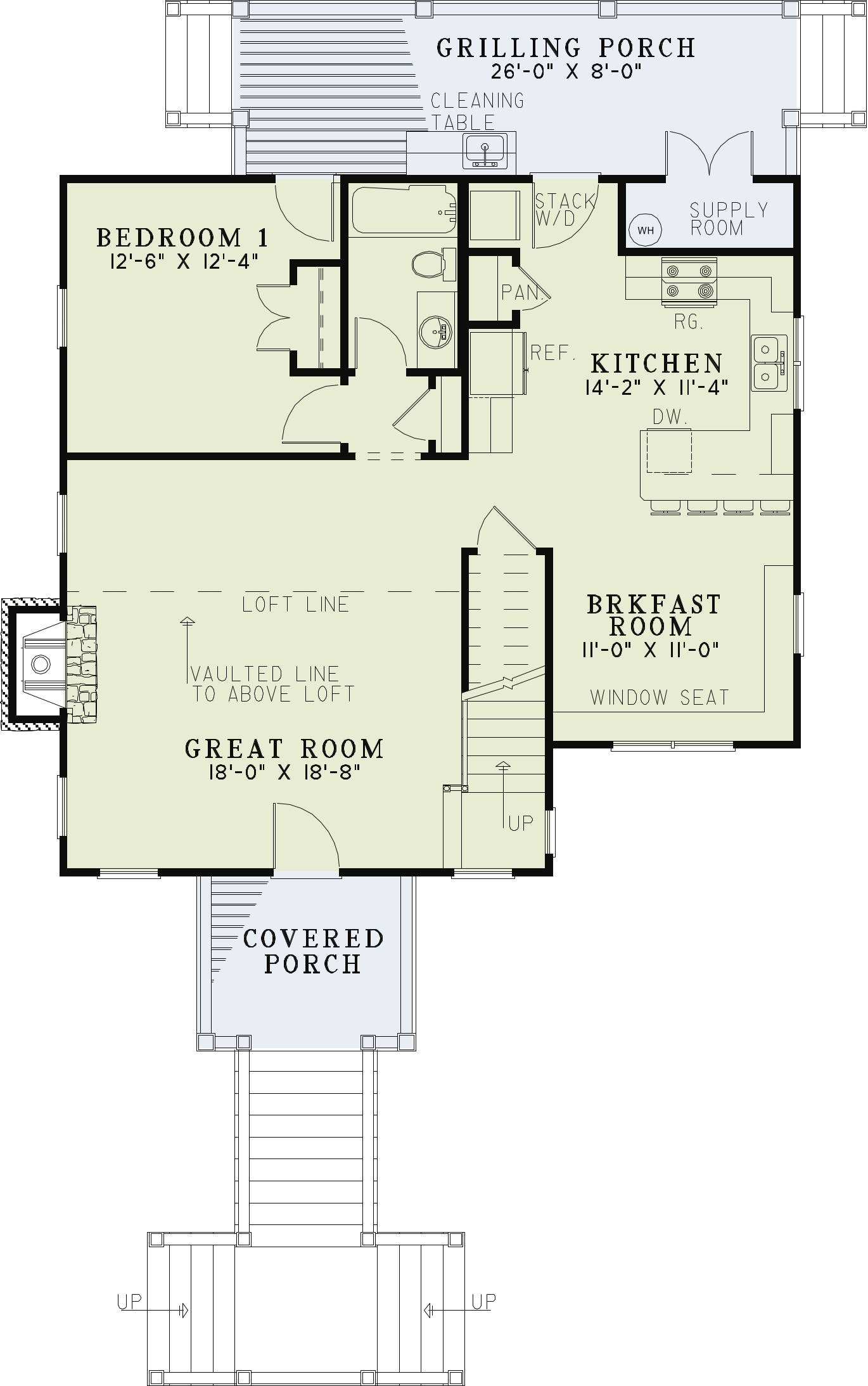

House Plan NDG 1224 Main Floor Plan

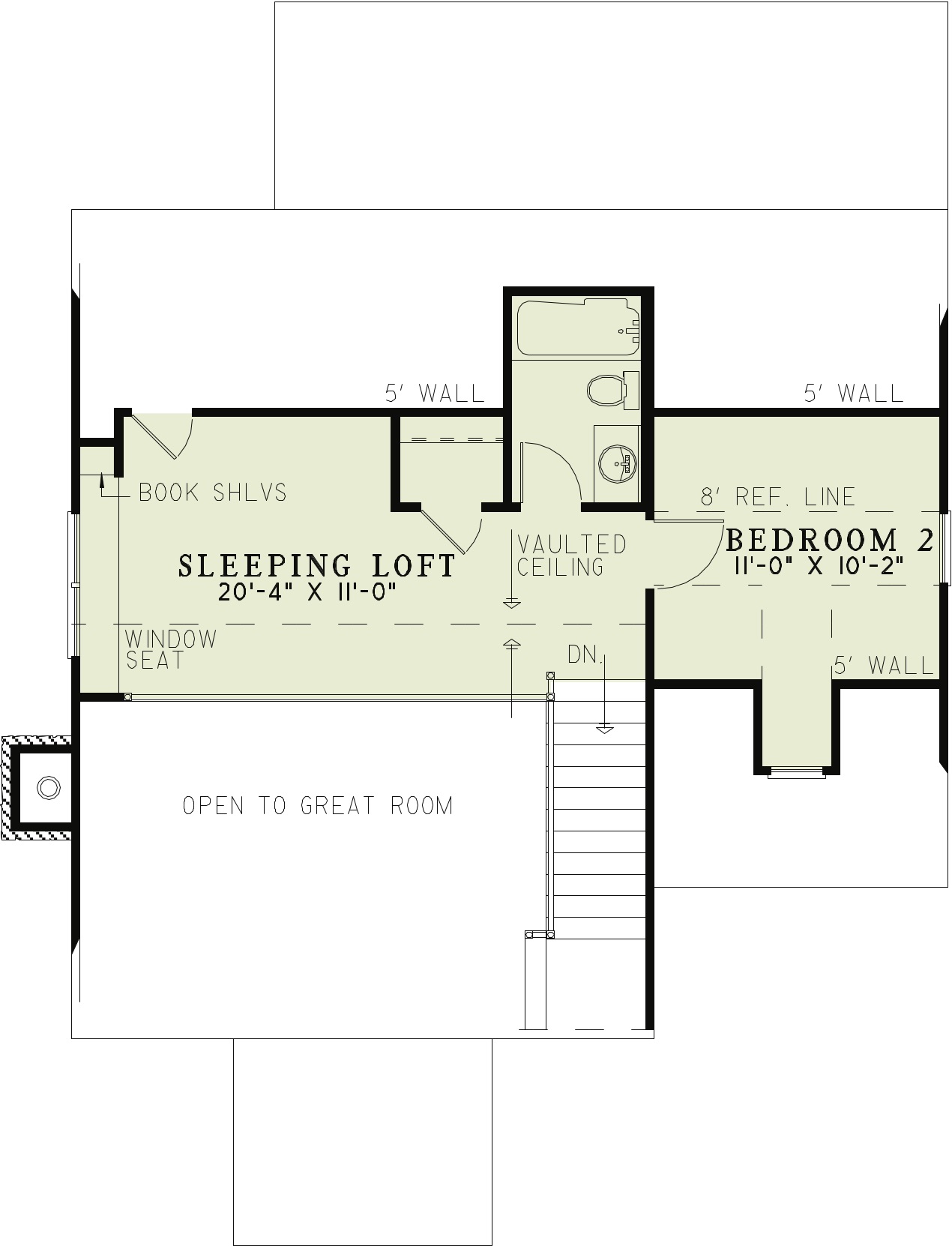

House Plan NDG 1224 Upper Floor Plan
House Plan NDG 1224 Main Floor Plan
House Plan NDG 1224 Upper Floor Plan

Floor plans

House Plan NDG 1224 Main Floor Plan

House Plan NDG 1224 Upper Floor Plan
NDG 1224

House Plan 1224 Stone Brook II, Riverbend House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 1224
  • Total Living Space:1425 Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 36
  • Width In.: 2
  • Depth Ft.: 48
  • Depth In.: N/A

Description

As she walked down the stairs from the loft, she could see the sun rising like a fire. Across the horizon, when she sat on the window seat and stared out into the dawning of a new day, she could see the water rippling onto the shore to greet the stones for the first time that day. Catching a glimpse of movement, her eyes focused on her husband displaying a stringer of fish caught that morning in River Bend. This would be the first of many memorable weekends and vacations at Stone Brook.

Specifications

  • Total Living Space:1425 Sq.Ft.
  • Main Floor: 1016 Sq.Ft
  • Upper Floor (Sq.Ft.): 409 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 315 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1740 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Metal
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): N/A
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
