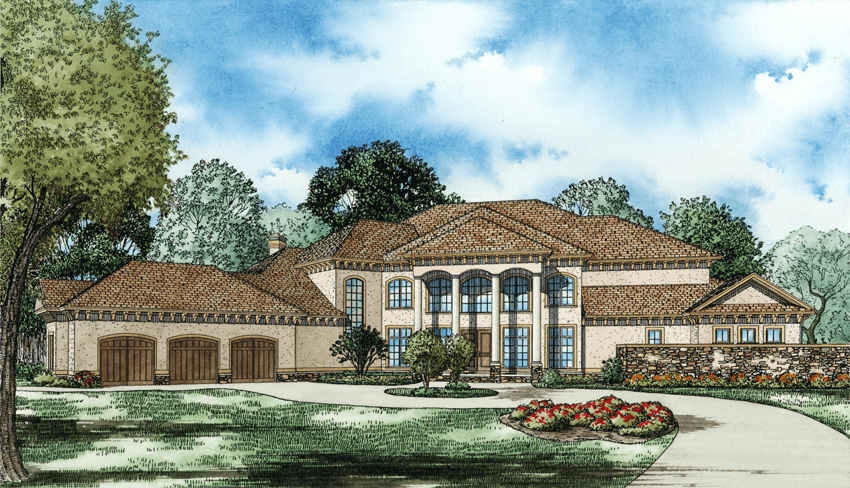

House Plan 1211 Villa Aire, Tuscany Village House Plan

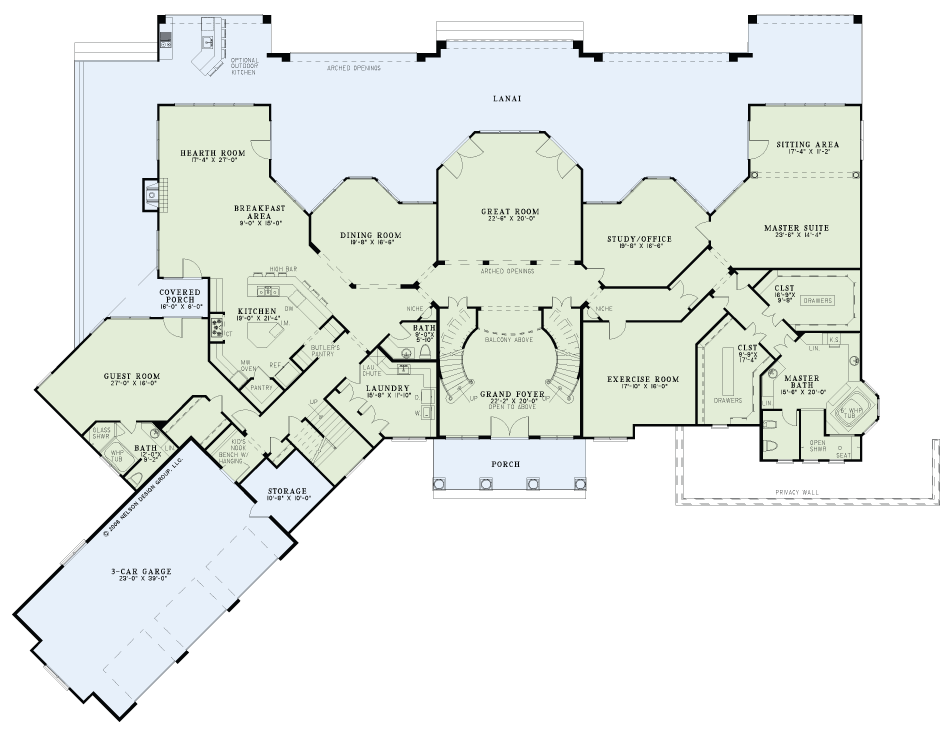

House Plan NDG 1211 Main Floor

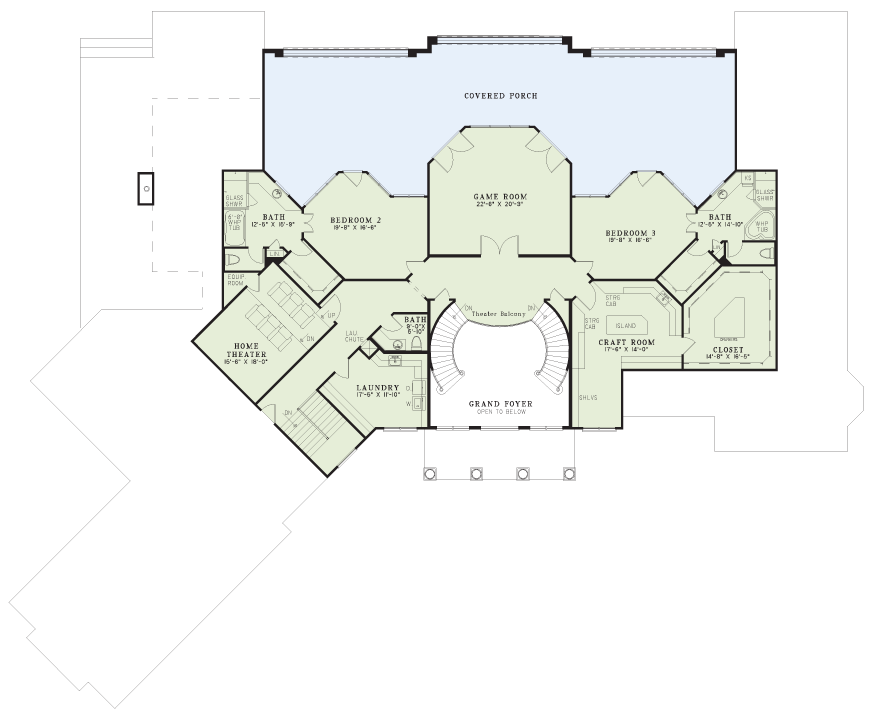

House Plan NDG 1211 Upper Floor
House Plan NDG 1211 Main Floor
House Plan NDG 1211 Upper Floor

Floor plans

NDG 1211

House Plan 1211 Villa Aire, Tuscany Village House Plan

PDF: $2,450.00

Plan Details

  • Plan Number: NDG 1211
  • Total Living Space:8484Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 2
  • Garage: Yes 3 Bay
  • Garage Type: Angled Garage
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 146
  • Width In.: 5
  • Depth Ft.: 111
  • Depth In.: 7

Description

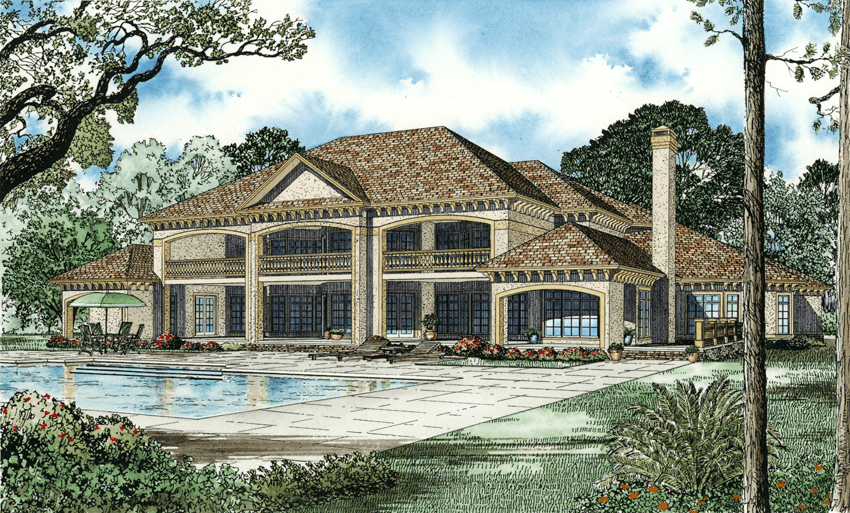

Pure Luxury – Mediterranean style! A grand foyer sets the tone in this glorious mansion. One wing on the main floor includes a gourmet kitchen with breakfast and hearth room and private guest quarter. The opposite wind has the luxurious master suite and nearby study and spacious excercise room. The upper level includes a home theater, game room, craft room, two spacious bedrooms with private baths and full laundry room. Entertaining on the rear lanai and poolside kitchen will make your “hotel” the talk of the town.

Specifications

  • Total Living Space:8484Sq.Ft.
  • Main Floor: 5492 Sq.Ft
  • Upper Floor (Sq.Ft.): 2992 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 3812 Sq.Ft.
  • Garage (Sq.Ft.): 1072 Sq.Ft.
  • Total Square Feet: 13368 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 10
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 41
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
