House Plan 1201 Piney Creek II, Riverbend House Plan
Plan Details
- Plan Number: NDG 1201
- Total Living Space:1400Sq.Ft.
- Bedrooms: 2
- Full Baths: 2
- Half Baths: N/A
- Garage: No
- Garage Type: N/A
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 32
- Width In.: N/A
- Depth Ft.: 42
- Depth In.: N/A
Description
As he helped her up the steps of the cabin, the couple began reminiscing about the many summers they had spent there. The summer afternoons when their children and grandchildren came to visit were undeniably the most treasured. Watching as they caught their first fish, floated on inner tubes and picked flowers in the field always brought a smile to their faces. As they looked out across River Bend, they imagined many generations of their family spending their summers here at Piney Creek II.
*For Slab, BSMT, or WOB options for this design, see plan NDG420
Specifications
- Total Living Space:1400Sq.Ft.

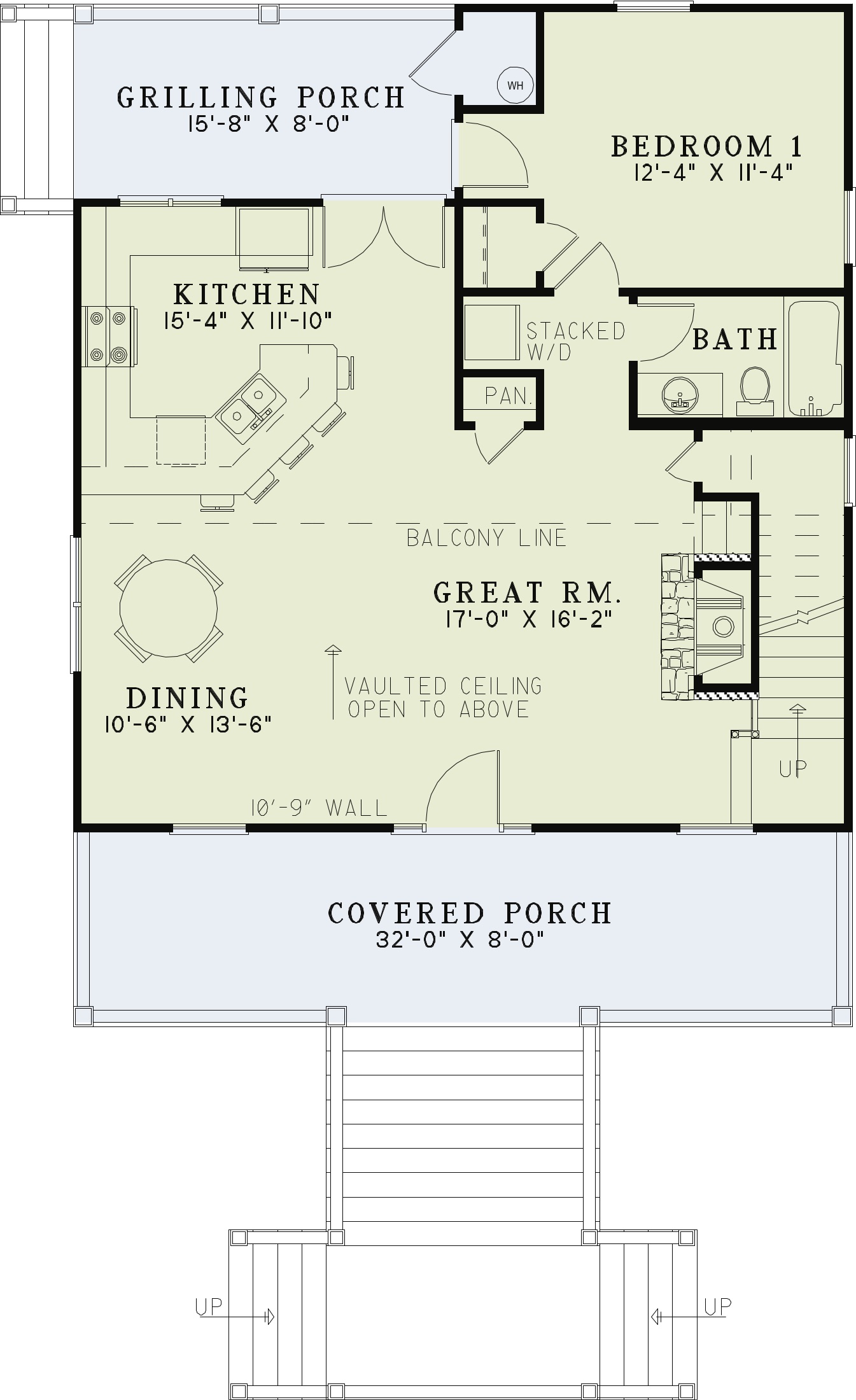

- Main Floor: 948 Sq.Ft

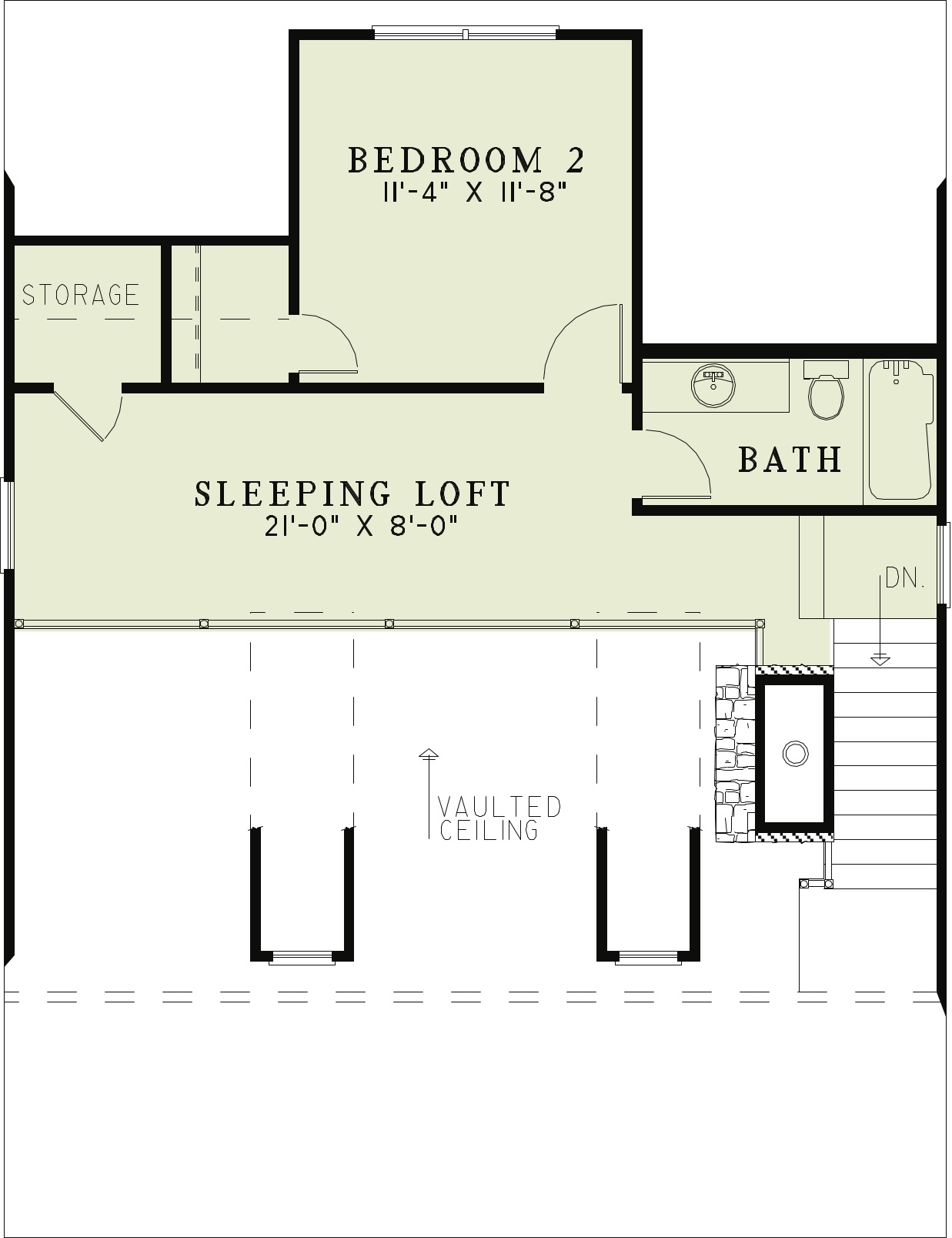

- Upper Floor (Sq.Ft.): 452 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 305 Sq.Ft.
- Garage (Sq.Ft.): N/A
- Total Square Feet: 1705 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 8
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Metal
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 23
- Ridge Height (In.): 6
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
