House Plan 1192 Clearwater Creek, Rustic House Plan

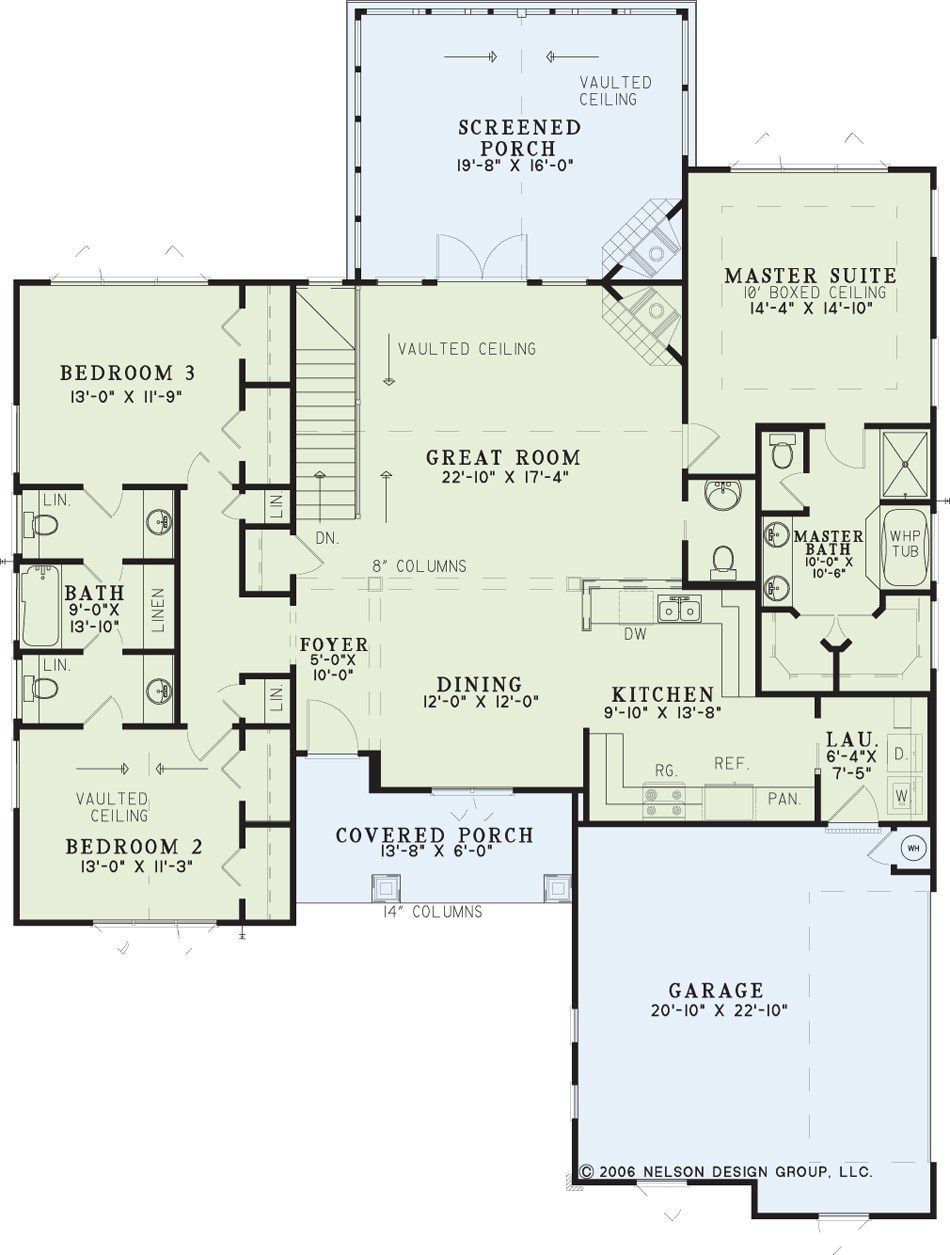

House Plan NDG 1192 Main Floor

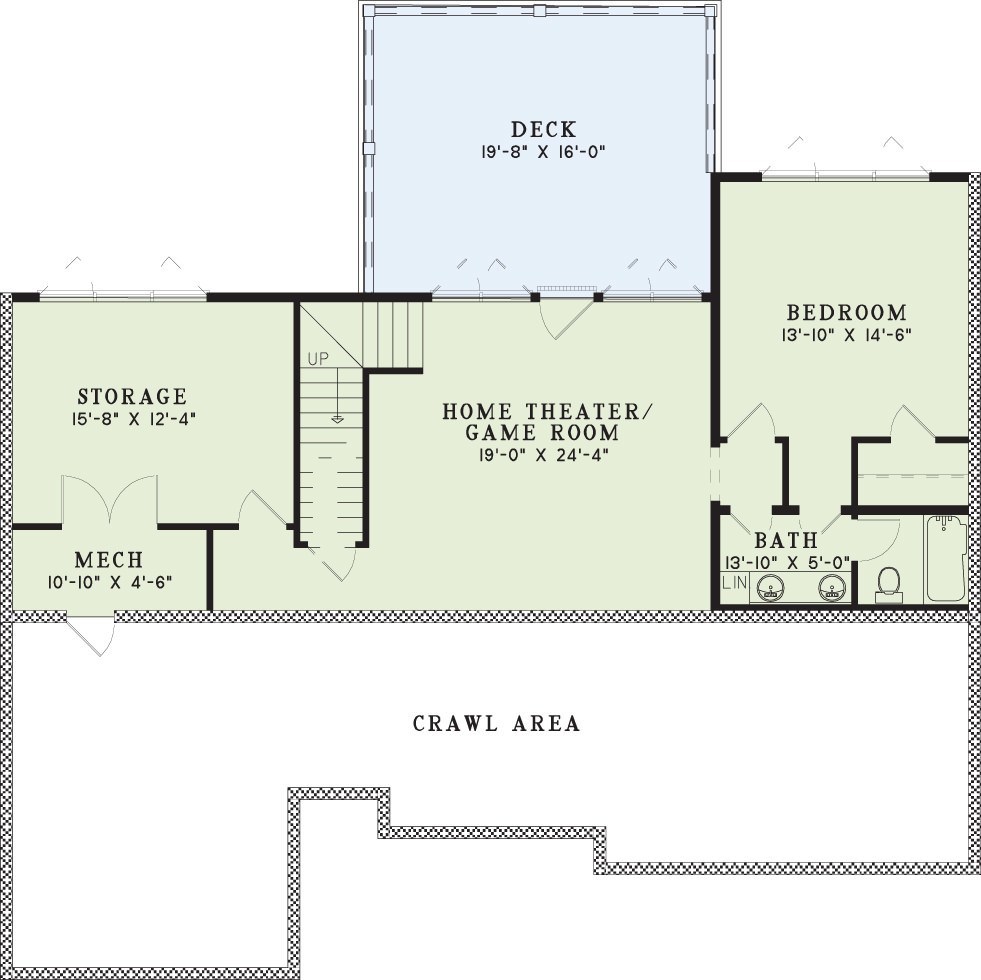

House Plan NDG 1192 Basement
House Plan NDG 1192 Main Floor
House Plan NDG 1192 Basement

Floor plans

NDG 1192

House Plan 1192 Clearwater Creek, Rustic House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1192
  • Total Living Space:3016Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 54
  • Width In.: 6
  • Depth Ft.: 71
  • Depth In.: 6

Description

This Rustic Ridge home is a perfect retreat ideal for family and friends to gather in. The great room opens to the screened in porch, both having fireplaces. The master suite has a 10′ boxed ceiling, whirlpool tub, shower, and 2 walk-in closets. Downstairs is another bedroom with a full bathroom, a storage room, and a home theater/game room that opens out to a deck.

Specifications

  • Total Living Space:3016Sq.Ft.
  • Main Floor: 1917 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): 1099 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 421 Sq.Ft.
  • Garage (Sq.Ft.): 477 Sq.Ft.
  • Total Square Feet: 3914 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 10
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
