House Plan 1143 Monte Bello, Tuscany Village House Plan

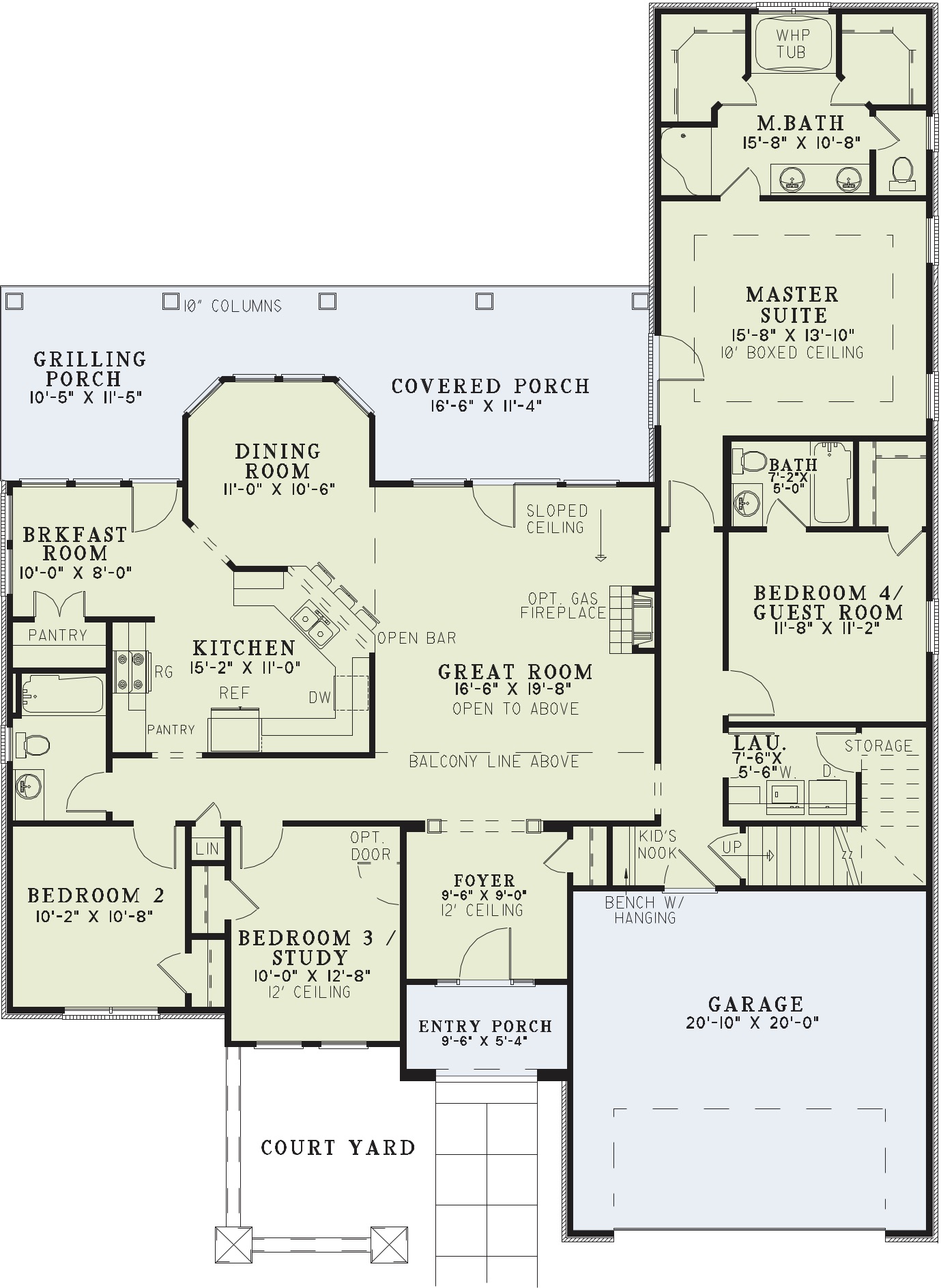

House Plan NDG 1143 Main Floor

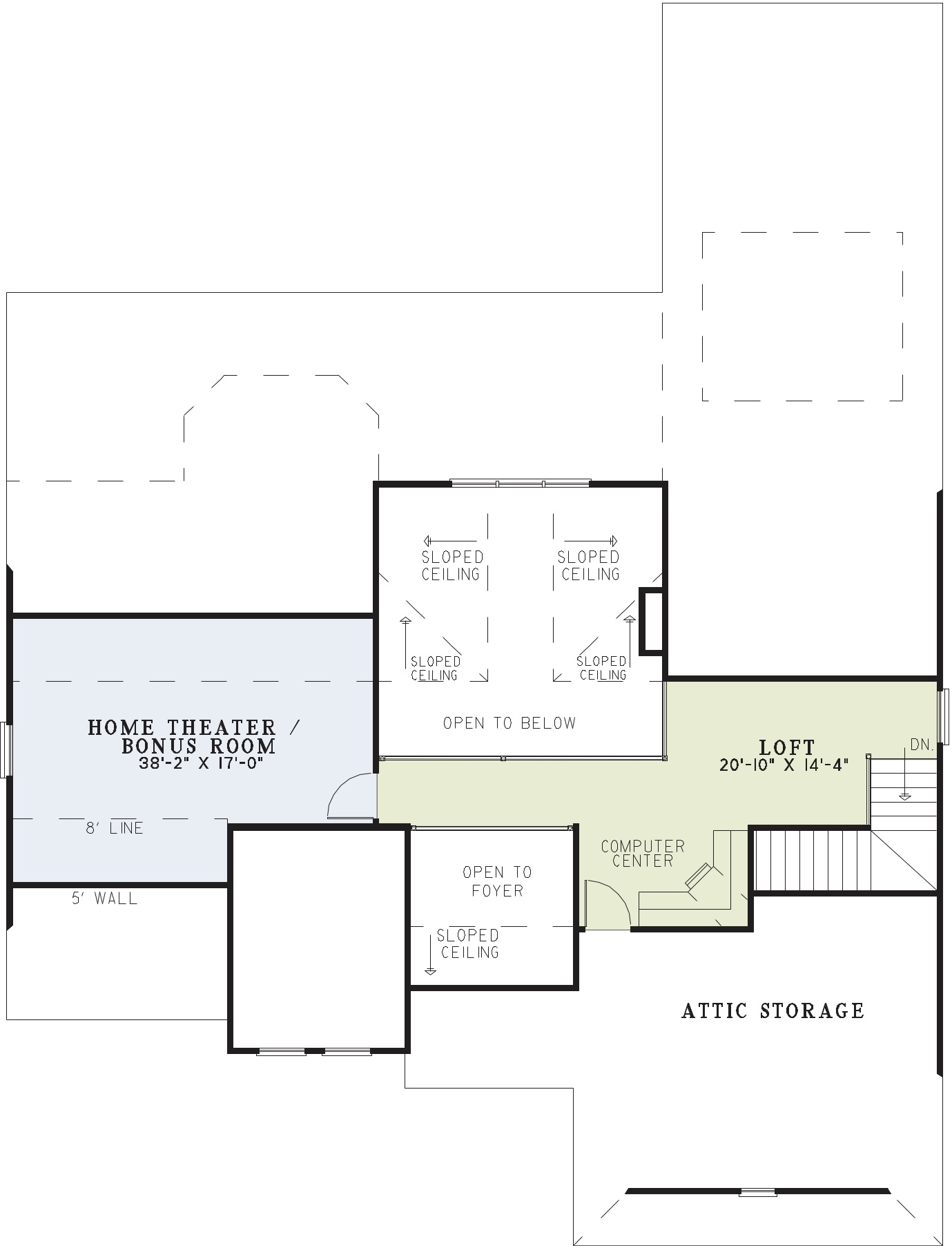

House Plan NDG 1143 Upper Floor
House Plan NDG 1143 Main Floor
House Plan NDG 1143 Upper Floor

Floor plans

NDG 1143

House Plan 1143 Monte Bello, Tuscany Village House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1143
  • Total Living Space:2338Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 54
  • Width In.: 6
  • Depth Ft.: 73
  • Depth In.: 10

Description

The Monte Bello captures the essence of fine European design. Earth tones are carried from the outside to an elegant interior much like those found in Tuscan villas. Natural light floods the entire great room, quaint breakfast and dining room as if open to the outside. This concept is inspired by Italian cafes that line the streets allowing both locals and tourists the enjoyment of the surrounding architecture created hundreds of years ago.

Specifications

  • Total Living Space:2338Sq.Ft.
  • Main Floor: 2082 Sq.Ft
  • Upper Floor (Sq.Ft.): 256 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 319 Sq.Ft.
  • Porch (Sq.Ft.): 408 Sq.Ft.
  • Garage (Sq.Ft.): 435 Sq.Ft.
  • Total Square Feet: 3500 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Tile
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
