House Plan 114-1 Spruce Street, Affordable House Plan

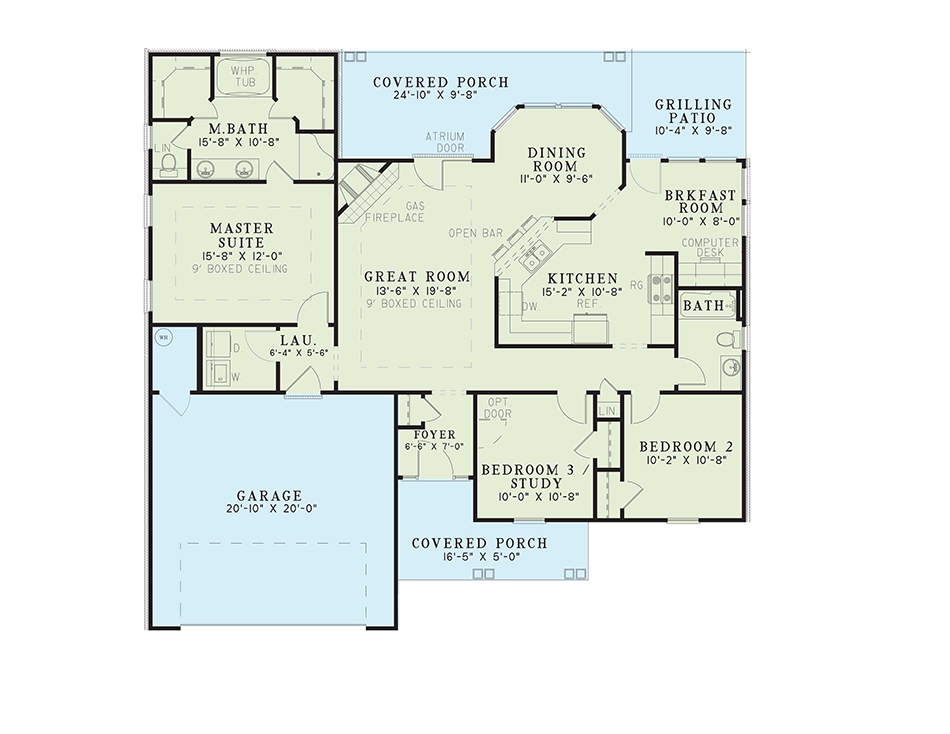

House Plan NDG 114-1 Main Floor
House Plan NDG 114-1 Main Floor

Floor plans

House Plan NDG 114-1 Main Floor
NDG 114-1

House Plan 114-1 Spruce Street, Affordable House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 114-1
  • Total Living Space:1525Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 51
  • Width In.: 6
  • Depth Ft.: 49
  • Depth In.: 10

Description

The Front Porch will welcome friends and family alike into your beautiful home. Leading your guests through the Foyer, you’ll enter the spacious Great Room with convenient access to the Dining Room. Entertaining becomes simple for the grill masters with the convenient Grilling porch which has access to the Great Room or you can use the kitchen which has plenty of counter space to prepare the meal. As the night falls and your guests leave, retreat to your Master bath and relax in the whirlpool tub or head straight to bed in the Master Suite. On the other side of the home are Bedrooms 2 and 3 one of which can be used as a Study if needed. Still have some work to do that you brought home from the office or need a place for the kids to finish their home work? The computer center in the Breakfast Room is the perfect place.

Specifications

  • Total Living Space:1525Sq.Ft.
  • Main Floor: 1525 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 283 Sq.Ft.
  • Garage (Sq.Ft.): 459 Sq.Ft.
  • Total Square Feet: 2267 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): N/A
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package
