House Plan 1126 Hickory Place, Colonial Classical Federal House Plan

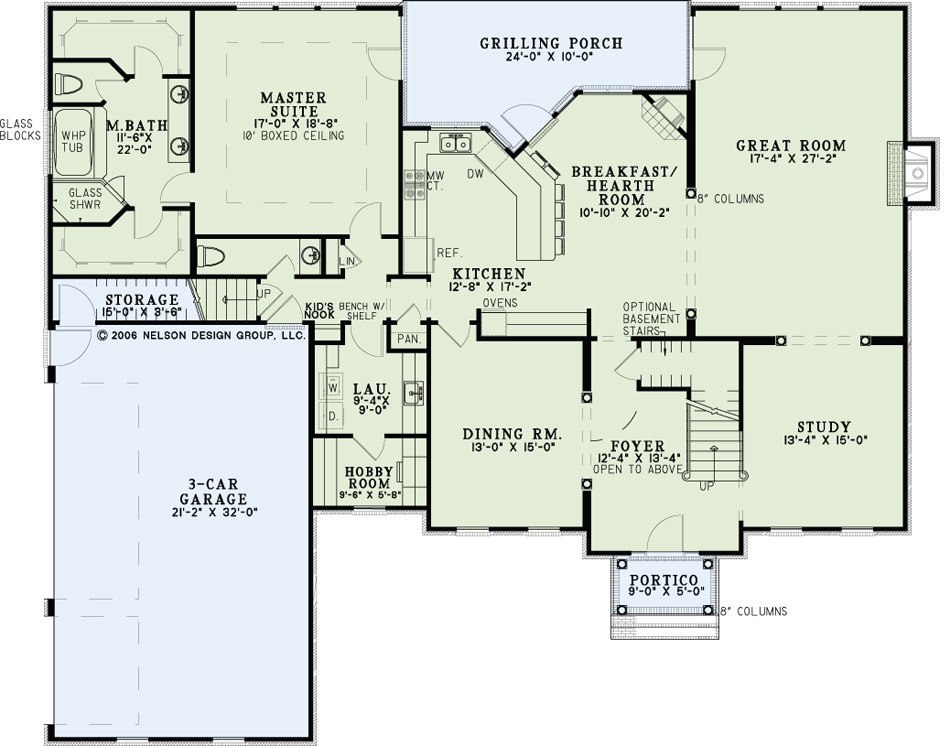

House Plan NDG 1126 Main Floor

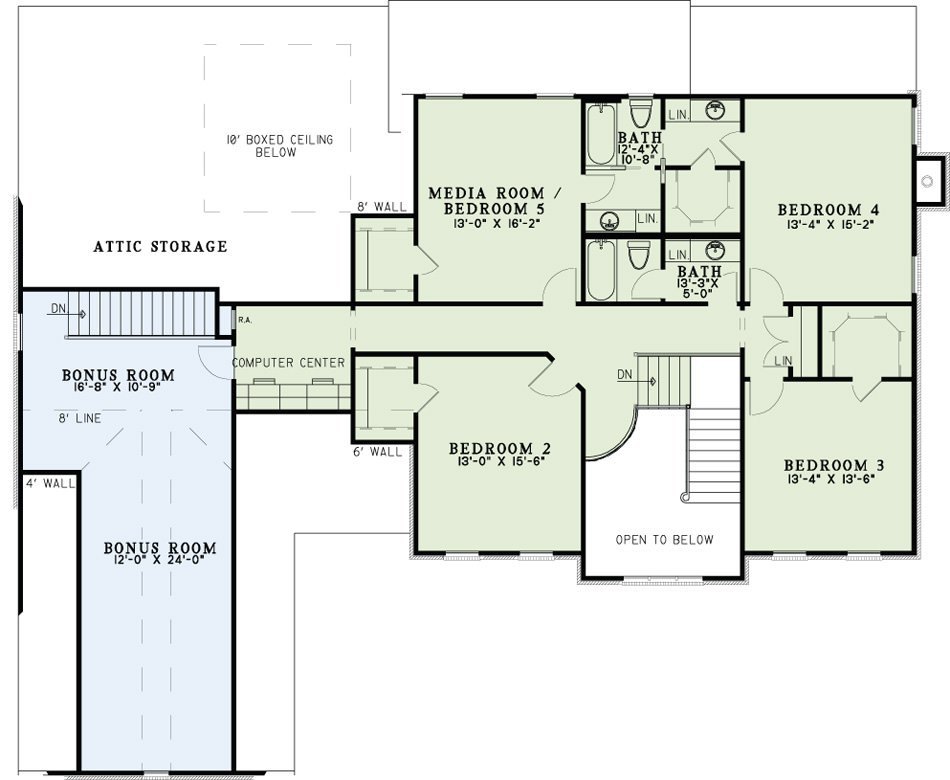

House Plan NDG 1126 Upper Floor
House Plan NDG 1126 Main Floor
House Plan NDG 1126 Upper Floor

Floor plans

NDG 1126

House Plan 1126 Hickory Place, Colonial Classical Federal House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 1126
  • Total Living Space:3978Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 3
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 73
  • Width In.: 10
  • Depth Ft.: 61
  • Depth In.: 2

Description

This five bedroom design provides every member the luxuries they desire. The covered porch welcomes friends and family into the open foyer. The dining room, open kitchen and great room will allow entertaining for the holidays easy. The secluded master suite provides two walk-in closets well as a whirlpool tub everyone will appreciate. The upper floor allows the children to have their own space. The convenient computer center makes homework easier. The media and bonus rooms allow for future expansion as the family?s needs change.

Specifications

  • Total Living Space:3978Sq.Ft.
  • Main Floor: 2500 Sq.Ft
  • Upper Floor (Sq.Ft.): 1478 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 508 Sq.Ft.
  • Porch (Sq.Ft.): 249 Sq.Ft.
  • Garage (Sq.Ft.): 803 Sq.Ft.
  • Total Square Feet: 5538 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 35
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
