House Plan 1124 Cambridge Court, Multi-Family House Plan

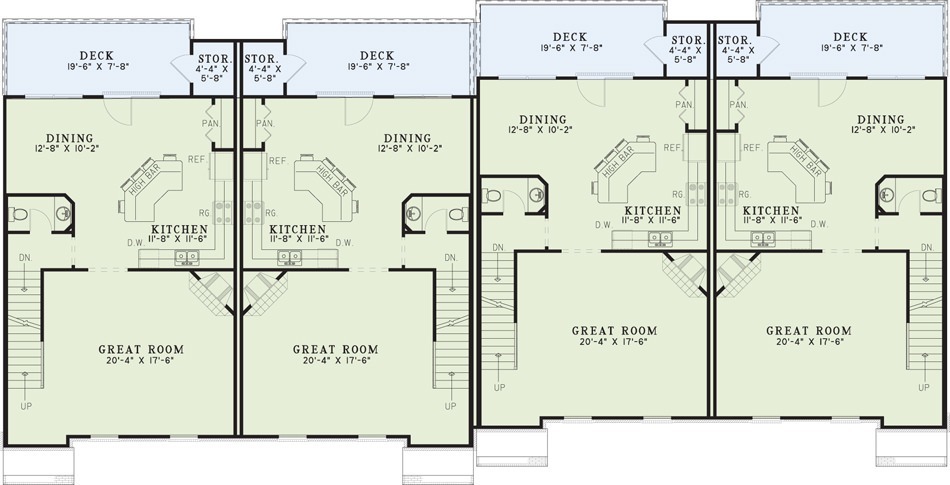

House Plan NDG 1124 Main Floor

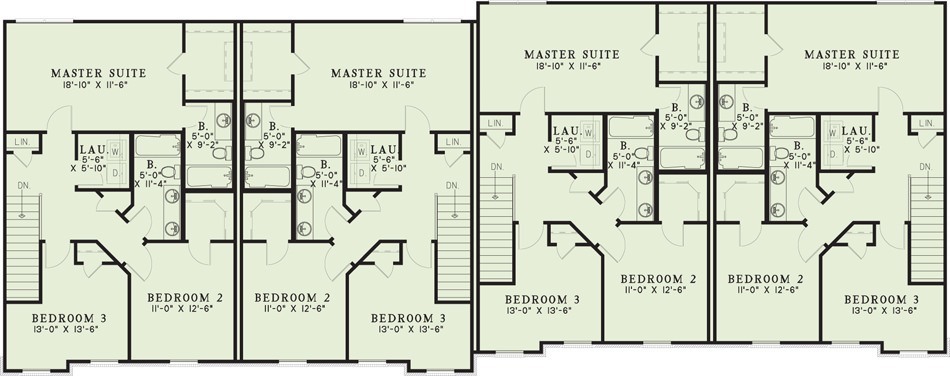

House Plan NDG 1124 Upper Floor

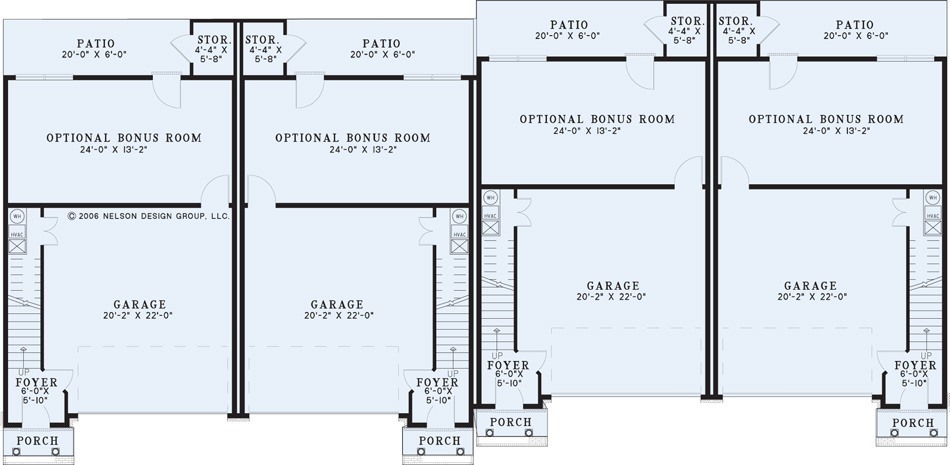

House Plan NDG 1124 Garage/Bonus Room
House Plan NDG 1124 Main Floor
House Plan NDG 1124 Upper Floor
House Plan NDG 1124 Garage/Bonus Room

Floor plans

NDG 1124

House Plan 1124 Cambridge Court, Multi-Family House Plan

PDF: $2,050.00

Plan Details

  • Plan Number: NDG 1124
  • Total Living Space:1807Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 3
  • Width Ft.: 101
  • Width In.: N/A
  • Depth Ft.: 47
  • Depth In.: 9

Description

This multi-family plan offers 1876 square feet of living space per unit. The first floor features a great room with a fireplace, kitchen with an island bar and dining room. Upstairs are 3 bedrooms and 2 full bathrooms. There’s an optional bonus room downstairs.

Specifications

  • Total Living Space:1807Sq.Ft.
  • Main Floor: 923 Sq.Ft
  • Upper Floor (Sq.Ft.): 884 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 354 Sq.Ft.
  • Porch (Sq.Ft.): 14 Sq.Ft.
  • Garage (Sq.Ft.): 560 Sq.Ft.
  • Total Square Feet: 2735 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 44
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
