House Plan 1122 Cambridge Court, Multi-Family House Plan

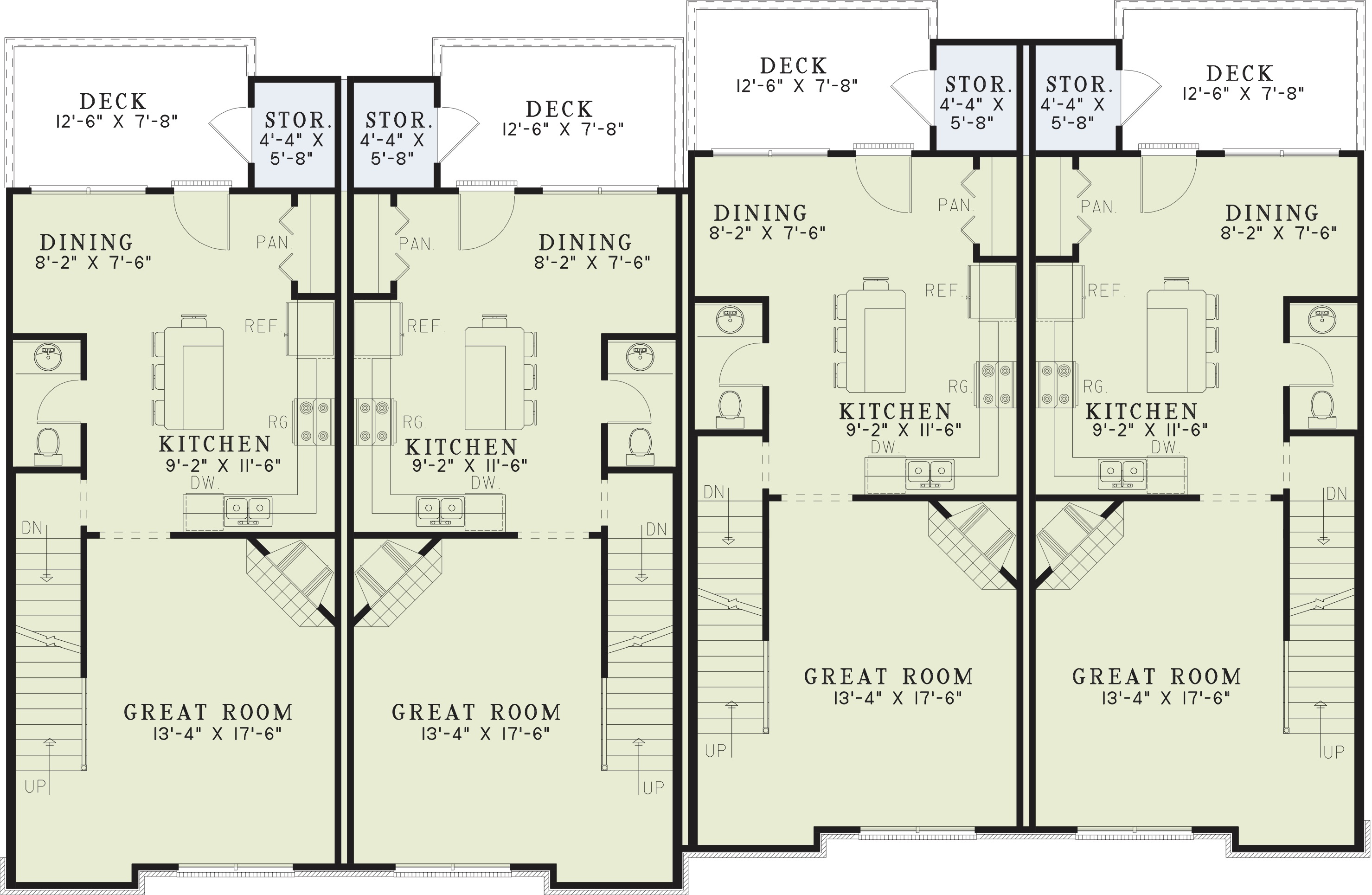

House Plan NDG 1122 Main Floor

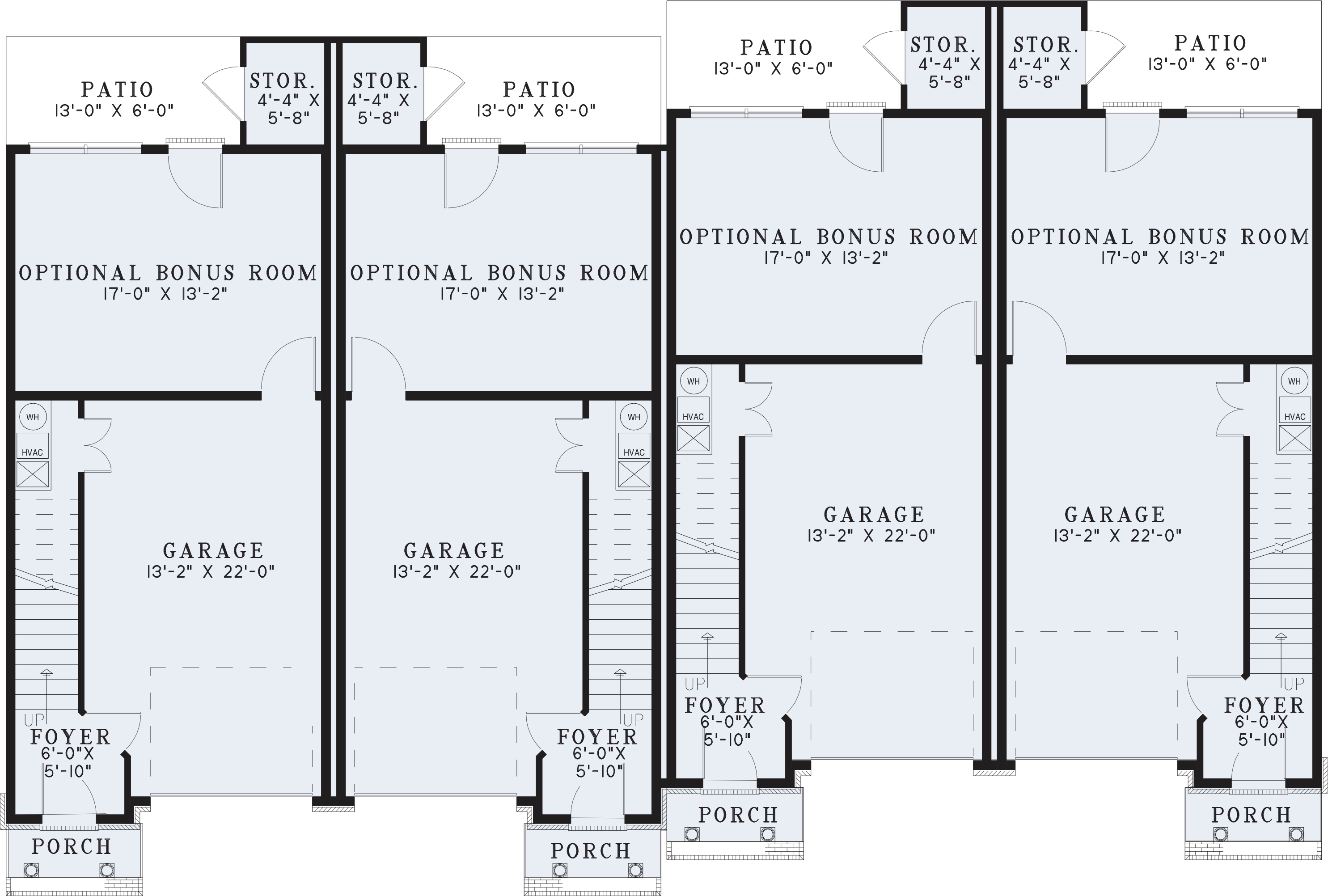

House Plan NDG 1122 Lower Floor

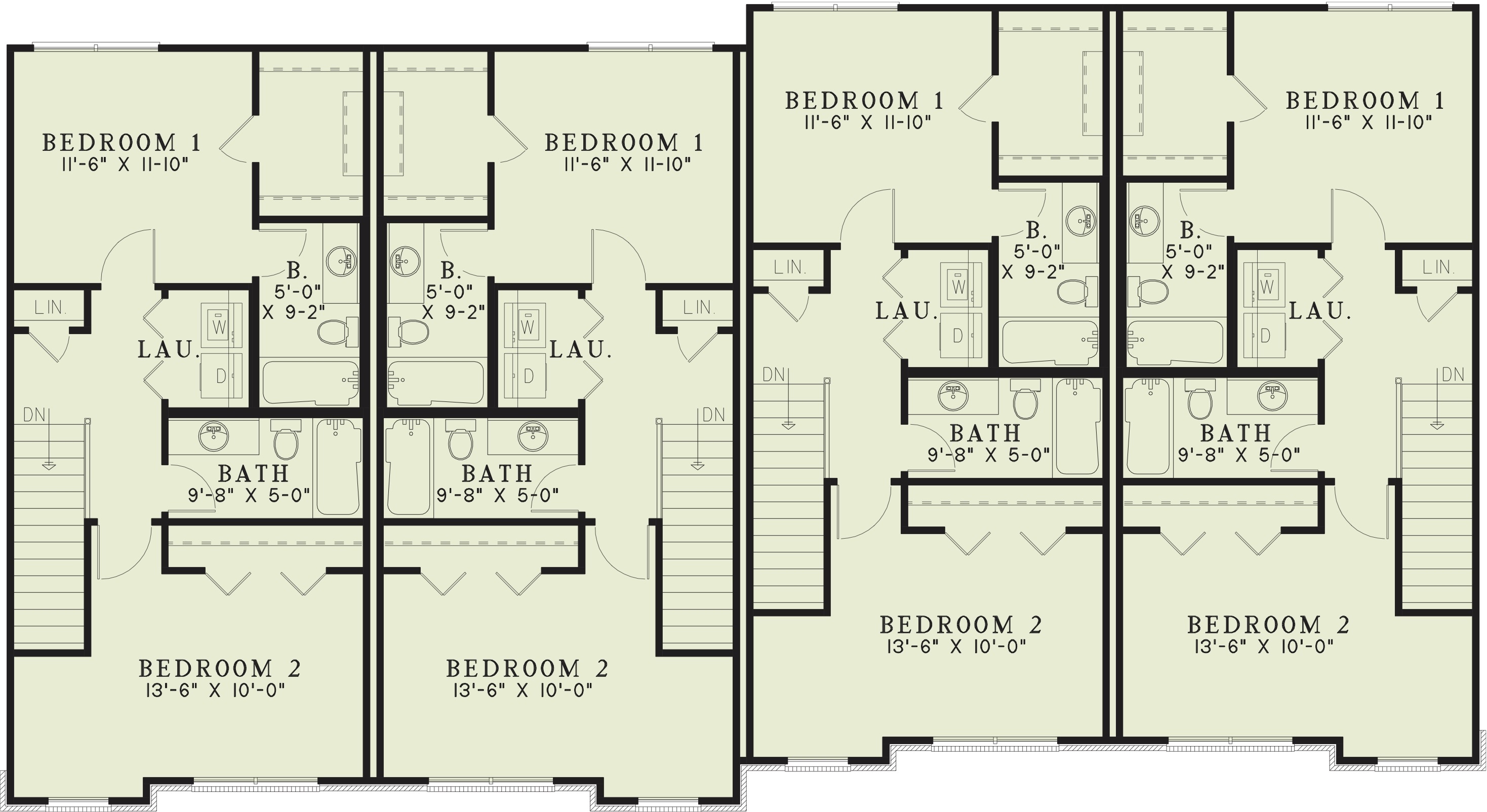

House Plan NDG 1122 Upper Floor
House Plan NDG 1122 Main Floor
House Plan NDG 1122 Lower Floor
House Plan NDG 1122 Upper Floor

Floor plans

NDG 1122

House Plan 1122 Cambridge Court, Multi-Family House Plan

PDF: $2,250.00

Plan Details

  • Plan Number: NDG 1122
  • Total Living Space:1295Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 1 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 3
  • Width Ft.: 73
  • Width In.: N/A
  • Depth Ft.: 39
  • Depth In.: 8

Description

This multi-plex features a single garage and optional bonus room on the ground floor for each of the 4 apartments. Upstairs is a great room with a cozy corner fireplace, an open kitchen with an eat-at island bar, dining area and a convenient half bath. A deck is off the dining area, perfect for entertaining. And on the third floor are 2 bedrooms, 2 full baths, and a laundry room.

Specifications

  • Total Living Space:1295Sq.Ft.
  • Main Floor: 667 Sq.Ft
  • Upper Floor (Sq.Ft.): 628 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 256 Sq.Ft.
  • Porch (Sq.Ft.): 14 Sq.Ft.
  • Garage (Sq.Ft.): 403 Sq.Ft.
  • Total Square Feet: 1968 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: 8
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 44
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
