House Plan 1104 Pigeon Forge, American Woodlands House Plan

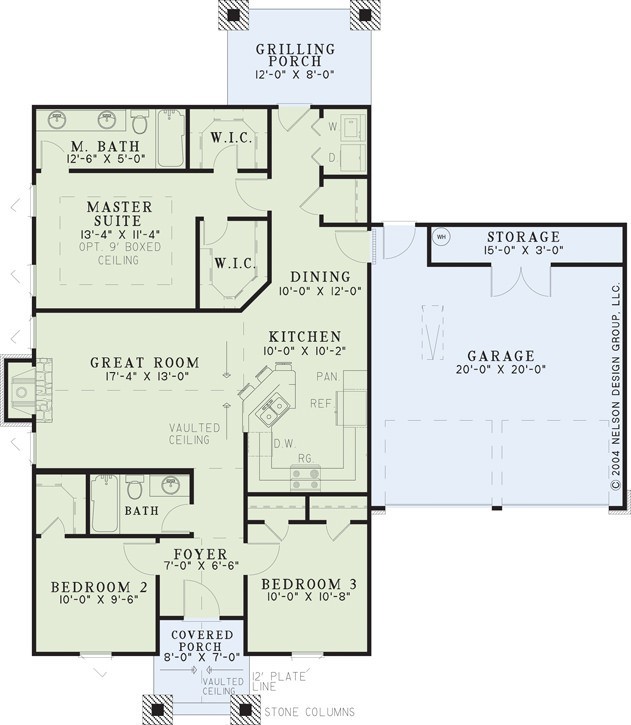

House Plan NDG 1104 Main Floor
House Plan NDG 1104 Main Floor

Floor plans

NDG 1104

House Plan 1104 Pigeon Forge, American Woodlands House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 1104
  • Total Living Space:1282Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 52
  • Width In.: N/A
  • Depth Ft.: 60
  • Depth In.: 6

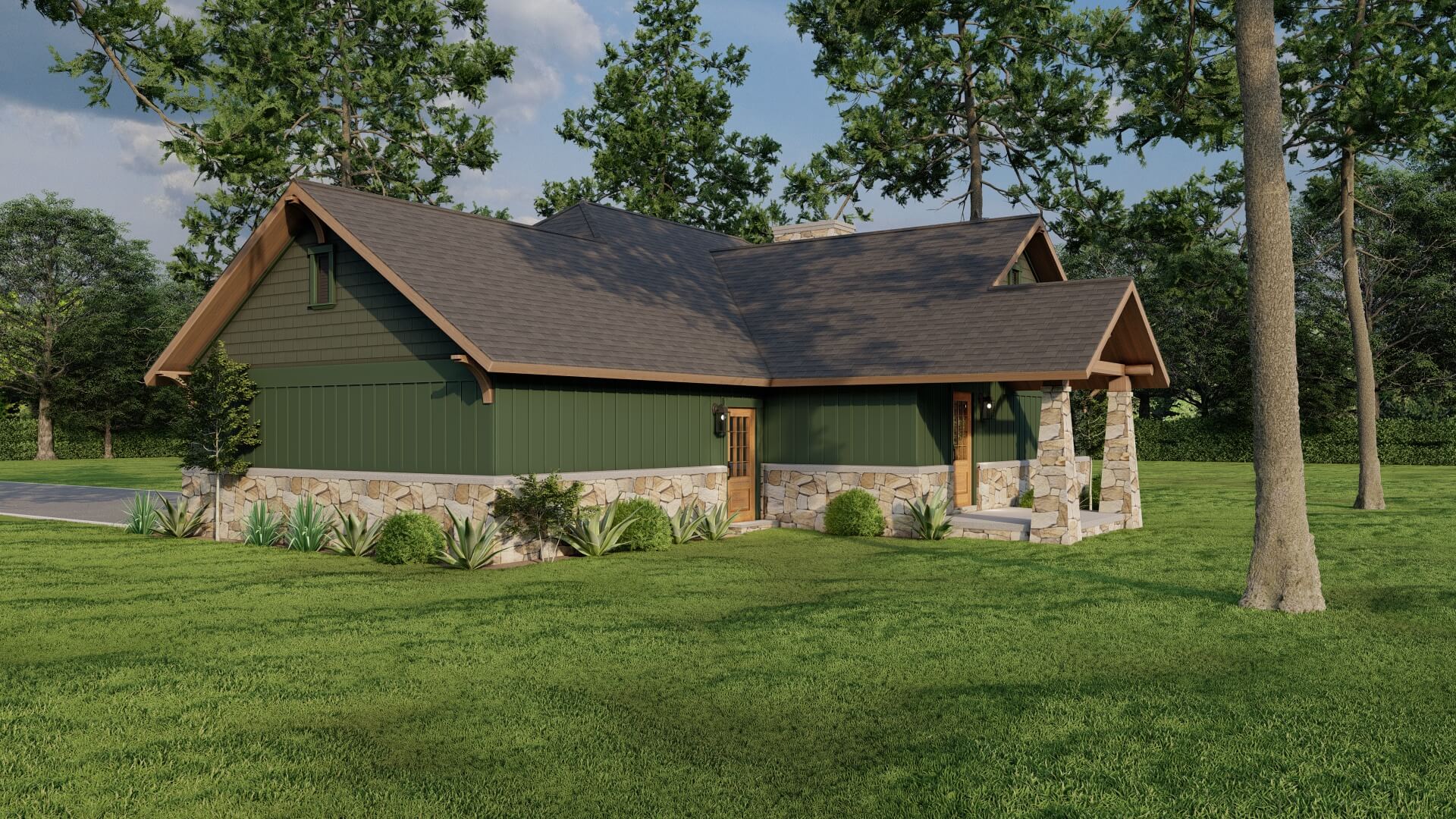

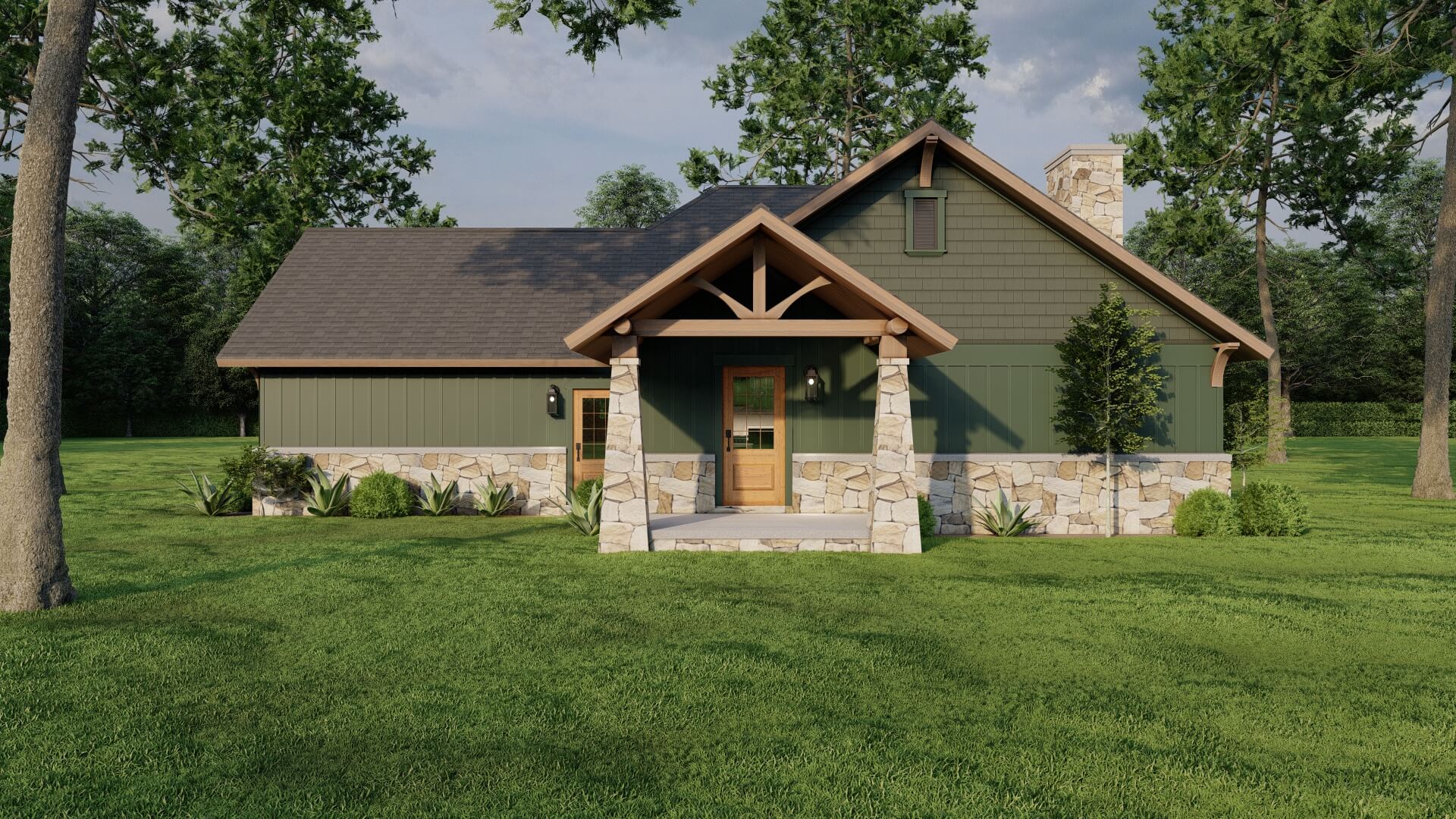

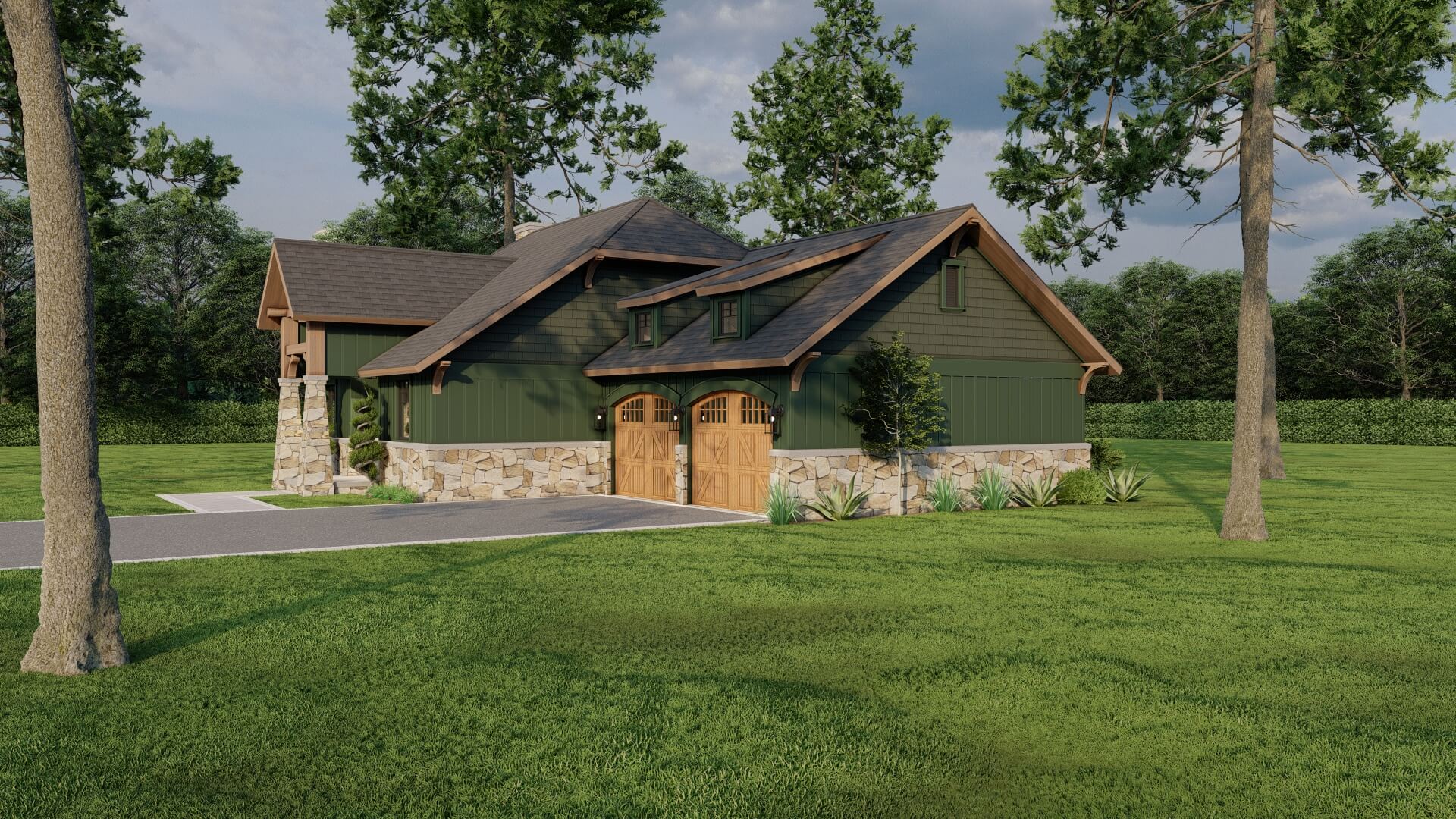

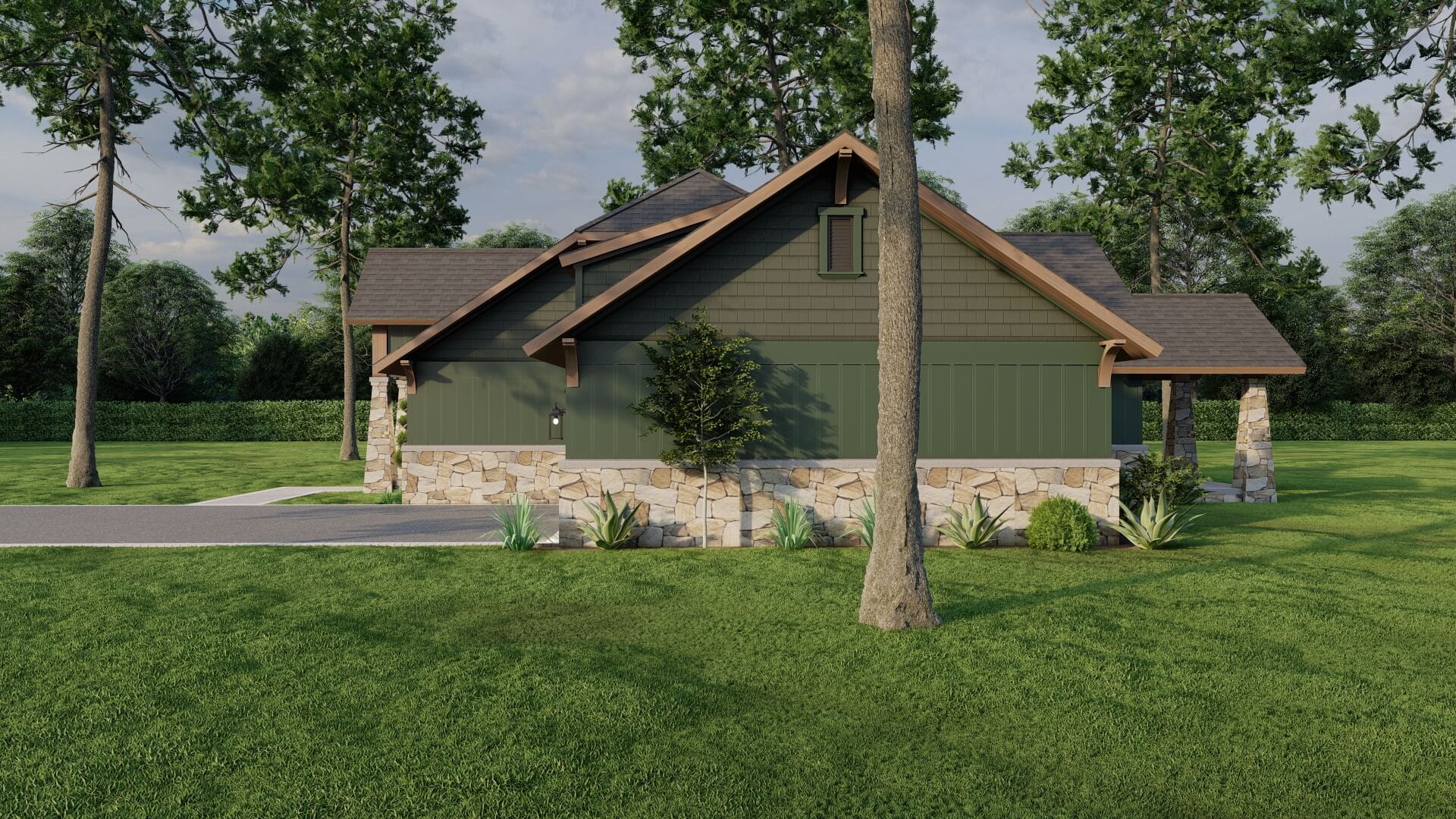

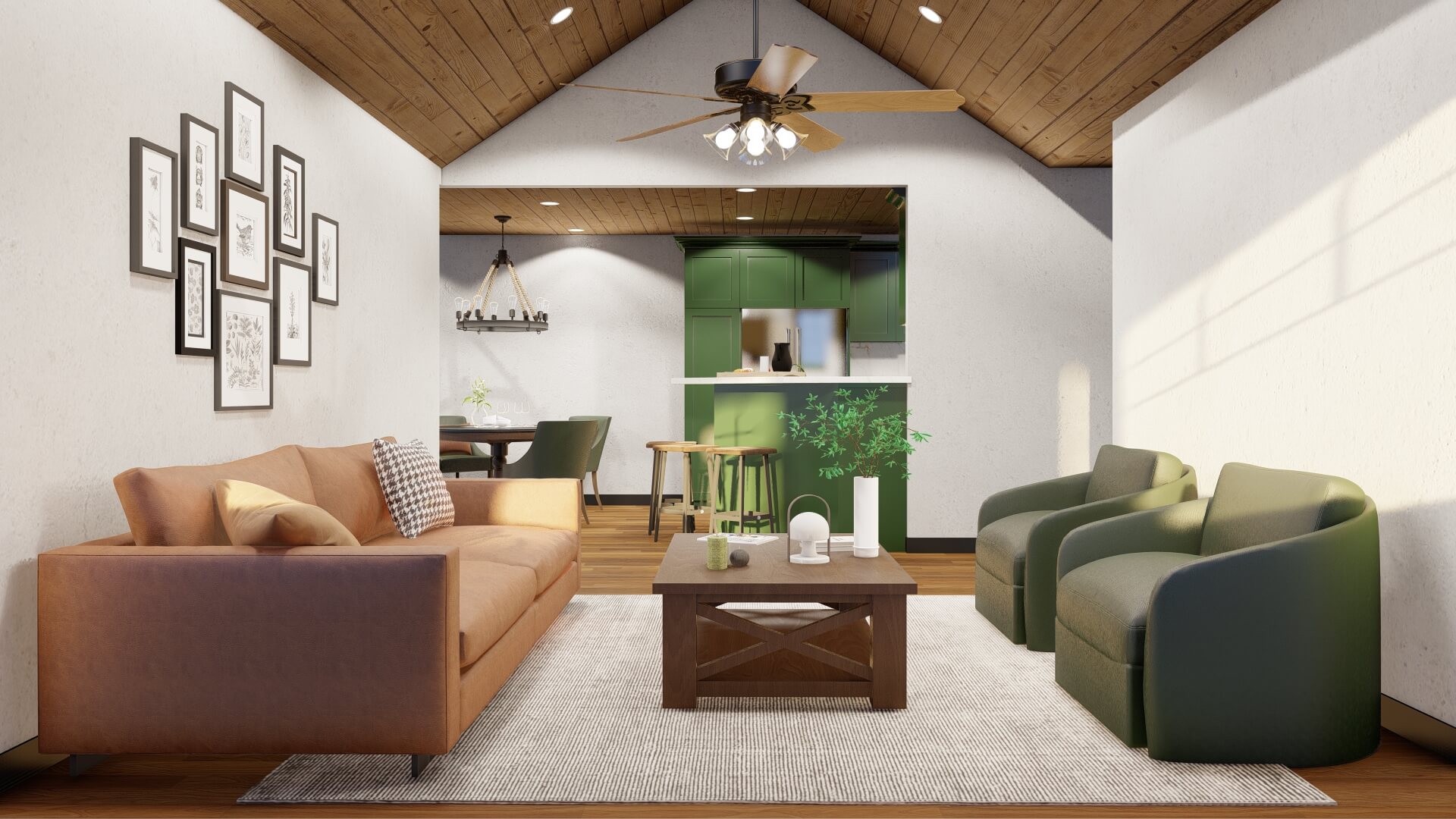

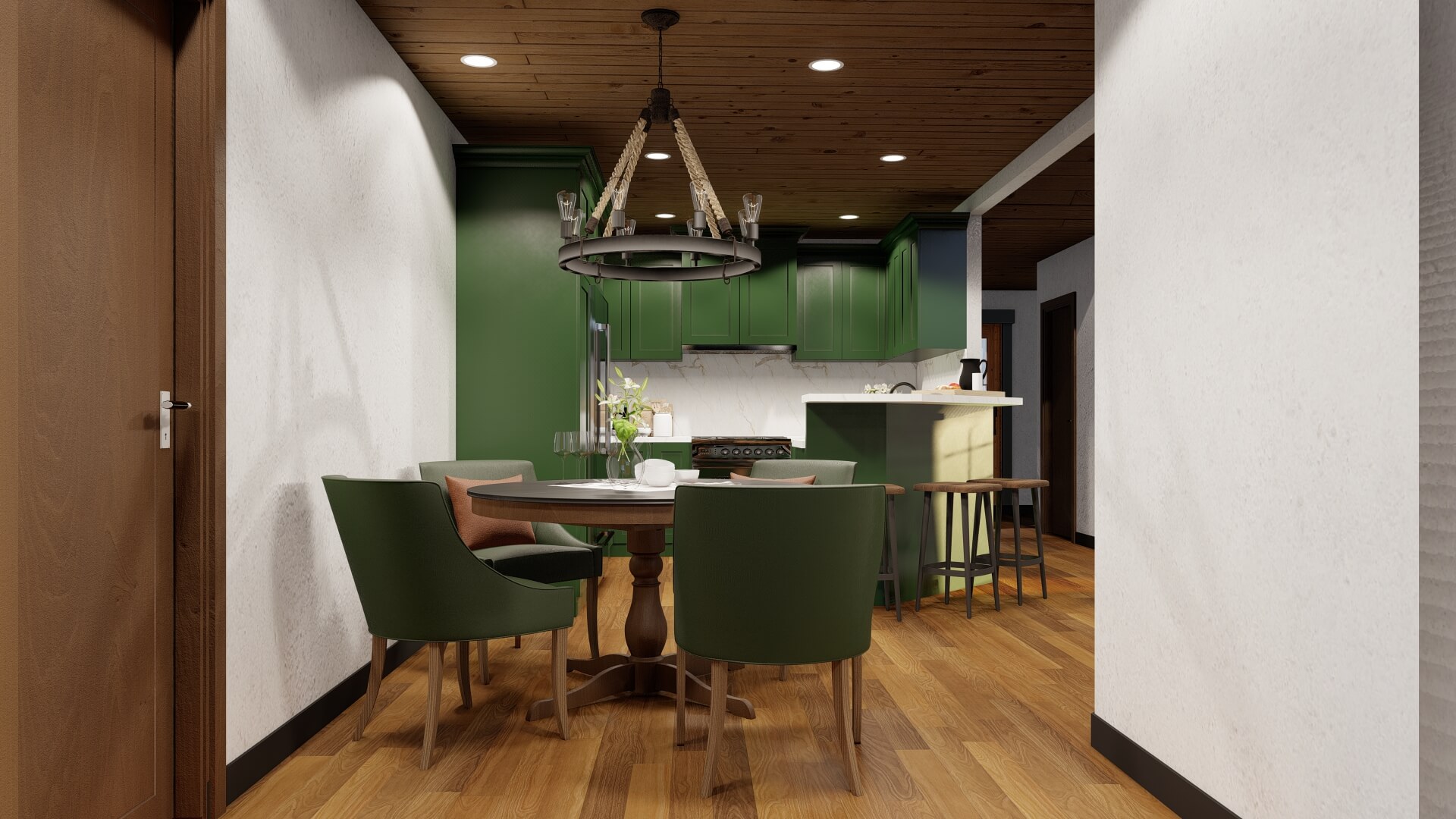

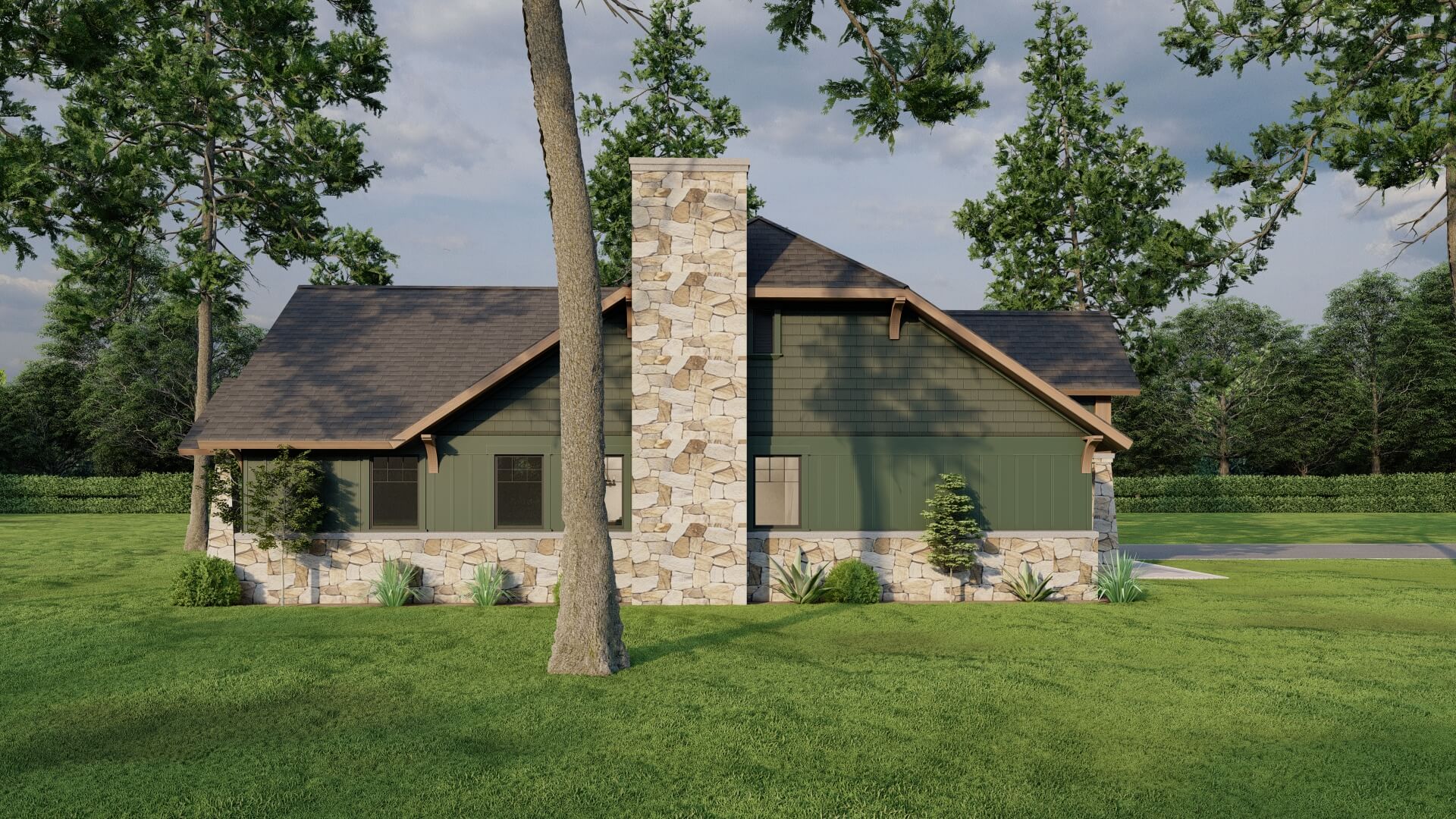

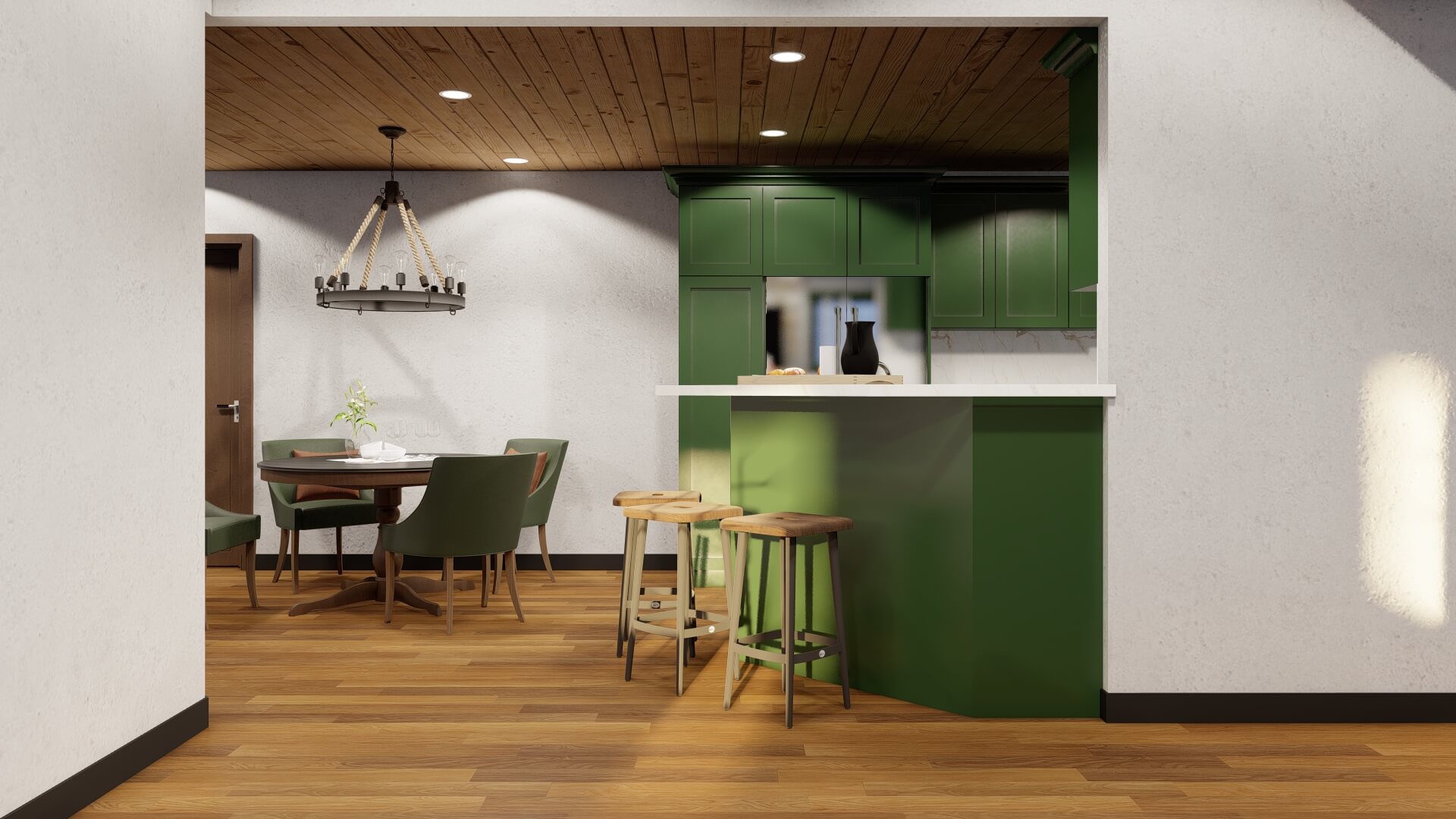

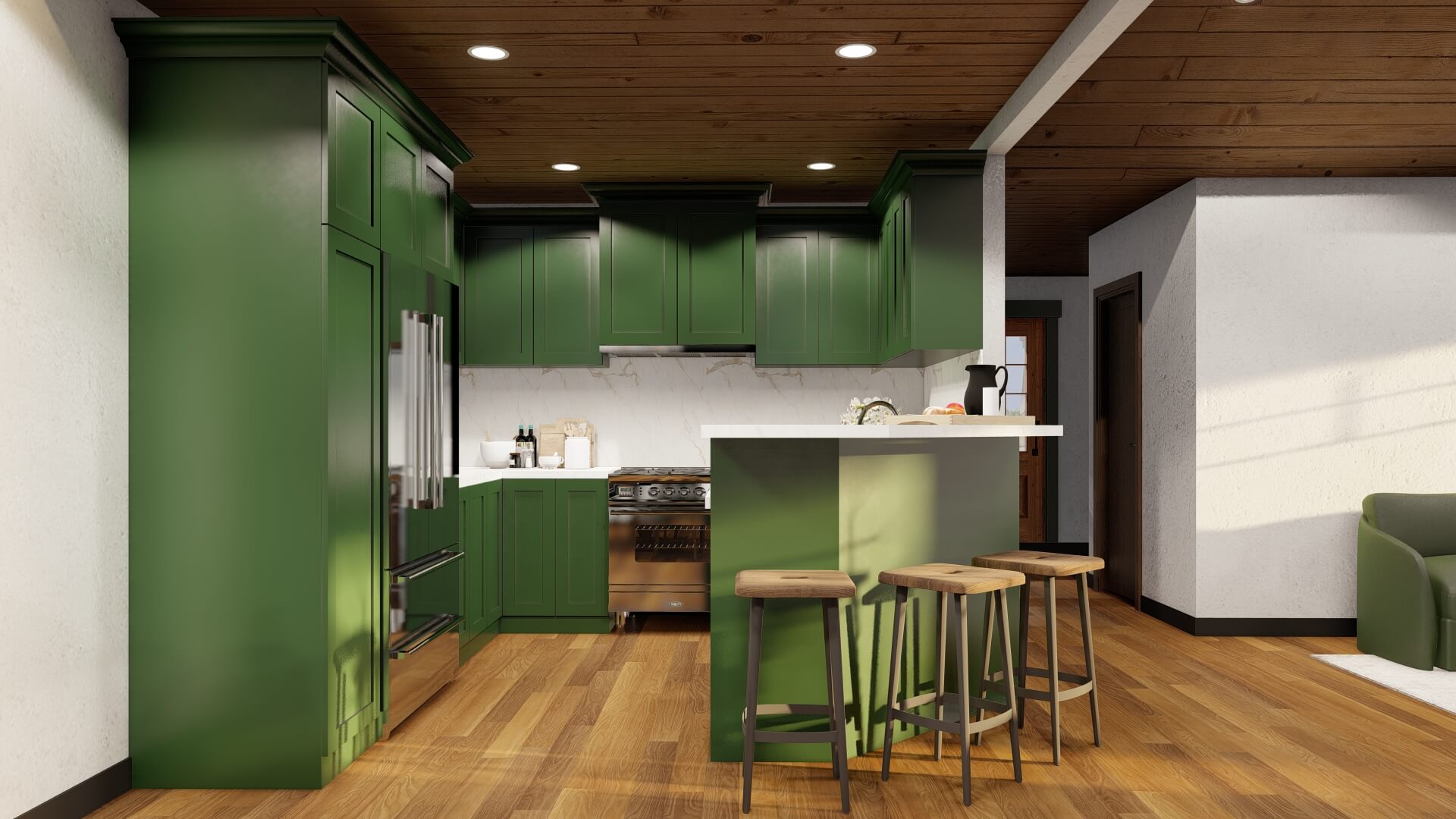

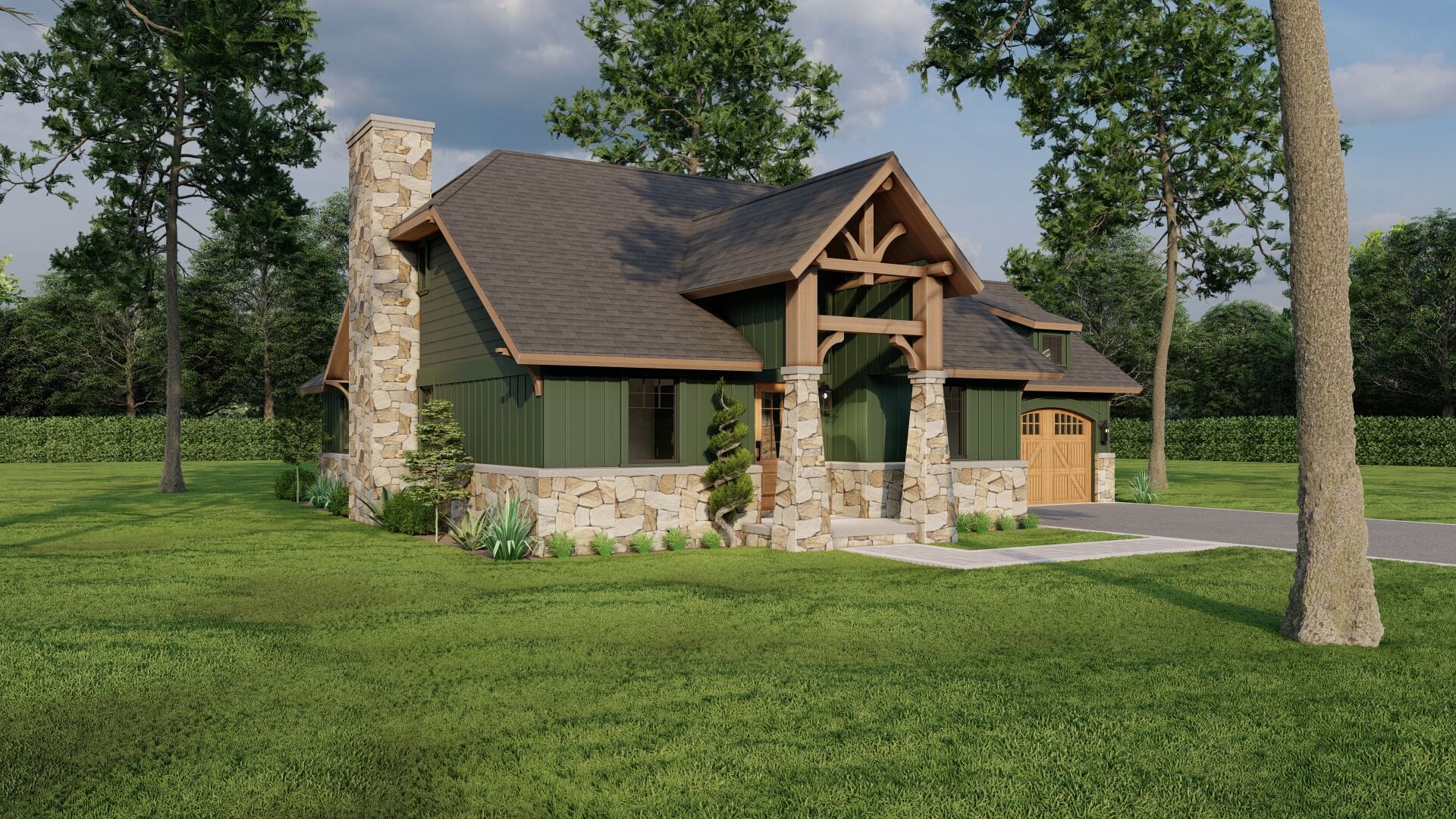

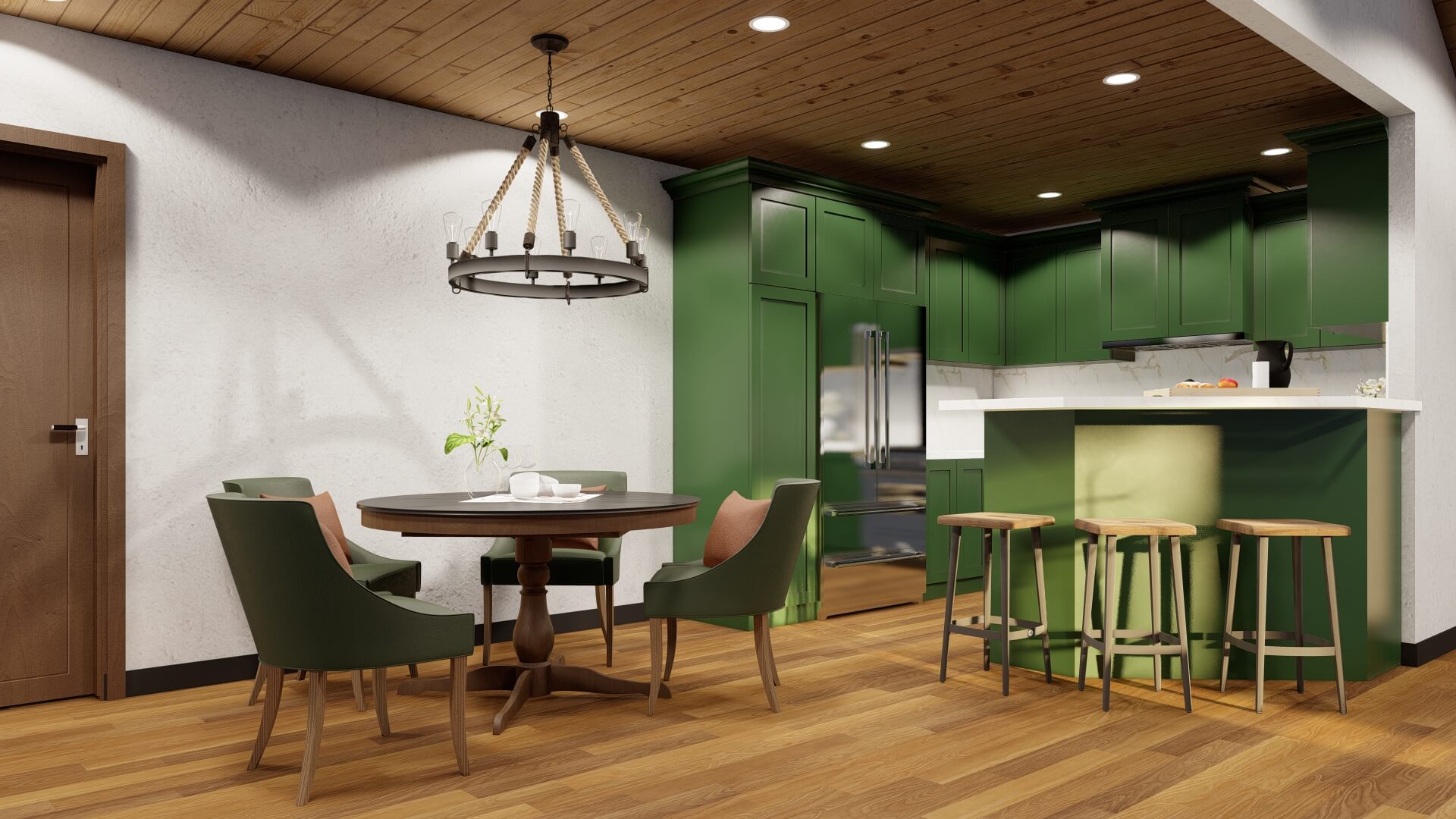

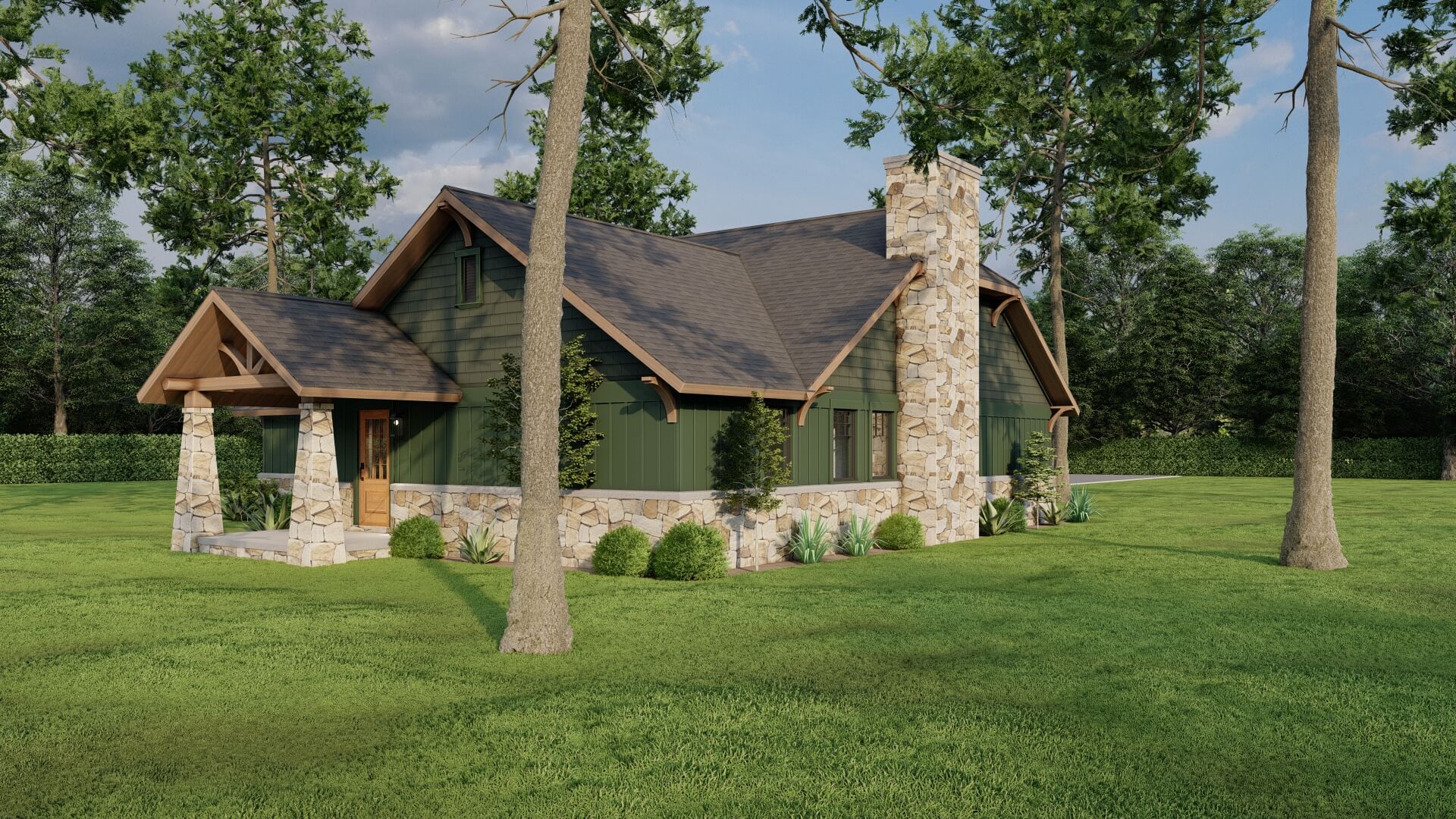

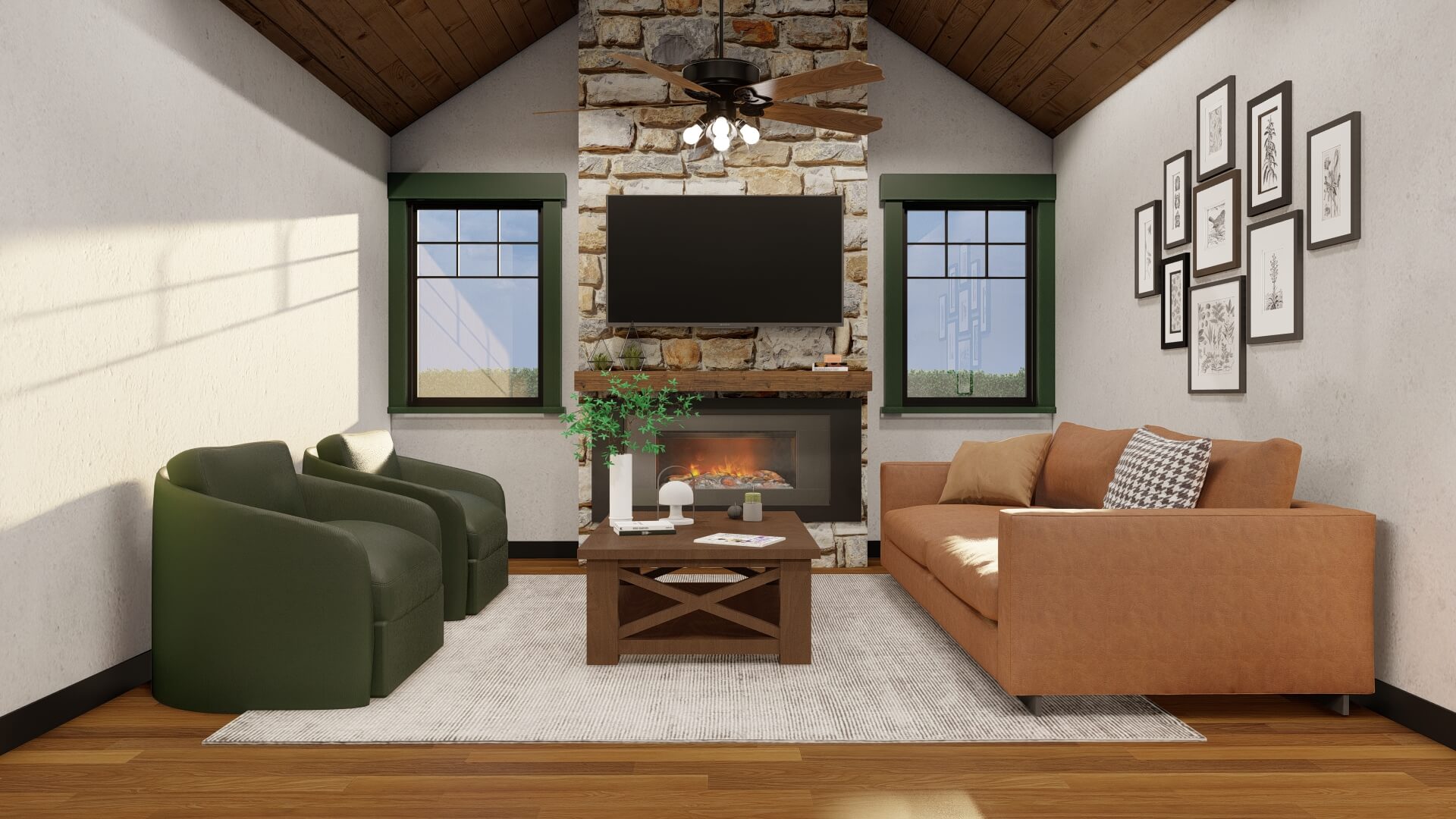

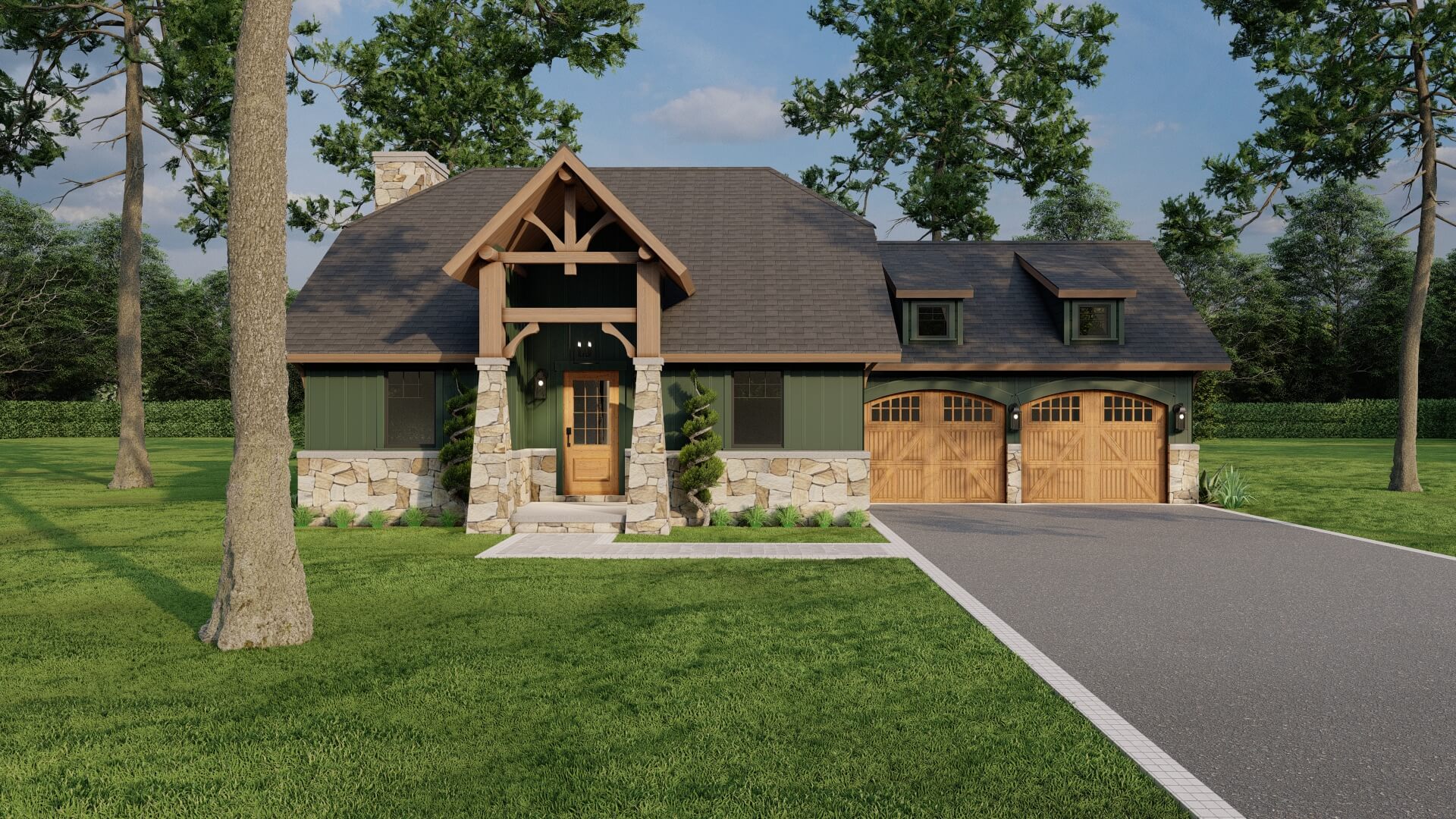

Strong stone columns and wooden beams define the exterior of this rustic Nelson Design Group home. Two secondary bedrooms flank the foyer just inside the covered porch entryway. A vaulted ceiling and gorgeous fireplace accentuate the great room, just steps away from the step-saver kitchen. At the rear of this home, your private master suite awaits you at the day's end. You're sure to enjoy this charming design!


  • Total Living Space:1282Sq.Ft.
  • Main Floor: 1282 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 156 Sq.Ft.
  • Garage (Sq.Ft.): 481 Sq.Ft.
  • Total Square Feet: 1919 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
