House Plan 1100 Laural Ridge, American Woodlands House Plan

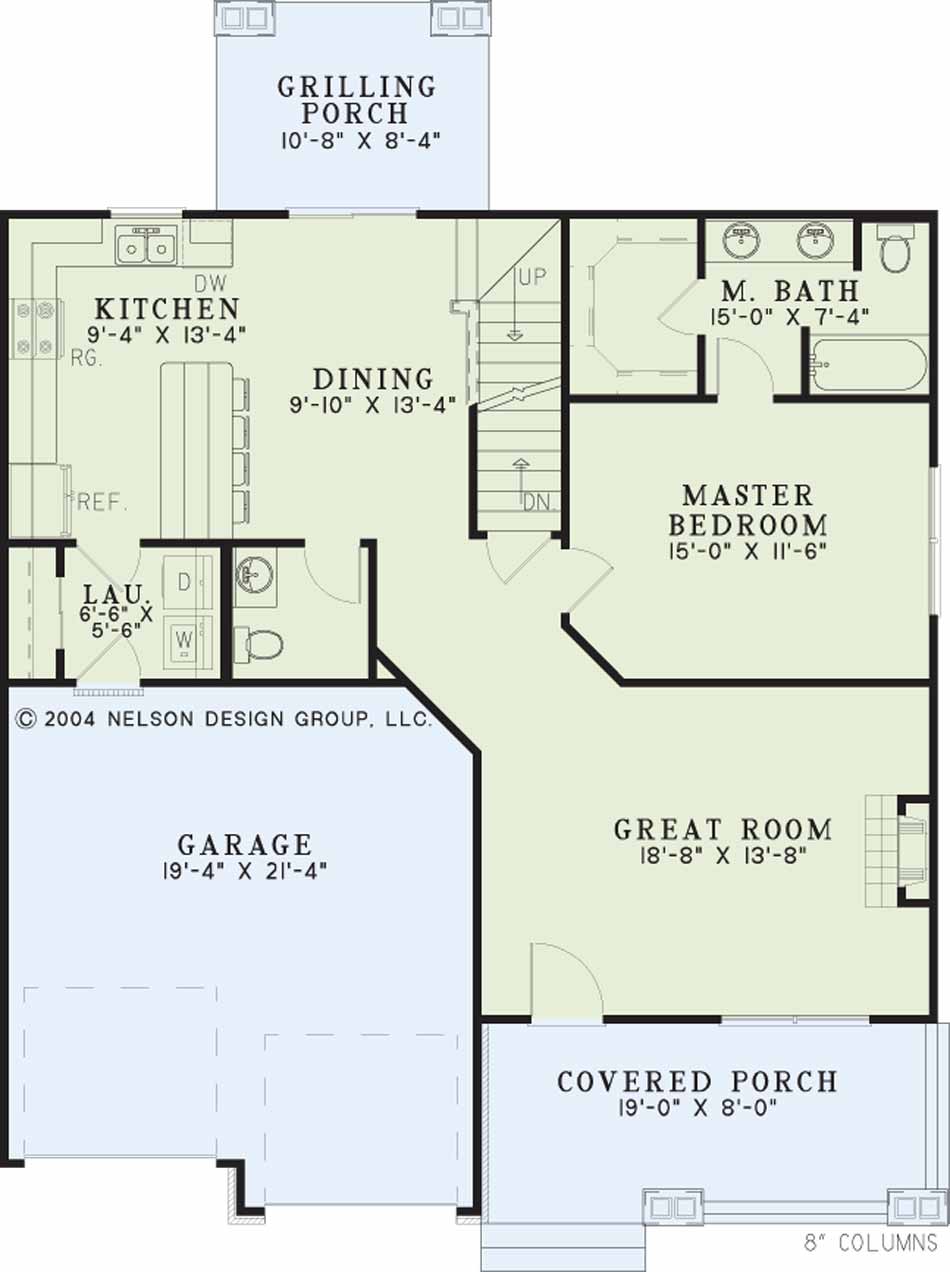

House Plan NDG 1100 Main Floor
House Plan NDG 1100 Upper Floor/Bonus
House Plan NDG 1100 Main Floor
House Plan NDG 1100 Upper Floor/Bonus

Floor plans

NDG 1100

House Plan 1100 Laural Ridge, American Woodlands House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 1100
  • Total Living Space:1654Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 39
  • Width In.: N/A
  • Depth Ft.: 50
  • Depth In.: 2

Description

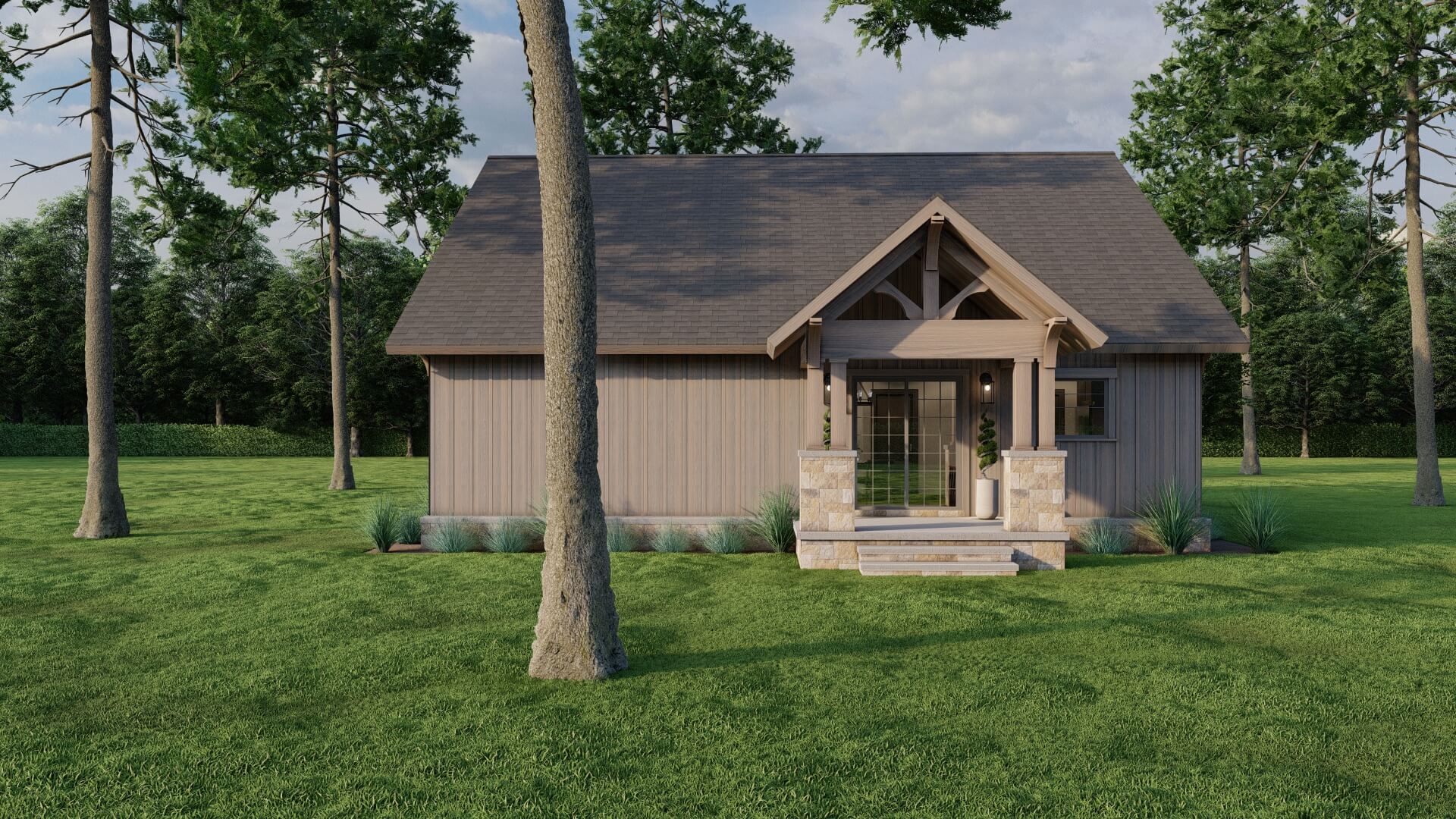

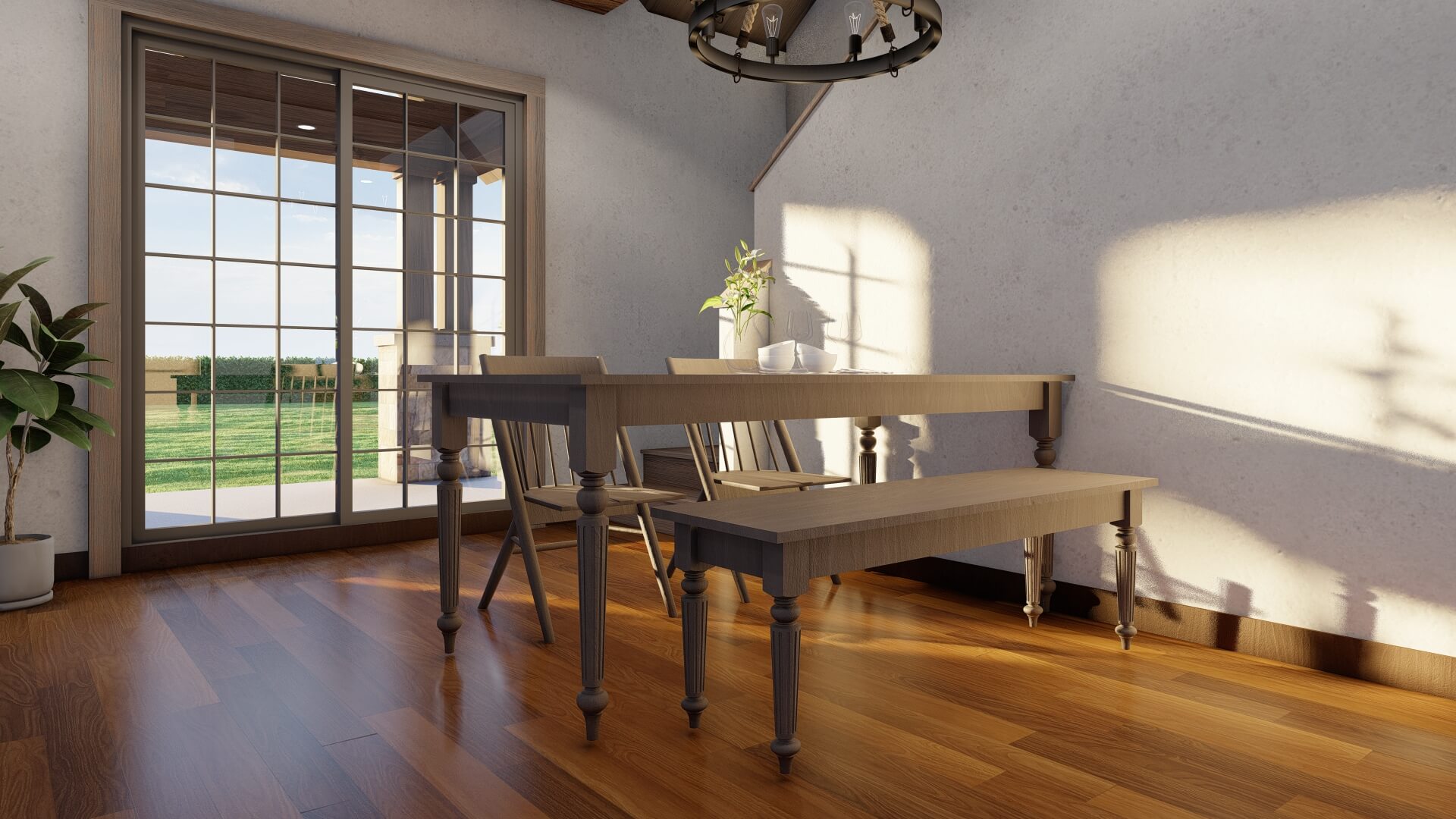

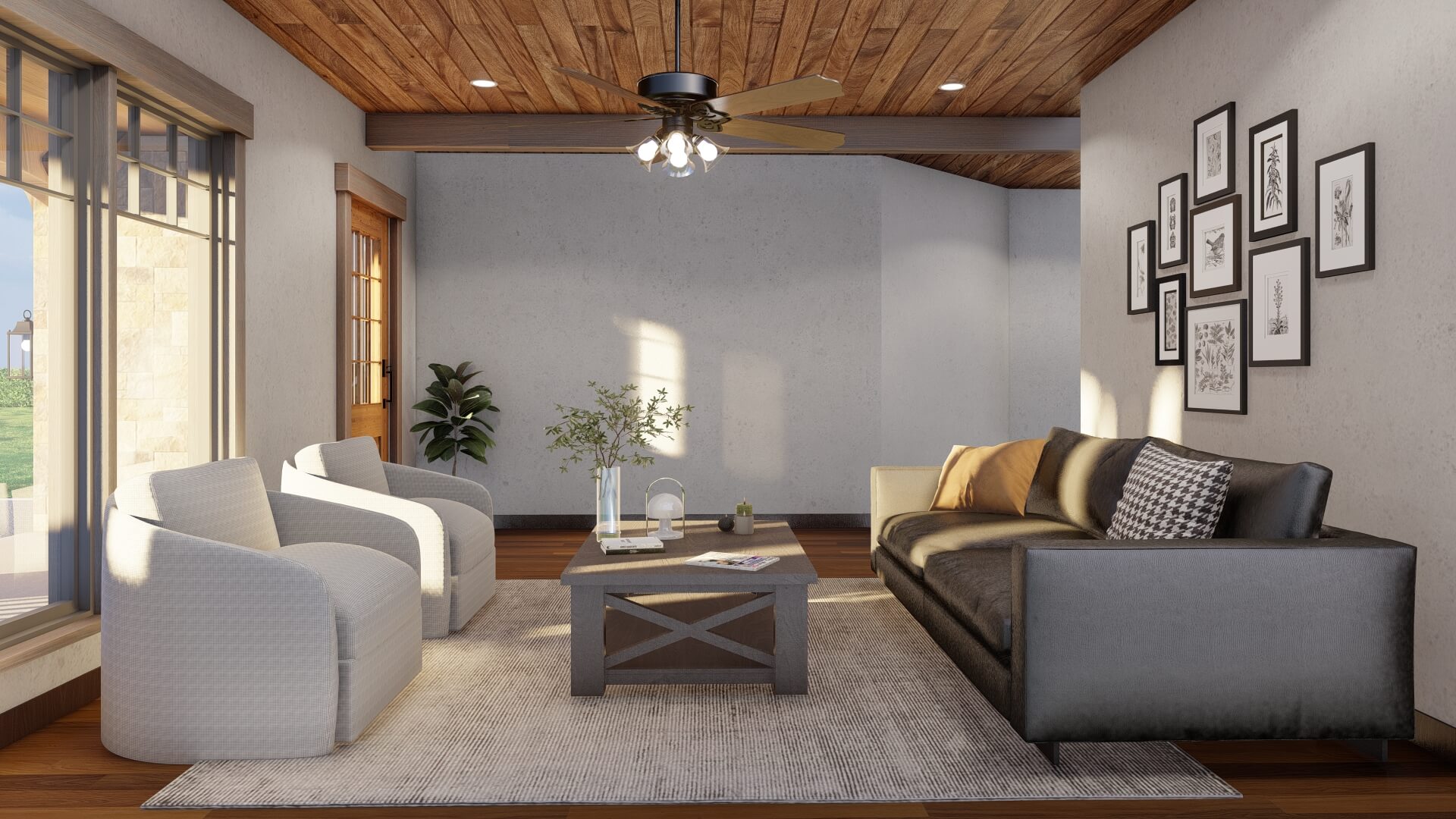

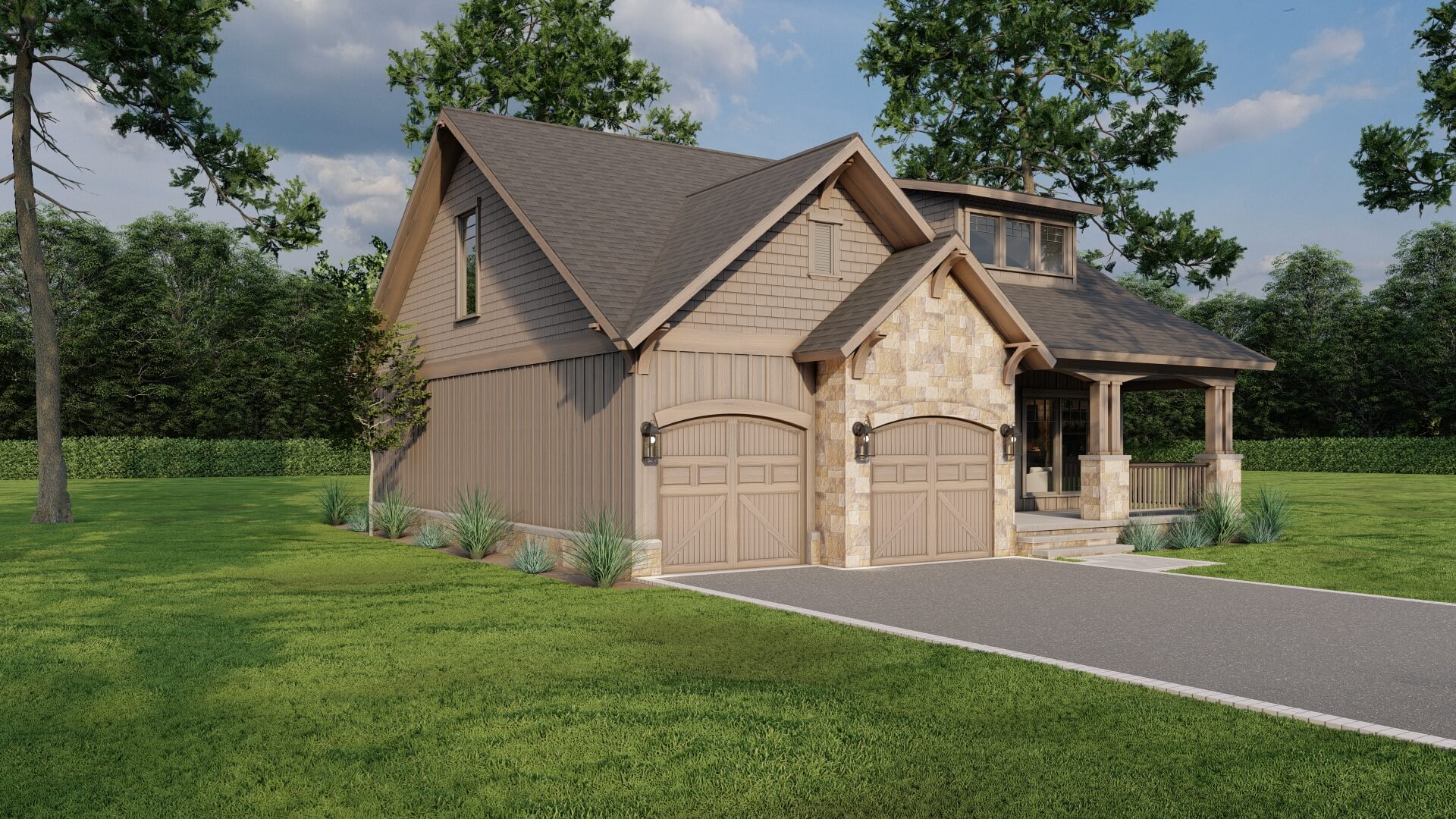

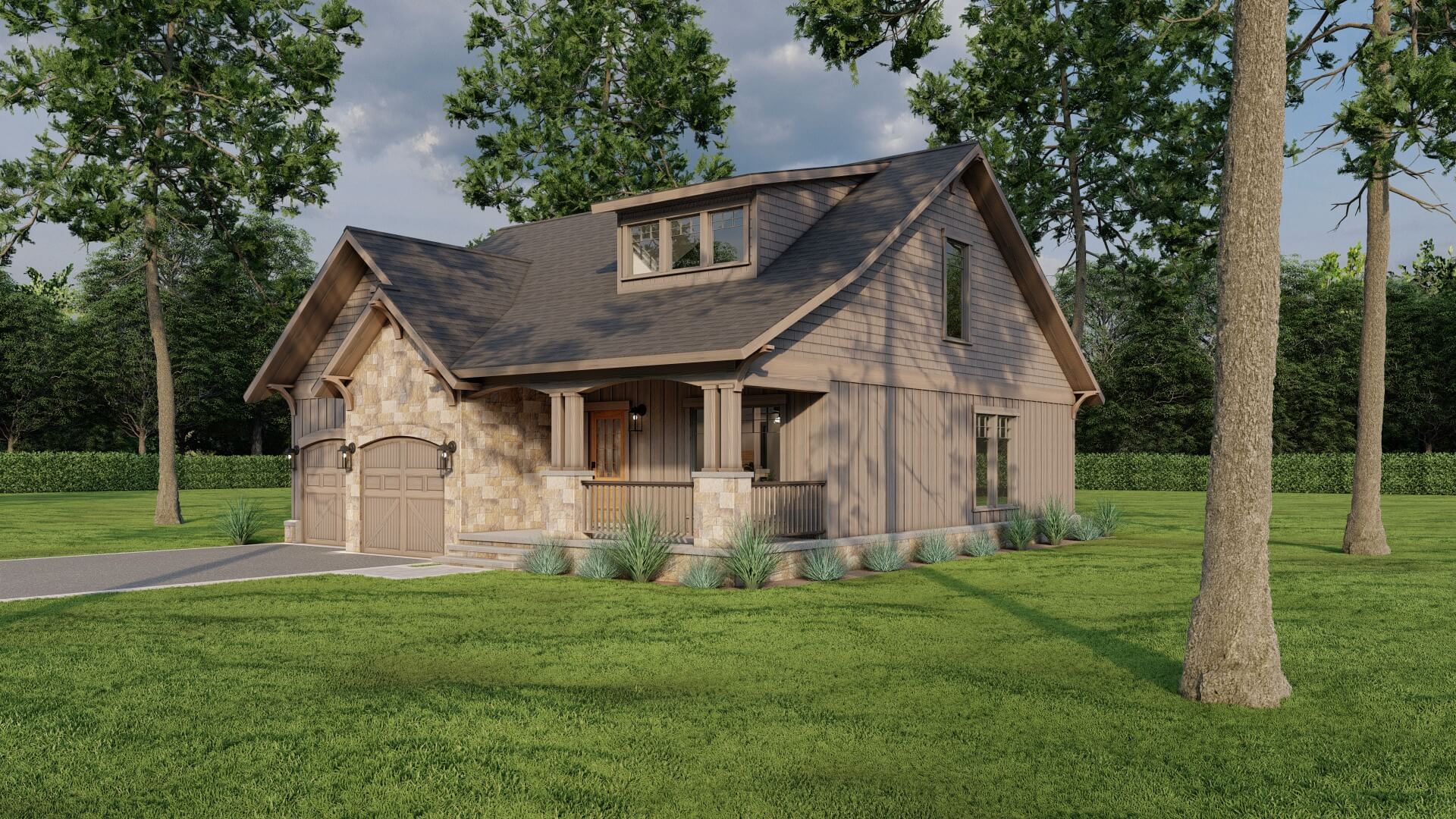

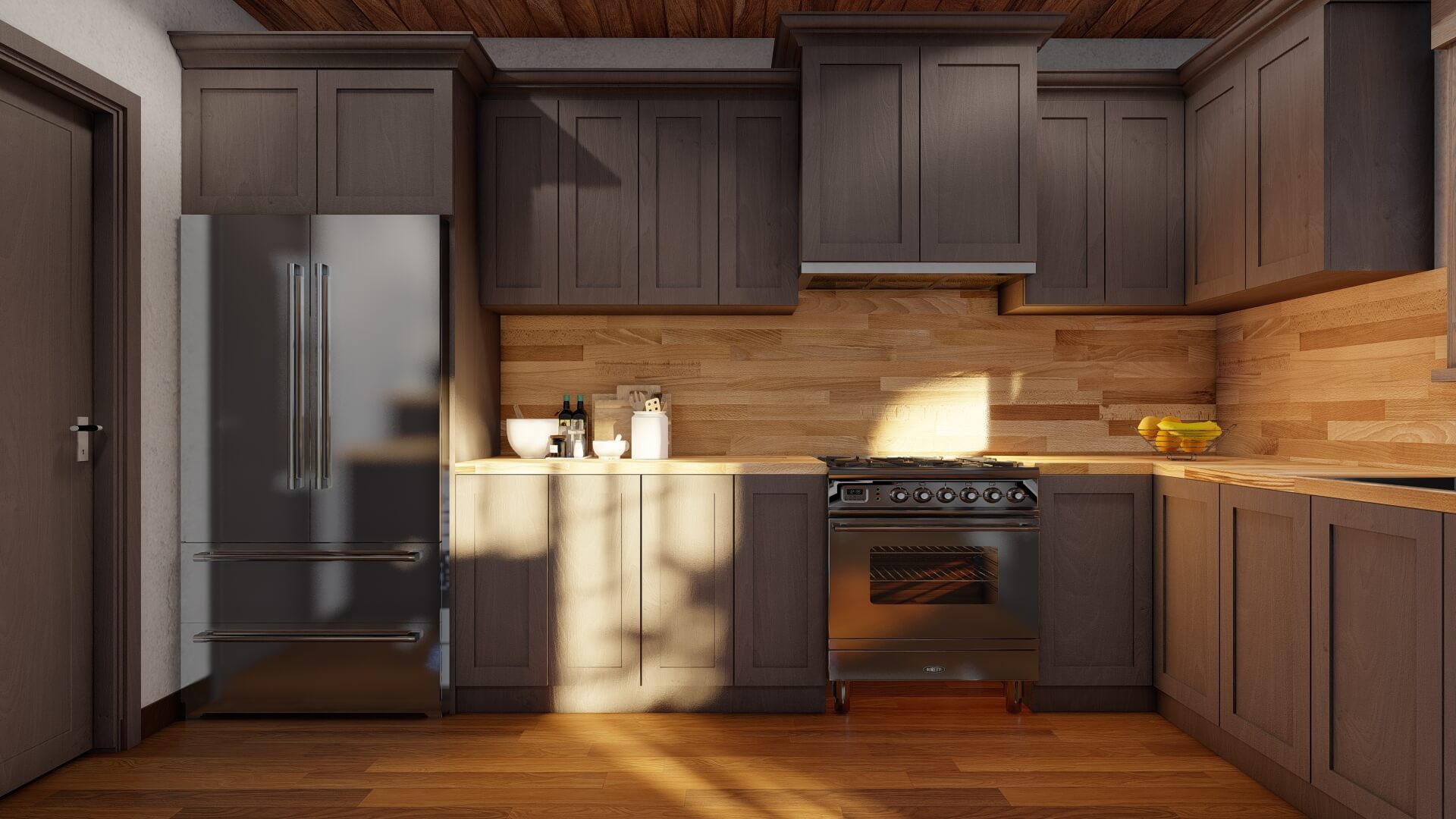

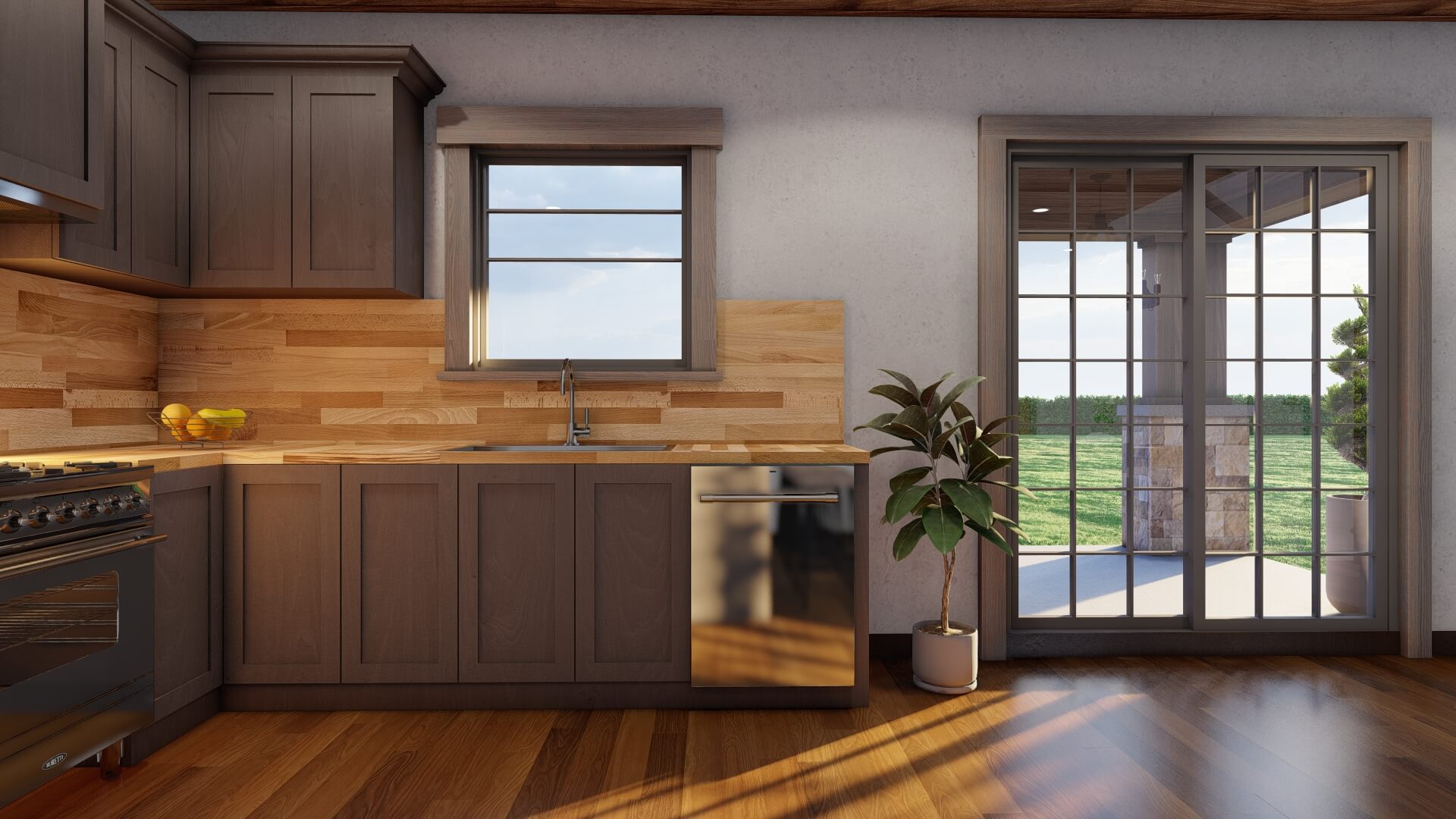

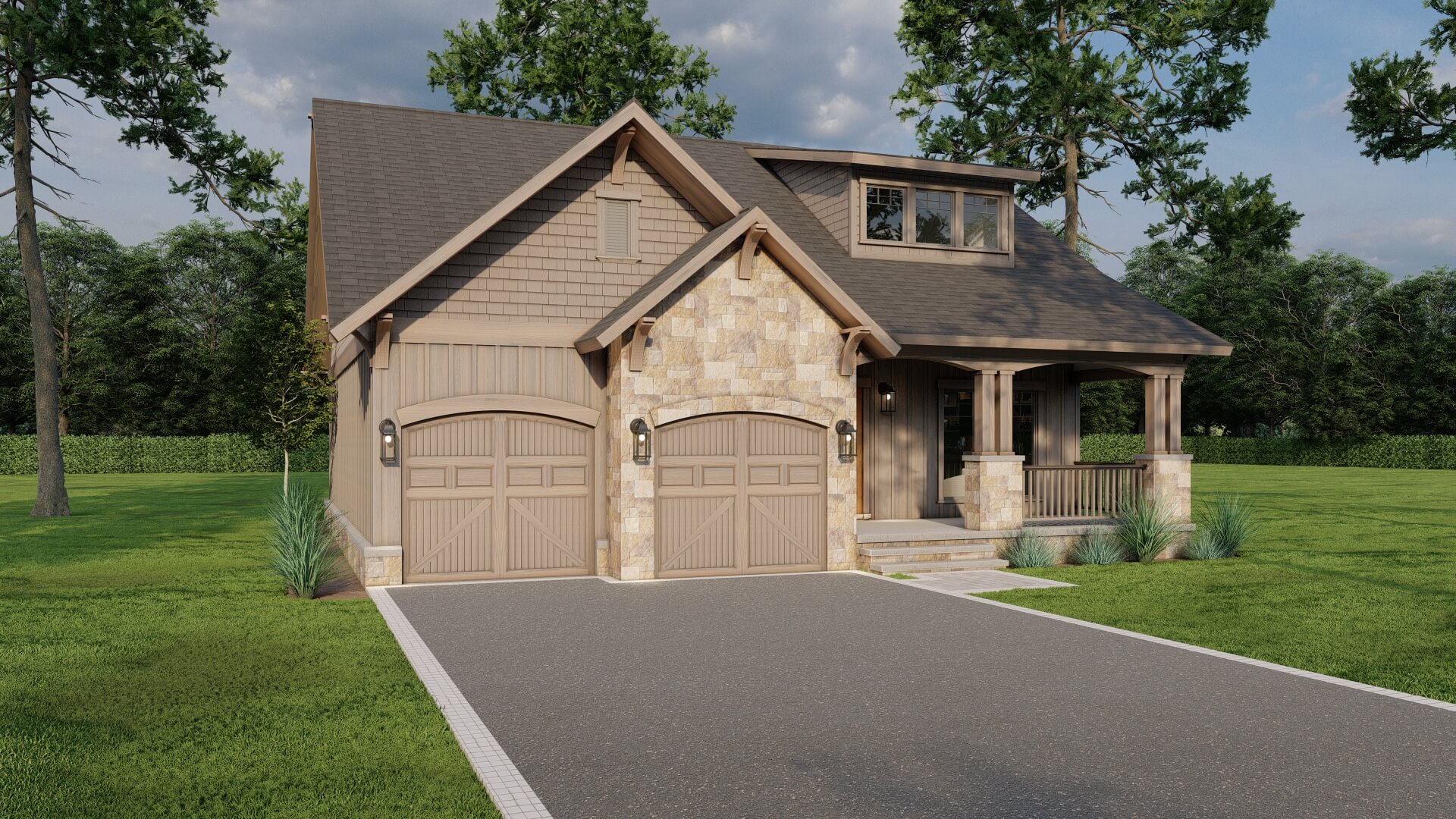

An arched covered porch and carriage style garage doors add great street appeal to this Nelson Design Group home. Enjoy entertaining friends and family in your large great room with a sliding glass door for back yard grilling. The open dining room has plenty of light while viewing the rear yard. The master suite has plenty of wall space for large furniture, a private bathroom and an extra large walk-in closet. For convenience, the garage access is located in the kitchen area as well as a half bath. The upper floor features a full bath and two spacious bedrooms with unique ceilings.

Specifications

  • Total Living Space:1654Sq.Ft.
  • Main Floor: 1048 Sq.Ft
  • Upper Floor (Sq.Ft.): 606 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 246 Sq.Ft.
  • Garage (Sq.Ft.): 411 Sq.Ft.
  • Total Square Feet: 2311 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
