House Plan 103 Walnut Street, Traditional House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 103
  • Total Living Space:3730Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Court Yard
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 47
  • Width In.: N/A
  • Depth Ft.: 94
  • Depth In.: 1

Description

Your dreams can come true with this split bedroom home. Numerous amenities are displayed within this design such as skylights in the foyer, a vaulted ceiling in the living room with warming fireplace, and columns throughout several rooms. The rear covered porch can serve as a grilling porch with access from three primary rooms. Your secluded master suite with “his and her” walk-in closets provides the privacy desired. Relax in your corner whirlpool bath after a long days’ work. The second level provides two bedrooms and an off-season cedar closet.

Specifications

  • Total Living Space:3730Sq.Ft.

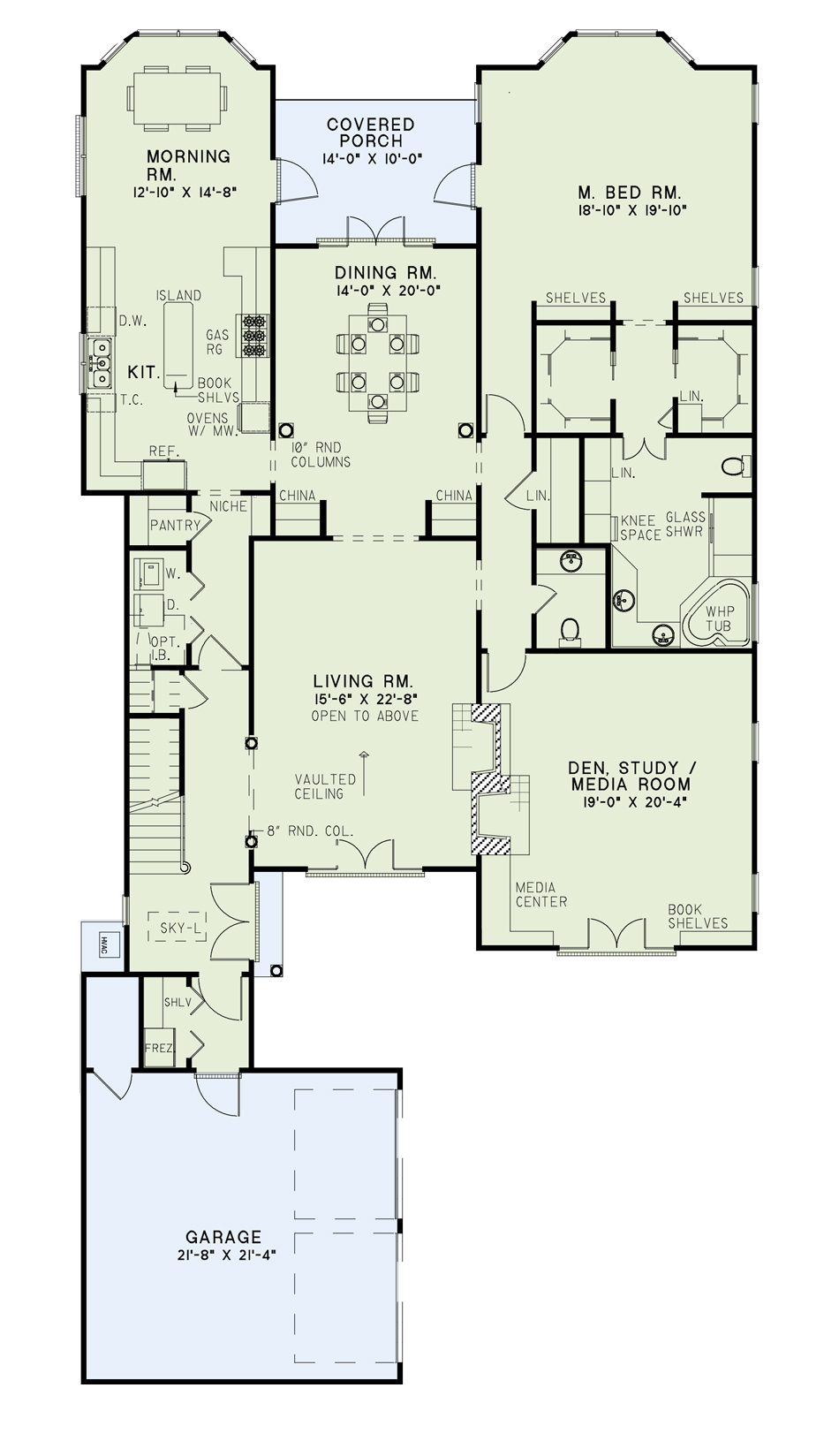

  • Main Floor: 2648 Sq.Ft

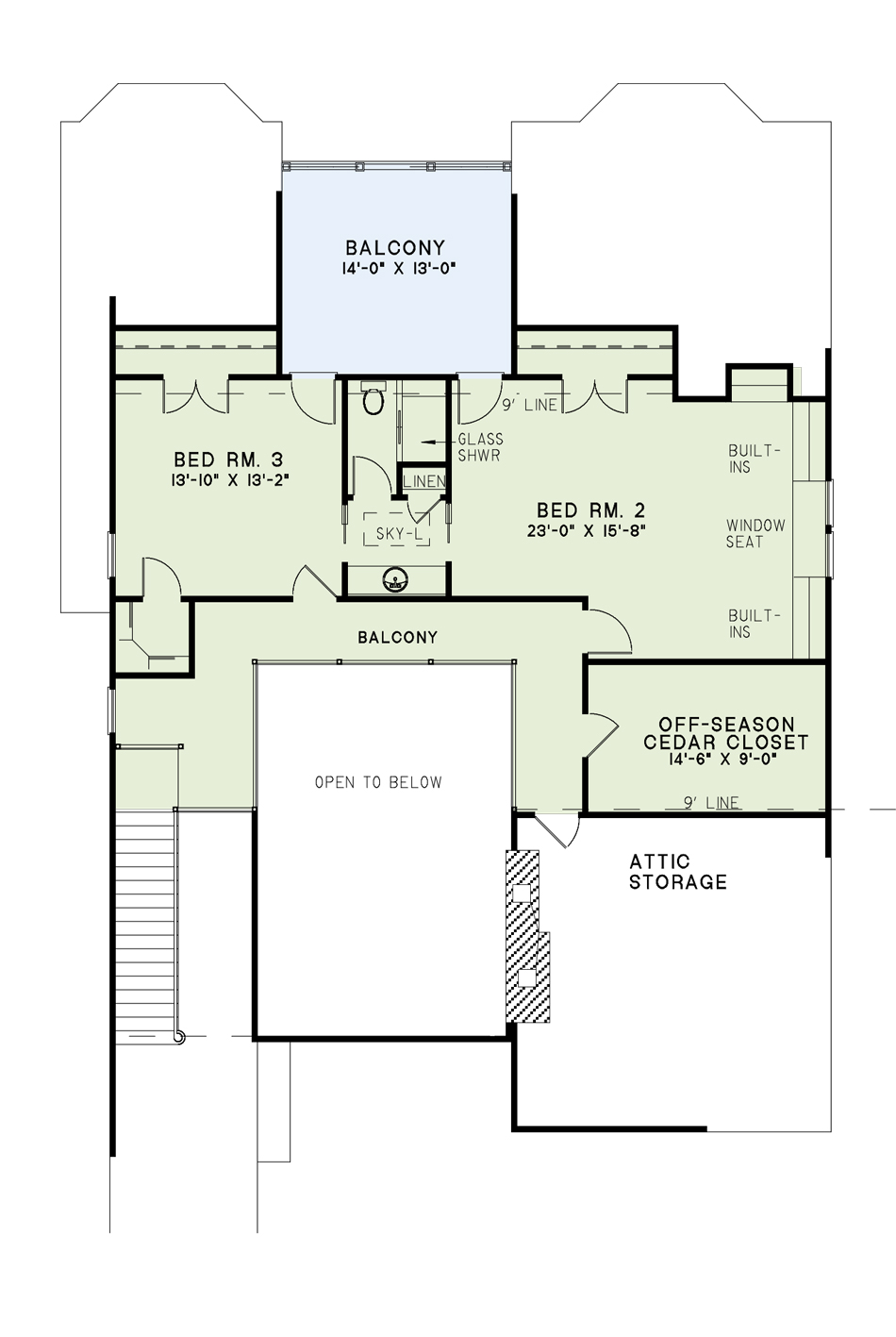

  • Upper Floor (Sq.Ft.): 1082 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 210 Sq.Ft.
  • Garage (Sq.Ft.): 462 Sq.Ft.
  • Total Square Feet: 4402 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 10
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 1
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
