House Plan 1006 La Hannah, Modern House Plan

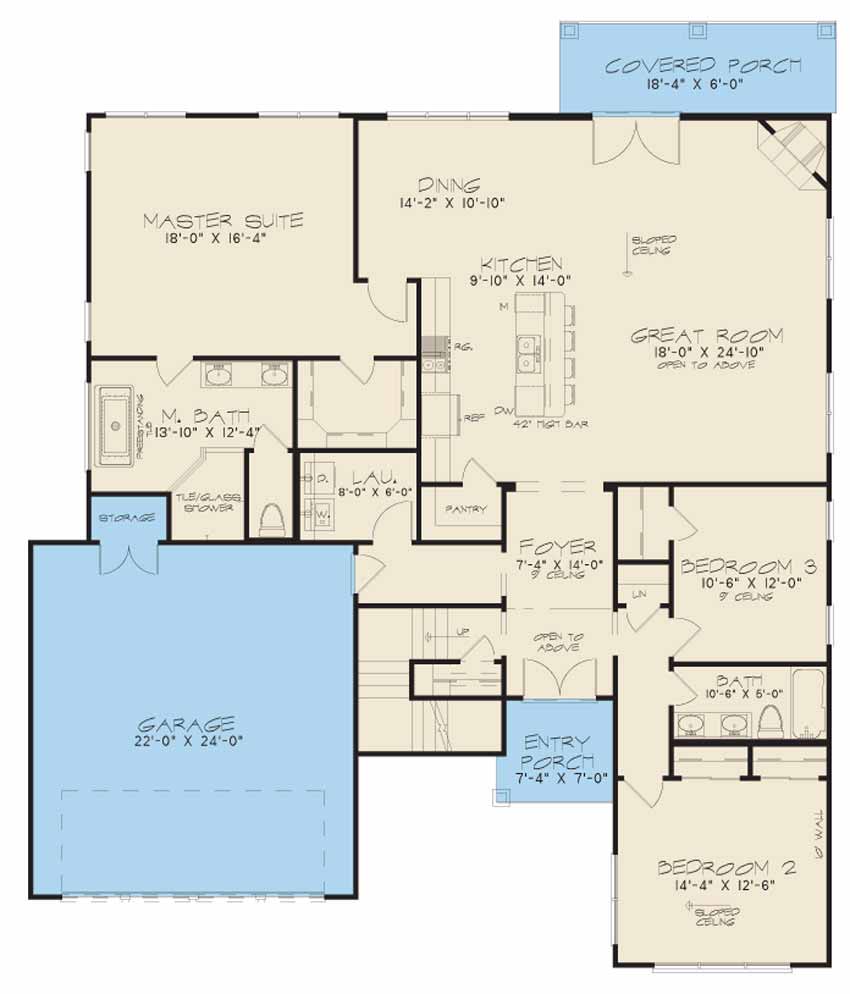

House Plan SMN1006 Main Floor

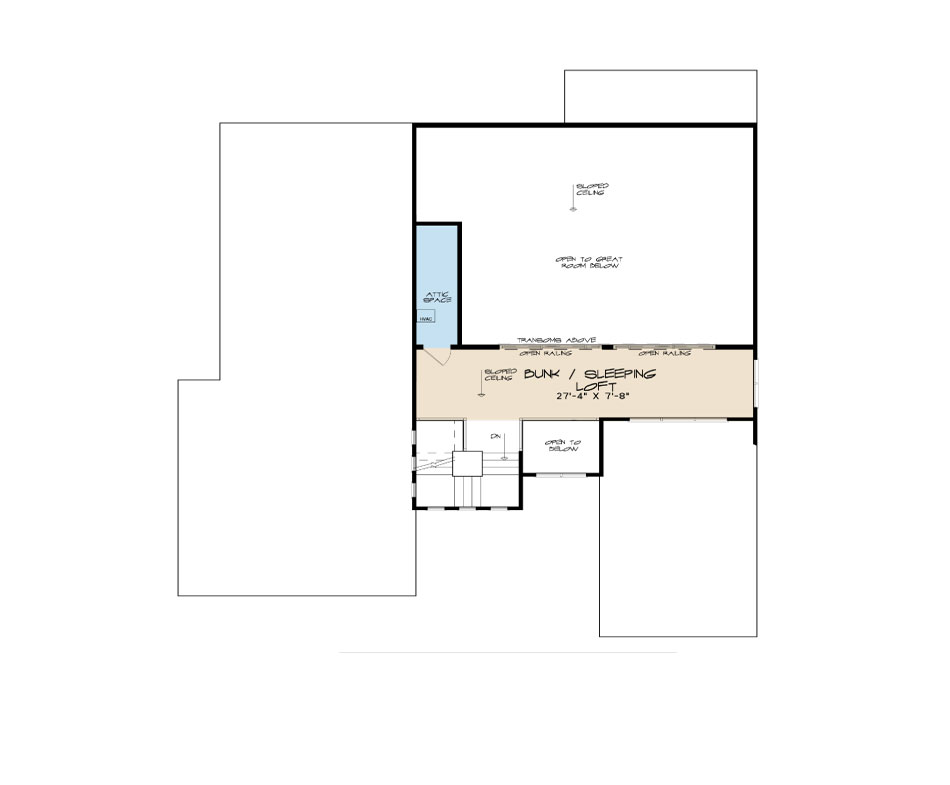

House Plan SMN 1006 Upper Floor
>
House Plan SMN1006 Main Floor
House Plan SMN 1006 Upper Floor

Floor plans

SMN 1006

House Plan 1006 La Hannah, Modern House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: SMN 1006
  • Total Living Space:2470Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 55
  • Width In.: 2
  • Depth Ft.: 64
  • Depth In.: 8

Description

Designer Seth M. Nelson created wonderful curb appeal with this contemporary design. The exterior features stone, stucco, and an abundance of windows. The unique design of the garage door adds to the curb appeal of this home. Inside you will find an open layout for the Great Room, Kitchen, and Dining areas. The spacious master suite will spoil you with a large walk-in closet and a luxurious bath featuring modern design elements such as a freestanding tub and an oversized tile and glass shower. Two additional bedrooms, another bath, a separate laundry, and an upstairs loft are also found in this home.

Specifications

  • Total Living Space:2470Sq.Ft.
  • Main Floor: 2165 Sq.Ft
  • Upper Floor (Sq.Ft.): 305 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 173 Sq.Ft.
  • Garage (Sq.Ft.): 571 Sq.Ft.
  • Total Square Feet: 3214 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Metal
  • Main Roof Pitch: 3:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • House Plan Options
