House Plan 1000 Sunside View, Modern House Plan

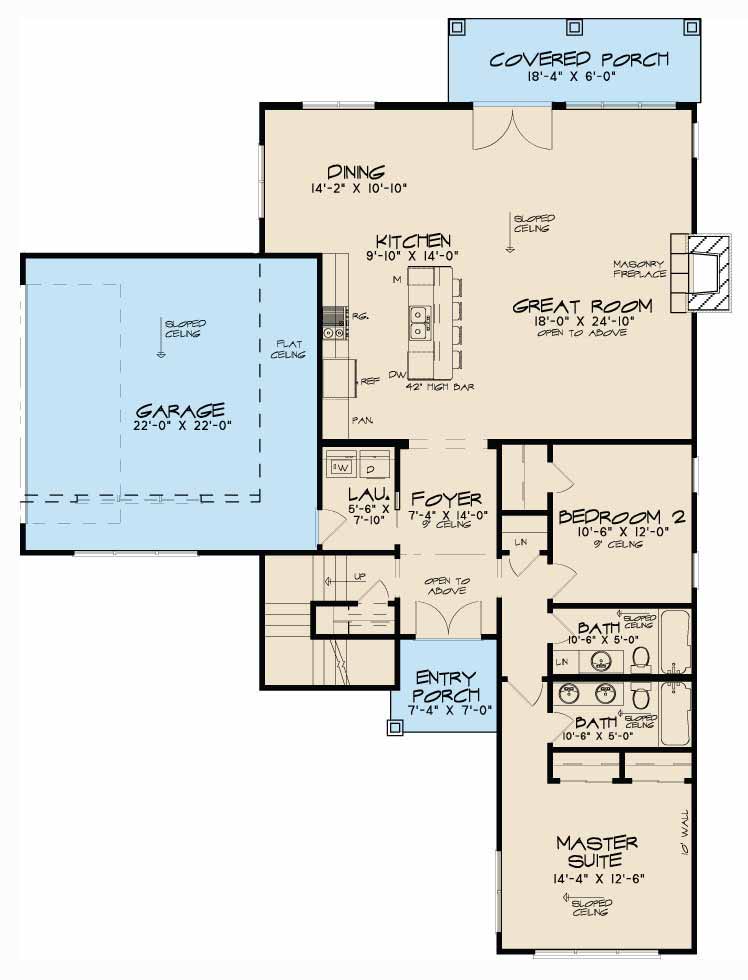

House Plan SMN1000 Main Floor

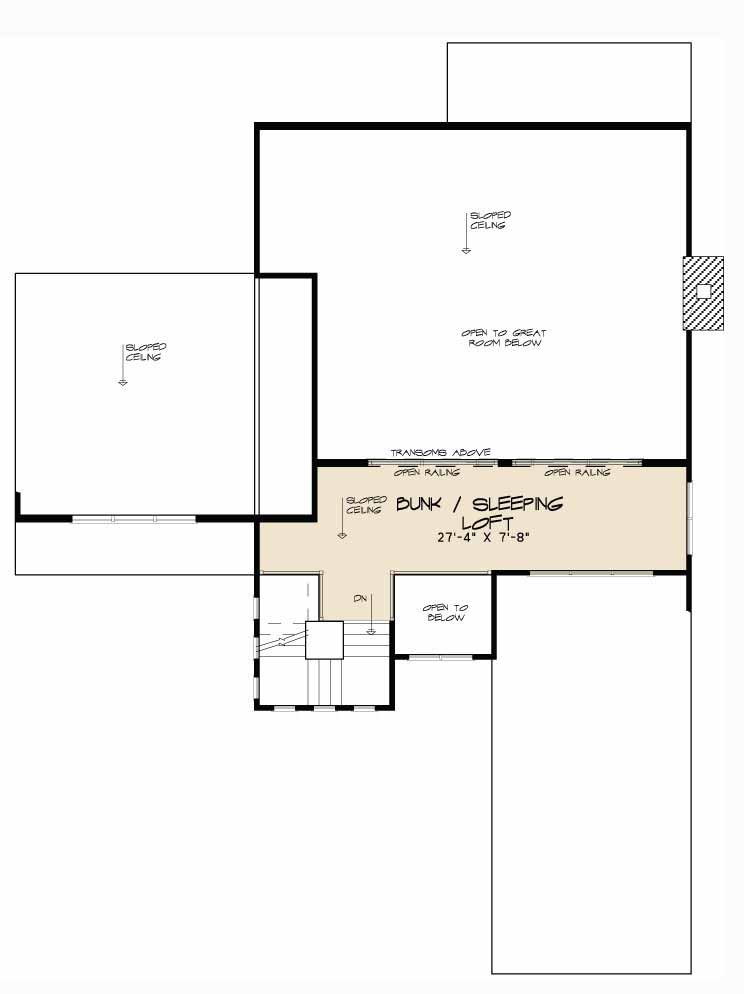

House Plan SMN1000 Upper Floor
House Plan SMN1000 Main Floor
House Plan SMN1000 Upper Floor

Floor plans

House Plan SMN1000 Main Floor

House Plan SMN1000 Upper Floor
SMN 1000

House Plan 1000 Sunside View, Modern House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: SMN 1000
  • Total Living Space:1911 Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 50
  • Width In.: 10
  • Depth Ft.: 70
  • Depth In.: N/A

Description

This modern style home features beautiful stone and windows all along the front. The foyer leads to the large open Great Room with a fireplace and the kitchen that features an eat-at island bar and the dining area is open to both rooms. A rear covered porch is accessible from the Great Room as well. The Master Suite is located at the front corner of the home with another bedroom down the hall. Upstairs you’ll find a Bunk/Sleeping Loft that over looks the foyer on one side and the Great Room on the other.

Specifications

  • Total Living Space:1911 Sq.Ft.
  • Main Floor: 1624 Sq.Ft
  • Upper Floor (Sq.Ft.): 287 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 163 Sq.Ft.
  • Garage (Sq.Ft.): 503 Sq.Ft.
  • Total Square Feet: 2577 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 3:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): N/A
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
