Garage Plan 1492 3-Car Porte-Cochere, Garage & Pool House Plan

House Plan NDG 1492 Garage
House Plan NDG 1492 Garage

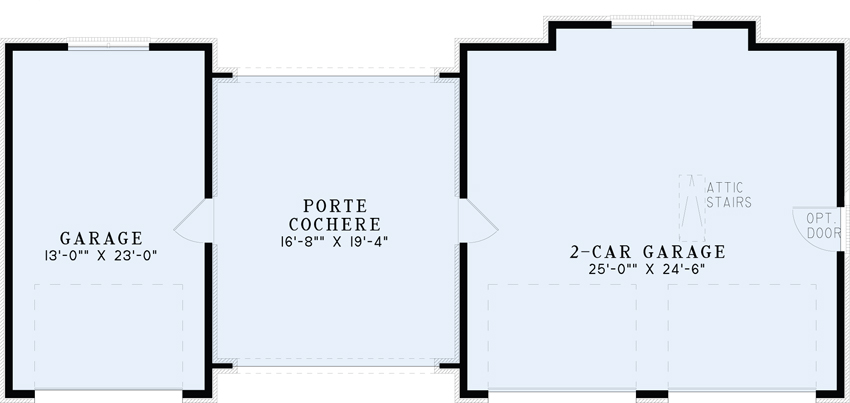

Floor plans

NDG 1492

Garage Plan 1492 3-Car Porte-Cochere, Garage & Pool House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 1492
  • Total Living Space:N/A
  • Bedrooms: N/A
  • Full Baths: N/A
  • Half Baths: N/A
  • Garage: 3 Bay Yes
  • Garage Type: Rear Load
  • Carport: Yes
  • Carport Type: Porte Cochere
  • Stories: 1
  • Width Ft.: 56
  • Width In.: 9
  • Depth Ft.: 25
  • Depth In.: 6

Description

This elegant 3-car garage features a stone and brick exterior with an elegant arched porte cochere dividing 1 garage from the other 2-car garage. Beautiful arched windows adorn the front while the rear features 3 arched wooden garage doors.

PLEASE NOTE: The only foundation available for this plan is slab.

Specifications

  • Total Living Space:N/A
  • Main Floor: N/A
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): 1315 Sq.Ft.
  • Total Square Feet: 1315 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 16:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
