Garage Plan 1490 Florida Drive, Garage & Pool House Plan

House Plan NDG 1490 Garage
House Plan NDG 1490 Garage

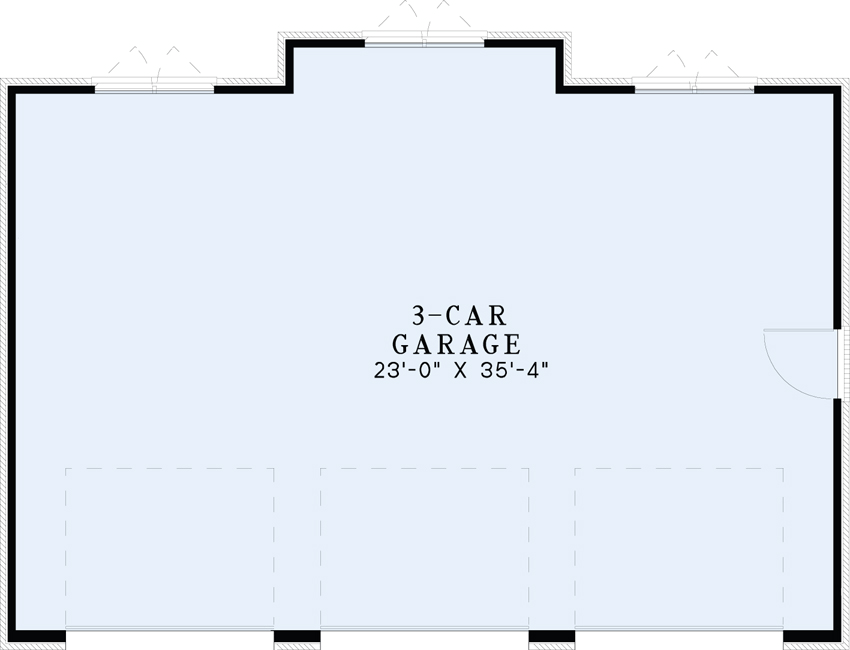

Floor plans

NDG 1490

Garage Plan 1490 Florida Drive, Garage & Pool House Plan

PDF: $455.00

Plan Details

  • Plan Number: NDG 1490
  • Total Living Space:N/A
  • Bedrooms: N/A
  • Full Baths: N/A
  • Half Baths: N/A
  • Garage: 3 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 36
  • Width In.: N/A
  • Depth Ft.: 26
  • Depth In.: N/A

Description

This 3-car garage plan features 3 separate arched wooden doors with a brick exterior and a stone base. Deep set for plenty of space, it also features a door on the right side and 3 sets of windows along the rear wall.

Specifications

  • Total Living Space:N/A
  • Main Floor: N/A
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): 887 Sq.Ft.
  • Total Square Feet: 887 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 16:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
