Riverbend Cabin House Plan, 5459 River Cottage Retreat

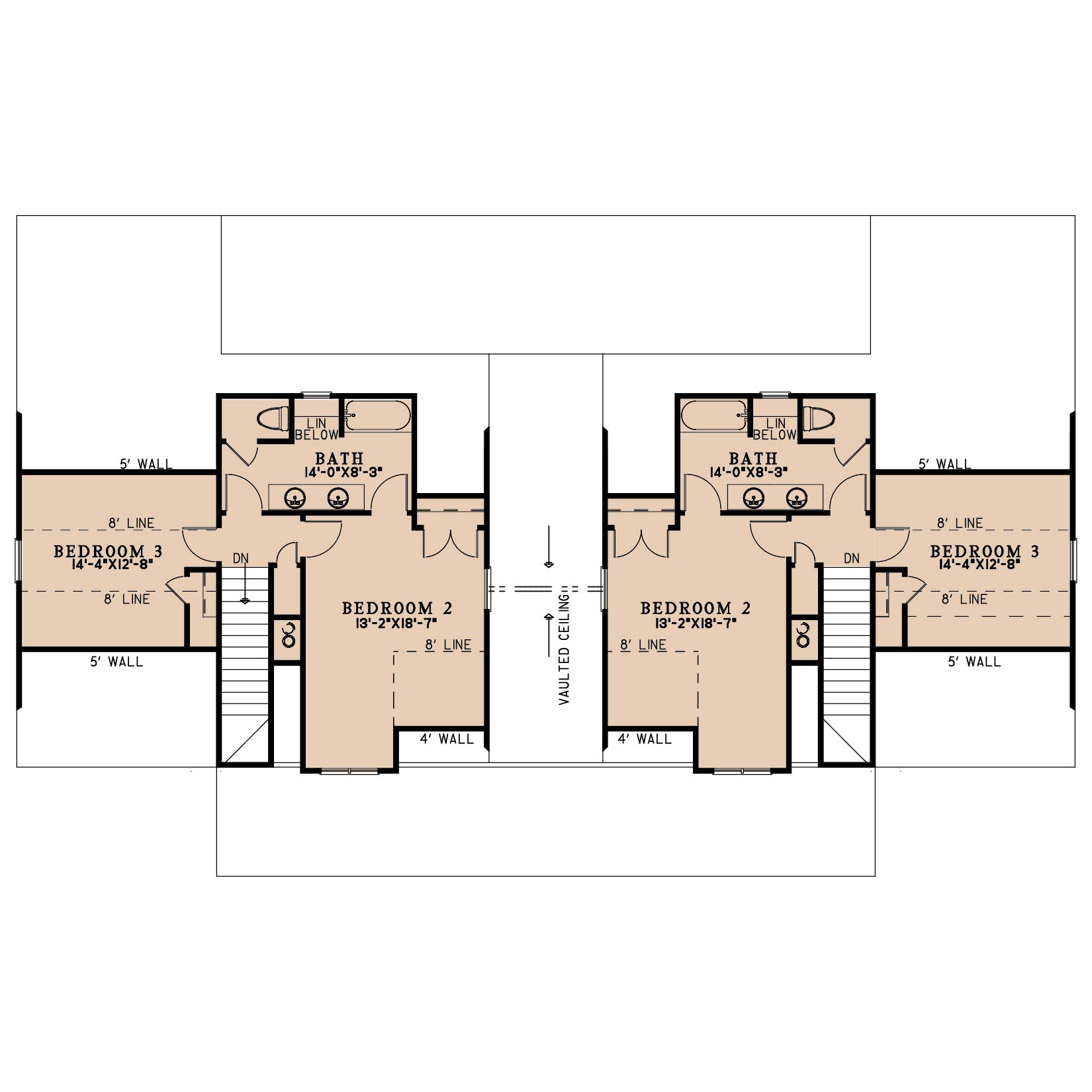

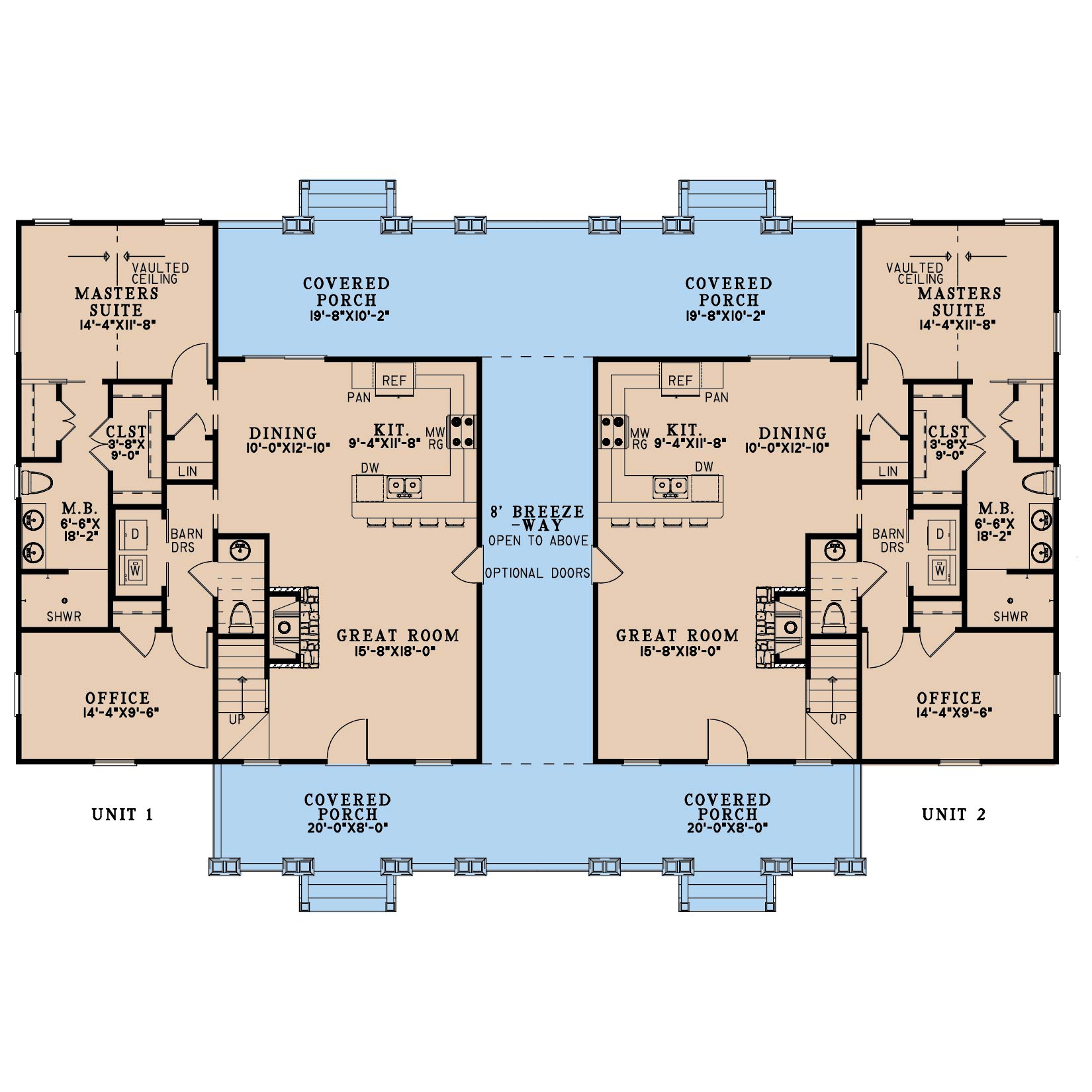

Floor plans
MEN 5459
Riverbend Cabin House Plan, 5459 River Cottage Retreat
Plan Details
- Plan Number: MEN 5459
- Total Living Space:3620Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: No
- Garage Type: N/A
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 77
- Width In.: 8
- Depth Ft.: 48
- Depth In.: 6
Description
* Heated/Cooled Main Floor (Each): 1204 sq.ft.
Heated/Cooled Upper (Each): 606 sq.ft.
Heated/Cooled Total (Each): 1810 sq.ft. *
Specifications
- Total Living Space:3620Sq.Ft.
- Main Floor: 1204 Sq.Ft
- Upper Floor (Sq.Ft.): 606 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 1124 Sq.Ft.
- Garage (Sq.Ft.): N/A
- Total Square Feet: 4744 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Metal
- Main Roof Pitch: 9:12
- Porch Roof Pitch: 5:12
- Roof Framing Description: stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 22
- Ridge Height (In.): 8
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
