House Plan 5478 Avondale Arms, Multi-Family House Plan

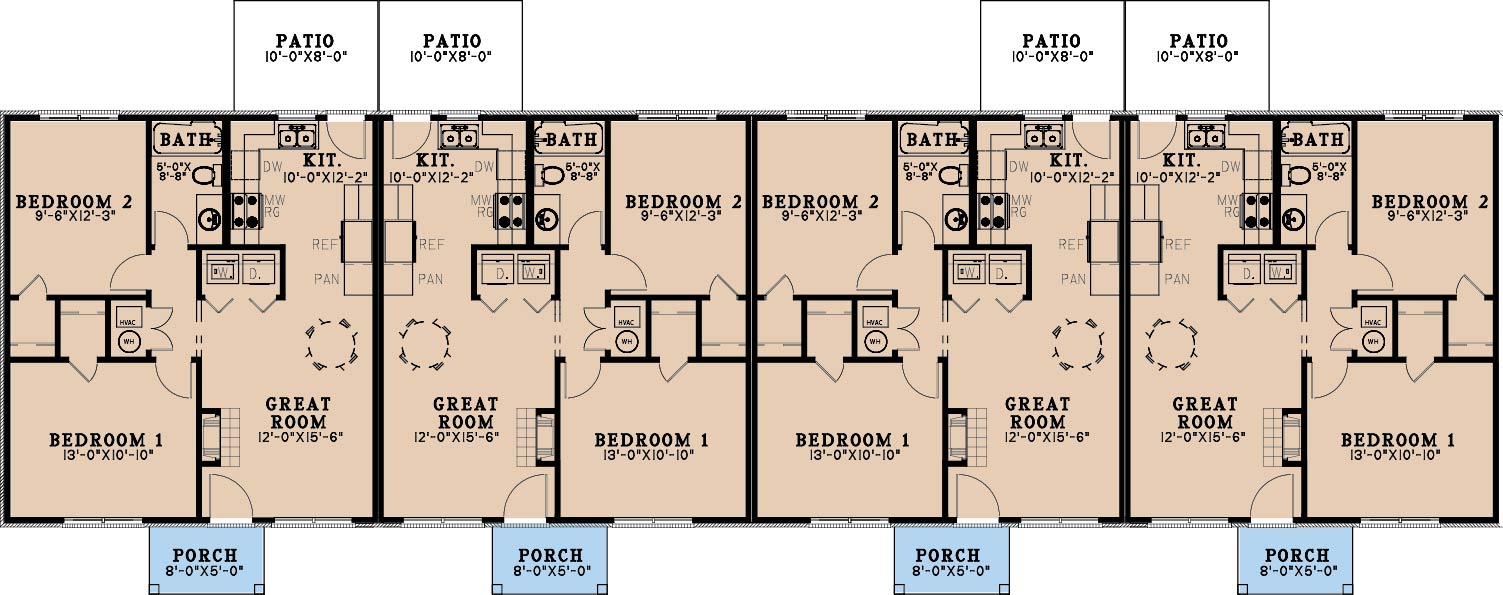

Floor plans
MEN 5478
House Plan 5478 Avondale Arms, Multi-Family House Plan
Plan Details
- Plan Number: MEN 5478
- Total Living Space:735Sq.Ft.
- Bedrooms: 2
- Full Baths: 1
- Half Baths: N/A
- Garage: N/A
- Garage Type: N/A
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 104
- Width In.: N/A
- Depth Ft.: 33
- Depth In.: 4
Description
Heating/Cooled for all Units: 2940 SQ.FT Porch SQ.FT for all Units: 160 Total for SQ.FT for all Units: 3100
Specifications
- Total Living Space:735Sq.Ft.
- Main Floor: 735 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 40 Sq.Ft.
- Garage (Sq.Ft.): N/A
- Total Square Feet: 775 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 7:12
- Porch Roof Pitch: N/A
- Roof Framing Description: stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 18
- Ridge Height (In.): 0
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
