House Plan 405-1 Carriage Hill II, Multi-Family House Plan

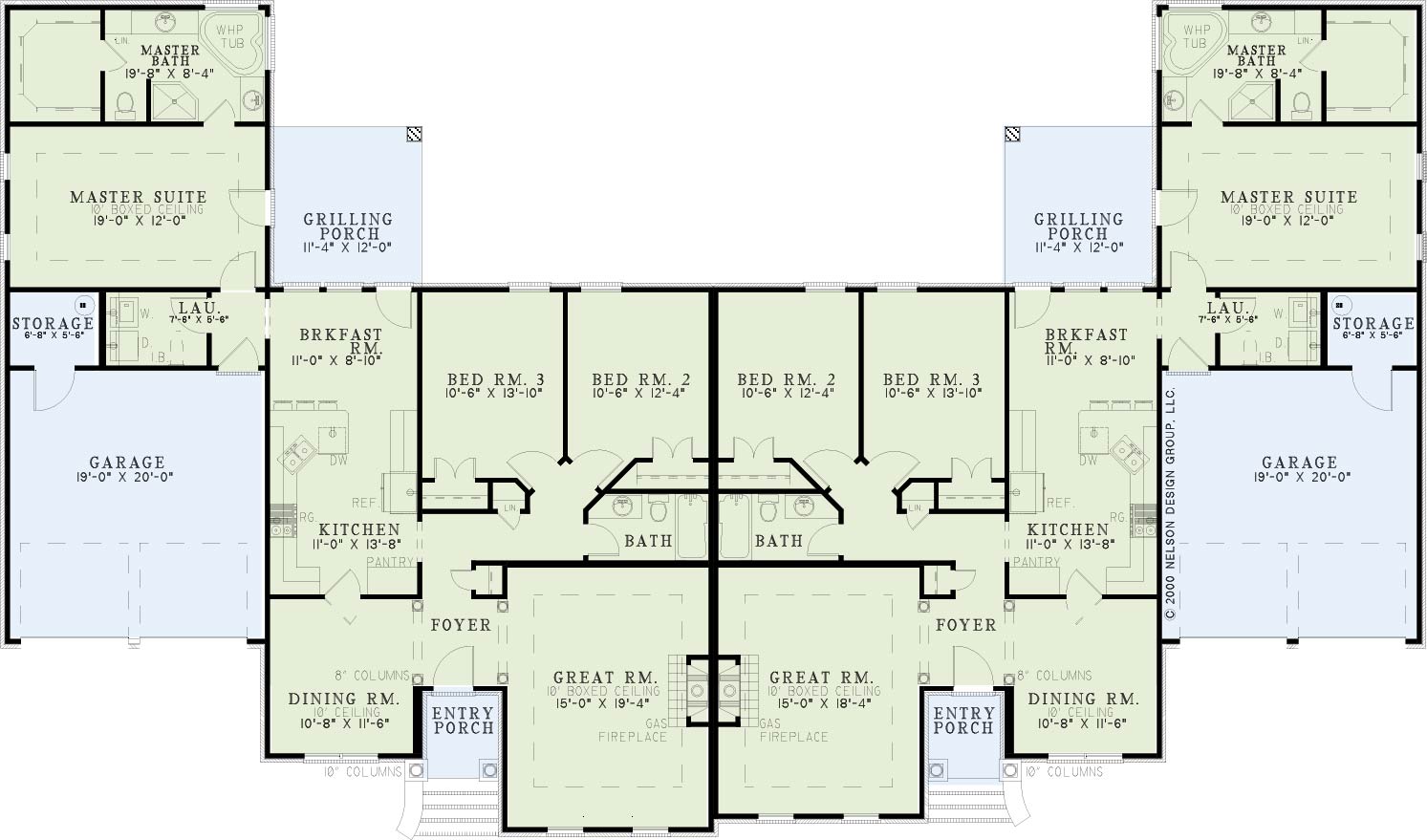

Floor plans
NDG 405-1
House Plan 405-1 Carriage Hill II, Multi-Family House Plan
Plan Details
- Plan Number: NDG 405-1
- Total Living Space:1714Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: 2 Bay
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 105
- Width In.: 4
- Depth Ft.: 61
- Depth In.: 6
Description
Unit 1 H/C SQ.FT 1,714 Unit 2 H/C SQ.FT 1,698 Entire duplex Main floor H/C is 3,412 SQ.FT Entire duplex Storage and Porch SQ.FT is 1,216 Total SQ.FT 4,628
Specifications
- Total Living Space:1714Sq.Ft.
- Main Floor: 1714 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): N/A
- Garage (Sq.Ft.): 608 Sq.Ft.
- Total Square Feet: 2322 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: N/A
- Main Ceiling Height: 9
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 25
- Ridge Height (In.): 0
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
