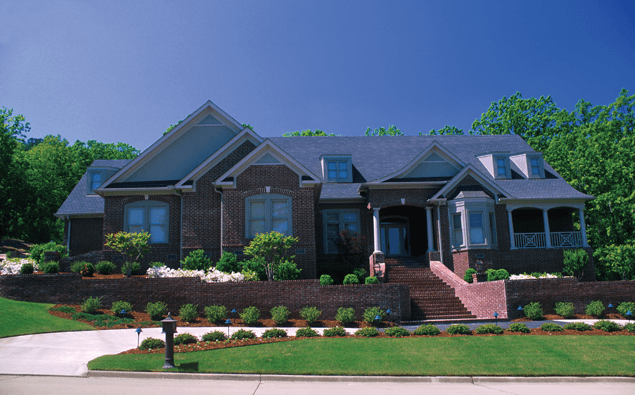

House Plan - Mike Kaufman NDG214 10 Front View>

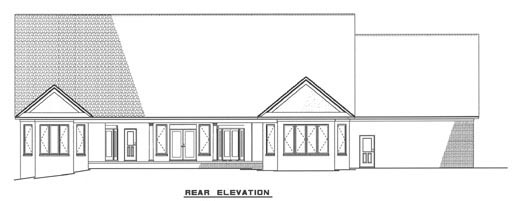

House Plan - 613 William Court NDG214 7 Rear View>

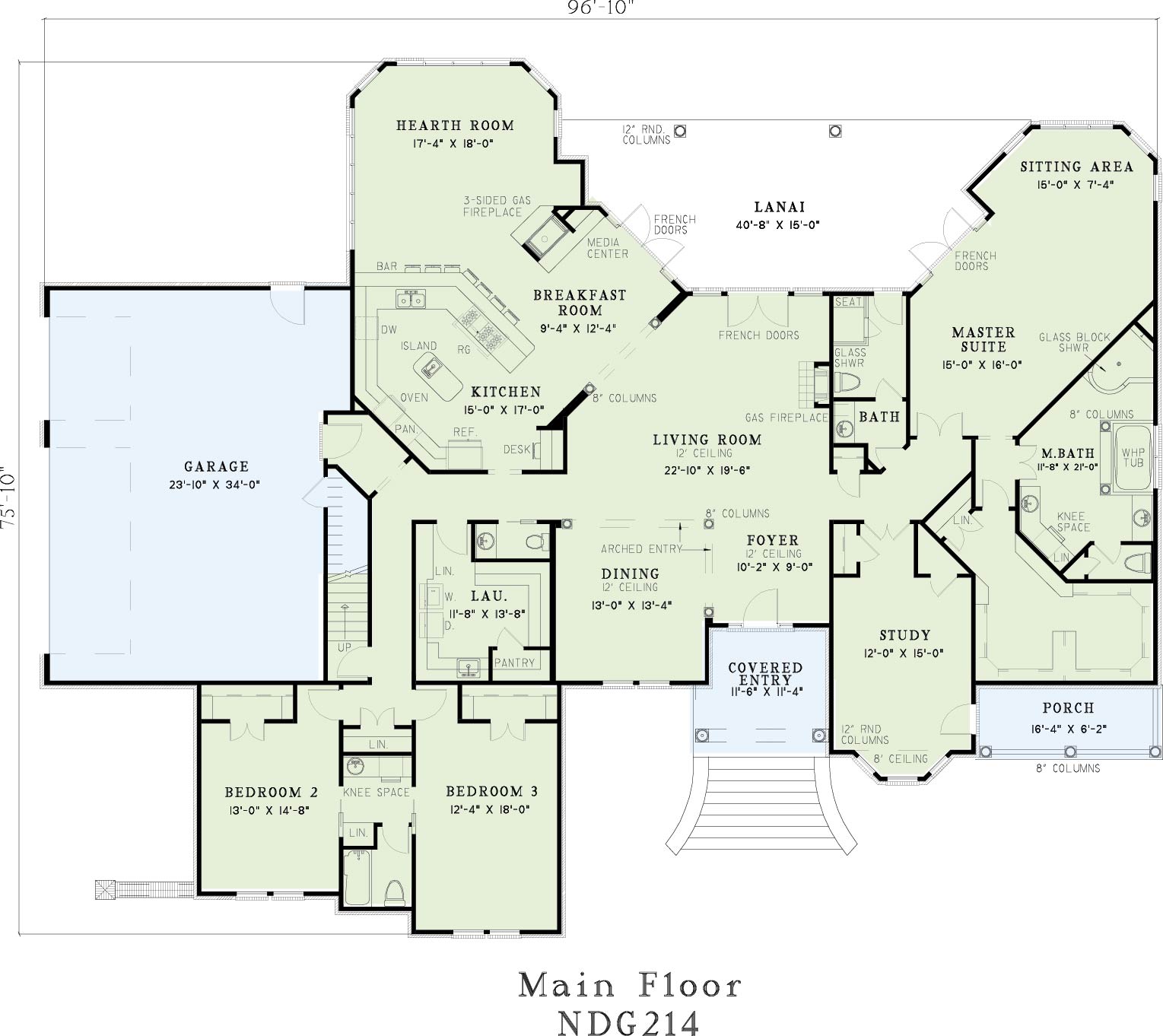

House Plan NDG 214 Main Floor
House Plan NDG 214 Upper Floor

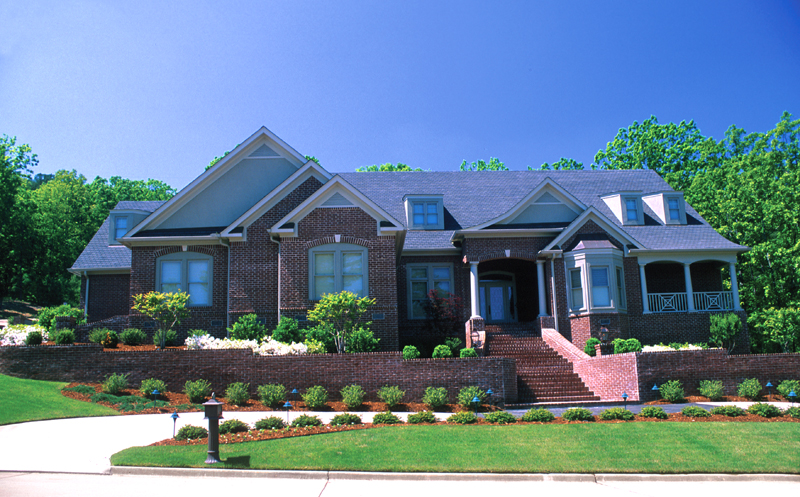

House Plan - Mike Kaufman NDG214 10 Front View

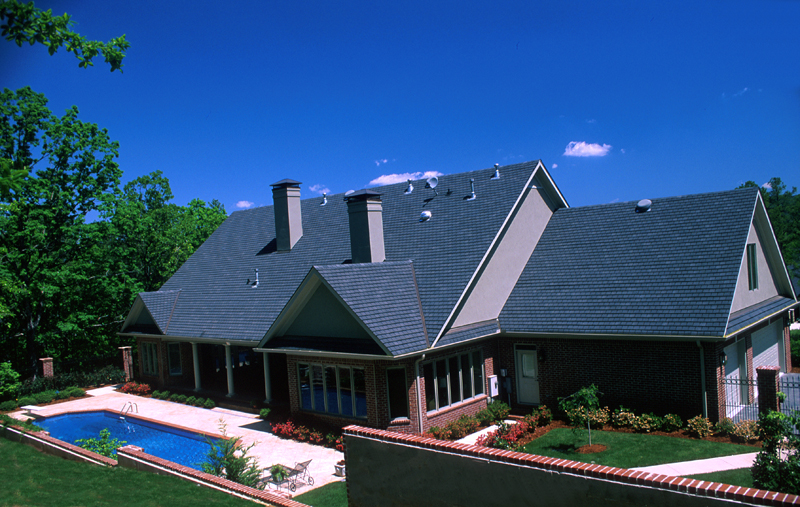

House Plan - 613 William Court NDG214 7 Rear View

Floor plans

NDG 214

House Plan 214 Dogwood Avenue, Traditional House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 214
  • Total Living Space:4532Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: 2
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 96
  • Width In.: 10
  • Depth Ft.: 75
  • Depth In.: 10

Description

Enter through the brick arched entry of this home to find an elegant design where entertaining family and friends is fun and easy. Enjoy the coziness of the hearth room when family visits for the holiday. After the party ends, you’ll find comfort in the privacy on your secluded master suite with a sitting area or relax in your soothing whirlpool bath. Beautiful French doors welcome you to the lanai where mornings and afternoons are best enjoyed. Upstairs, you can start each day by exercising or end the day by entertaining in the game room.

Specifications

  • Total Living Space:4532Sq.Ft.
  • Main Floor: 3732 Sq.Ft
  • Upper Floor (Sq.Ft.): 800 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 674 Sq.Ft.
  • Garage (Sq.Ft.): 893 Sq.Ft.
  • Total Square Feet: 5978 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
