House Plan 196 Walnut Lane, Traditional House Plan
Plan Details
- Plan Number: NDG 196
- Total Living Space:1713Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: 1
- Garage: 2 Bay Yes
- Garage Type: Front Load
- Carport: No
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 60
- Width In.: N/A
- Depth Ft.: 40
- Depth In.: N/A
Description

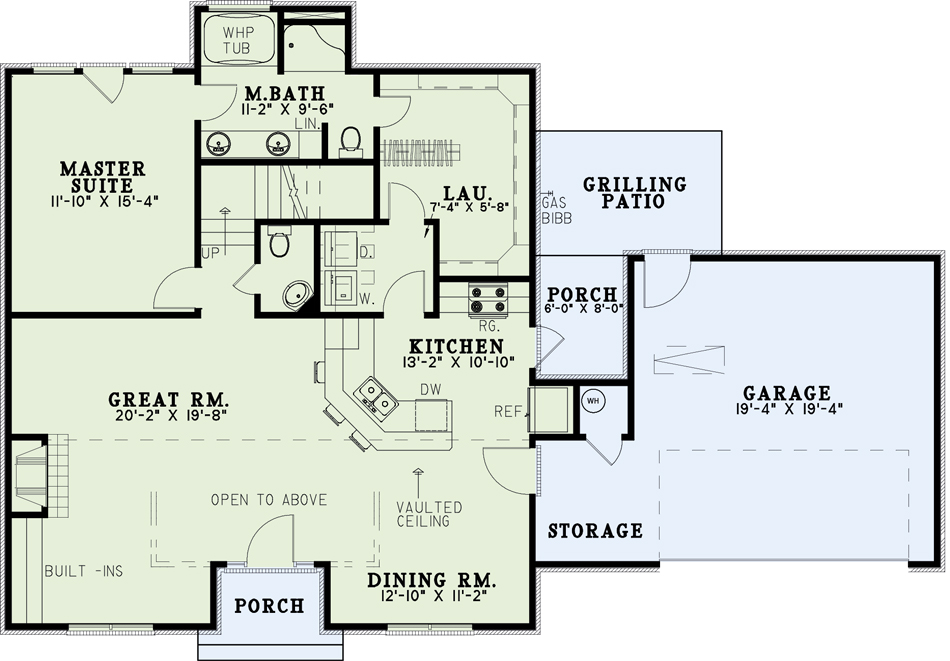

Enjoy the feel of a house in the country while maintaining all of the modern amenities in the home. The great room, entry and dining room flow into one expansive area to allow for family fun or more formal entertaining. An angled bar allows easy access from kitchen to the dining area and also serves as a breakfast bar. The master suite encompasses the rear of the main floor and includes a cavernous closet that also opens into the laundry area.
Specifications
- Total Living Space:1713Sq.Ft.
- Main Floor: 1247 Sq.Ft

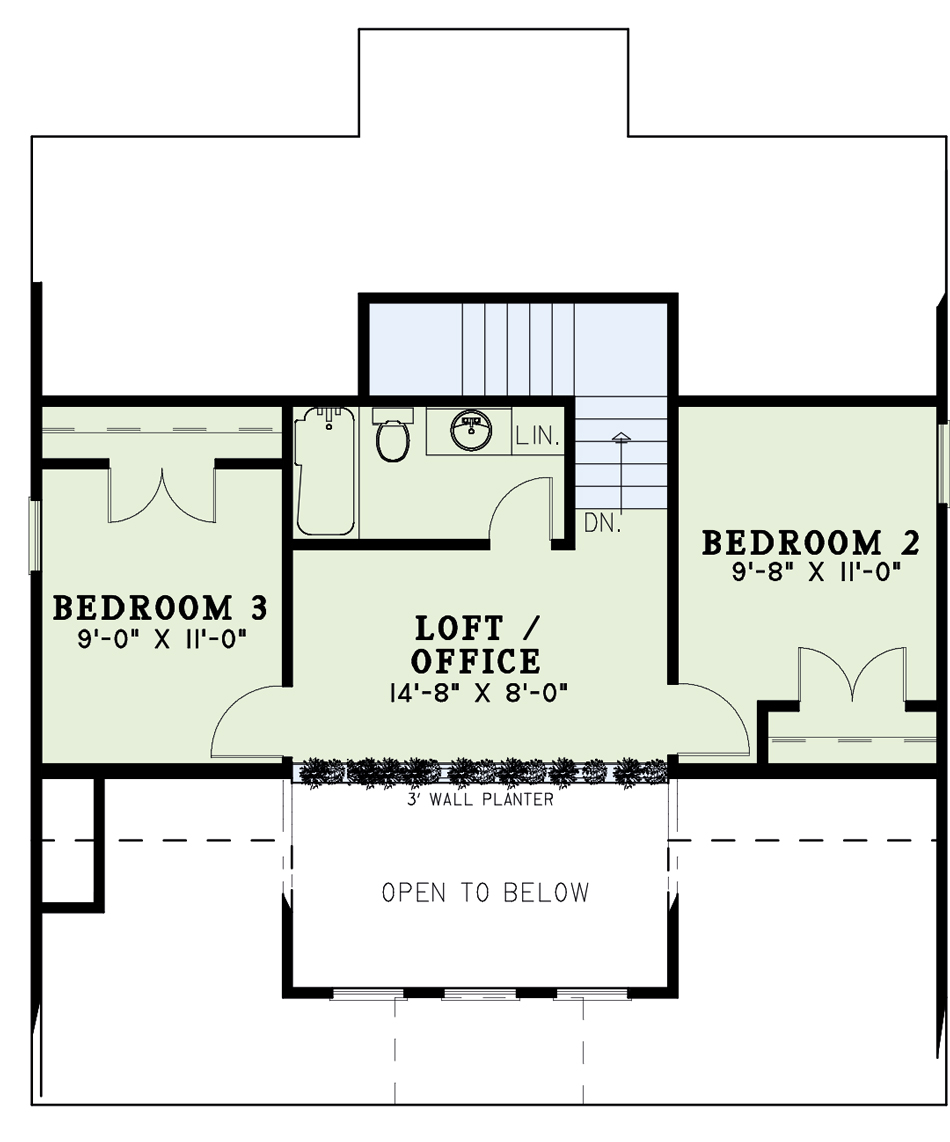

- Upper Floor (Sq.Ft.): 466 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 183 Sq.Ft.
- Garage (Sq.Ft.): 374 Sq.Ft.
- Total Square Feet: 2270 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 8
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 24
- Ridge Height (In.): 11
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
